User Manual: Large axion Electrode for Lower Back

Product Overview

The axion Large Lower Back Electrode is a high-quality, reusable, self-adhesive patch designed for TENS (Transcutaneous Electrical Nerve Stimulation) and EMS (Electrical Muscle Stimulation) electrostimulators. Measuring 20 x 12 cm, it is perfectly sized for targeted application on the lower back, providing effective pain relief and muscle stimulation.

This electrode is an ideal replacement patch, compatible with various electrostimulation devices that use a 2 mm pin connection. Its design ensures excellent conductivity, durability, and skin-friendliness, making it suitable for both home use and professional physiotherapy settings.

Image: The large axion electrode, showing its rectangular shape and two pin connections.

Key Features

• Optimal Size: 20 x 12 cm, specifically designed for effective coverage of the lower back, lumbar, and lumbago areas.
• Broad Compatibility: 100% compatible with electrostimulation devices using a 2 mm pin connection, including axion, Body-Clock, Dittmann, myStim, Pierenkemper, Promed, Prorelax, Saneo, schwa-medico, Stimio, TensCare, and MedFit.
• High Quality Construction: Composed of an insulating layer, special carbon film for uniform impulse distribution, biocompatible gel, and a protective film, ensuring effective current stimulation and skin safety.
• Reusable and Durable: Designed for multiple uses with excellent adhesion and long-lasting performance.
• Skin-Friendly: Non-irritating and latex-free, suitable for sensitive skin.
• German Quality: Manufactured by axion, a certified German medical device manufacturer, ensuring reliability and safety.

Image: A cross-section diagram illustrating the different layers of the electrode: soft insulating layer, special carbon layer, biocompatible gel layer, and protective film.

Compatibility

This electrode is designed for broad compatibility with various electrostimulation devices. Please verify your device uses a 2 mm pin connection.

Disclaimer: The axion brand is not affiliated with the manufacturers mentioned above. The brand names listed are used solely to indicate the compatibility of our product. All brand names and registered trademarks are the property of their respective owners.

Image: Visual representation of compatible and incompatible electrostimulation devices.

Setup and Application

Preparation:

1. Before placing the electrodes, thoroughly wash the skin area where the electrostimulation session will be performed with soap and water. Ensure the skin is clean and dry for optimal adhesion and conductivity.
2. Carefully remove the electrode from its sealed packaging. The electrodes come in a sealed bag to ensure they are new and unused upon receipt.
3. Peel the electrode from its protective film. Retain this film for storage after use.

Application:

4. Connect the 2 mm pin connectors of the electrode to your TENS/EMS device.
5. Apply the adhesive side of the electrode firmly to the appropriate body area. For lower back pain, position the large electrode to cover the affected lumbar region.
6. Ensure the entire surface of the electrode is in contact with the skin to guarantee uniform current distribution.
7. Once applied, you can begin your electrostimulation session according to your device's instructions and your therapy needs.

Image: The 20x12 cm electrode applied to the lower back, demonstrating its suitable size for lumbar application.

Image: Illustration of the electrode's design, specifically shaped to effectively target and relieve lumbar pain.

Image: Examples of electrode placement on different body parts, including the knee, lower back, and arm, highlighting versatility.

Usage and Care

To maximize the lifespan and effectiveness of your axion electrodes, follow these care instructions:

• Reusability: These electrodes are designed for multiple uses. The number of uses depends on skin preparation, storage, and frequency of use.
• Cleaning Skin: Always ensure the skin area is clean and free of oils, lotions, or sweat before application. This significantly improves adhesion and extends electrode life.
• Storage: After each use, carefully re-apply the electrode to its original protective film. Store the electrodes in their sealed bag or a cool, dry place away from direct sunlight.
• Adhesion Renewal: If adhesion decreases, gently dab the adhesive surface with a few drops of water. Do not use alcohol or other solvents.
• Replacement: Replace electrodes when they no longer adhere well to the skin or if the conductivity feels uneven.

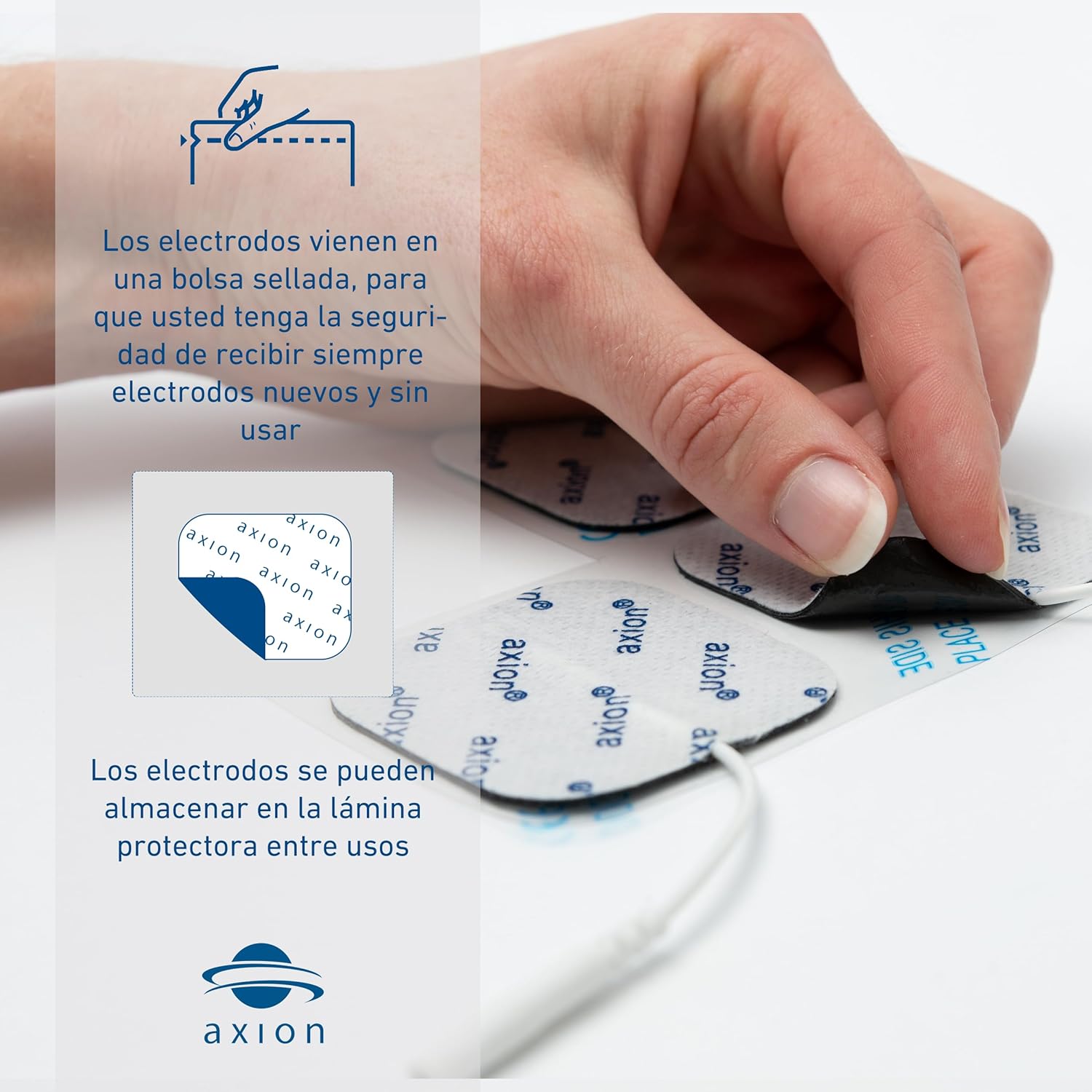

Image: A hand peeling an electrode from its protective film, illustrating the proper method for storage between uses to maintain adhesion.

Specifications

Troubleshooting

If you experience issues with your axion electrodes, consider the following common solutions:

• Poor Adhesion: Ensure the skin is clean and dry before application. If the electrode is old, its adhesive properties may have diminished, and replacement might be necessary. Gently dabbing the adhesive side with a few drops of water can sometimes restore stickiness.
• Uneven Stimulation/No Sensation: Check that the electrode is fully in contact with the skin across its entire surface. Ensure the pin connection is securely inserted into your TENS/EMS device. Verify your device is powered on and set to the correct program and intensity.
• Skin Irritation: Although designed to be skin-friendly, some individuals may experience irritation. Ensure the skin is clean before application. If irritation persists, discontinue use and consult a healthcare professional.
• Electrode Damage: Inspect electrodes for any visible damage, tears, or dry spots. Damaged electrodes should be replaced immediately to ensure safe and effective treatment.

Warranty and Support

As a product from a certified German medical device manufacturer, axion electrodes are produced under strict quality controls. For specific warranty information or technical support, please refer to the documentation provided with your purchase or contact axion customer service directly.

You can also visit the official axion store on Amazon for more information and to explore other products: axion Store

No official product videos from the seller are available for this specific product at this time.
