Introduction
This document provides instructions for the Easytry123 replacement infrared remote control, model Easytry2141. This remote is designed to be compatible with various Philips DVD Home Theater Systems, including models HTS3276/98, HTS3377/05, HTS3377/12, and HTS3377/51. Please ensure your original remote control matches the appearance of this replacement remote for proper functionality.
Setup
1. Battery Installation
The remote control requires two (2) AAA batteries (not included) for operation. Follow these steps to install the batteries:
- Locate the battery compartment on the back of the remote control.
- Press down on the tab and slide the battery compartment cover downwards to open it.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery compartment cover back into place until it clicks securely.

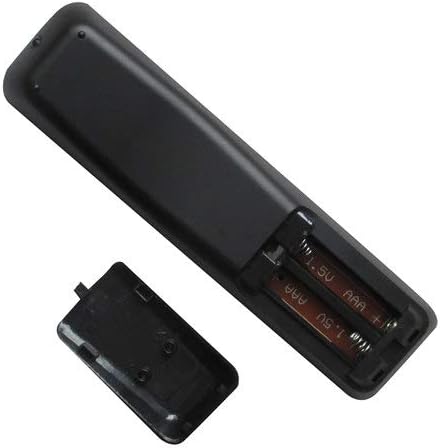

Image: Back of the remote control with the battery cover removed, illustrating the battery insertion process.

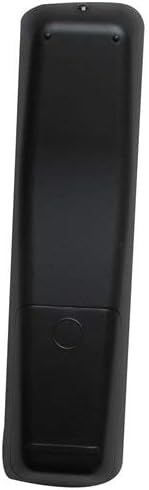

Image: Back of the remote control with the battery cover closed.
Note: This is an infrared (IR) replacement remote control and typically does not require any pairing or programming. Once batteries are installed, it should function directly with compatible Philips Home Theater Systems.
Operating Instructions
Point the remote control directly at the infrared receiver on your Philips DVD Home Theater System. Ensure there are no obstructions between the remote and the system.
Image: Front view of the replacement remote control.
Common Button Functions (Illustrative)
While specific button layouts and functions may vary slightly depending on the original remote it replaces, common functions typically include:
- Power Button: Turns the home theater system on or off.
- Volume Up/Down: Adjusts the audio output level.
- Mute: Silences the audio output.
- Source/Input: Selects the audio/video input source (e.g., DVD, AUX, TV).
- Playback Controls: Play, Pause, Stop, Fast Forward, Rewind, Skip Track.
- Navigation Buttons: Up, Down, Left, Right arrows for menu navigation.
- OK/Enter: Confirms selections in menus.
- Menu/Home: Accesses the main menu of the home theater system.
- Number Pad: For direct track selection or inputting numbers.
Refer to your Philips DVD Home Theater System's original manual for detailed information on specific functions and button assignments.
Maintenance
Battery Replacement
Replace batteries when the remote control's response becomes sluggish or stops working. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.
Cleaning
To clean the remote control, gently wipe it with a soft, dry cloth. Do not use liquid cleaners, abrasive pads, or chemical solvents, as these can damage the remote's surface or internal components.
Storage
Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. If the remote will not be used for an extended period, it is recommended to remove the batteries to prevent leakage.
Troubleshooting
- Remote not responding:
- Check if the batteries are installed correctly with the correct polarity (+/-).
- Replace the batteries with fresh AAA batteries.
- Ensure there is a clear line of sight between the remote control and the infrared receiver on your Philips Home Theater System. Remove any obstructions.
- Confirm that the remote control is compatible with your specific Philips Home Theater System model. This remote is designed for HTS3276/98, HTS3377/05, HTS3377/12, and HTS3377/51.
- Some buttons not working:
- Verify that the button functions are supported by your Philips Home Theater System. Some replacement remotes may not have all functions identical to the original.
- Clean the remote control surface, especially around the unresponsive buttons, to ensure no debris is interfering.
Specifications
| Model Number | Easytry2141 |
| Compatibility | Philips HTS3276/98, HTS3377/05, HTS3377/12, HTS3377/51 DVD Home Theater Systems |
| Connectivity Technology | Infrared (IR) |
| Power Source | 2 x AAA Batteries (not included) |
| Controller Type | Button Control |
Warranty and Support
Warranty Information
As a replacement product, this remote control is subject to the return and replacement policies of the seller, Easytry123. Please refer to your purchase documentation or contact the seller directly for details regarding warranty, returns, or exchanges.
Customer Support
For any questions or issues not covered in this manual, please contact the seller, Easytry123, through the platform where the purchase was made. Provide your order number and a detailed description of the issue for prompt assistance.
