Devanti 5 Trays Food Dehydrator User Manual

1. Introduction

Thank you for choosing the Devanti 5 Trays Food Dehydrator. This appliance is designed to efficiently dry a variety of foods, including fruits, vegetables, meats, and herbs, preserving their nutrients and extending their shelf life. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new food dehydrator. Please read it thoroughly before first use and retain it for future reference.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse the cord, plugs, or the base unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended household use.
• Ensure adequate ventilation around the unit during operation.
• This appliance is equipped with overheating protection. If the unit overheats, it will automatically shut off.

3. Product Components

The Devanti Food Dehydrator consists of the following main parts:

• Base Unit: Contains the heating element, fan, and control panel. Features a stainless steel casing.
• Transparent Trays (5): Food-grade, removable trays for holding food items during dehydration.
• Lid: Transparent lid to cover the top tray.
• LCD Display: Digital screen for displaying temperature and timer settings.
• Control Buttons: Buttons for 'Time' and 'Temp' adjustment.
• Non-slip Feet: Located at the base for stability.
• Air Vent: Designed for efficient heat dissipation.

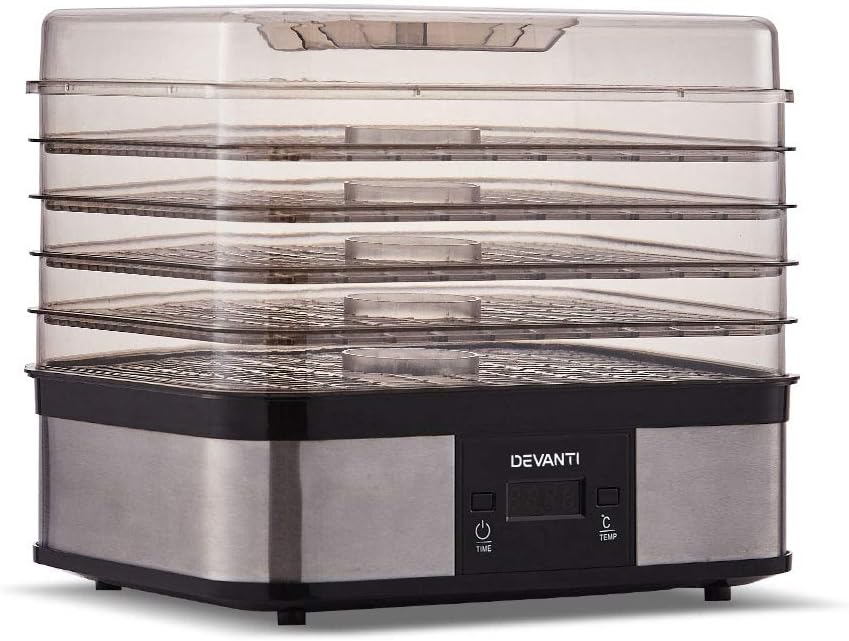

Image: Front view of the Devanti 5 Trays Food Dehydrator with its transparent trays and control panel.

Image: The Devanti Food Dehydrator showing its overall dimensions: 35cm width, 26cm depth, and 29cm height.

Image: Close-up view of the LCD display and control buttons (Time and Temp) on the Devanti Food Dehydrator, highlighting the 48-hour timer capability.

Image: Diagram illustrating the 360-degree complete drying system with horizontal and vertical airflow circulation for even dehydration.

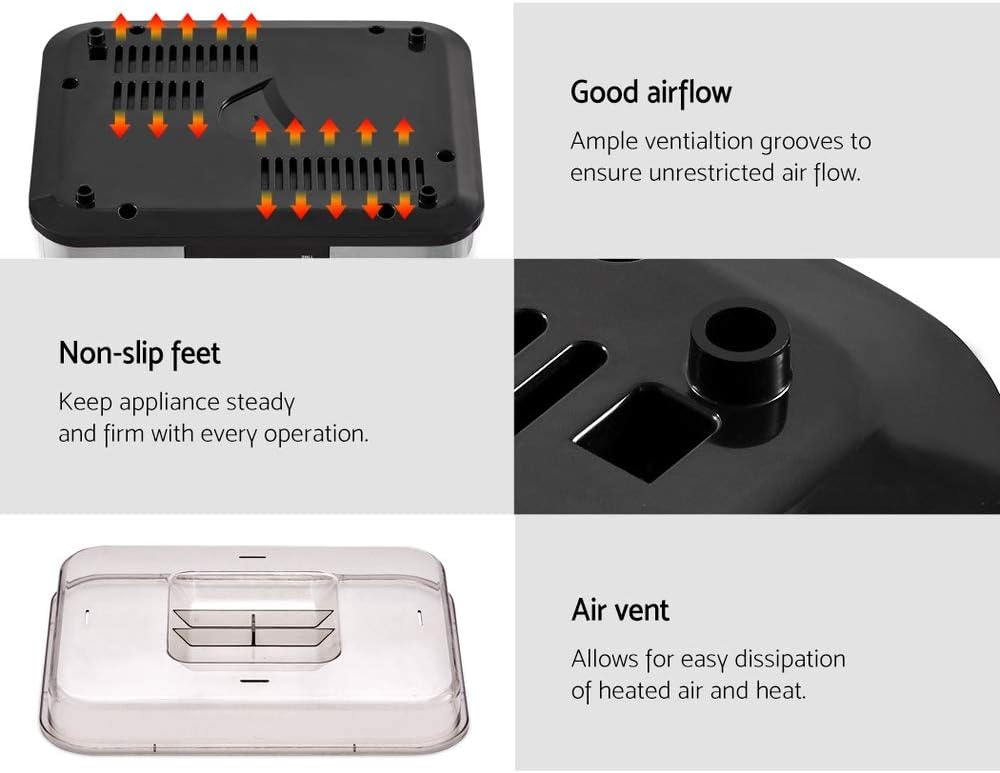

Image: Detailed views of the dehydrator's features: ample ventilation grooves for unrestricted airflow, non-slip feet for stability, and the air vent on the lid for heat dissipation.

4. Setup

1. Unpack: Carefully remove all packaging materials and ensure all components are present.
2. Initial Cleaning: Before first use, wash the transparent trays and lid in warm, soapy water. Rinse thoroughly and dry completely. Wipe the base unit with a damp cloth. Do not immerse the base unit in water.
3. Placement: Place the dehydrator on a stable, flat, heat-resistant surface. Ensure there is adequate space around the unit for proper ventilation (at least 15 cm on all sides). Do not place it near heat sources or flammable materials.
4. Assemble: Stack the clean, dry trays onto the base unit. Place the lid securely on the top tray.

5. Operating Instructions

5.1. Preparing Food

• Wash and prepare your food items (e.g., slice fruits and vegetables evenly, trim fat from meats).
• For best results, slice food into uniform thickness to ensure even drying.
• Pre-treatment (e.g., blanching vegetables, pre-soaking fruits in lemon juice) may be beneficial for certain foods to retain color and prevent spoilage.

5.2. Loading Trays

• Arrange prepared food in a single layer on each tray.
• Do not overlap food items, as this will hinder airflow and result in uneven drying.
• Ensure there is sufficient space between food pieces for air circulation.

5.3. Setting Temperature and Timer

1. Plug the dehydrator into a standard Australian power outlet. The LCD display will illuminate.
2. Press the 'Temp' button to adjust the drying temperature. The temperature can be set from 40°C to 70°C. Refer to a dehydration guide for recommended temperatures for different food types.
3. Press the 'Time' button to set the drying duration. The timer can be set for up to 48 hours.
4. Once temperature and time are set, the dehydrator will begin operation.

5.4. Monitoring the Drying Process

• The transparent trays and lid allow you to monitor the drying progress without opening the unit, which helps prevent heat loss.
• The 360° complete drying system ensures fast and efficient drying with horizontal and vertical airflow.
• Periodically check the food for desired dryness. Drying times vary based on food type, thickness, and moisture content.
• When the drying cycle is complete, the unit will automatically shut off.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your dehydrator.

1. Unplug: Always unplug the dehydrator from the power outlet and allow it to cool completely before cleaning.
2. Trays and Lid: The transparent trays and lid are food-grade and can be washed by hand with warm, soapy water or placed in the dishwasher for convenience. Rinse thoroughly and dry completely before storing or reassembling.
3. Base Unit: Wipe the exterior of the base unit with a soft, damp cloth. For stubborn stains, use a mild detergent. Do not use abrasive cleaners or scouring pads. Never immerse the base unit in water or any other liquid.
4. Storage: Store the assembled dehydrator in a clean, dry place when not in use.

7. Troubleshooting

If you encounter issues with your Devanti Food Dehydrator, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

The Devanti 5 Trays Food Dehydrator comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and faults under normal household use.

For warranty claims, technical support, or any inquiries regarding your product, please contact the retailer or manufacturer's customer service department with your proof of purchase and model number.

Please refer to the original product packaging or the retailer's website for specific contact details and full warranty terms and conditions.
