HyperDrive Tube 6-in-1 USB-C Hub User Manual

1. Introduction

The HyperDrive Tube 6-in-1 USB-C Hub is designed to expand the connectivity of your USB-C enabled device. It provides essential ports for data transfer, video output, network connection, and power delivery, enhancing your productivity and versatility.

2. Product Overview

This 6-in-1 USB-C hub features a compact design and offers the following ports:

• 1 x HDMI Port: Supports video output up to 4K resolution at 30Hz.
• 1 x Gigabit Ethernet Port: Provides a stable wired network connection.
• 3 x USB 3.0 Type-A Ports: For connecting USB peripherals and high-speed data transfer.
• 1 x USB-C Power Delivery Port: For charging your host device and data transfer.

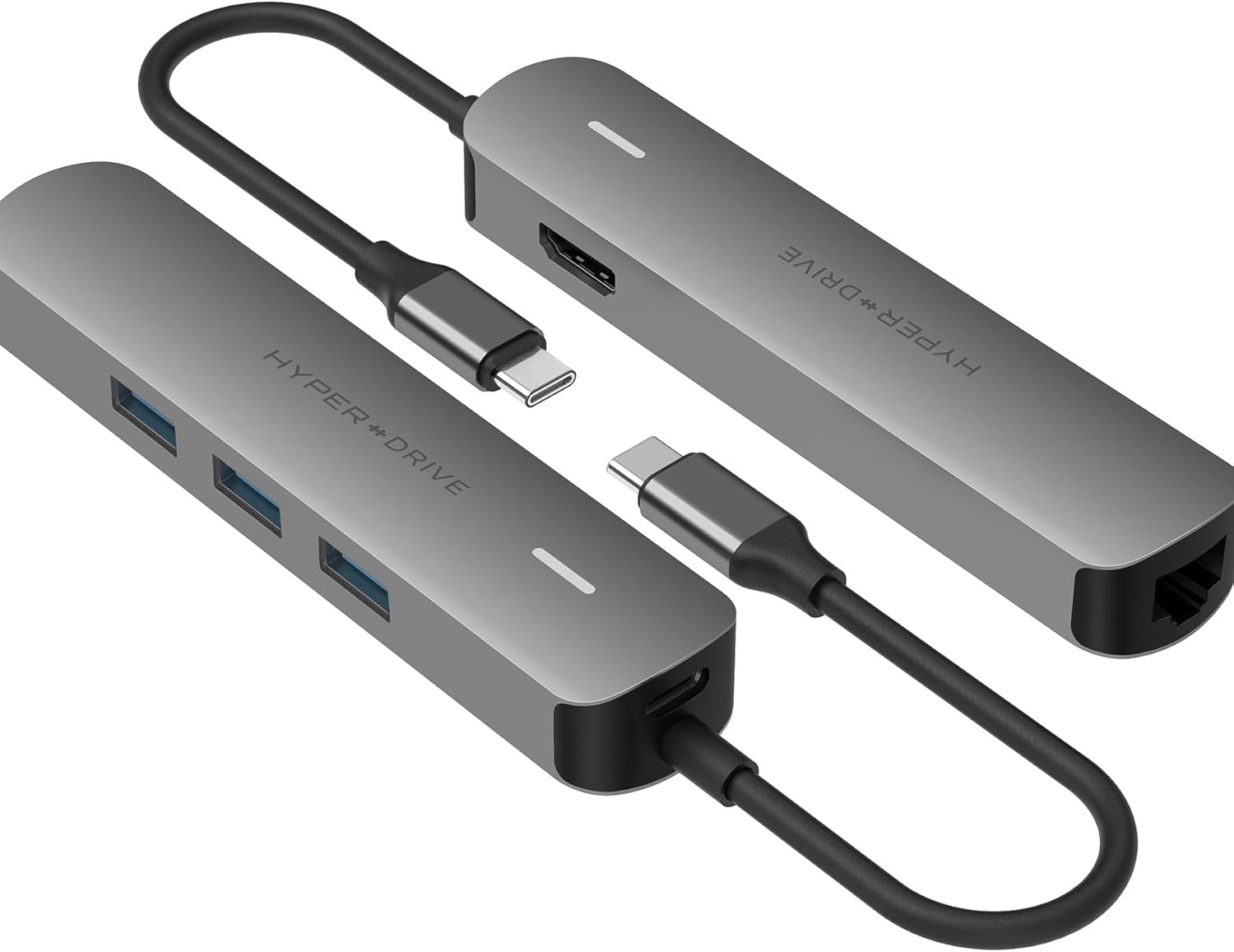

Image: The HyperDrive Tube 6-in-1 USB-C Hub, displaying its various input and output ports, including HDMI, Ethernet, and USB-A ports.

3. Setup Instructions

1. Connect the Hub to Your Device: Plug the integrated USB-C cable of the HyperDrive Tube hub into a compatible USB-C port on your laptop, tablet, or smartphone. Ensure the USB-C port on your host device supports DisplayPort Alternate Mode (DP Alt-Mode) for video output and Power Delivery for charging.
2. Connect Peripherals:
   • HDMI Display: Connect an HDMI cable from your monitor or TV to the hub's HDMI port.
   • Ethernet Network: Connect an Ethernet cable from your router or modem to the hub's Gigabit Ethernet port.
   • USB Devices: Plug your USB-A peripherals (e.g., mouse, keyboard, flash drive) into the USB 3.0 Type-A ports.
   • Power Adapter (Optional): If your host device requires charging, connect your device's original USB-C power adapter to the hub's USB-C Power Delivery port.
3. Verify Connection: Your operating system should automatically detect the connected devices and external display.

Image: The HyperDrive Tube 6-in-1 USB-C Hub connected to a MacBook Pro, extending its display to an external monitor and providing additional USB ports for peripherals.

4. Operating Instructions

Once connected, the HyperDrive Tube hub operates automatically. Here are specific functions:

• HDMI Video Output: The HDMI port supports resolutions up to 4K (3840x2160) at 30Hz. For optimal display settings, adjust your computer's display preferences. Note that 30Hz refresh rate is suitable for general use and coding, but may not be ideal for fast-paced gaming or video editing requiring higher refresh rates.
• USB 3.0 Data Transfer: The three USB 3.0 Type-A ports provide high-speed data transfer for external hard drives, flash drives, and other USB peripherals. These ports are not designed to support Apple SuperDrive or charge iPads.
• Gigabit Ethernet: Enjoy a stable and fast wired internet connection. The hub automatically configures the network connection upon plugging in the Ethernet cable.
• USB-C Power Delivery: If your host device supports USB-C Power Delivery, connect your original power adapter to the hub's USB-C port to charge your device while using the hub's other functions.

Image: A close-up view of the HyperDrive Tube 6-in-1 USB-C Hub connected to a MacBook, demonstrating simultaneous use of the Ethernet port and multiple USB devices.

5. Maintenance

To ensure the longevity and optimal performance of your HyperDrive Tube hub, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the exterior of the hub. Avoid using liquid cleaners or abrasive materials.
• Storage: Store the hub in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Handling: Avoid dropping the hub or subjecting it to strong impacts. Do not bend or twist the integrated USB-C cable excessively.
• Ventilation: Ensure the hub has adequate ventilation during operation, especially when multiple devices are connected, as it may generate heat.

6. Troubleshooting

If you encounter issues with your HyperDrive Tube hub, refer to the following common solutions:

• No Display Output:
  • Ensure your host device's USB-C port supports DisplayPort Alternate Mode.
  • Check the HDMI cable connection between the hub and the monitor.
  • Verify your monitor's input source is set correctly to HDMI.
  • Try connecting the hub to a different USB-C port on your device, if available.
• USB Devices Not Recognized:
  • Ensure the USB device is properly plugged into the hub.
  • Try connecting the USB device directly to your computer to confirm it functions independently.
  • Some high-power USB devices may require external power or a powered USB hub.
• Slow Charging / No Charging via Hub:
  • Ensure your original power adapter is connected to the hub's USB-C Power Delivery port.
  • Verify that your host device's USB-C port supports Power Delivery.
  • Note that connecting multiple power-hungry peripherals to the hub can reduce the power available for charging the host device.
• Hub Gets Warm During Use:

  It is normal for the hub to become warm during operation, especially when multiple ports are in use or when charging a device. This is due to power conversion and data processing. If the hub becomes excessively hot, disconnect it and allow it to cool down.

• Network Connection Issues:
  • Check the Ethernet cable connection to both the hub and your router/modem.
  • Ensure your network settings on your computer are configured for a wired connection.
  • Try restarting your router/modem and your host device.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please visit the official Hyper website or contact their customer service. Keep your purchase receipt for warranty claims.

Hyper Official Website: www.hyper.com
