Introduction
This manual provides essential instructions for the safe and efficient use of your WMF Ambient Electric Bottle Cooler. This device is designed to keep wine and champagne bottles chilled while providing ambient LED lighting. Please read these instructions thoroughly before first use and retain them for future reference.
Important Safety Instructions
- Read all instructions before operating the appliance.
- Do not immerse the main unit in water or other liquids. Clean with a damp cloth only.
- Keep the appliance out of reach of children.
- Use only the provided charging cable and adapter.
- Ensure the appliance is placed on a stable, level surface.
- Do not attempt to repair or modify the appliance yourself. Contact qualified service personnel for repairs.
- Unplug the appliance from the power source when not in use or before cleaning.
- Do not charge primary (non-rechargeable) batteries in the device.
Package Contents
Verify that all items are present in the package:
- 1 x WMF Ambient Electric Bottle Cooler (Cromargan matte stainless steel body)
- 1 x Flexible Cooling Sleeve
- 1 x Charging Cable with USB Connector
- 1 x Power Adapter

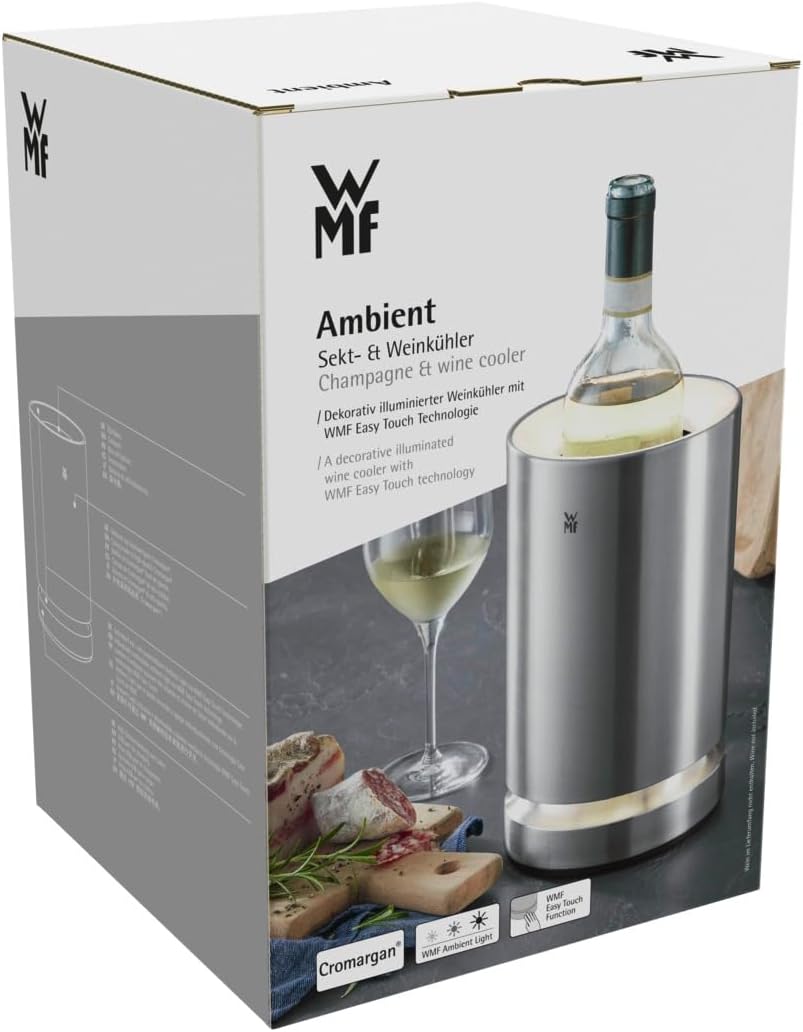

Image: Product packaging showing the cooler and its accessories.
Image: The included charging cable with USB connector and power adapter.
Product Components
Familiarize yourself with the main parts of your WMF Ambient Electric Bottle Cooler:
- Cooler Body: Made from Cromargan matte stainless steel, housing the electronics and LED lighting.
- Cooling Sleeve: A flexible, shatterproof gel pack designed to be pre-chilled in a freezer.
- LED Light Rings: Located at the top and bottom of the cooler for ambient illumination.
- Touch Control: Integrated into the Cromargan housing for adjusting light levels.
- Battery Compartment: Located at the base for rechargeable batteries (not included, or pre-installed).
- Charging Port: Micro-USB port at the base for connecting the charging cable.
- On/Off Switch: Located at the base to power the device.

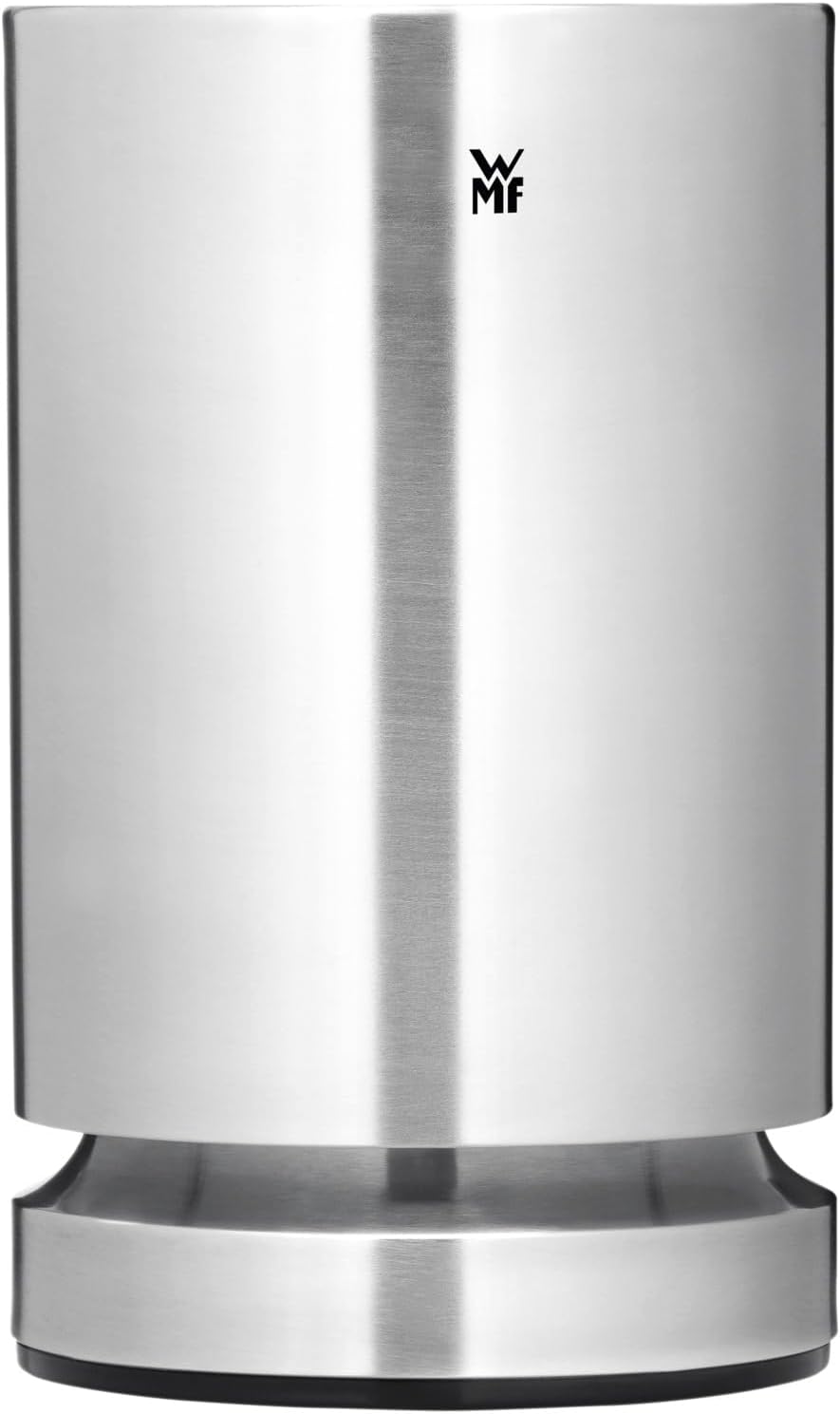

Image: Front view of the cooler, highlighting the WMF logo.
Image: The cooler with the top ring and cooling sleeve separated from the main body.
Image: The flexible cooling sleeve, designed to be frozen flat.
Setup
1. Charging the Device
- Locate the battery compartment on the bottom of the cooler. If using rechargeable batteries, ensure they are correctly inserted according to polarity markings.
- Connect the small end of the USB charging cable to the charging port on the base of the cooler.
- Connect the large end of the USB cable to the provided power adapter, then plug the adapter into a standard wall outlet.
- Allow the device to charge fully before first use. A full charge provides approximately 4-5 hours of operation at the highest brightness level.
Image: The underside of the cooler, showing the battery compartment and on/off switch.
Image: Close-up of the cooler's base, indicating the micro-USB charging port.
2. Preparing the Cooling Sleeve
- Place the flexible cooling sleeve flat in a freezer for several hours until completely frozen.
Image: The cooling sleeve stored flat inside a freezer compartment.
Image: A hand demonstrating how to adjust the velcro on the cooling sleeve to fit a bottle.
3. Assembling the Cooler
- Once frozen, carefully insert the cooling sleeve into the stainless steel cooler body.
- Ensure the sleeve sits correctly at the bottom of the cooler.
Image: The cooler body with the black cooling sleeve correctly placed inside.
Operating Instructions
1. Placing a Bottle
- Place your pre-chilled wine or champagne bottle (up to 92 mm diameter) into the cooling sleeve inside the cooler.
- The cooling sleeve will help maintain the bottle's temperature.

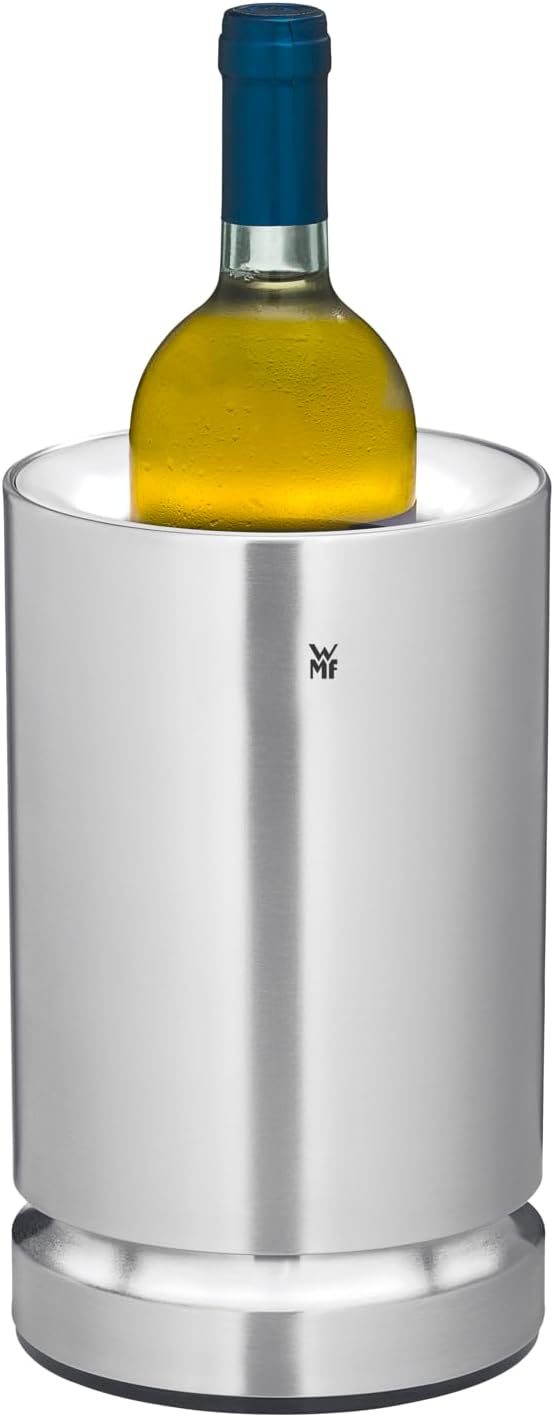

Image: A bottle of wine placed inside the cooler, viewed from above.
2. Using the LED Lighting
- Flip the On/Off switch located on the bottom of the cooler to the 'On' position.
- To activate the LED lighting, gently touch the Cromargan (stainless steel) housing.
- The cooler features three adjustable brightness levels. Each subsequent touch will cycle through the brightness levels (low, medium, high) and then turn the lights off.
Image: The WMF Ambient Electric Bottle Cooler with its LED lights on, creating an ambient glow.
Image: The cooler with a bottle of white wine, illuminated by the LED light rings.

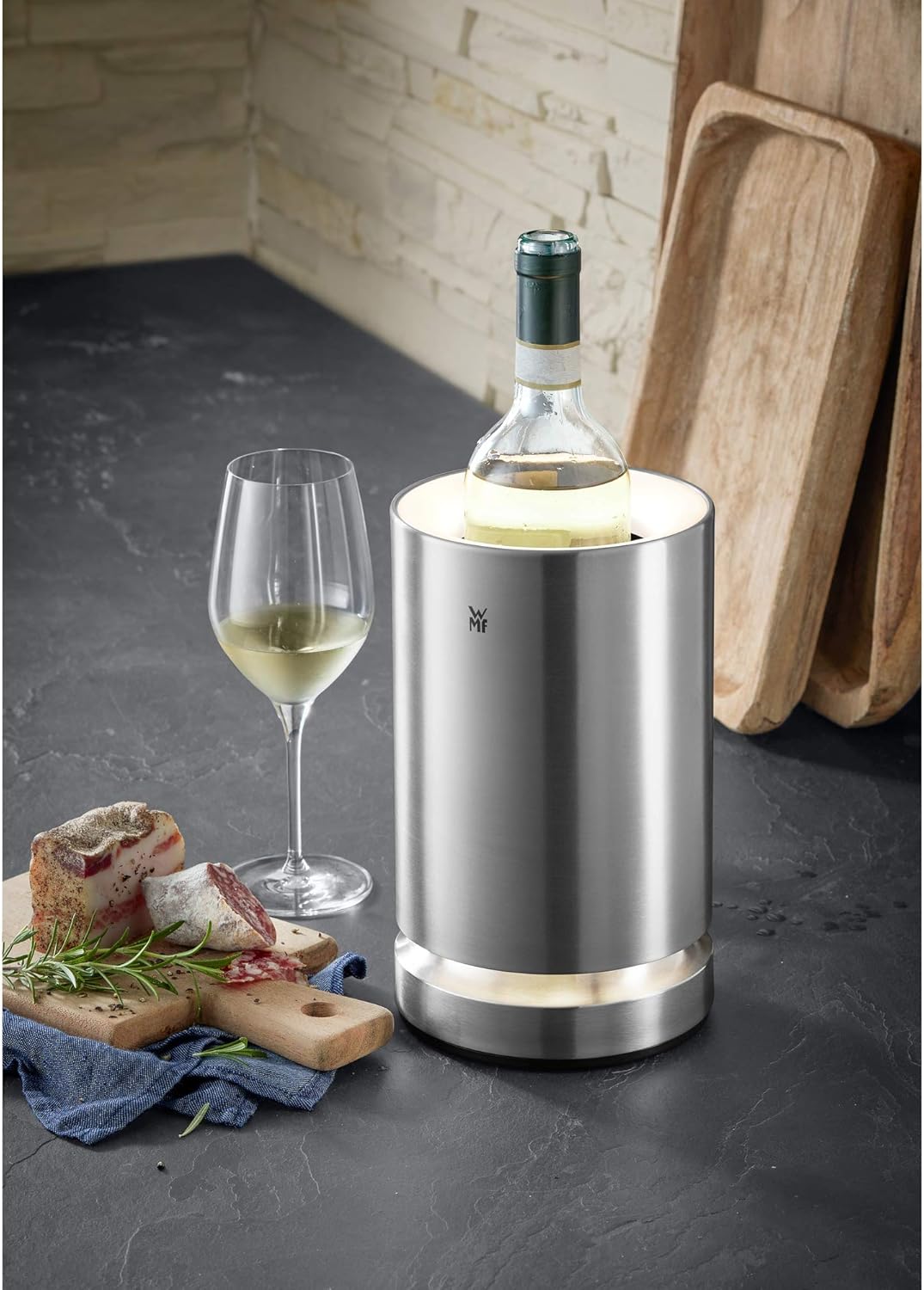

Image: The cooler in use on a table setting, demonstrating its aesthetic and functional purpose.
Care and Maintenance
Cleaning the Cooler Body
- Ensure the cooler is turned off and unplugged before cleaning.
- Wipe the Cromargan matte stainless steel exterior with a soft, damp cloth.
- Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Do not immerse the cooler body in water.
Cleaning the Cooling Sleeve
- The cooling sleeve can be wiped clean with a damp cloth and mild detergent if necessary.
- Rinse thoroughly and allow to air dry completely before refreezing or storing.
Image: The cooler with the cooling sleeve removed, illustrating ease of cleaning.
Storage
- When not in use, store the cooler in a clean, dry place.
- The flexible cooling sleeve can be stored flat in the freezer, ready for next use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights do not turn on. | Device is off or battery is depleted. | Ensure the On/Off switch at the base is in the 'On' position. Charge the device fully. |
| Lights are dim or flicker. | Low battery level. | Recharge the device. |
| Bottle is not staying cold. | Cooling sleeve not sufficiently frozen or bottle was not pre-chilled. | Ensure the cooling sleeve is completely frozen. For best results, use pre-chilled bottles. |
| Touch control is unresponsive. | Device is off or a temporary electronic glitch. | Ensure the device is on. Try turning the device off and on again. |
Technical Specifications
- Model: 04.1540.0011
- Material: Cromargan® Matte Stainless Steel
- Compatible Bottle Diameter: Up to 92 mm (approx. 3.6 inches)
- Power Input: 5V ⎯ 0.5A, 2.5W
- Battery Life: Approximately 4-5 hours (at brightness level 3)
- Dimensions (W x H): Approximately 5.63 inches x 9.33 inches (14.3 cm x 23.7 cm)
- Item Weight: 1.48 Kilograms (approx. 3.26 lbs)
- Included Components: Cooler body, cooling sleeve, USB charging cable, power adapter.
Image: The product label on the base, displaying electrical specifications and model number.
Warranty and Support
WMF products are manufactured with high-quality materials and undergo strict quality control. For warranty information, please refer to the warranty card included with your purchase or visit the official WMF website. For technical support or service inquiries, please contact WMF customer service through their official channels.
Online Support: Visit www.wmf.com for product information and support resources.
