Eboxer 600W 220V Immersion Water Heater Element

1. Introduction

This manual provides instructions for the safe and effective use of your Eboxer 600W 220V Immersion Water Heater Element. This compact and portable device is designed for heating water, coffee, tea, and similar liquids in appropriate containers, making it suitable for household, office, university dorm, or travel use.

Image 1.1: The Eboxer Immersion Water Heater Element in use, heating water in a glass.

2. Safety Information

Please read and understand all safety warnings before using the immersion heater. Failure to follow these instructions may result in electric shock, fire, or personal injury.

• WARNING: Do not put your hands into the water container when the item is working or plugged into a power outlet.
• WARNING: Do not operate the heater in an empty container (dry boil). Ensure the heating element is fully immersed in liquid before plugging it in.
• Unplug the heater from the power outlet before removing it from the liquid.
• Allow the element to cool for at least 20 seconds after unplugging before removal from the liquid.
• Use only with heat-resistant containers such as glass or ceramic. Avoid using plastic containers, as they may melt or release harmful chemicals.
• Do not leave the device unattended when it is plugged in and operating.
• This product is designed for 220V power outlets. Using it with a 110V outlet will significantly reduce heating efficiency and time. Ensure compatibility with your power supply.
• Keep out of reach of children.

3. Specifications

Detailed technical specifications for your Eboxer Immersion Water Heater Element:

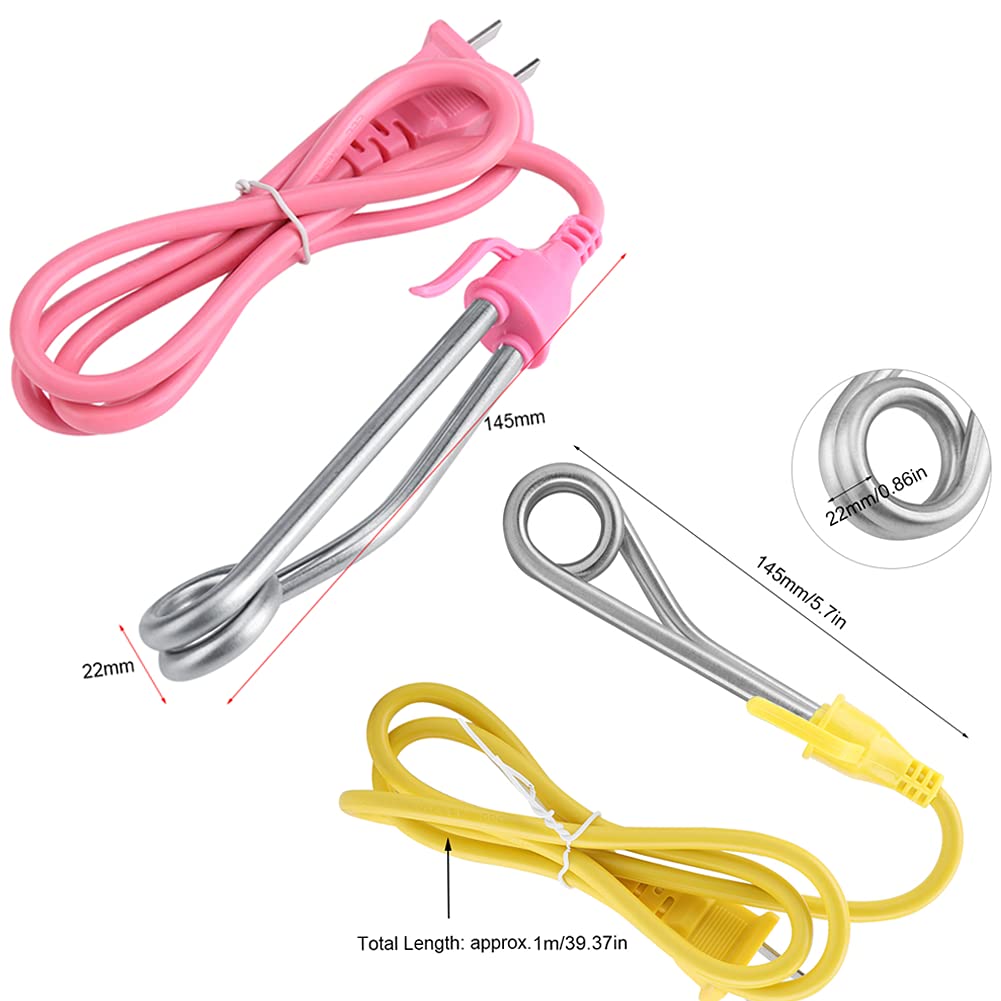

Image 3.1: Dimensions and components of the immersion heater, including the heating element and plug.

4. Setup

Follow these steps to prepare your immersion heater for use:

1. Ensure the immersion heater is clean and free of any debris or packaging materials.
2. Select a suitable heat-resistant container, such as a glass or ceramic mug, cup, or kettle. Ensure the container is stable and can safely hold the liquid and the heater.
3. Fill the container with the desired amount of water or other liquid.
4. Carefully immerse the metal heating element into the liquid. Ensure the entire heating coil is fully submerged in the liquid. The liquid level should be above the heating coil but below the electrical connection point where the cord meets the element.

5. Operating Instructions

Once the heater is properly set up, follow these steps to operate it:

1. After ensuring the heating element is fully immersed in the liquid, plug the device into a compatible 220V power outlet.
2. The element will immediately begin heating the liquid. You may observe small bubbles forming around the coil as the water heats up.
3. Monitor the liquid. Once it reaches the desired temperature or begins to boil, immediately unplug the heater from the power outlet.
4. Do not remove the heater from the liquid immediately after unplugging. Wait approximately 20 seconds to allow the element to cool down slightly and prevent hot liquid from splashing.
5. Carefully remove the heater from the container. Be cautious as the element will still be hot.

6. Maintenance

To ensure the longevity and efficient performance of your immersion heater, regular maintenance is recommended:

• Cleaning: Mineral buildup can occur on the heating element, especially in areas with hard water. To clean, first ensure the device is unplugged and has cooled completely. Gently scrub the heating element with a soft brush (e.g., a toothbrush) and a mild descaling agent or a small amount of toothpaste to remove any residue.
• Rinsing: After cleaning, rinse the heating element thoroughly with water.
• Drying and Storage: Ensure the heater is completely dry before storing it. Store in a cool, dry place, ideally in its original packaging or a protective pouch.

Image 6.1: The immersion heater in action, illustrating the heating process which can lead to mineral buildup over time.

7. Troubleshooting

If you encounter issues with your immersion heater, refer to the following common problems and solutions:

• Heater not working:
  • Ensure the device is properly plugged into a functioning 220V power outlet.
  • Check for any visible damage to the power cord or the heating element.
  • If sparking occurs at the wire connection to the immersion heater, discontinue use immediately and contact customer support. Do not attempt to repair it yourself.
• Slow heating:
  • Verify that the power outlet provides 220V. If using a 110V outlet, the heating time will be significantly longer (approximately four times longer for a 600W element).
  • Ensure the heating element is fully immersed in the liquid.
  • Confirm that the container is not excessively large for the heater's 600W capacity.
  • Check for mineral buildup on the element. Refer to the 'Maintenance' section for cleaning instructions.
• Unusual odors or sounds:
  • Immediately unplug the device. Allow it to cool and inspect for any visible damage or foreign objects. If the issue persists, discontinue use and contact customer support.

8. Warranty and Support

For warranty information, product registration, or technical support, please refer to the documentation included with your product packaging or visit the official Eboxer website. You may also contact Eboxer customer service directly for assistance with any product-related inquiries.

Image 8.1: The immersion heater ready for use with various beverages.
