1. Product Overview
The Hanchen Water Distiller (Model MX 47a) is designed to produce distilled water from tap water for various home and industrial applications. This unit features a 304 stainless steel construction, a 750W heating element, and a 4-liter capacity. It incorporates a double button design for easy operation and safety features such as dry burning-resistant protection. The purity of distilled water produced by this machine is typically 003-004 ppm (parts per million).

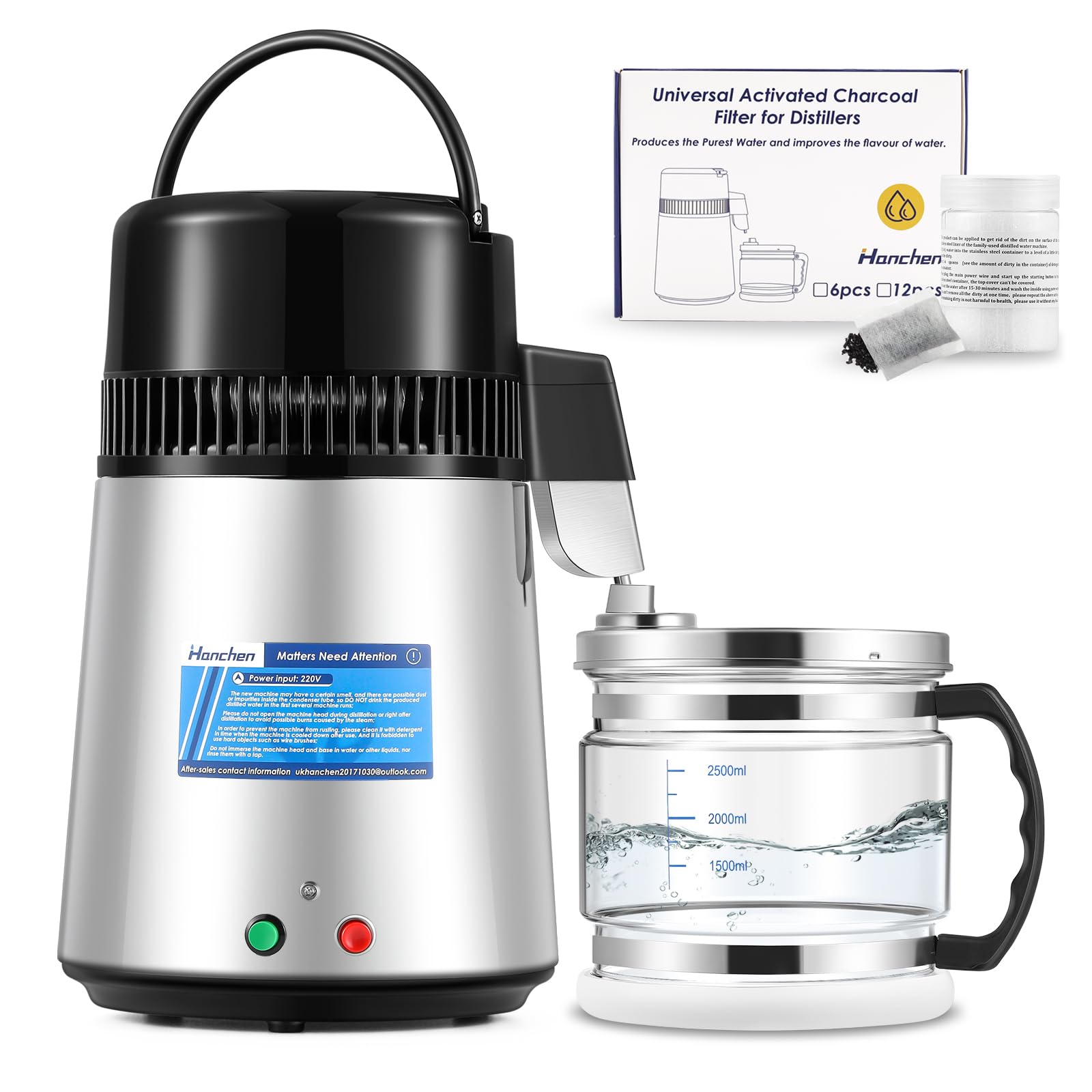

Figure 1: Hanchen Water Distiller main unit and collection jug.
Key Features:
- Double Button Design: Features separate ON (green) and OFF (red) buttons for convenient control without unplugging.
- High-Quality Construction: All parts in contact with water are made from food-grade 304 stainless steel or heat-resistant glass.
- Efficient Distillation: Produces 1-1.2 liters (0.26-0.31 gallons) of pure water per hour, filling the 4-liter container in approximately 3.5-4 hours.
- Safety Protection: Automatic shut-off when the internal temperature reaches 115°C (239°F) to prevent dry burning.
- Integrated Cooling System: Equipped with a powerful fan and four aluminum fans for efficient heat dissipation.
2. Setup Instructions
Follow these steps to set up your Hanchen Water Distiller for first use.
2.1 Unpacking and Component Check
Carefully remove all components from the packaging. Verify that all parts are present and undamaged. The package should include the distiller unit, a 4L glass collection jug, a power cord, a distiller cleaner, and carbon filters.
2.2 Handle Installation for Collection Jug
The collection jug handle may require assembly. Refer to the following visual guide for proper installation.
Figure 2: Visual instructions for attaching the handle to the 4L glass collection jug.
2.3 Initial Placement and Connection
- Place the distiller unit on a stable, flat, and heat-resistant surface. Ensure adequate ventilation around the unit.
- Connect the power cord to the distiller unit and then to a grounded 110V power outlet.
- Position the glass collection jug directly under the distiller's water outlet spout.
Video 1: Overview of the Hanchen Water Distiller, demonstrating its components and basic assembly, including power cord connection and collection jug placement.
3. Operating Instructions
Follow these steps for safe and effective operation of your water distiller.
3.1 Filling the Distiller
- Remove the top cover of the distiller unit.
- Fill the stainless steel boiling chamber with tap water. Do not exceed the maximum fill line indicated inside the chamber.
- Replace the top cover securely.
3.2 Starting the Distillation Process
- Ensure the collection jug is correctly positioned under the outlet spout.
- Press the green ON button on the front of the unit to begin the distillation process. The unit will start heating the water.
- The distiller will produce approximately 1-1.2 liters of distilled water per hour. A full 4-liter cycle typically takes 3.5 to 4 hours.
Figure 3: The double button design allows for easy control of the distiller.
3.3 Stopping the Distillation Process
- The unit will automatically shut off when the water level in the boiling chamber is too low or the internal temperature reaches 115°C (239°F).
- To manually stop the process at any time, press the red OFF button.
- Allow the unit to cool down before handling or refilling.
4. Maintenance and Cleaning
Regular cleaning is essential to maintain the performance and longevity of your distiller. Scale buildup is normal and should be addressed.
4.1 Descaling the Boiling Chamber
The machine will accumulate scale on the inner wall after use. This is not rust. Use citric acid cleaner regularly for descaling.
- Ensure the distiller is unplugged and completely cooled.
- Pour hot water into the stainless steel container, slightly above the scale line.
- Add 1-4 tablespoons of citric acid cleaner into the container, adjusting the amount based on the degree of scale buildup.
- Do not cover the top cover. Switch on the power supply and boil the water for approximately 30 minutes (or longer if necessary for heavy scale).
- Pour out the liquid and rinse the container thoroughly with clean water. Repeat if scale is still present.
Figure 4: Step-by-step cleaning process for the distiller's boiling chamber.
4.2 Carbon Filter Replacement
The activated carbon filter improves the taste of distilled water. Replace the carbon filter as needed, typically every 2-3 months depending on usage.
Figure 5: The activated carbon filter enhances water taste by removing residual impurities.
5. Troubleshooting
This section addresses common issues you might encounter with your Hanchen Water Distiller.
| Problem | Possible Cause | Solution |
|---|---|---|
| Distiller does not turn on. | No power supply; power cord not connected; unit overheated. | Ensure power cord is securely plugged into a working outlet. Check if the red OFF button is pressed. Allow unit to cool if it recently shut off automatically. |
| Water production is slow or stopped. | Insufficient water in the boiling chamber; heavy scale buildup; cooling fan malfunction. | Refill water to the appropriate level. Perform descaling as per maintenance instructions. Contact customer support if cooling fan is not operating. |
| Distilled water has an unusual taste. | Carbon filter needs replacement; residual impurities from initial use. | Replace the activated carbon filter. For first use, it is recommended to discard the first batch of distilled water. |
| Unit automatically shuts off prematurely. | Water level too low; internal temperature exceeded safe limits. | This is a safety feature. Ensure adequate water is in the boiling chamber. Allow the unit to cool before restarting. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Hanchen customer support.
6. Product Specifications
| Feature | Detail |
|---|---|
| Brand | Hanchen |
| Model Number | MX 47a |
| Power Source | 110V |
| Power Consumption | 750W |
| Capacity | 4 Liters (1 Gallon) |
| Material | 304 Stainless Steel, Heat-Resistant Glass |
| Product Dimensions (L x W x H) | 11.6" x 10.6" x 18" (29.5cm x 26.9cm x 45.7cm) |
| Item Weight | 5.7 Kilograms (12.5 lbs) |
| Purification Method | Distillation |
| Automatic Shut-off Temperature | 115°C (239°F) |
| Included Components | Distiller unit, 4L glass collection jug, power cord, distiller cleaner, carbon filter. |
Figure 6: Dimensions of the Hanchen Water Distiller and collection jug.
Figure 7: Internal components and safety features, highlighting 304 stainless steel and dry burning protection.
7. Warranty and Support
7.1 Limited Warranty
This Hanchen Water Distiller comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper maintenance.
Please retain your proof of purchase for warranty claims.
7.2 Customer Support
For technical assistance, warranty claims, or any questions regarding your Hanchen Water Distiller, please contact Hanchen customer support. Refer to the contact information provided with your product packaging or visit the official Hanchen website for support details.
