Eureka Mignon Specialita Espresso Grinder User Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Eureka Mignon Specialita Espresso Grinder. Please read this manual thoroughly before using the appliance to ensure safe and efficient operation.

Figure 1: Eureka Mignon Specialita Espresso Grinder (Ferrari Red)

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons. Keep the appliance away from water and heat sources. Do not operate with a damaged cord or plug. Ensure the appliance is unplugged before cleaning or maintenance.

3. Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
2. Placement: Place the grinder on a stable, flat, and dry surface. Ensure adequate ventilation around the unit. The grinder dimensions are approximately 6"L x 6"W x 14"H and it weighs 14.55 pounds.
3. Portafilter Fork Installation: The adjustable hands-free fork can be installed by sliding it into the designated slots on the front of the grinder. Adjust its position to securely hold your portafilter.
4. Hopper Installation: Place the bean hopper onto the top of the grinder. Ensure it is seated correctly. The hopper features a mechanism to control bean flow.
5. Power Connection: Connect the power cord to a grounded 120 Volt electrical outlet.
6. Initial Grind Setting: For initial setup, it is recommended to start with a medium-fine grind setting and adjust as needed for your specific brewing method. The stepless adjustment mechanism allows for precise control.

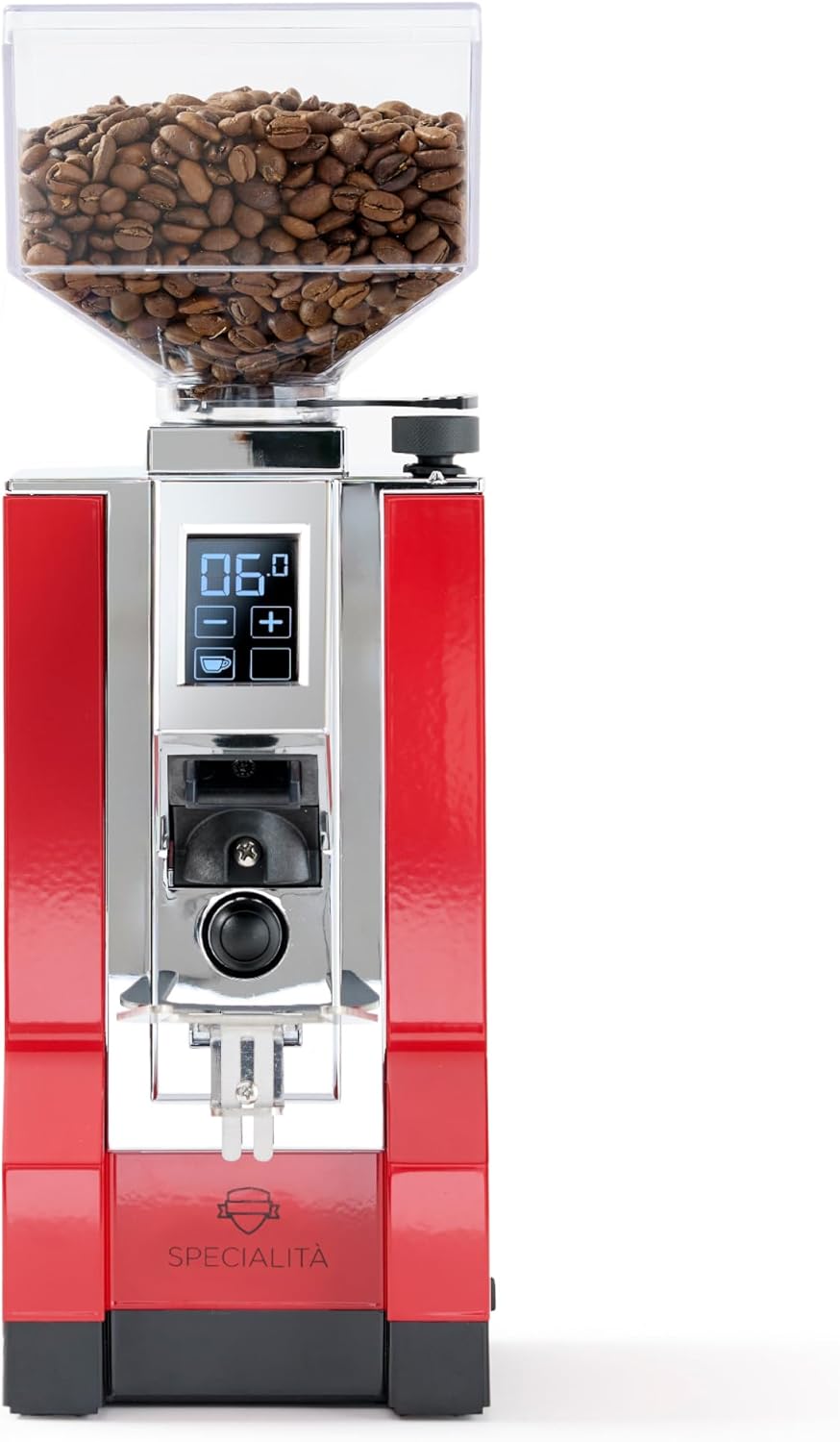

Figure 2: Front view with touchscreen display

4. Operation

1. Filling the Hopper: Open the hopper lid and pour fresh coffee beans into the hopper. Close the lid securely.
2. Adjusting Grind Size: The Eureka Mignon Specialita features a stepless micrometric adjustment system, allowing for infinite grind settings. Turn the adjustment knob located on the top right of the grinder to fine-tune the grind. Turning clockwise makes the grind finer, counter-clockwise makes it coarser. The bottom burr adjustment design helps maintain your grind setting even after disassembly for cleaning.
3. Using Touchscreen Controls: The backlit resistive touchscreen allows you to program grind times for single, double, and continuous modes.
   • Single Dose: Press the single cup icon to select the single dose setting. Use the '+' and '-' buttons to adjust the grinding time.
   • Double Dose: Press the double cup icon to select the double dose setting. Use the '+' and '-' buttons to adjust the grinding time.
   • Continuous Mode: Press the continuous mode icon for manual grinding. The grinder will operate as long as the button is pressed or the portafilter activates the switch.
   • Lock Function: The touchscreen can be locked to prevent accidental changes to settings. Refer to the on-screen instructions for activation.
4. Grinding Process: Place your portafilter onto the adjustable hands-free fork. The grinder will start automatically when the portafilter activates the switch, or manually if continuous mode is selected. The display will count down the set grinding time.

Figure 3: 55mm Flat Steel Burrs

5. Maintenance

Regular cleaning and maintenance ensure the longevity and optimal performance of your grinder.

• Cleaning Burrs: The bottom burr adjustment design facilitates easier cleaning. Unplug the grinder. Remove the hopper and top burr. Use a brush or vacuum to remove any accumulated coffee grounds from the burrs and grinding chamber.
• Exterior Cleaning: Wipe the exterior of the grinder with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
• Hopper Cleaning: The bean hopper can be removed and washed with mild soap and water. Ensure it is completely dry before reattaching.

6. Troubleshooting

If you encounter issues with your Eureka Mignon Specialita grinder, please refer to the following common troubleshooting tips:

• Grinder not turning on: Ensure the power cord is securely plugged into a working outlet and the main power switch (located on the side/back) is in the 'ON' position.
• No coffee grinding: Check if the hopper is properly seated and if there are beans in the hopper. Ensure the grind adjustment knob is not set too fine, which can choke the burrs.
• Inconsistent grind: Clean the burrs thoroughly to remove any old coffee residue that might be affecting consistency. Adjust the grind setting incrementally.
• Excessive noise: While the Mignon Specialita is sound-insulated, unusual or excessive noise may indicate an issue. Check for foreign objects in the grinding chamber or contact support.

For more complex issues, please contact Eureka customer support or your retailer.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact the retailer. Eureka products are known for their quality and are handbuilt in Florence, Italy.

For product support, technical assistance, or to inquire about warranty claims, please contact your authorized Eureka dealer or visit the official Eureka website. You may also contact the seller, Seattle Coffee Gear, for assistance.

Additional protection plans may be available for purchase separately, such as 3-Year or 4-Year protection plans.

9. Video Guide: Setup and Operation

Watch this official video from Seattle Coffee Gear for a visual guide on setting up and operating your Eureka Mignon Specialita grinder, including fork installation, hopper setup, display functions, and grinding regulation.
