Product Overview
This manual provides instructions for the Moen Wynford T4512 1-Handle Three-Function Transfer Valve Trim Kit. This trim kit is designed to direct water flow to multiple showering functions when used with a compatible Moen transfer valve.

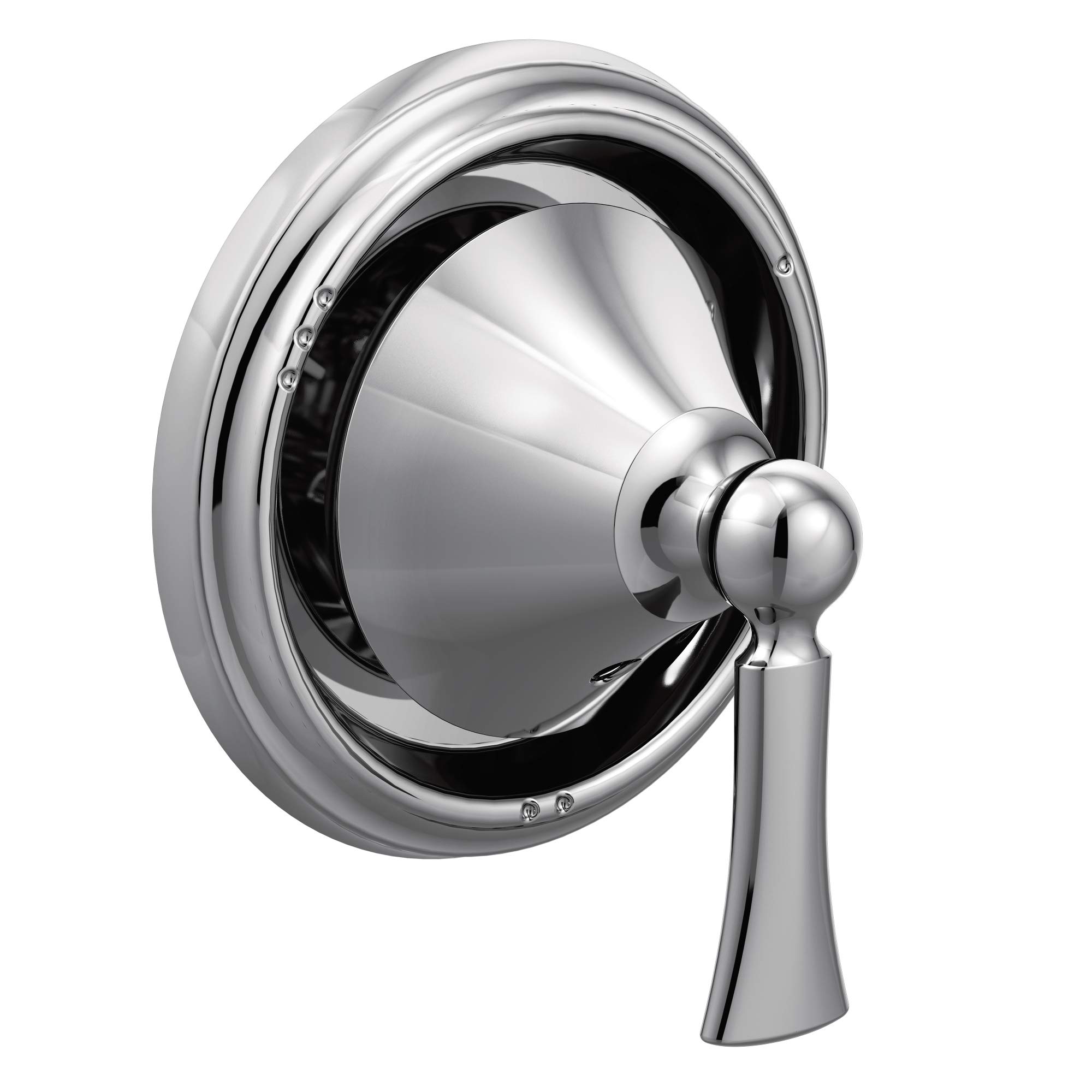

Image: Moen Wynford T4512 1-Handle Three-Function Transfer Valve Trim Kit in Chrome finish.
Key Features:
- Chrome finish for durability and aesthetic appeal.
- Designed for three-function transfer valve applications.
- ADA compliant for accessibility.
- Requires Moen valve #3362 for complete installation (sold separately).
- Features a ceramic disc cartridge for reliable performance.
Specifications
| Specification | Detail |
|---|---|
| Brand | Moen |
| Model Number | T4512 |
| Finish Type | Chrome |
| Number of Handles | 1 |
| Item Weight | 1.4 Pounds |
| Required Valve | Moen Valve #3362 (Sold Separately) |
| ADA Compliant | Yes |
| UPC | 026508281291 |
Image: Detailed specifications and critical dimensions for Moen T4512 transfer valve trim kit installation, including thin and thick wall installation diagrams.
Installation
This trim kit is designed for use with Moen M-Pact common valve system. It accommodates standard ½" connections. Ensure you have the required Moen valve #3362 installed before proceeding with the trim kit installation.
Important Note: This valve is not intended to be used as a shut-off valve. To prevent the potential of cross flow, check valves must be integral to the supply valve or installed in both hot and cold water supply lines.
Refer to the detailed diagrams for critical dimensions and installation types (Thin Wall and Thick Wall Installation).
Image: Overview of the Moen transfer valve, highlighting its three independent functions and installation notes.
The M-Pact common valve system allows for updating the trim without changing the valve, simplifying future aesthetic changes.
Operating Instructions
The Moen Wynford T4512 transfer valve trim kit is used in conjunction with a Moentrol® or Posi-Temp® valve for three-function applications. The single handle operates the transfer valve.
Functionality:
- Activates individual outlets for the showerhead, tub spout, handshower, or double body sprays.
- The three functions operate independently of one another.
- The rotary lever handle allows for precise control over water flow direction.
Rotate the handle to select the desired water outlet. The valve operates three independent functions, meaning you can switch between different water outputs as needed.
Maintenance
To maintain the chrome finish, clean with a soft, damp cloth. Avoid abrasive cleaners, solvents, or polishing agents, as these can damage the finish and void the warranty.
Regularly check for leaks around connections. If a leak is detected, ensure all connections are properly tightened. For persistent issues, consult a qualified plumber.
Troubleshooting
This section addresses common issues you might encounter with your Moen T4512 transfer valve trim kit.
- Issue: Water flow is weak or inconsistent.
Solution: Check the main water supply pressure. Ensure there are no obstructions in the water lines or the valve itself. If the issue persists, the valve cartridge may need inspection or replacement.
- Issue: Water does not transfer correctly between functions.
Solution: Verify that the handle is fully rotated to the desired position. If the problem continues, the transfer valve cartridge might be faulty and require replacement.
- Issue: Leaks from the handle or trim plate.
Solution: Ensure the trim plate is securely fastened and the O-rings or gaskets are properly seated. If the leak originates from the valve body, the valve cartridge may need to be replaced. Consult a professional plumber if unsure.
Warranty and Support
The Moen T4512 Wynford 1-Handle Three-Function Transfer Valve Trim Kit is backed by Moen's Limited Lifetime Warranty against leaks, drips, and finish defects to the original homeowner. A 5-year limited warranty applies when used in a commercial installation.
For complete details and limitations regarding the warranty, please visit the official Moen website or contact Moen customer support.
For further assistance or to purchase replacement parts, please contact Moen customer service:
- Phone: 1-800-BUY-MOEN (1-800-289-6636)
- Website: www.moen.com
