RealTruck Retrax RetraxPRO XR Retractable Truck Bed Tonneau Cover User Manual

Product Overview

The RealTruck Retrax RetraxPRO XR is a premium retractable truck bed tonneau cover designed for durability and functionality. It features industrial-strength aluminum slats with a matte powder-coated finish, offering scratch resistance, UV protection, and the ability to support up to 500 pounds of evenly distributed weight. The integrated Trax Rail system allows compatibility with various T-Slot accessories, enhancing cargo capacity.

This cover incorporates a patented low-profile design for a streamlined appearance and a weather-tight seal, protecting your truck bed contents. Its holding canister is discreetly located inside the truck bed. The sealed ball-bearing roller system ensures smooth operation, and the cover can be key-locked in any position for secure cargo storage.

Image: The RetraxPRO XR tonneau cover installed on the bed of a red pickup truck, shown in a closed position with optional crossbars for additional cargo.

Compatibility

• Fits 2009 - 2018 Dodge Ram 1500
• Fits 2010-2021 Dodge Ram 2500/3500
• Designed for 8' Bed (96.3")

Setup and Installation

The RetraxPRO XR is designed for effortless installation, typically requiring basic tools and can be mounted by one or two individuals. Follow the detailed instructions provided in the separate installation guide for your specific truck model.

Included Components:

• Retractable cover
• Canister
• Side Rails
• Hardware

Key Installation Steps:

1. Unpack Components: Carefully remove all parts from the packaging. Verify all components listed above are present.
2. Prepare Truck Bed: Ensure the truck bed rails are clean and free of debris.
3. Install Side Rails: Attach the side rails to the truck bed using the provided clamp-on design. Ensure they are level and securely fastened.
4. Position Canister: Place the cover canister at the bulkhead of the truck bed, ensuring it is centered and aligned with the side rails.
5. Secure Canister and Cover: Bolt the canister and cover assembly in place according to the specific model's instructions.
6. Final Adjustments: Check for proper alignment and smooth operation of the cover. Ensure a weather-tight seal along the bed rails.

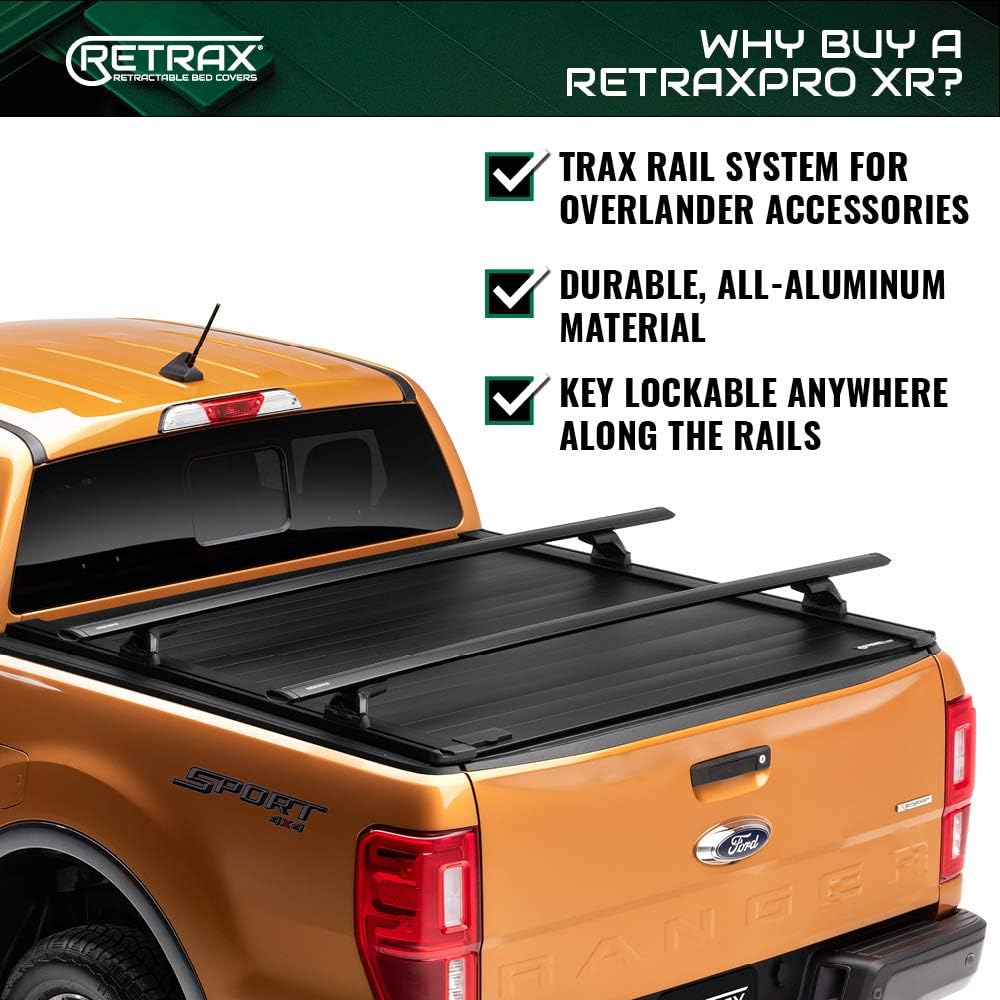

Image: A visual representation highlighting key features of the RetraxPRO XR cover, including optimized cargo capacity with T-slot accessories, security with locking mechanism, stylish matte finish, and effortless gliding on sealed ball bearings.

Operating Instructions

Opening and Closing the Cover:

• The RetraxPRO XR features a sealed ball-bearing roller system that allows the cover to glide effortlessly along the rail.
• To open, use the convenient handle to retract the cover towards the truck cab. The cover will smoothly roll into its compact storage canister.
• To close, pull the cover from the canister towards the tailgate until it is fully extended.

Locking Mechanism:

• The cover is key lockable in any position along the rails. This provides flexibility for hauling various cargo sizes while maintaining security.
• Insert the key into the lock cylinder and turn to secure the cover in the desired position.

Trax Rail System:

• The integrated Trax Rail system is compatible with most T-Slot accessories from brands like Rhino, Thule, and Yakima.
• These accessories can be easily mounted onto the rails to expand your cargo capacity above the truck bed. Refer to the accessory manufacturer's instructions for installation and use.

Image: A series of three images demonstrating the RetraxPRO XR tonneau cover in various stages of retraction, from fully closed to partially open, with T-slot accessories installed on the rails.

Image: A red pickup truck with two kayaks mounted on top of the RetraxPRO XR tonneau cover using the Trax Rail System and T-slot accessories, parked near a body of water.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your RetraxPRO XR tonneau cover.

• Cleaning: Clean the cover's surface regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the matte finish. Rinse thoroughly and dry with a soft cloth.
• Rail Cleaning: Periodically clean the side rails and the canister opening to prevent debris buildup that could impede smooth operation. Use a damp cloth to wipe away dirt and dust.
• Lubrication: The sealed ball-bearing system is designed for low maintenance. However, if you notice any stiffness in operation, consult the manufacturer's specific lubrication recommendations.
• Seal Inspection: Regularly inspect the weather seals around the perimeter of the cover and the canister for any signs of wear or damage. Replace damaged seals to maintain water resistance.

Troubleshooting

If you encounter issues with your RetraxPRO XR tonneau cover, consider the following common solutions:

• Cover not retracting/extending smoothly:
  • Check the side rails for any obstructions (dirt, debris, ice). Clean the rails thoroughly.
  • Ensure the cover is properly aligned within the rails.
  • Verify that the ball-bearing system is free from damage or excessive wear.
• Water leakage into the truck bed:
  • Inspect all weather seals for proper seating and damage. Replace any worn or torn seals.
  • Ensure the drain tubes (if applicable) are clear and properly routed to allow water to escape.
  • Check the alignment of the cover and rails; improper alignment can compromise the seal.
• Lock mechanism not engaging/disengaging:
  • Ensure the key is fully inserted and turned correctly.
  • Check for any debris or foreign objects in the lock cylinder.
  • If the lock is stiff, a small amount of graphite lubricant designed for locks may be applied.

If these steps do not resolve the issue, please contact customer support.

Specifications

Image: A comparison table outlining features such as warranty, security, remote power, and rack compatibility across different RetraxPRO series covers (PRO MX, PRO XR, PowertraxPRO MX, PowertraxPRO XR).

Warranty Information

The RetraxPRO XR is backed by a Legendary Lifetime Guarantee. RealTruck and Retrax are committed to ensuring their products meet high quality and durability standards and are free from defects in materials and workmanship.

For specific details regarding the terms and conditions of the Lifetime Guarantee, including coverage and claims process, please refer to the official warranty documentation included with your product or visit the RealTruck website.

Customer Support

For further assistance, technical support, or warranty claims, please contact RealTruck customer service.

• Website: Visit the official RealTruck website for support resources, FAQs, and contact information.
• Phone: Refer to the contact details provided in your product packaging or on the RealTruck website.
• Online Resources: Additional installation guides, videos, and product information may be available online.
