1. Introduction
This manual provides instructions for the AIDITIYMI MKJ32022820 replacement remote control. This infrared (IR) remote is designed to operate various LG LCD and Plasma TV models without the need for programming or pairing. Simply install batteries to begin use.
2. Setup: Battery Installation
To prepare your remote control for use, follow these steps to install the batteries:
- Locate the battery compartment on the back of the remote control.
- Press down on the latch and slide the battery cover downwards to open it.
- Insert two (2) new 1.5V AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery cover back into place until it clicks securely.
Figure 2.1: Rear view of the remote control with the battery compartment open, illustrating correct battery placement.
The remote control is now ready for use with compatible LG TVs.
3. Operating Instructions
This replacement remote control operates LG LCD and Plasma TVs directly without any programming or pairing. Point the remote control directly at your television's infrared receiver.
Figure 3.1: Front view of the remote control with key buttons labeled.
Key Functions:
- POWER: Turns the TV on or off.
- INPUT / TV: Selects video input sources (e.g., HDMI, AV).
- MODE TV / DVD / VCR: Switches the remote's operating mode for different devices (if supported by the remote's internal programming for universal functionality, though primarily designed for TV).
- VOL +/-: Adjusts the volume level.
- CH +/-: Changes television channels.
- MUTE: Silences the TV audio.
- MENU: Accesses the TV's main menu.
- Navigation Buttons (Up, Down, Left, Right, ENTER): Used to navigate menus and confirm selections.
- EXIT: Exits the current menu or on-screen display.
- Number Pad (0-9): Directly selects channels.
- PIP / EZ PIC / EZ SOUND / SWAP / INFO: Specific function buttons for picture-in-picture, picture settings, sound settings, swapping channels, and displaying information (functionality depends on TV model).
4. Compatible LG TV Models
The AIDITIYMI MKJ32022820 remote control is compatible with a wide range of LG LCD and Plasma TV models, including but not limited to the following:
- 42LB5DC, 42LB5DC-UA
- 32LX50C, 32LX50CS, 32LX5DC, 32LX5DCS
- 42LC50C, 42LC50C-UA, 42LC50CUA, 42LC5DC, 42Lb50C
- 37LC50C, 37LC50CB, 37LC50CB-UA, 37LC50C-UA, 37LC50D, 37LC50DC, 37LC50CUA, 37LC5DC, 37LC5DC1, 37LC5DCb, 37LC5DCB-UA, 37LC5DC-UA, 37LC5DCUA
- 32LC50CS, 32LC5DC, 32LC5DCB, 32LC5DCS, 32LC50Cb, 32LC50C
- 32LG500H, 37LG500H, 32LG505H, 37LG505H, 32LG515H, 37LG515H
- 42PX8DC, 42PG65C, 42PG60C
- 32515H
5. Specifications
| Feature | Detail |
|---|---|
| Model Number | MKJ32022820 |
| Brand | AIDITIYMI |
| Compatible Devices | LG LCD and Plasma Televisions |
| Power Source | 2 x AAA Batteries (not included) |
| Dimensions | 6 x 2 x 0.6 inches (approximately) |
| Item Weight | 3 ounces (approximately) |
| Special Feature | Ergonomic design |
| Color | Black |

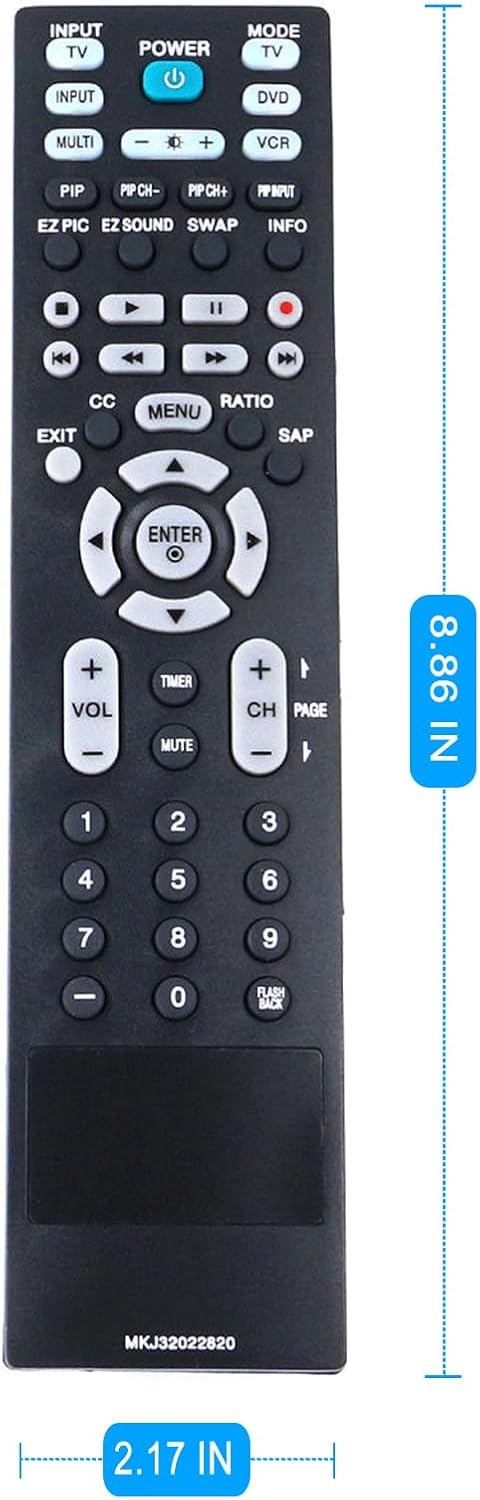

Figure 5.1: Remote control with approximate dimensions.
6. Troubleshooting
If you encounter issues with your remote control, consider the following:
- Remote not responding:
- Ensure batteries are installed correctly with the correct polarity.
- Replace old batteries with new 1.5V AAA alkaline batteries.
- Check for any obstructions between the remote control and the TV's infrared receiver.
- Ensure you are within the effective range of the TV's IR receiver.
- Specific buttons not working:
- Some advanced functions (e.g., PIP, EZ PIC) may not be supported by all LG TV models. Refer to your TV's original manual for specific feature compatibility.
- Clean the remote control buttons and surface to ensure no debris is interfering with button presses.
7. Maintenance
To ensure the longevity and proper functioning of your remote control:
- Keep the remote control dry and away from extreme temperatures.
- Clean the remote control with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- If the remote control will not be used for an extended period, remove the batteries to prevent leakage.
- Avoid dropping the remote control or subjecting it to strong impacts.
8. Warranty Information
Specific warranty details for this product are not provided in the available information. Please refer to the seller or manufacturer's official website for any applicable warranty terms and conditions.
9. Customer Support
For further assistance or inquiries regarding the AIDITIYMI MKJ32022820 remote control, please contact the seller or manufacturer directly. Support contact information is not provided in this manual.
