1. Product Overview
The Glacier Bay Round Toilet Seat is designed for comfort, durability, and ease of use. Made from robust plastic, it features innovative quick-release hinges for effortless installation and removal, simplifying cleaning and maintenance. The slow-close mechanism prevents slamming, ensuring quiet operation and extending the product's lifespan. This seat is compatible with all standard round front toilets.

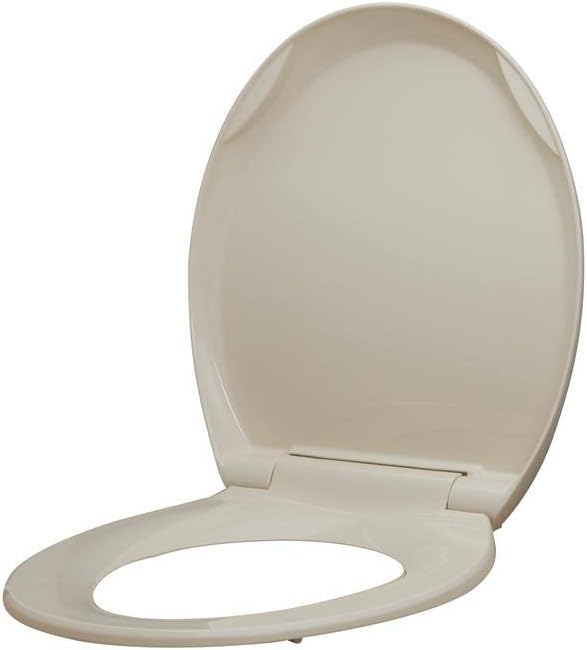

Figure 1.1: Glacier Bay Round Toilet Seat in bone color, shown in the open position. This image highlights the overall design and the open lid and seat ring.
2. Safety Information
- Always ensure the toilet seat is securely fastened before use to prevent shifting and potential injury.
- Do not stand on the toilet seat or lid. It is not designed to support full body weight.
- Keep cleaning agents out of reach of children and pets. Use only mild, non-abrasive cleaners as specified in the Maintenance section.
- Avoid using excessive force when closing the seat, even with the slow-close feature, to prevent damage to the hinges.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x Glacier Bay Round Toilet Seat (with integrated slow-close and quick-release hinges)
- 2 x Mounting Bolts
- 2 x Washers
- 2 x Wing Nuts (or similar fastening nuts)
- 2 x Quick-Release Base Mounts
Figure 3.1: Detail of the quick-release hinge mechanism, showing the base mount and the seat attachment point. This mechanism allows for easy removal of the seat for cleaning.
4. Setup and Installation
Tools required (not included): Screwdriver (Phillips or flathead, depending on existing bolts), adjustable wrench (optional).
- Remove Old Toilet Seat (if applicable):
Locate the bolts securing the old toilet seat to the toilet bowl. These are usually found under the back of the bowl, beneath plastic caps. Unscrew the nuts and remove the old seat.
- Clean Toilet Bowl:
Thoroughly clean the area around the bolt holes on the toilet bowl before installing the new seat.
- Install Quick-Release Base Mounts:
Insert the mounting bolts through the quick-release base mounts and then through the bolt holes on the toilet bowl. Secure them from underneath the bowl using the washers and wing nuts. Do not overtighten; ensure the base mounts are aligned parallel to the back of the toilet bowl.
Figure 4.1: Top view of the Glacier Bay Round Toilet Seat in the closed position, illustrating its round shape and the hinge area. This view is helpful for aligning the seat during installation.
- Attach Toilet Seat:
Align the hinges of the Glacier Bay toilet seat with the quick-release base mounts. Gently press down until you hear a click, indicating the seat is securely locked into place. Ensure the seat is centered and stable.
Figure 4.2: Angled view of the Glacier Bay Round Toilet Seat in the closed position, showcasing its sleek design and the slow-close feature. This perspective helps visualize the seat's profile when installed.
- Test Stability:
Gently push on the seat to ensure it is firmly attached and does not wobble. If it wobbles, re-check the tightness of the mounting bolts and the secure attachment to the quick-release bases.
5. Operating Instructions
This toilet seat is designed for simple and quiet operation.
- Slow-Close Feature: To close the seat or lid, simply push it down gently. The slow-close hinges will engage, allowing the seat and lid to descend slowly and quietly without slamming. Do not force the seat down quickly, as this can damage the slow-close mechanism over time.
- Quick-Release Feature: For easy cleaning or replacement, locate the quick-release buttons or tabs near the hinges. Press these buttons (or lift the tabs) and lift the entire seat straight up from the base mounts. To reattach, align the seat hinges with the base mounts and press down until it clicks into place.
6. Maintenance and Cleaning
Regular cleaning will maintain the appearance and hygiene of your toilet seat.
- Daily Cleaning: Use a soft cloth or sponge with mild soap and water. Wipe down all surfaces of the seat and lid.
- Deep Cleaning: For more thorough cleaning, utilize the quick-release feature to remove the seat from the toilet bowl. This allows access to hard-to-reach areas around the hinges and bolt holes. Clean the seat separately and the toilet bowl area.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, strong acids, bleach, or solvents, as these can damage the plastic finish and hinge mechanisms.
- Drying: After cleaning, wipe the seat dry with a clean, soft cloth to prevent water spots.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Seat wobbles or shifts. | Mounting bolts are loose. | Tighten the nuts underneath the toilet bowl. Ensure quick-release base mounts are securely fastened. |
| Slow-close feature not working properly. | Hinges are dirty or damaged; seat forced down repeatedly. | Clean hinges thoroughly. Avoid forcing the seat down. If damaged, contact customer support for replacement parts or warranty information. |
| Seat difficult to remove or reattach using quick-release. | Quick-release buttons/tabs not fully pressed; hinges misaligned. | Ensure buttons/tabs are fully depressed. Realign the seat with the base mounts before pressing down firmly until it clicks. |
| Seat appears discolored or stained. | Use of harsh cleaners; prolonged exposure to certain substances. | Refer to Maintenance section for recommended cleaning practices. Some stains may be permanent if harsh chemicals were used. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Glacier Bay |
| Model Name | Bone Round Toilet Seat with Quick-Release Hinges |
| ASIN | B07G8DMCP9 |
| UPC | 721015378525 |
| Material | Durable Plastic |
| Shape | Round |
| Color | Bone |
| Hinge Type | Slow-Close, Quick-Release |
| Compatibility | Standard Round Front Toilets |
| Package Quantity | 1 |
| Batteries Required | No |
| Approx. Package Dimensions (L x W x H) | 47.24 x 38.35 x 6.35 cm |
| Approx. Item Weight | 1.84 kg |
9. Warranty and Support
This Glacier Bay toilet seat is backed by a one-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
What is Covered:
- Manufacturing defects
- Malfunctions of the slow-close or quick-release mechanisms under normal operating conditions
What is Not Covered:
- Damage resulting from improper installation or misuse
- Damage from abrasive cleaners or chemicals
- Normal wear and tear
- Accidental damage or acts of nature
For warranty claims or technical support, please contact Glacier Bay customer service. Please have your proof of purchase and product model information ready.
Contact information for Glacier Bay customer service is typically found on the product packaging or the official Glacier Bay website.
