MAXXUS AirRow Rower Instruction Manual

1. Introduction

Thank you for choosing the MAXXUS AirRow Rower. This instruction manual provides essential information for the safe and effective use of your new fitness equipment. Please read this manual thoroughly before assembly and operation, and keep it for future reference. The MAXXUS AirRow Rower is designed to provide a comprehensive full-body workout, simulating the natural motion of rowing with an air resistance system.

2. Safety Instructions

Before using this equipment, please observe the following safety precautions:

• Consult a physician before starting any new exercise program, especially if you have pre-existing health conditions.
• Ensure the rower is placed on a stable, level surface. Use a protective mat if necessary.
• Keep children and pets away from the equipment during operation.
• The maximum user weight for this rower is 150 kg (330 lbs). Do not exceed this limit.
• The maximum user height is 195 cm (6 ft 4 in).
• Inspect the rower for loose or damaged parts before each use. Do not use if any components are compromised.
• Wear appropriate athletic footwear and clothing. Avoid loose clothing that could get caught in moving parts.
• Maintain proper form during exercise to prevent injury. If you experience pain or discomfort, stop immediately.
• Do not attempt to modify the equipment.

3. Setup and Assembly

The MAXXUS AirRow Rower is designed for straightforward assembly. Tools required for assembly are typically included. For storage, the rower can be quickly and easily disassembled into two parts without tools.

3.1 Unpacking

Carefully remove all components from the packaging. Check the contents against the parts list provided in the separate assembly guide to ensure all parts are present and undamaged.

3.2 Assembly Steps

Follow the detailed instructions in the included assembly manual. Key steps generally involve:

1. Attaching the front and rear stabilizers.
2. Mounting the seat rail to the main frame.
3. Installing the seat onto the rail.
4. Connecting the chain drive system.
5. Attaching the footrests and console.

Ensure all bolts and fasteners are securely tightened before use.

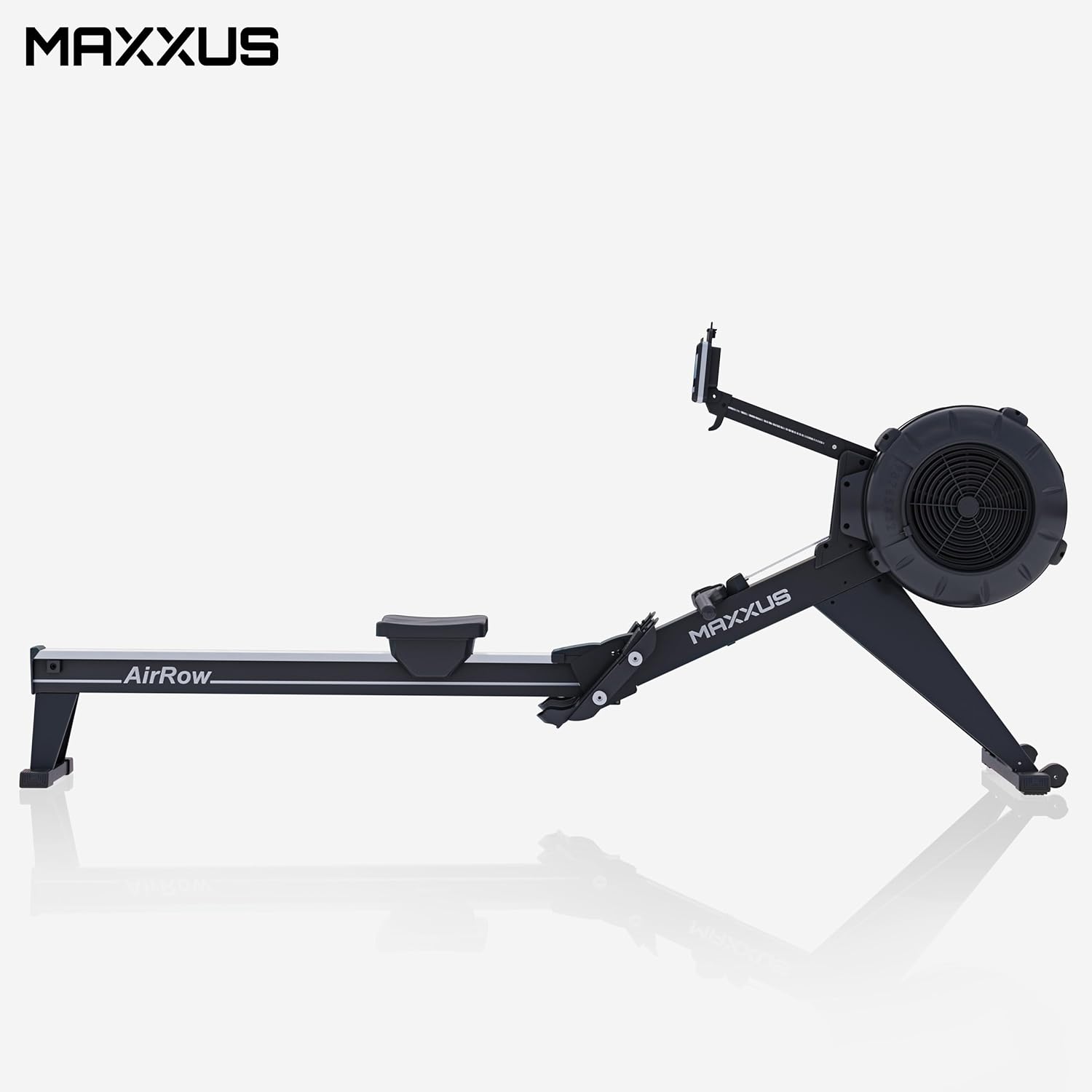

Image: The MAXXUS AirRow Rower in its fully assembled state, showcasing its sleek design and components.

3.3 Footrest Adjustment

The footrests are adjustable to accommodate various shoe sizes. Secure your feet firmly with the straps provided to ensure stability during your workout.

3.4 Console Power

The LCD display operates on batteries. Insert the required batteries (not included) into the console compartment as indicated in the assembly guide. No electrical connection is required for the rower's operation, offering flexible placement options.

Image: A diagram illustrating the overall dimensions of the MAXXUS AirRow Rower, measuring 242 cm in length, 62 cm in width, and 107 cm in height.

4. Operating Instructions

The MAXXUS AirRow Rower provides an intuitive interface for monitoring your workout and adjusting resistance.

4.1 LCD Display Functions

The inclinable LCD display shows various workout metrics:

• Time: Duration of your workout.
• Strokes: Total number of rowing strokes.
• Distance: Estimated distance covered.
• Strokes Per Minute (SPM): Your current stroke rate.
• Distance Per Stroke: Average distance covered with each stroke.
• Watts: Power output during your workout.
• Speed: Your current rowing speed.
• Calories: Estimated calories burned.

Refer to the console's specific instructions for navigating modes and resetting values.

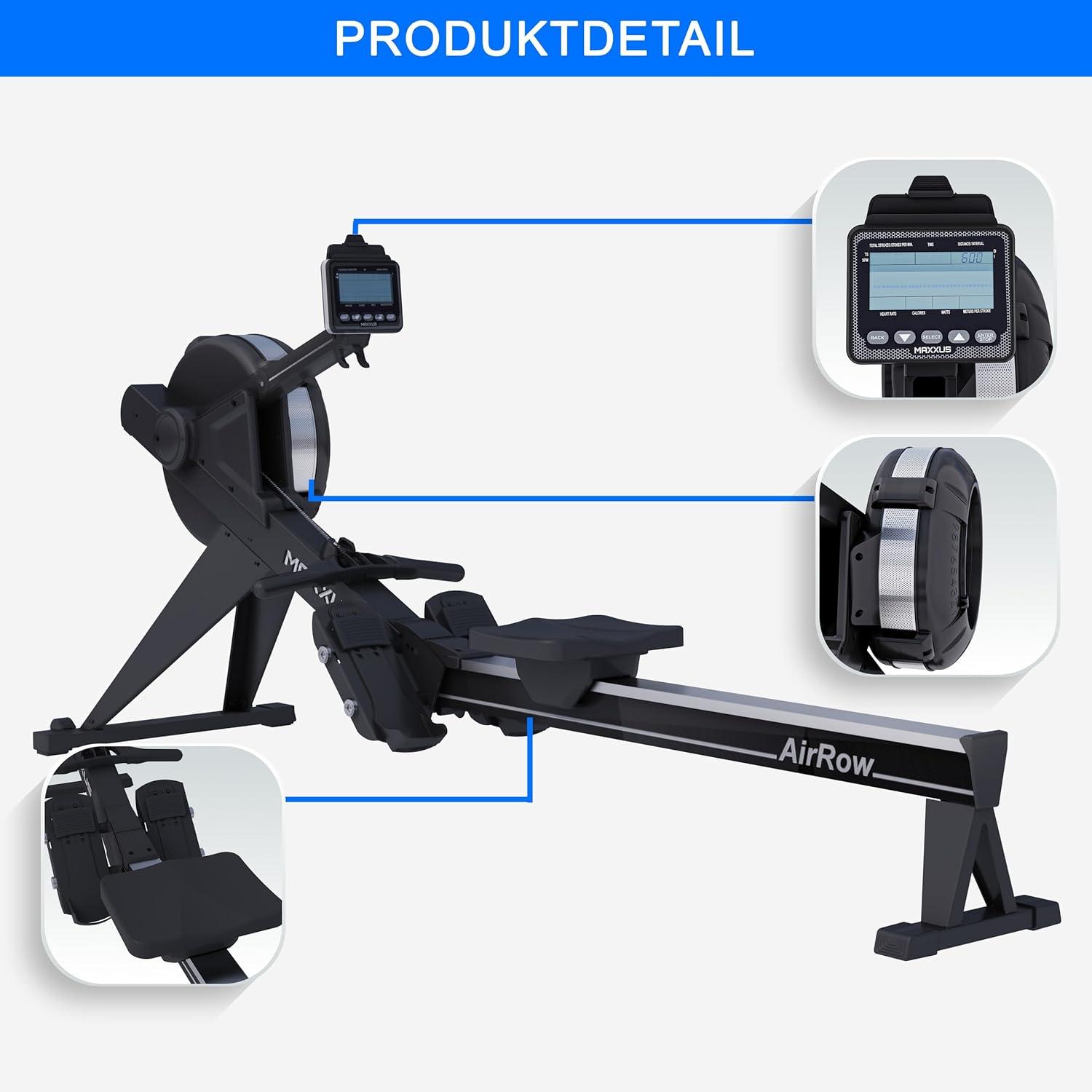

Image: A detailed breakdown of the MAXXUS AirRow Rower's key components, including the LCD display, air resistance fan, ergonomic seat, and adjustable footrests.

4.2 Resistance Adjustment

The AirRow Rower features an air resistance system with 9 adjustable levels. Adjust the resistance level using the control knob or lever located near the fan housing to match your desired workout intensity. Higher levels provide greater resistance.

4.3 Smartphone Holder

A dedicated smartphone holder is integrated into the console area, allowing you to keep your device accessible during your workout.

4.4 Heart Rate Monitoring (Optional)

The rower includes an integrated receiver for an optional wireless heart rate chest strap (not included). This allows for real-time heart rate monitoring on the LCD display, enhancing your training effectiveness.

Image: A user performing a rowing exercise on the MAXXUS AirRow Rower, illustrating the correct posture and movement.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your MAXXUS AirRow Rower.

• Cleaning: Wipe down the rower with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and moving parts (chain, seat rollers, footrest straps) for tightness and wear. Tighten any loose fasteners.
• Chain Lubrication: Refer to the assembly guide for recommendations on chain lubrication frequency and type of lubricant.
• Storage: For convenient storage, the rower can be quickly disassembled into two parts. Transport wheels are provided for easy relocation. Store in a dry, cool place away from direct sunlight.

6. Troubleshooting

If you encounter issues with your MAXXUS AirRow Rower, refer to the following common solutions:

• Display Not Working: Check if the batteries are correctly inserted and have sufficient charge. Replace batteries if necessary.
• Unusual Noises: Inspect all connections and moving parts for loose components. Ensure the chain is clean and properly lubricated.
• Resistance Issues: Verify that the resistance adjustment mechanism is functioning correctly and not obstructed.
• Seat Movement: Ensure the seat rollers and rail are clean and free of debris.

For persistent issues or problems not listed here, please contact MAXXUS customer support.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact MAXXUS customer service. If you require technical assistance or have questions regarding your MAXXUS AirRow Rower, please reach out to the manufacturer's support channels.
