Walker Quiet-Flow SS 53980 Direct Fit Exhaust Muffler Assembly User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your Walker Quiet-Flow SS 53980 Direct Fit Exhaust Muffler Assembly. Designed for specific Kia Optima models, this muffler assembly features 100% stainless-steel construction for enhanced durability and a direct-fit design for straightforward replacement. Please read this manual thoroughly before proceeding with installation or use.

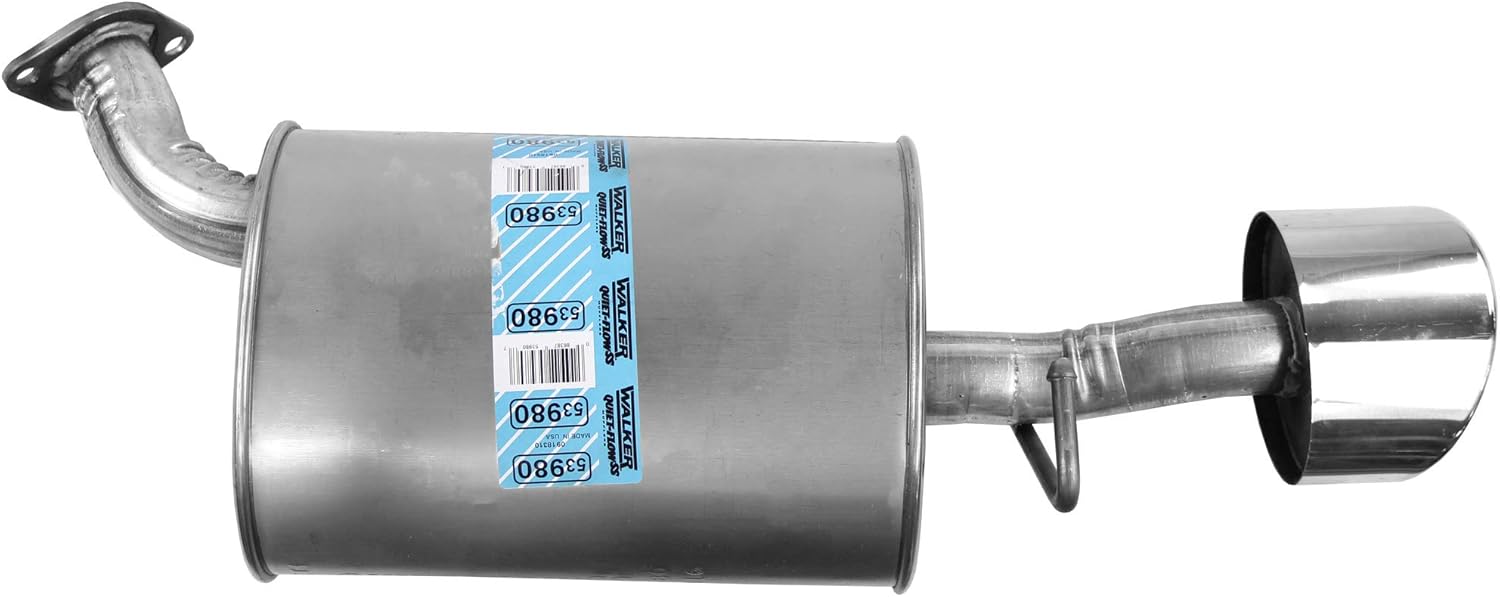

Figure 1.1: The Walker Quiet-Flow SS 53980 Direct Fit Exhaust Muffler Assembly. This image displays the complete muffler unit, including the inlet pipe with flange, the main muffler body, and the outlet pipe with a polished tip.

2. Product Overview and Features

The Walker Quiet-Flow SS 53980 muffler assembly is engineered to provide a long-lasting, OE-style replacement for your vehicle's exhaust system. Key features include:

• 100% Stainless-Steel Construction: Offers superior corrosion resistance and extended lifespan compared to aluminized mufflers. An internal drainage system helps reduce moisture accumulation.
• Direct-Fit Design: Engineered for a bolt-on replacement solution, featuring OE-style hangers, brackets, and pipe routings for easy installation without specialized fabrication or welding.
• Built to Last: Internal partitions and mechanically joined tubes accommodate temperature changes, minimizing distortion. Spun-locked heads and OE-style spot welds contribute to structural stability and longer service life.
• Premium Acoustic Control: OE-style louvered tubes reduce noise levels, while OE-style domed heads help minimize radiated noise, ensuring a factory-style sound quality.
• Design Validated: Acoustic and flow tested to meet original equipment sound and performance standards.

Figure 2.1: Illustrates the 100% stainless-steel construction of the muffler, highlighting its durability and resistance to corrosion.

Figure 2.2: A cutaway view of the muffler showing the internal louvered tubes designed for premium acoustic control and noise reduction.

Figure 2.3: Close-up of the muffler's spun-locked heads and OE-style spot welds, demonstrating the robust construction for long-term stability.

Figure 2.4: Shows the direct-fit design with an OE-style flange, indicating ease of installation without requiring modifications.

3. Compatibility

The Walker Quiet-Flow SS 53980 Direct Fit Exhaust Muffler Assembly is compatible with the following vehicle models:

• 2011-2017 Kia Optima

It is crucial to verify compatibility with your specific vehicle's year, make, model, engine, and trim before purchase and installation. Consult your vehicle's service manual or a qualified mechanic if unsure.

4. Safety Information

Working on vehicle exhaust systems can be hazardous. Always adhere to the following safety guidelines:

• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.
• Ensure the vehicle is securely supported on jack stands or a lift before working underneath it. Never rely solely on a jack.
• Allow the exhaust system to cool completely before beginning work to prevent burns.
• Work in a well-ventilated area to avoid exposure to exhaust fumes.
• Use the correct tools for each task.
• If you are not confident in your ability to perform the installation safely, seek professional assistance.

5. Setup and Installation

The Walker Quiet-Flow SS 53980 is designed for direct-fit bolt-on installation. While specific steps may vary slightly by vehicle, the general procedure involves removing the old muffler and installing the new assembly using existing hangers and connection points.

5.1 Pre-Installation Steps

1. Park the vehicle on a level surface and engage the parking brake.
2. Raise the vehicle using a lift or jack stands to provide adequate working space.
3. Allow the exhaust system to cool down completely.
4. Inspect the existing exhaust system for any other damaged components that may need replacement (e.g., rusted pipes, broken hangers).

5.2 Removal of Old Muffler

1. Locate the connection points of the existing muffler assembly to the rest of the exhaust system. This typically involves bolts at a flange or clamps.
2. Apply penetrating oil to rusted bolts or clamps to aid in removal.
3. Carefully unbolt or loosen clamps. Support the muffler to prevent it from falling.
4. Remove the muffler from its hangers. It may require some maneuvering to detach.
5. Once detached, carefully lower and remove the old muffler assembly from under the vehicle.

Figure 5.1: An example of a rusted and damaged muffler, indicating the need for replacement.

5.3 Installation of New Muffler

1. Compare the new Walker Quiet-Flow SS 53980 assembly with the old muffler to ensure it is the correct replacement part.
2. Clean any mating surfaces on the existing exhaust pipes to ensure a good seal.
3. Position the new muffler assembly under the vehicle.
4. Attach the muffler to the vehicle's hangers first.
5. Align the inlet pipe of the new muffler with the existing exhaust pipe. Secure with new bolts and gaskets (if applicable) or clamps. Ensure a tight, leak-free connection.
6. Verify that the muffler is properly aligned and does not interfere with any other vehicle components.
7. Tighten all bolts and clamps to the manufacturer's recommended torque specifications.
8. Lower the vehicle and start the engine to check for exhaust leaks. Listen for any unusual noises.

Figure 5.2: A hand installing an oxygen sensor into an exhaust component, illustrating a common connection point during exhaust system work.

Figure 5.3: Two mechanics working together under a vehicle, demonstrating professional installation of exhaust components.

For a visual representation of a complete exhaust system, refer to the diagram below:

Figure 5.4: A comprehensive diagram illustrating the various components of a typical vehicle exhaust system, including manifold converters, oxygen sensor ports, catalytic converters, resonator assemblies, and muffler assemblies.

6. Operating

Once installed, the Walker Quiet-Flow SS 53980 muffler assembly operates as an integral part of your vehicle's exhaust system. It is designed to reduce engine noise and direct exhaust gases away from the vehicle's cabin. No specific user interaction is required for its operation.

During normal vehicle operation, you should expect a consistent, factory-style sound profile. Any significant changes in exhaust noise, such as increased loudness, rattling, or hissing, may indicate an issue that requires inspection.

7. Maintenance

The Walker Quiet-Flow SS 53980 muffler assembly is constructed from 100% stainless steel, which inherently offers excellent resistance to corrosion and requires minimal maintenance. However, periodic inspection is recommended to ensure optimal performance and longevity.

• Regular Inspection: During routine vehicle maintenance (e.g., oil changes), visually inspect the muffler and exhaust pipes for any signs of damage, loose connections, cracks, or excessive corrosion.
• Check Hangers and Mounts: Ensure all exhaust hangers and mounting points are secure and intact. Loose hangers can lead to rattling noises or premature wear.
• Listen for Leaks: Periodically listen for any unusual hissing or blowing sounds from the exhaust system, which could indicate a leak.
• Cleaning: While not typically necessary, if the exterior becomes excessively dirty, it can be cleaned with mild soap and water. Avoid harsh chemicals that could damage the finish.

8. Troubleshooting

If you experience issues with your exhaust system after installing the Walker Quiet-Flow SS 53980 muffler, consider the following common troubleshooting steps:

• Excessive Noise or Rattling:
  • Check all connections (flanges, clamps) for tightness.
  • Inspect exhaust hangers for damage or improper installation.
  • Ensure the muffler is not contacting the vehicle's undercarriage or other components.
  • Verify that no internal baffles have come loose (though rare with this design).
• Hissing or Blowing Sounds (Exhaust Leak):
  • Inspect all joints and welds for small cracks or gaps.
  • Check gaskets at flange connections for proper seating and integrity.
  • A smoke test performed by a professional can help pinpoint elusive leaks.
• Vibration:
  • Ensure the muffler is securely mounted and not loose on its hangers.
  • Check for proper alignment of the entire exhaust system.

If troubleshooting steps do not resolve the issue, it is recommended to consult a certified automotive technician.

9. Specifications

Below are the key specifications for the Walker Quiet-Flow SS 53980 Direct Fit Exhaust Muffler Assembly:

10. Warranty and Support

The Walker Quiet-Flow SS 53980 Direct Fit Exhaust Muffler Assembly comes with Walker's limited lifetime warranty and an exclusive 90-Day Safe and Sound Guarantee.

For detailed information regarding warranty coverage, terms, and conditions, or for technical support, please visit the official Walker Exhaust website:

Visit Walkerexhaust.com

Always refer to the manufacturer's official resources for the most current and accurate warranty and support information.
