Reebok SL8.0 Treadmill (AC) - 120V User Manual

1. Safety Information

Please read all instructions carefully before using the Reebok SL8.0 Treadmill. Retain this manual for future reference.

• Always consult with a physician before beginning any exercise program.
• Keep children and pets away from the treadmill during operation.
• Wear appropriate exercise clothing and athletic shoes. Avoid loose clothing that could get caught.
• Ensure the safety key is properly attached to your clothing before starting the treadmill. In case of emergency, the safety key will stop the machine.
• Place the treadmill on a solid, level surface with at least 2 meters (6.5 feet) of clear space behind it and 0.6 meters (2 feet) on each side.
• Do not operate the treadmill if it has a damaged cord or plug, or if it has been dropped or damaged.
• Unplug the treadmill from the power outlet when not in use, before cleaning, and before performing any maintenance.
• Do not use the treadmill outdoors or in areas with high humidity.

2. Product Overview

The Reebok SL8.0 Treadmill is designed for advanced cardio workouts, bridging the gap between gym and home exercise. It features a powerful 4HP AC motor for increased intensity and duration of training.

Key Features:

• 10.1" LCD touchscreen display
• 4HP AC motor with 20kph max speed
• Entertainment apps - YouTube, Netflix etc.
• Reebok Fitness App compatible
• Sub Lite cushioning technology

Figure 2.1: The Reebok SL8.0 Treadmill, showcasing its sleek design and console.

Figure 2.2: Side view of the Reebok SL8.0 Treadmill, highlighting the robust frame and running deck.

Figure 2.3: The Reebok SL8.0 Treadmill positioned in a home setting, demonstrating its suitability for personal fitness spaces.

3. Setup

Assembly is required for the Reebok SL8.0 Treadmill. Please follow the detailed assembly instructions provided in the separate assembly guide included with your product. Ensure all parts are present and securely fastened before use.

Initial Placement:

1. Choose a flat, stable surface for the treadmill.
2. Ensure adequate clearance around the treadmill as specified in the safety information.
3. Connect the power cord to a grounded 120V AC outlet.

4. Operating Instructions

The Reebok SL8.0 Treadmill features an intuitive 10.1" touchscreen console for easy operation and access to various features.

4.1. Console Overview

Figure 4.1: The 10.1-inch touchscreen panel, showing program options and connectivity features. This clear touchscreen display is the latest model and is compatible with the Reebok Fitness App for smartphone connectivity.

Figure 4.2: Close-up of the control panel, illustrating the simple operability for speed and incline adjustments. Speed and incline changes are simple, making it easy to operate and focus on running.

4.2. Starting a Workout

1. Ensure the safety key is in place on the console and attached to your clothing.
2. Press the 'Start' button on the touchscreen or console. The belt will begin to move at a low speed.
3. Gradually increase speed using the '+' button or quick speed buttons on the console.
4. Adjust incline using the 'Incline' buttons or quick incline buttons.

Figure 4.3: Illustration of the power incline feature, showing a maximum incline of 18%. This feature is suitable not only for running but also for training like slowly walking uphill, contributing to daily fitness building.

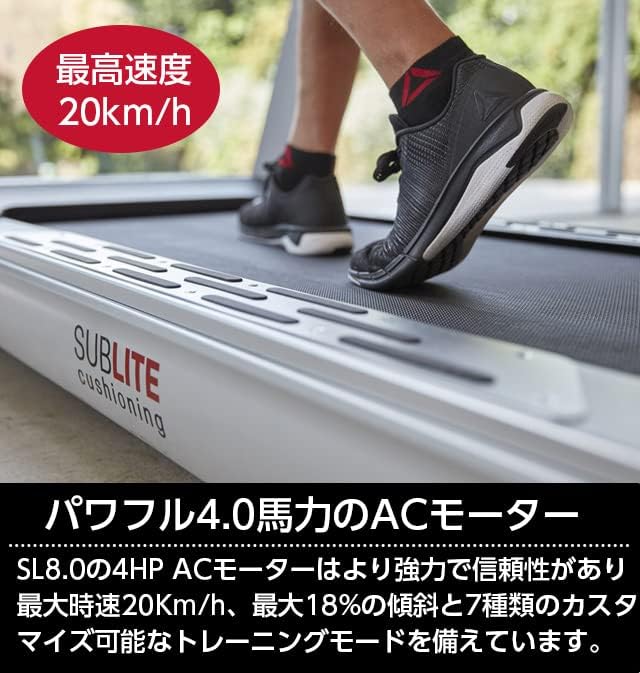

Figure 4.4: A user running on the treadmill, demonstrating the maximum speed of 20 km/h. The powerful 4.0 horsepower AC motor of the SL8.0 is more reliable and offers a maximum speed of 20km/h, a maximum incline of 18%, and 7 types of customizable training modes.

4.3. Using Programs and Apps

• The console offers 7 types of customizable programs. Select a program from the touchscreen menu.
• Access pre-installed entertainment apps like YouTube and Netflix via the touchscreen.
• Connect to the Reebok Fitness App to tailor and track your workouts.

4.4. Emergency Stop

In case of an emergency, pull the safety key from the console. The treadmill will immediately stop. Alternatively, press the 'Stop' button on the console.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Reebok SL8.0 Treadmill.

5.1. Cleaning

• Wipe down the console and exterior surfaces with a soft, damp cloth after each use. Avoid abrasive cleaners.
• Vacuum underneath the treadmill regularly to prevent dust and debris buildup.

5.2. Belt Lubrication

The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to your assembly guide for specific lubrication instructions and recommended lubricant type. Typically, this should be done every 3-6 months depending on usage.

5.3. Belt Tension and Alignment

Over time, the running belt may become loose or misaligned. Consult your assembly guide for instructions on how to check and adjust the belt tension and alignment using the rear roller bolts.

Figure 5.1: Close-up of the Sublite cushioning technology on the running deck. The deck equipped with Sublite Technology reduces impact during running, lessening the burden on joints.

6. Troubleshooting

If you encounter issues with your treadmill, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Reebok customer support.

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Reebok website. Keep your proof of purchase for any warranty claims.

For further assistance, you may visit the Reebok Store on Amazon.
