uxcell Car Horn Adapter Wiring Harness Instruction Manual
Model: a18053000ux0190
1. Product Overview
The uxcell Car Horn Adapter Wiring Harness is designed to provide a quick and easy plug-and-play solution for connecting aftermarket or replacement car horns. This adapter eliminates the need for cutting or splicing wires, ensuring a clean and secure installation. It is compatible with various car models, including select Audi, Volkswagen, Skoda, and Porsche vehicles.
- Plug and Play Design: Simplifies installation by directly connecting to existing car horn connectors.
- Durable Construction: Made from plastic and metal for reliable performance.
- Universal Fit (for specified models): Designed to fit most push-on terminals found in compatible vehicles.
- Heat Shrink Protection: Pre-applied heat shrink for enhanced protection against wear and heat.
Image 1.1: Two uxcell Car Horn Adapter Wiring Harnesses. These adapters feature a black plastic housing with two wires extending from one end, terminating in small metal connectors, designed for a direct plug-in connection to car horns.
2. Specifications
| Feature | Detail |
|---|---|
| Brand | uxcell |
| Model Number | a18053000ux0190 |
| Material | Plastic, Metal |
| Shell Color | Black |
| Dimension (L*W*H) | 3.8 x 2.8 x 1.4 cm / 1.5" x 1.1" x 0.6" |
| Wire Length | 7.5 cm / 3" |
| Connector Type | Push-on Terminal |
| Package Content | 2 x Car Horn Wiring Adapters |
Image 2.1: Product Dimension Diagram. This image illustrates the length, width, and height of the adapter (3.8cm / 1.5" L, 2.8cm / 1.1" W, 1.4cm / 0.6" H) and the wire length (7.5cm / 3").
3. Compatibility
This wiring harness is designed for specific vehicle models. Please verify compatibility before installation.
- For Audi A6, A8, A4, A6L, 100, 200
- For Volkswagen Polo, Sagitar, Magotan, Golf, Touareg, Touran, Bora
- For Skoda
- For Porsche Cayenne
4. Setup and Installation
The uxcell Car Horn Adapter is designed for a straightforward, plug-and-play installation. No cutting or splicing of original vehicle wiring is required.
Installation Steps:
- Locate the Horn: Identify the existing car horn and its wiring connector in your vehicle. Consult your vehicle's service manual if needed.
- Disconnect Existing Wiring (if applicable): If replacing an existing horn, carefully disconnect its wiring.
- Connect the Adapter: Take one uxcell horn adapter. Connect the larger black plastic end of the adapter directly into the car's horn connector. Ensure it clicks securely into place.
- Connect to Horn: Connect the two smaller metal terminals at the end of the adapter's wires to the terminals on your new or replacement car horn. Ensure a firm connection.
- Secure the Horn: Mount the horn securely in its intended location.
- Test Functionality: Test the horn to ensure it is functioning correctly.

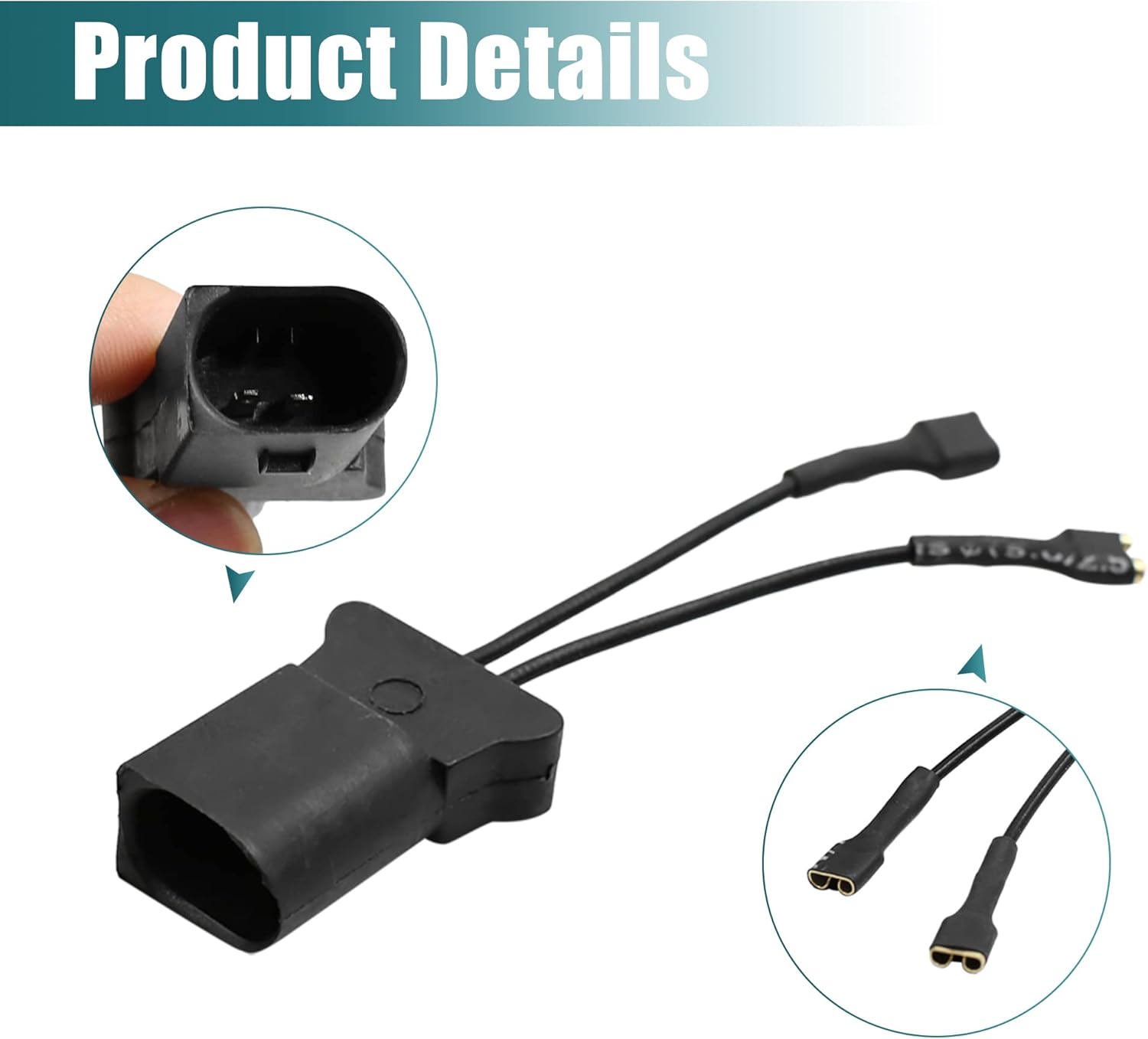

Image 4.1: Product Details. This image highlights the main connector housing and the two individual wire terminals, demonstrating how the adapter connects to both the vehicle's wiring and the horn itself.
5. Operating Instructions
Once the uxcell Car Horn Adapter Wiring Harness is correctly installed, the car horn will operate as normal when activated via the vehicle's steering wheel or horn button. The adapter simply facilitates the electrical connection between the vehicle's wiring system and the horn unit.
6. Maintenance and Care
The uxcell Car Horn Adapter Wiring Harness requires minimal maintenance. To ensure longevity and proper function:
- Keep Connections Dry: While the adapter has heat shrink protection, avoid prolonged exposure to excessive moisture or water.
- Inspect Periodically: Occasionally check the connections to ensure they remain secure and free from corrosion or damage.
- Clean Gently: If necessary, gently wipe the adapter with a dry, clean cloth. Do not use harsh chemicals.
7. Troubleshooting
If you encounter issues after installing the horn adapter, consider the following:
- Horn Not Functioning:
- Ensure all connections (vehicle to adapter, adapter to horn) are fully seated and secure.
- Check the vehicle's horn fuse. Refer to your vehicle's owner's manual for fuse box location and horn fuse identification.
- Verify that the horn itself is functional by testing it with a direct 12V power source (if safe to do so).
- Confirm the adapter is compatible with your specific horn and vehicle model.
- Loose or Difficult Fit:
- Some users have reported a very tight fit. Ensure proper alignment and apply firm, even pressure when connecting. Avoid excessive force that could damage terminals.
- If the fit is too tight for the horn terminals, the adapter's terminals can be carefully adjusted (crimped) if necessary, as they are designed to fit most push-on terminals.
8. Warranty and Support
For any product inquiries, technical assistance, or warranty information, please contact uxcell customer support through the platform where the product was purchased or visit the official uxcell brand store.
Online Support: Visit the uxcell Store on Amazon
