Modway Marina Premium Grade A Teak Wood Outdoor Patio Chaise Lounge Chair (Model: EEI-1151-NAT-GRY-SET) Instruction Manual

1. Introduction

This manual provides essential instructions for the assembly, operation, maintenance, and care of your Modway Marina Premium Grade A Teak Wood Outdoor Patio Chaise Lounge Chair. Please read this manual thoroughly before assembly and retain it for future reference to ensure safe and proper use of your product.

2. Product Overview

The Modway Marina Chaise Lounge Chair is designed for outdoor use, featuring premium Grade A teak wood construction and all-weather cushions. It offers a contemporary style suitable for various outdoor settings.

• Premium Teak Wood: Crafted from Grade A premium teak with textured wood grain and durable natural resin.
• All-Weather Cushions: Features stain and fade-resistant, machine-washable cushions for long-lasting comfort.
• Contemporary Design: Panel details, gentle curves, and organic appeal enhance its modern aesthetic.
• Versatile Use: Ideal for patios, backyards, or poolside areas.

Product Images

Figure 2.1: Modway Marina Teak Wood Outdoor Patio Chaise Lounge Chair in Natural Gray, set by a pool.

Figure 2.2: Detailed dimensions of the chaise lounge chair, showing length, width, and height.

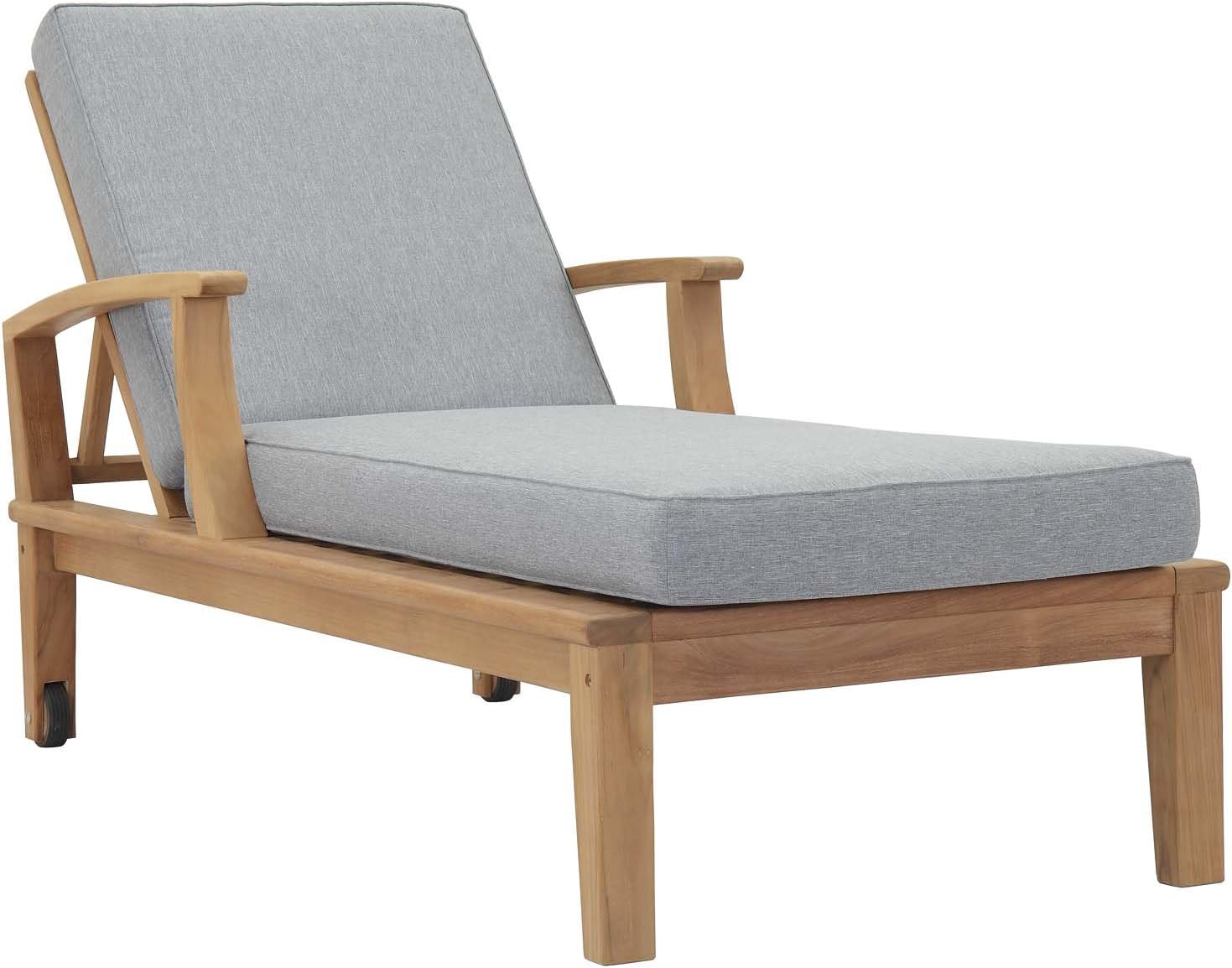

Figure 2.3: Front-side view of the chaise lounge chair with gray cushions.

Figure 2.4: Side profile of the chaise lounge chair, highlighting its structure.

Figure 2.5: View showing the adjustable backrest mechanism of the chaise lounge.

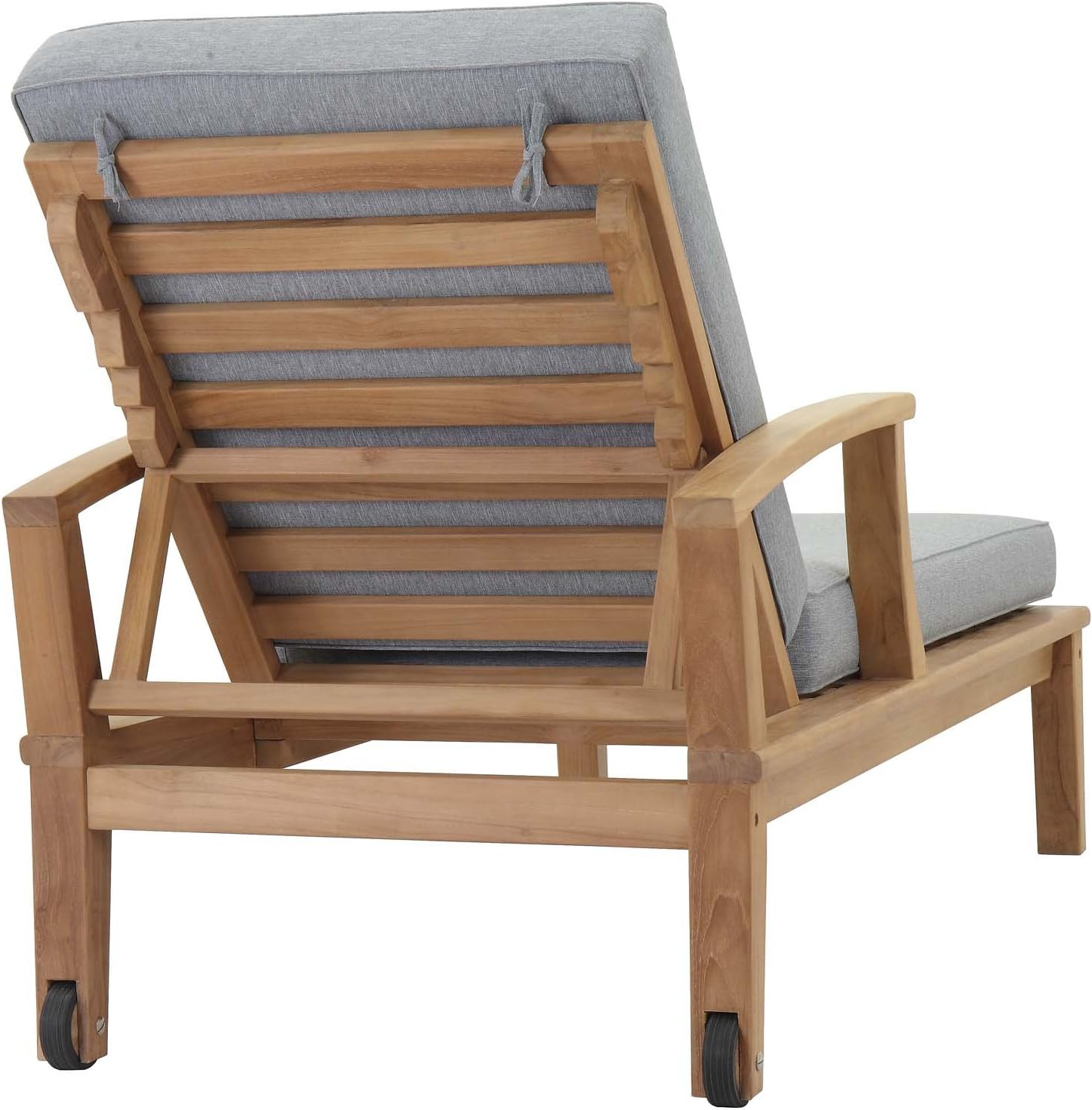

Figure 2.6: Rear view of the chaise lounge chair, showing the slatted back design.

Figure 2.7: Direct front view of the chaise lounge chair.

Figure 2.8: Close-up detail of the natural teak wood grain.

Figure 2.9: Detail of the smoothly finished teak wood armrest.

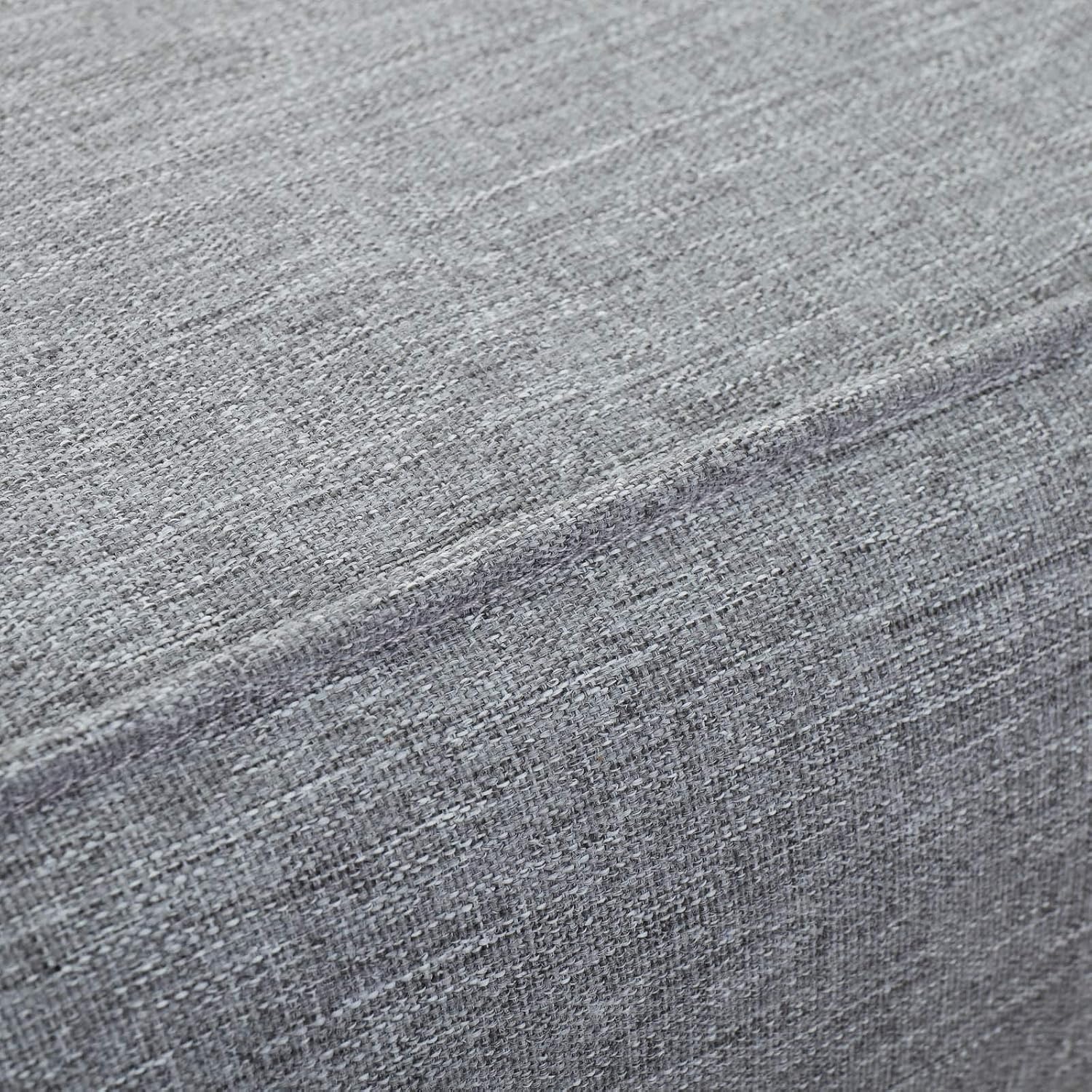

Figure 2.10: Close-up of the gray all-weather cushion fabric texture.

Product Videos

3. Setup Instructions

Assembly is required for this product. Please ensure all components are present before beginning assembly. Refer to the included assembly diagram and hardware pack for detailed, step-by-step instructions.

1. Unpack all components and hardware from the packaging.
2. Identify each part and compare with the parts list in the assembly guide.
3. Follow the numerical sequence of steps provided in the assembly guide to connect the frame components.
4. Secure all bolts and screws firmly, but do not overtighten until all parts are aligned.
5. Once the frame is assembled, place the cushions onto the chair.
6. Ensure the chaise lounge is stable before use.

Note: It is recommended to assemble the chair on a soft, clean surface to prevent scratching. Two people may be required for easier assembly.

4. Operating Instructions

The Modway Marina Chaise Lounge Chair is designed for comfortable outdoor relaxation. Its backrest is adjustable to multiple reclining positions, and it features wheels for easy repositioning.

• Adjusting the Backrest: To recline the backrest, lift it slightly and then push it back to the desired angle. Ensure it locks securely into one of the available positions before leaning back. To bring it upright, lift the backrest until it disengages from the current position and pull it forward.
• Moving the Chaise Lounge: The chaise lounge is equipped with wheels at one end. To move the chair, lift the end without wheels and roll it to your desired location. Ensure the path is clear of obstacles.

5. Maintenance

Proper maintenance will extend the life and beauty of your Modway Marina Chaise Lounge Chair.

Teak Wood Care

• Cleaning: Clean teak wood with a soft brush and mild soap solution. Rinse thoroughly with water and allow to air dry completely.
• Restoring Color: To retain the rich wood color, occasionally sand lightly with fine-grit sandpaper and apply a teak cleaner and protectant. These products nourish the wood and help restore its original appearance.
• Natural Patina: Over time, untreated teak wood will naturally weather to a soft, silvery-gray patina. This is a natural process and does not affect the durability of the wood.
• Protection: During prolonged periods of non-use or harsh weather conditions, consider covering the chaise lounge or storing it indoors to protect the wood.

Cushion Care

• Cleaning: The cushions are machine washable. Remove covers and wash according to the care label instructions, typically in cold water on a gentle cycle.
• Drying: Air dry cushion covers to prevent shrinkage or damage. Do not tumble dry.
• Storage: Store cushions indoors during inclement weather or when not in use for extended periods to prolong their lifespan and maintain their appearance.

6. Troubleshooting

If you encounter any issues with your chaise lounge chair, please refer to the following common solutions:

• Loose Connections: Periodically check all bolts and screws to ensure they are tight. Retighten as necessary to maintain stability.
• Squeaking: If the chair squeaks, check for loose connections and apply a small amount of lubricant to moving parts if applicable (e.g., wheels, reclining mechanism joints).
• Wood Discoloration: Teak wood naturally changes color over time. If you prefer to maintain its original golden-brown hue, follow the teak wood care instructions in Section 5.
• Cushion Stains: For stubborn stains, pre-treat the cushion covers before washing. Always follow the care label instructions.

If problems persist, please contact customer support for further assistance.

7. Specifications

8. Warranty and Support

Warranty: This product comes with a 1-year manufacturer warranty against defects.

Customer Support: For any questions, missing parts, or warranty claims, please contact Modway customer service. Refer to your purchase documentation for specific contact details or visit the official Modway website.

Please have your model number (EEI-1151-NAT-GRY-SET) and date of purchase ready when contacting support.
