1. Product Overview
The Geko G02172 Motorcycle Stand is a robust and reliable tool designed to support motorcycles for maintenance, storage, and cleaning. Constructed from high-quality materials in Poland, this stand offers high strength and consistent performance, capable of supporting up to 340 kg. Its multi-color design ensures visibility and durability for long-term use in various workshop environments.

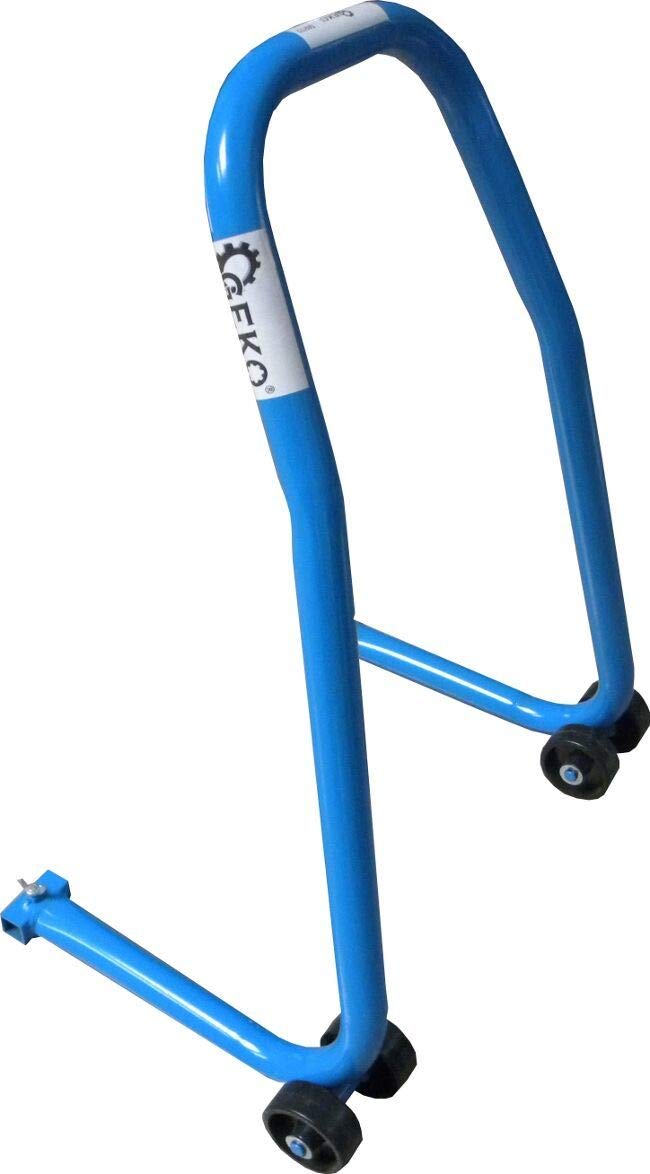

Image 1.1: The Geko G02172 Motorcycle Stand. This image shows the blue-colored stand with its main frame, support arms, wheels, and lifting pads.
2. Safety Information
Read and understand all instructions before assembling or using this product. Failure to follow these instructions may result in serious injury or property damage.
- Always ensure the motorcycle is stable and balanced before attempting to lift it.
- Do not exceed the maximum weight capacity of 340 kg.
- Use the stand on a flat, level, and solid surface.
- Keep hands and feet clear of moving parts during operation.
- Inspect the stand for damage or wear before each use. Do not use if damaged.
- Ensure all fasteners are securely tightened before use.
- Do not leave a motorcycle unattended on the stand, especially in areas accessible to children or pets.
- Wear appropriate personal protective equipment (PPE) such as safety gloves and footwear.
3. Package Contents
Verify that all components are present and undamaged before assembly. If any parts are missing or damaged, contact customer support.
- Main stand frame (1 unit)
- Support arms with lifting pads (2 units)
- Wheels (4 units)
- Assembly hardware (bolts, nuts, washers)
- Instruction Manual (this document)
4. Setup and Assembly
Follow these steps to assemble your Geko G02172 Motorcycle Stand:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
- Attach Wheels: Securely attach the four wheels to the designated points on the main stand frame using the provided bolts and nuts. Ensure they are tightened firmly but do not overtighten.
- Install Support Arms: Insert the support arms into the main frame. Adjust the width of the support arms to match the width of your motorcycle's swingarm or frame points. Secure them in place with the locking pins or bolts.
- Verify Stability: Once assembled, gently push and pull on the stand to ensure all connections are secure and the stand is stable.
Note: Some assembly steps may require basic hand tools (not included).
5. Operating Instructions
To safely lift your motorcycle using the Geko G02172 stand:
- Position Motorcycle: Park your motorcycle on a flat, level surface. Ensure the motorcycle is in neutral and the side stand is deployed for initial stability.
- Adjust Stand Width: Adjust the width of the stand's support arms to align perfectly with the lifting points on your motorcycle's swingarm or frame. The lifting pads should make full contact.
- Position Stand: Roll the stand into position behind the motorcycle's rear wheel (for a rear stand) or under the front forks (for a front stand, if applicable). The lifting pads should be directly under the motorcycle's lifting points.
- Lift Motorcycle: While holding the motorcycle stable with one hand, firmly push down on the stand's handle with the other hand. The stand will pivot, lifting the motorcycle's wheel off the ground. Ensure the motorcycle is balanced and stable on the stand.
- Lower Motorcycle: To lower the motorcycle, firmly hold the motorcycle stable, then gently lift the stand's handle, allowing the motorcycle to slowly descend until its wheel is back on the ground. Remove the stand.
Always exercise caution and ensure the motorcycle is stable throughout the lifting and lowering process. It is recommended to have assistance for the first few uses.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your Geko G02172 Motorcycle Stand:
- Cleaning: Wipe down the stand with a damp cloth after each use to remove dirt, grease, and debris.
- Inspection: Periodically inspect all welds, bolts, and moving parts for signs of wear, damage, or corrosion.
- Lubrication: Apply a light lubricant to the wheel axles and pivot points annually or as needed to ensure smooth operation.
- Storage: Store the stand in a dry, clean environment when not in use to prevent rust and damage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stand feels unstable during use. | Uneven surface; loose fasteners; incorrect motorcycle positioning. | Move to a flat, level surface. Tighten all bolts. Re-position the motorcycle and stand carefully. |
| Difficulty lifting the motorcycle. | Incorrect stand adjustment; motorcycle too heavy; improper technique. | Ensure support arms are correctly aligned. Verify motorcycle weight is within 340 kg limit. Review operating instructions. |
| Wheels do not roll smoothly. | Dirt/debris in wheels; lack of lubrication; damaged wheels. | Clean wheels. Apply lubricant to axles. Inspect for damage and replace if necessary. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | G02172 |
| Brand | Geko |
| Maximum Load Capacity | 340 kg |
| Item Weight | 6.5 Kilograms |
| Package Dimensions | 35 x 35 x 15 cm |
| Color | Multi-Colour (predominantly blue as shown) |
| Manufacturer | Firma Handlowa GEKO |
| Country of Origin | Poland |
9. Warranty and Support
For warranty information or technical support, please refer to the retailer's policy or contact Geko customer service directly. Keep your purchase receipt as proof of purchase.
This product is designed for its intended purpose as a motorcycle stand. Any modifications or uses outside of its specified capacity and function will void any warranty and may result in injury or damage.
