Introduction
The VXDAS EL-50448 TPMS Relearn Tool is designed to activate and relearn Tire Pressure Monitoring System (TPMS) sensors in most GM vehicles (Chevy, Buick, Cadillac, Opel from 2006-2023, Cars, SUV, Pickup) equipped with 315 or 433 MHz TPMS sensors. This tool is essential for situations such as installing new TPMS sensors, performing tire rotations, or resetting the tire pressure indicator light after maintenance or tire replacement.
Figure 1: The VXDAS EL-50448 tool is compatible with various GM vehicle types, including cars, SUVs, and pickups.
Setup
Battery Installation
The EL-50448 tool requires one 9V battery (not included). To install the battery:
- Locate the battery compartment cover on the back of the device.
- Slide the cover off to open the compartment.
- Insert a new 9V battery, ensuring correct polarity.
- Replace the battery compartment cover until it clicks securely into place.

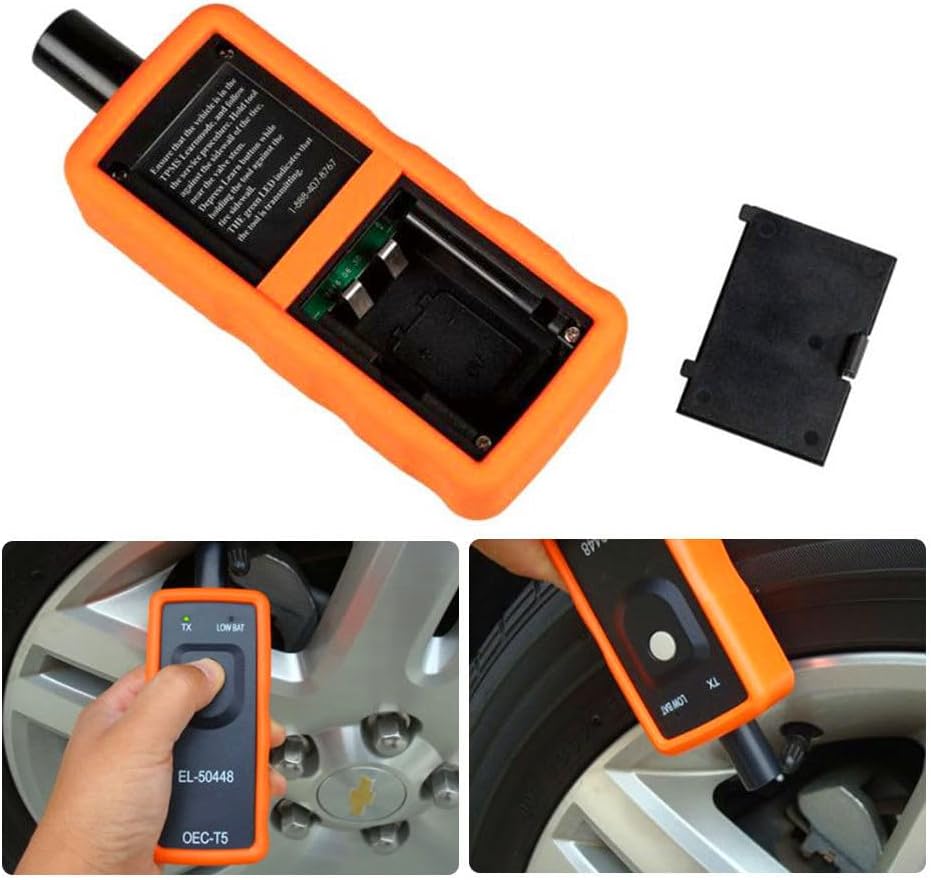

Figure 2: The battery compartment of the EL-50448 tool, demonstrating where to insert the 9V battery.
Operating Instructions
Follow these steps to effectively use the VXDAS EL-50448 tool for TPMS sensor relearn procedures:
- Prepare the Vehicle: Ensure that the vehicle is in the TPMS Learn Mode. Refer to your vehicle's owner's manual for specific instructions on how to enter this mode.
- Position the Tool: Hold the EL-50448 tool against the sidewall of the tire, near the valve stem.
- Activate the Sensor: Depress the 'Learn' button on the tool while holding it against the tire sidewall. The green 'TX' LED on the tool will illuminate, indicating it is transmitting.
- Confirmation: The vehicle's horn will typically sound once to confirm that the sensor identification code has been successfully matched to that tire position.
- Repeat for All Tires: Proceed to the remaining tires in the sequence specified by your vehicle's manufacturer (usually Driver Front, Passenger Front, Passenger Rear, Driver Rear). Repeat steps 2 and 3 for each tire. The horn will sound twice after the last sensor is successfully relearned, and the TPMS light on the dashboard will turn off.

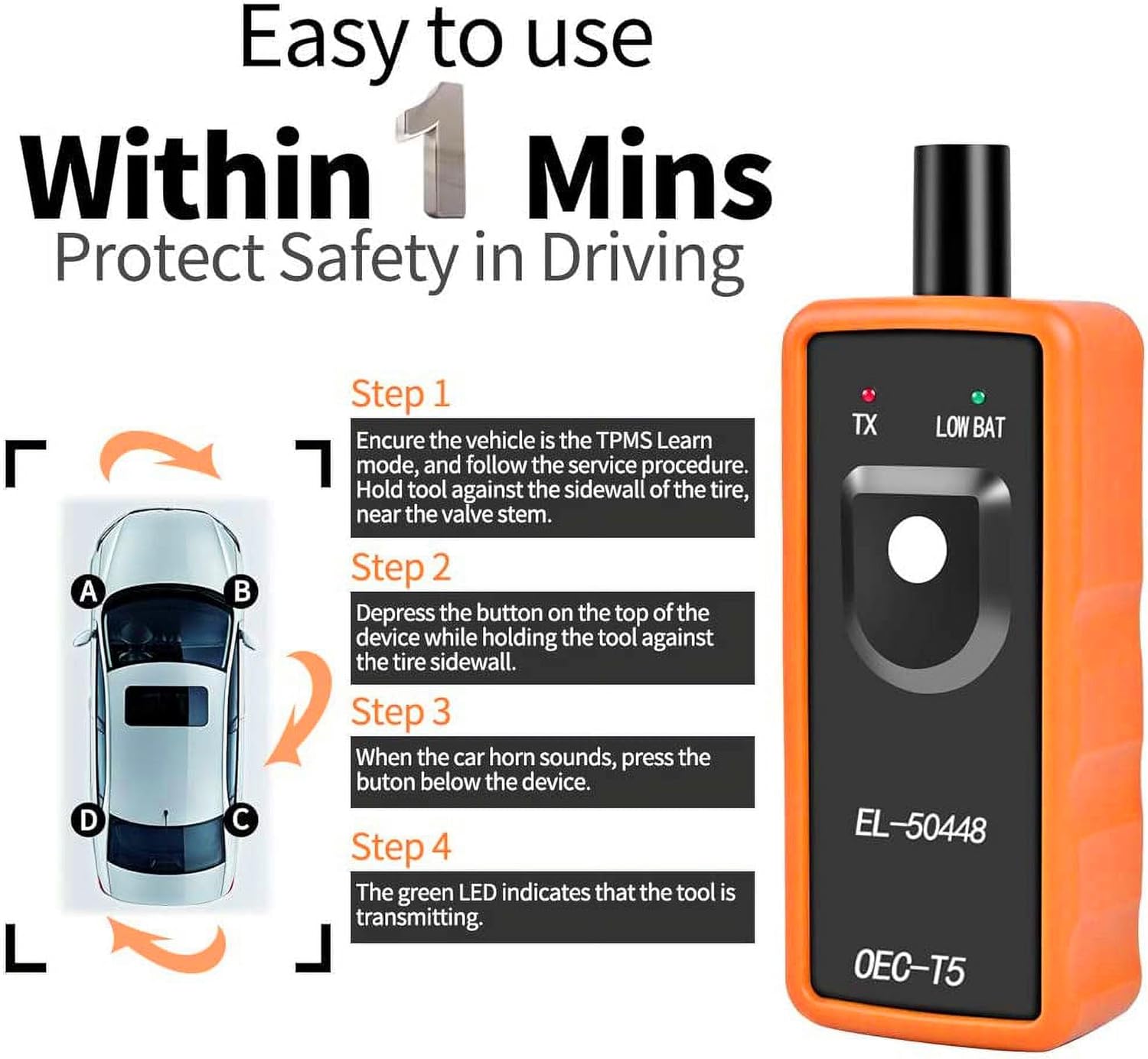

Figure 3: Visual guide to the 3-step TPMS relearn process using the EL-50448 tool.
Figure 4: Proper positioning of the EL-50448 tool for sensor activation.
Official Product Videos
Video 1: This video demonstrates the quick and easy process of using the VXDAS TPMS Relearn Tool for GM and Ford vehicles, highlighting its one-click operation and efficiency in activating TPMS sensors.
Video 2: A detailed tutorial on using the TPMS Relearn Tool for GM, Jeep, and F150 models, covering the steps to reset tire pressure sensors after maintenance or replacement.
Compatibility
The VXDAS EL-50448 TPMS Relearn Tool is designed for wide vehicle coverage, primarily supporting GM, Buick, Cadillac, Chevrolet, and GMC vehicles from 2006-2023 equipped with 315 or 433 MHz Tire Pressure Monitor systems. It is also compatible with certain Opel models. For a comprehensive list of compatible models, please refer to the detailed compatibility chart below.
Figure 5: Extensive compatibility list for GM vehicles, including specific models and years.
Maintenance
To ensure the longevity and optimal performance of your VXDAS EL-50448 TPMS Relearn Tool, follow these maintenance guidelines:
- Cleaning: Wipe the tool with a soft, dry cloth after each use to remove any dust or debris. Avoid using harsh chemicals or abrasive cleaners.
- Storage: Store the tool in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: Remove the 9V battery if the tool will not be used for an extended period to prevent battery leakage and potential damage to the device.
Troubleshooting
If you encounter issues while using your EL-50448 tool, consider the following:
- Tool Not Activating Sensor:
- Ensure the vehicle is correctly in TPMS Learn Mode.
- Check if the 9V battery is new and properly installed. A low battery (indicated by the 'LOWBAT' LED) can prevent proper transmission.
- Verify the tool's antenna is positioned correctly against the tire sidewall, near the valve stem.
- Confirm that the TPMS sensors are original OEM sensors and are well-programmed. This tool resets sensors but does not program them.
- TPMS Light Remains On:
- Ensure all four tires have been successfully relearned.
- Check tire pressures to ensure they are at the recommended levels.
- If the issue persists, there might be a fault with a sensor or the vehicle's TPMS system itself, requiring professional diagnosis.
For more detailed troubleshooting, you may refer to the Troubleshooting Guide (PDF).
Specifications
| Manufacturer | VXDAS |
| Model | Ultimate EL-50448 |
| Item Weight | 5 ounces |
| Product Dimensions | 0.39 x 0.39 x 0.39 inches |
| Country of Origin | China |
| Batteries Required | 1 x 9V battery |
Warranty & Support
For warranty information or technical support regarding your VXDAS EL-50448 TPMS Relearn Tool, please contact VXDAS customer service directly. Refer to the product packaging or the official VXDAS website for contact details.
