Platinet PMGC10B Portable Bluetooth Speaker User Manual

Introduction

This manual provides instructions for the safe and efficient operation of your Platinet PMGC10B Portable Bluetooth Speaker. This device features Bluetooth connectivity, FM radio, an alarm clock function, and supports playback from USB and Micro SD cards. Please read this manual thoroughly before use and retain it for future reference.

Image: Front angled view of the Platinet PMGC10B Portable Bluetooth Speaker, showcasing its compact design and front speaker grille.

Safety Information

• Do not expose the device to extreme temperatures, direct sunlight, or high humidity.
• Avoid dropping or subjecting the speaker to strong impacts.
• Do not disassemble or attempt to repair the device yourself. Refer all servicing to qualified personnel.
• Keep the speaker away from water and other liquids.
• Use only the provided USB cable for charging.

Package Contents

Ensure all items are present upon unboxing:

• Platinet PMGC10B Portable Bluetooth Speaker
• USB Charging Cable
• User Manual (this document)

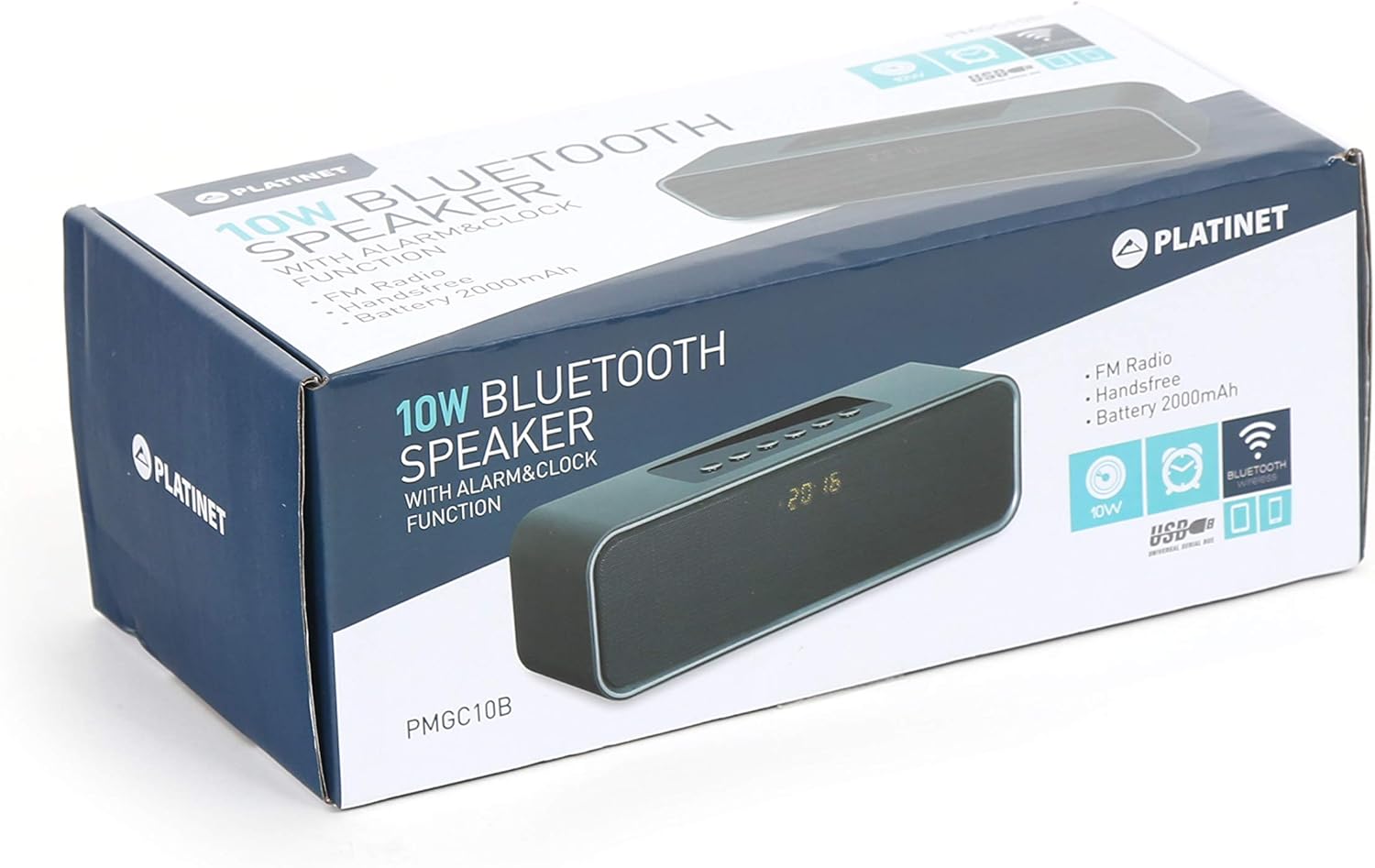

Image: The Platinet PMGC10B speaker shown within its retail packaging, indicating the product and its included accessories.

Product Overview

Top Panel Controls

Image: Close-up view of the speaker's top panel, showing the control buttons: Play/Pause, Mode, Previous Track, Next Track, Volume Down, and Volume Up.

• Play/Pause (►▮▮): Press to play or pause audio.
• Mode: Press to switch between Bluetooth, FM Radio, USB, Micro SD, and AUX modes.
• Previous Track (◀◀): Press to go to the previous track. In FM mode, press to tune to the previous station.
• Next Track (►►): Press to go to the next track. In FM mode, press to tune to the next station.
• Volume Down (Vol-): Press to decrease the volume.
• Volume Up (Vol+): Press to increase the volume.

Rear Panel Ports

Image: Rear view of the speaker, highlighting the AUX input, Micro SD card slot, USB host port, USB DC charging port, and the power switch.

• AUX: 3.5mm audio input for connecting external devices.
• Micro SD: Slot for Micro SD memory cards for audio playback.
• USB HOST: USB port for connecting USB flash drives for audio playback.
• USB DC: Micro USB port for charging the speaker.
• ON/OFF: Power switch for turning the speaker on or off.

Setup

1. Charging the Speaker

1. Connect the provided USB charging cable to the USB DC port on the rear of the speaker.
2. Connect the other end of the USB cable to a USB power adapter (not included) or a computer's USB port.
3. The charging indicator light will illuminate. The speaker is fully charged when the indicator light changes color or turns off (refer to specific product behavior if indicated by LED).
4. A full charge typically takes approximately 3-4 hours.

2. Powering On/Off

• To power on, slide the ON/OFF switch on the rear panel to the "ON" position.
• To power off, slide the ON/OFF switch to the "OFF" position.

Operating Instructions

Bluetooth Mode

1. Power on the speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing LED.
2. Enable Bluetooth on your mobile device (smartphone, tablet, etc.).
3. Search for available Bluetooth devices and select "PMGC10B" from the list.
4. Once paired, the speaker will emit a confirmation sound, and the LED indicator will stop flashing.
5. You can now play audio from your device through the speaker.

FM Radio Mode

1. Power on the speaker. Press the Mode button repeatedly until "FM" is displayed or announced.
2. For automatic station scanning, press and hold the Play/Pause button. The speaker will scan and save available FM stations.
3. Use the Previous Track (◀◀) and Next Track (►►) buttons to navigate between saved stations.

USB / Micro SD Card Playback

1. Insert a USB flash drive into the USB HOST port or a Micro SD card into the Micro SD slot.
2. The speaker will automatically detect the storage device and begin playing audio files. If not, press the Mode button to select the correct input.
3. Use the Play/Pause, Previous Track (◀◀), and Next Track (►►) buttons to control playback.

AUX Mode

1. Connect one end of a 3.5mm audio cable (not included) to the AUX port on the speaker.
2. Connect the other end to the audio output of your external device (e.g., MP3 player, computer).
3. Press the Mode button until "AUX" is displayed or announced.
4. Control playback from your external device.

Alarm Clock Function

The speaker includes an alarm clock function. Specific instructions for setting the alarm are typically found in a detailed product leaflet. Generally, this involves:

• Pressing and holding the Mode button or a dedicated clock/alarm button to enter time setting mode.
• Using the track skip buttons (◀◀ / ►►) to adjust hours and minutes.
• Pressing the Play/Pause or Mode button to confirm settings and switch between hour/minute/alarm settings.
• Refer to the display for visual cues during setting.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the speaker's exterior. Do not use abrasive cleaners or solvents.
• Storage: When not in use for extended periods, store the speaker in a cool, dry place away from direct sunlight.
• Battery Care: To prolong battery life, fully charge the speaker before first use and recharge it at least once every three months if not used regularly. Avoid completely draining the battery frequently.

Troubleshooting

Specifications

Warranty and Support

This product is covered by a standard manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your purchase or contact Platinet customer support.

For technical assistance or further inquiries, please visit the official Platinet website or contact their customer service department.
