DARKBEAM UV 365nm USB Rechargeable Ultraviolet Flashlight Instruction Manual

1. Introduction

Thank you for choosing the DARKBEAM UV 365nm USB Rechargeable Ultraviolet Flashlight. This compact and versatile device is designed for various detection tasks, including identifying pet urine stains, verifying currency, detecting fluorescent agents, and assisting in resin curing. This manual provides essential information for safe and effective use of your flashlight.

2. Safety Information

• Eye Protection: Avoid direct exposure of UV light to eyes. Prolonged exposure can cause eye damage.
• Skin Exposure: Minimize direct skin exposure to UV light.
• Children: Keep out of reach of children. This is not a toy.
• Heat: The flashlight may generate heat during prolonged use. Handle with care.
• Water Resistance: The device is water-resistant (IPX4), but not submersible. Avoid prolonged exposure to heavy rain or submersion in water.

3. Package Contents

• DARKBEAM UV 365nm USB Flashlight (1 unit)
• USB Charging Cable (1 unit)
• Lithium Ion Battery (pre-installed)
• Lanyard (1 unit)

4. Product Overview & Features

The DARKBEAM UV 365nm Flashlight is constructed from durable aluminum alloy and features a compact design for portability. It incorporates a 365nm ultraviolet LED, which is ideal for detecting substances that fluoresce under UV light without significant visible light interference.

Figure 1: DARKBEAM UV 365nm Flashlight with its USB charging port exposed and included lanyard.

Key Features:

• 365nm UV Light: Invisible to the naked eye, optimized for detecting fluorescent agents and security codes.
• USB Rechargeable: Hidden USB charging port for convenient charging via computer, power bank, or phone charger.
• Focus Adjustable: Zoom in/out function to adjust the light beam for wide area scanning or pinpoint detection.
• Water-Resistant (IPX4): Suitable for both indoor and outdoor use, resistant to splashes.
• Durable Construction: Made from strong aluminum alloy for reliability and longevity.

5. Setup & Charging

Initial Use:

Before first use, ensure the flashlight is fully charged. The battery is pre-installed.

Charging Instructions:

1. Unscrew the back cover of the flashlight.
2. Locate the hidden USB charging port.
3. Plug the flashlight directly into any standard USB device (e.g., computer, mobile power bank, USB wall adapter).
4. The charging indicator light will show the charging status (refer to product for specific indicator behavior).
5. Once fully charged, disconnect the flashlight and securely screw the back cover back on to maintain water resistance.

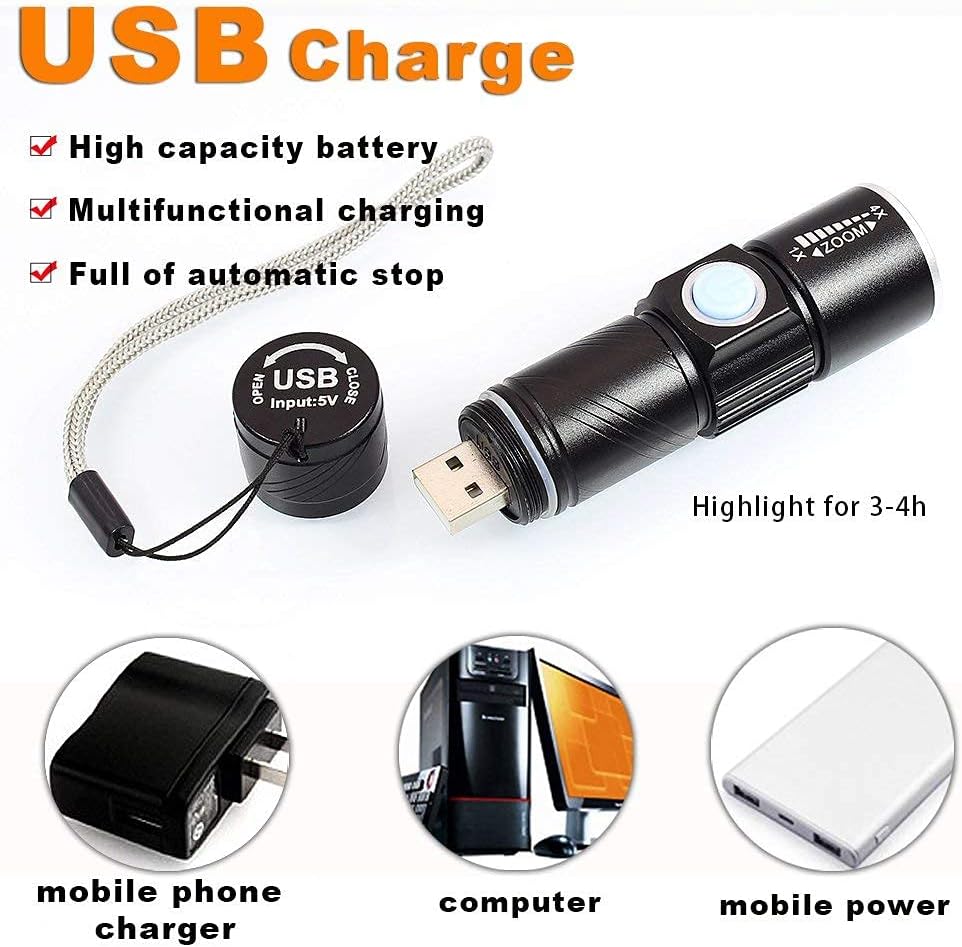

Figure 2: The flashlight features a hidden USB charging port accessible by unscrewing the tail cap, allowing charging from various USB power sources.

6. Operating Instructions

Turning On/Off:

Press the power button located on the side of the flashlight to turn the UV light on or off.

Focus Adjustment (Zoom):

To adjust the light beam, gently slide the head of the flashlight forward or backward. This allows you to zoom in for a concentrated beam or zoom out for a wider area of illumination.

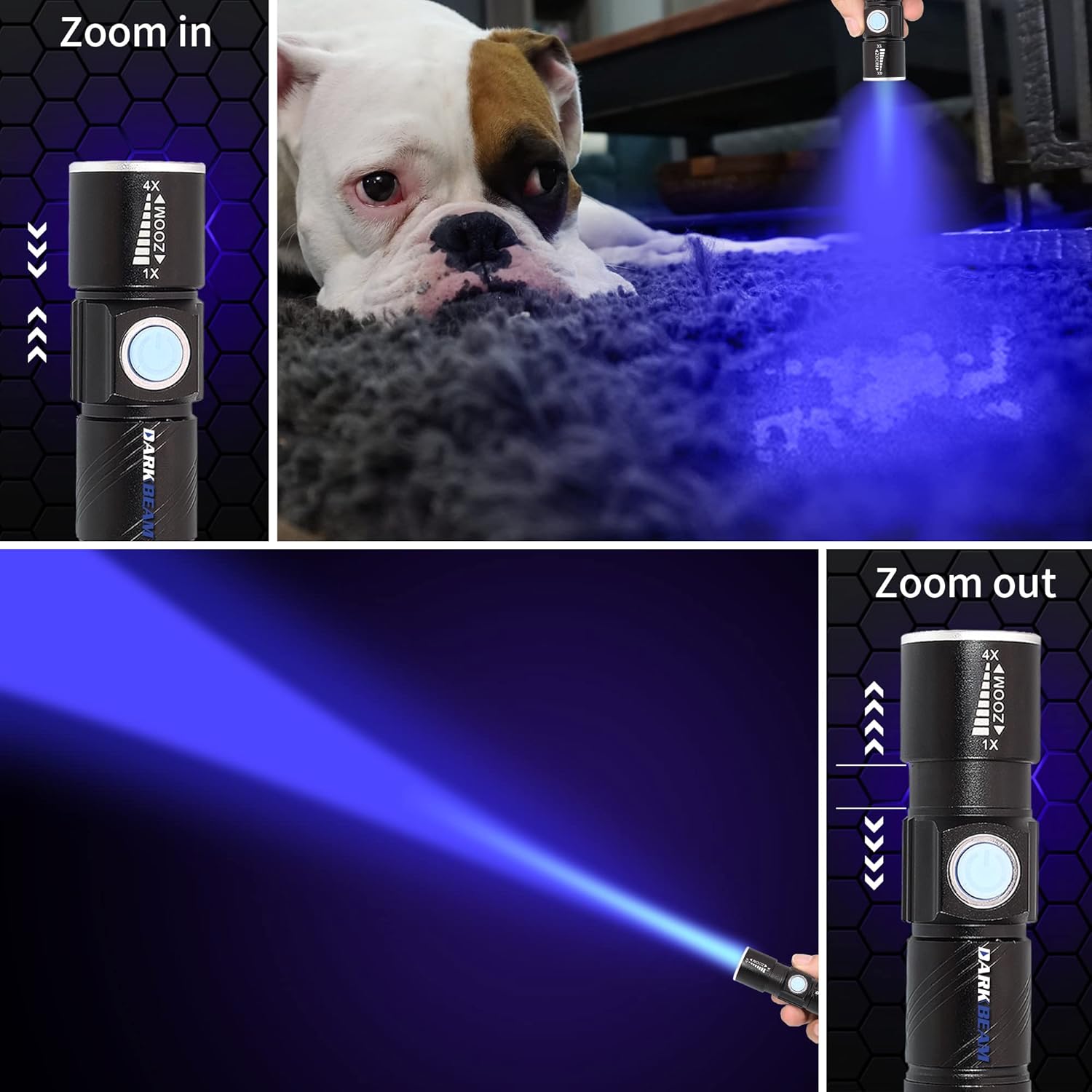

Figure 3: The flashlight's zoomable head allows users to adjust the beam from a wide floodlight to a focused spot, useful for various detection tasks.

Understanding 365nm UV Light:

The 365nm ultraviolet light is largely invisible to the naked eye, appearing as a faint purple glow. This wavelength is superior for revealing fluorescent materials without the distracting visible purple light often associated with 395nm UV flashlights. This makes it ideal for high-demand detection tasks.

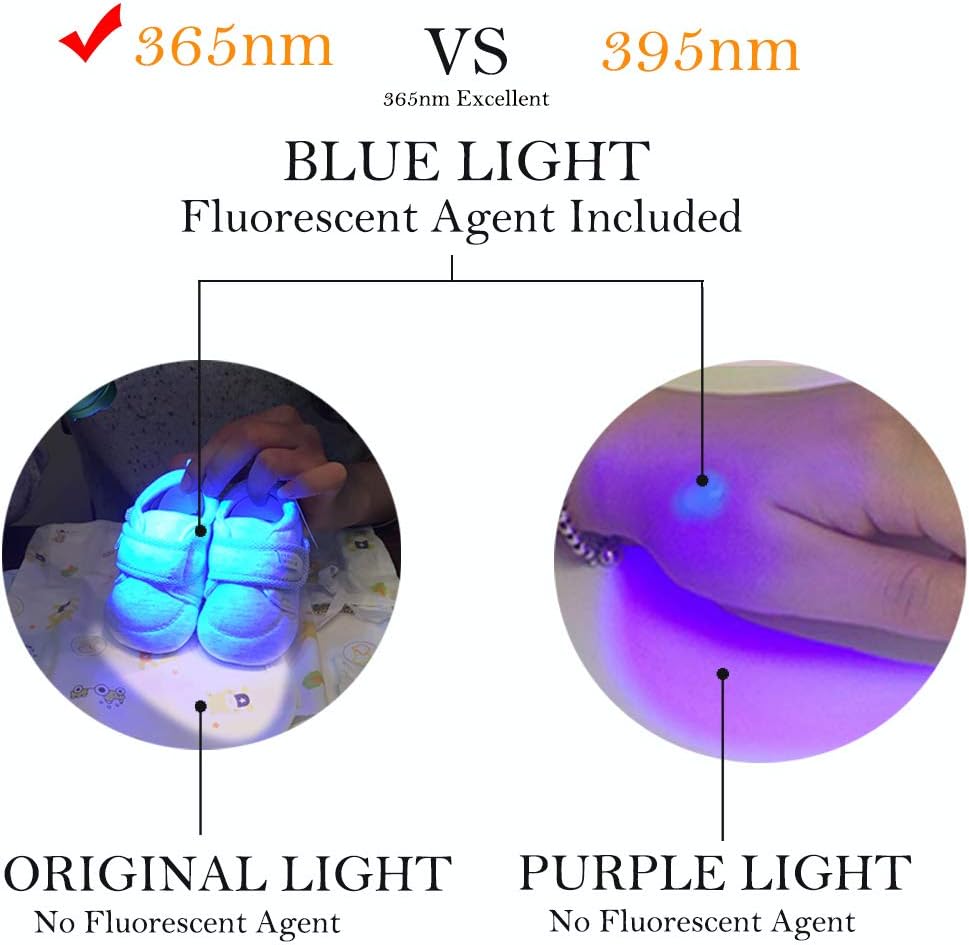

Figure 4: A visual comparison illustrating how 365nm UV light (left) effectively reveals fluorescent agents, unlike 395nm UV light (right) which emits more visible purple light.

7. Applications

Pet Urine & Stain Detection:

Use the flashlight in a darkened room to scan carpets, furniture, and other surfaces. Pet urine and other biological fluids will fluoresce, appearing as bright spots. The zoom function can help pinpoint the exact location of stains.

Figure 5: The UV flashlight highlights pet urine stains on a carpet, making invisible messes visible for cleaning.

Anti-Counterfeiting Identification:

The 365nm UV light can reveal security features on currency, passports, and other official documents that are invisible under normal light. This aids in verifying authenticity.

Figure 6: A 100 dollar bill under UV light, revealing embedded security threads and features to prevent counterfeiting.

Resin Curing:

The UV light can be used to cure UV-sensitive resins for various crafting or repair projects. Ensure proper ventilation and eye protection during this application.

Mineral & Ore Detection:

Certain minerals and ores exhibit fluorescence under UV light. The 365nm wavelength can help identify these specimens, making it a useful tool for collectors and enthusiasts.

8. Maintenance & Care

• Cleaning: Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Lens Care: Keep the UV lens clean for optimal performance. Use a lens cleaning cloth if necessary.
• Storage: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery: Recharge the battery regularly to maintain its lifespan, even if not in frequent use.

9. Troubleshooting

• Flashlight not turning on: Ensure the battery is charged. Check if the back cover is securely tightened.
• Weak UV light: Recharge the battery. Ensure the lens is clean.
• Charging issue: Verify the USB cable and power source are functioning correctly. Ensure the USB port on the flashlight is clean and free of debris.

10. Specifications

11. Warranty & Support

DARKBEAM offers a Full Warranty & Money Back Guarantee. Your satisfaction is very important. If you have any questions or encounter any issues with your product, please contact DARKBEAM customer support for assistance. We support a 180-day free refund.
