1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Carbhub 21188-2011 Fuel Shut Off Solenoid. This aftermarket replacement part is designed to ensure reliable fuel flow control in compatible engines, preventing fuel from entering the carburetor when the engine is off, thus preventing backfiring and ensuring a smooth shutdown.
Figure 1: Carbhub 21188-2011 Fuel Shut Off Solenoid with red sealing washer.
2. Compatibility
The Carbhub 21188-2011 Fuel Shut Off Solenoid is an aftermarket replacement for the following OEM part numbers:
- John Deere: M138477
- Kawasaki: 21188-2011
- MTD: KM21188-2011
This solenoid is compatible with a wide range of lawn and garden equipment, including but not limited to:
- John Deere Units: 325 FH531V, 345-FD611V, 6X4 gator, 777, GX325, GX345 (with carb # 15003-2801 or 2860), LT180, LX277, X475, X520, X540, X700, X710, and Z840.
- Toro Lawn Tractors: 74401, 74405, 74405FR, 74801.
- Other Compatible Equipment: Murray Snowblowers, Simplicity Lawn Mowers, Cub Cadet Lawn Mowers.
Figure 2: Solenoid compatibility overview, highlighting ease of installation, stability, quick response, and durability.
3. Package Contents
Upon opening the package, please verify that all components are present and undamaged. The standard package includes:
- 1x Carbhub Fuel Shut Off Solenoid
Note: Additional components such as sealing washers may be included. Always check the specific product packaging for a complete list.
4. Product Features
The Carbhub Fuel Shut Off Solenoid is engineered to provide reliable performance. Key features include:
- Direct Replacement: Designed to directly replace specified OEM part numbers for a seamless fit.
- Durable Construction: Manufactured with high-quality materials for long-lasting performance.
- Efficient Fuel Control: Ensures precise fuel shut-off to prevent engine issues like backfiring during shutdown.
- Aftermarket Quality: A cost-effective alternative to OEM parts without compromising on functionality.

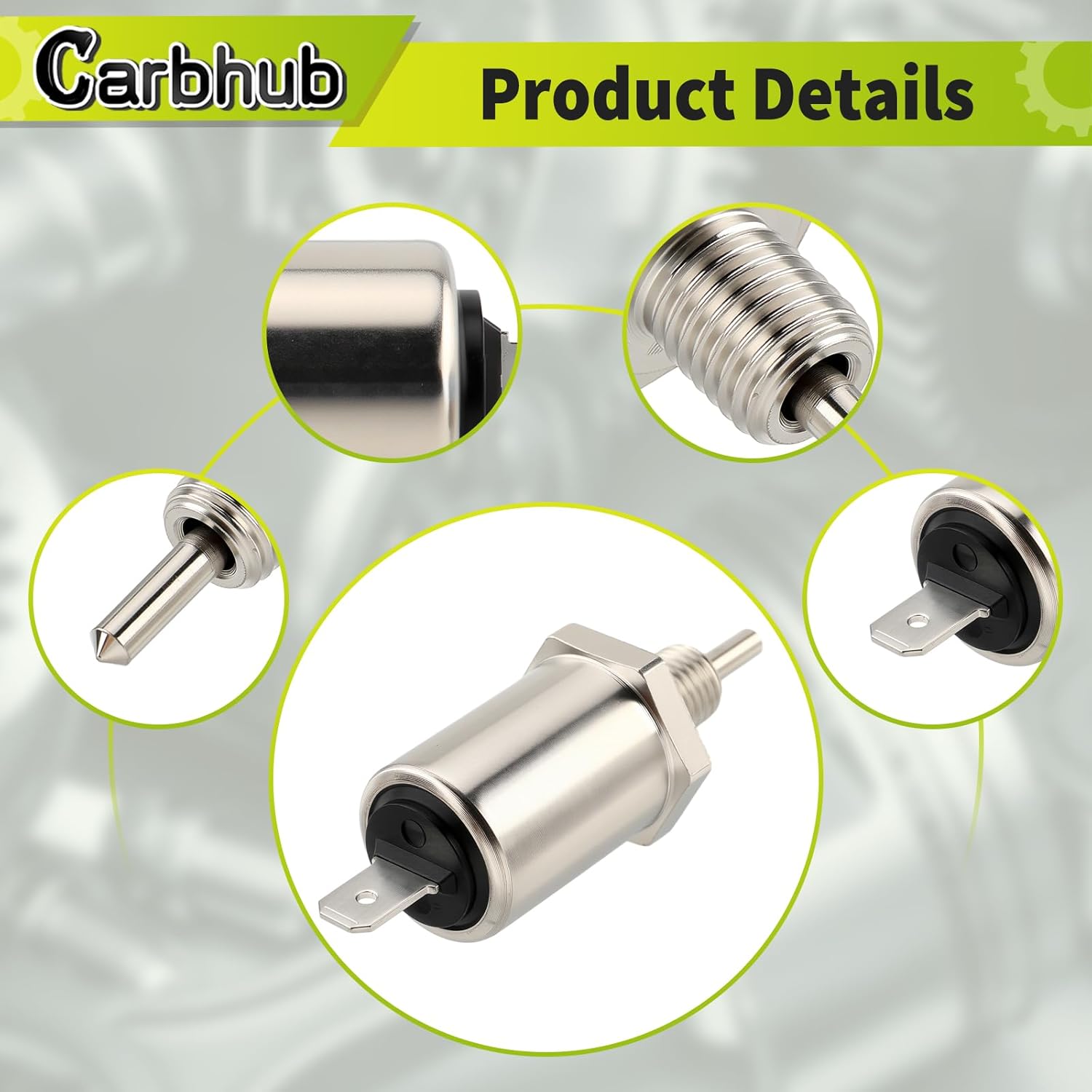

Figure 3: Detailed views of the solenoid's internal and external components.
5. Installation
Installation of the fuel shut off solenoid typically involves replacing the existing unit on the carburetor. It is recommended to consult your equipment's specific service manual for detailed, model-specific instructions and safety precautions.
General Installation Steps:
- Safety First: Ensure the engine is cool and disconnected from its power source (e.g., disconnect the battery).
- Locate the Solenoid: Identify the existing fuel shut off solenoid on your carburetor.
- Disconnect Wiring: Carefully disconnect any electrical wiring attached to the old solenoid.
- Remove Old Solenoid: Unscrew and remove the old solenoid from the carburetor. Be prepared for a small amount of fuel to leak.
- Install New Solenoid: Thread the new Carbhub solenoid into the carburetor by hand to avoid cross-threading. Tighten it securely, but do not overtighten.
- Connect Wiring: Reconnect the electrical wiring to the new solenoid. Ensure a secure connection.
- Test: Reconnect the power source and test the engine's operation, ensuring proper fuel flow and shutdown.
Important: Always refer to your specific equipment's service manual for precise installation procedures and torque specifications. If you are unsure about any step, it is advisable to seek assistance from a qualified technician.
Video 1: Overview of the Carbhub 21188-2011 Fuel Shut Off Solenoid, demonstrating its physical characteristics and function. This video provides a visual aid for understanding the product before installation.
Video 2: Demonstration of the Carbhub Fuel Shut Off Solenoid, specifically highlighting its application for Toro 74401 Lawn Tractors. This video can assist in understanding the solenoid's role in compatible Toro models.
6. Operation
The fuel shut off solenoid is an electrically operated valve that controls the flow of fuel to the carburetor's main jet.
- Engine On: When the ignition key is turned to the "ON" position, the solenoid receives electrical power, causing its plunger to retract. This opens the fuel passage, allowing fuel to flow to the carburetor for engine operation.
- Engine Off: When the ignition key is turned to the "OFF" position, power to the solenoid is cut. The plunger extends, closing the fuel passage. This prevents fuel from dripping into the engine after shutdown, which can cause backfiring or rough idling upon restart.
Figure 4: The solenoid's role in maintaining stable and powerful engine performance by controlling fuel flow.
7. Maintenance
The Carbhub Fuel Shut Off Solenoid is designed for durability and typically requires minimal maintenance. However, regular inspection of your equipment's fuel system can help identify potential issues early.
- Regular Inspection: Periodically check the solenoid and its wiring for any signs of damage, corrosion, or loose connections.
- Fuel Quality: Ensure clean fuel is used in your equipment. Contaminants in the fuel can affect the solenoid's operation over time.
- Cleanliness: Keep the area around the carburetor and solenoid free from dirt, debris, and fuel spills.
If the solenoid appears faulty or damaged, replacement is generally the recommended course of action as these units are not typically repairable.
8. Troubleshooting
If you experience issues with your engine related to fuel flow or shutdown, the fuel shut off solenoid might be a contributing factor.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine backfires when shutting off | Solenoid not closing fuel passage completely. | Inspect solenoid for proper function. Replace if faulty. |
| Engine runs rough or stalls at idle | Solenoid not opening fuel passage sufficiently. | Check electrical connection to solenoid. Test solenoid for proper retraction. Replace if faulty. |
| Engine will not start (no fuel to carburetor) | Solenoid not opening fuel passage. | Verify power supply to solenoid. Check for clogged fuel lines or filter. Replace solenoid if it does not retract when powered. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a professional mechanic or refer to your equipment's service manual.
9. Specifications
Key physical specifications for the Carbhub 21188-2011 Fuel Shut Off Solenoid:
- Item Weight: 2.32 ounces
- Package Dimensions: 5.91 x 3.98 x 1.61 inches
- Manufacturer: Carbour
- Model Number: M138477 Kawasaki 21188-2011 KM21188-2011
Figure 5: Diagram illustrating the key dimensions of the fuel shut off solenoid.

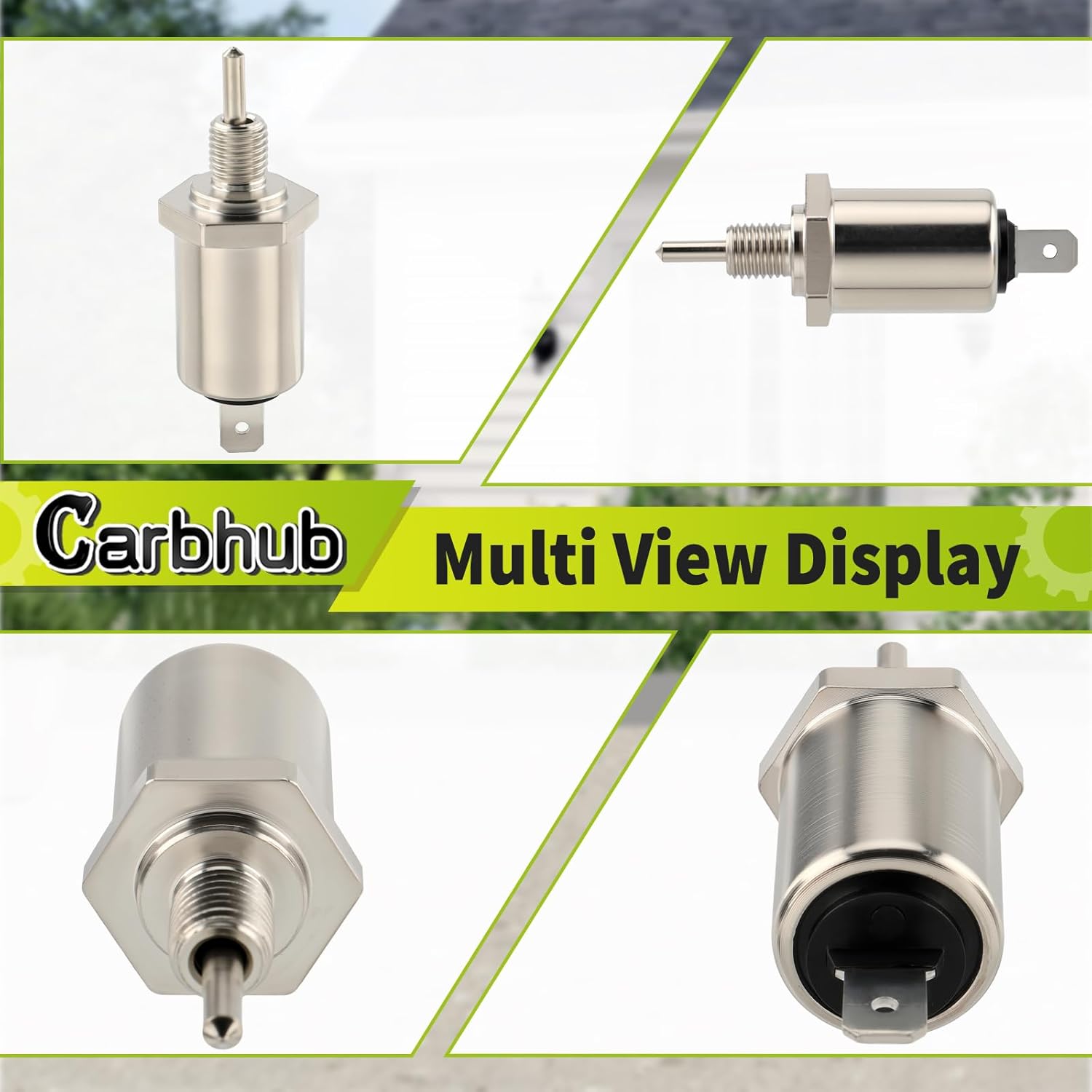

Figure 6: Various angles and views of the solenoid, providing a comprehensive visual reference.
10. Warranty and Support
Carbhub offers a 3-month hassle-free return and money-back policy for this product.
For any questions regarding compatibility, installation, or product performance, please contact the seller directly. It is recommended to provide your equipment's model number and any relevant details to assist with support inquiries.
Figure 7: Emphasizing the product's quality and reliability as a trustworthy option.
