Introduction
This manual provides comprehensive instructions for the setup, operation, and maintenance of your DBPOWER Fitness Tracker. This device is designed to help you monitor your daily activity, sleep patterns, and heart rate, supporting your fitness and wellness goals.

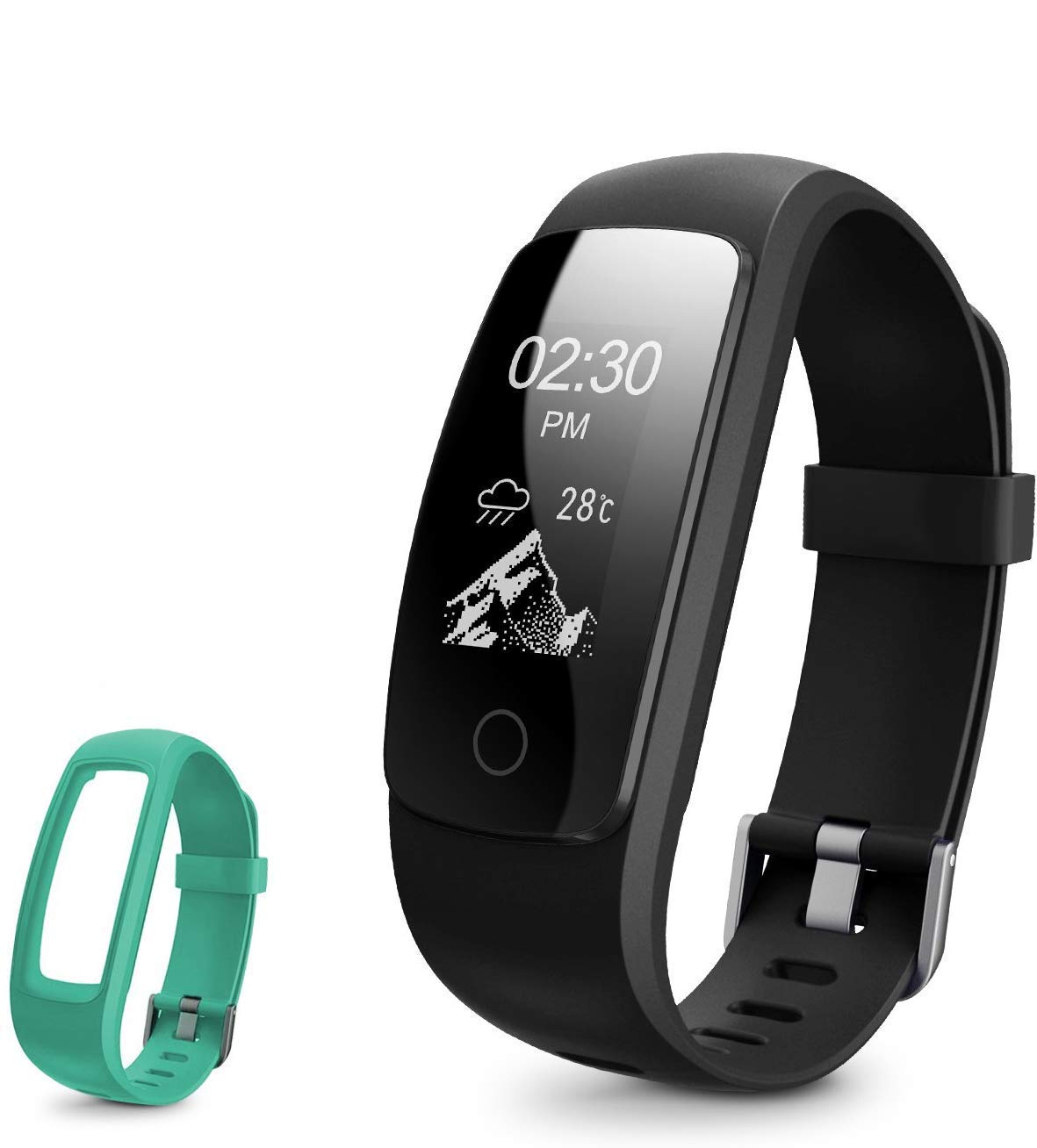

Image: The DBPOWER Fitness Tracker, featuring a black band and an additional green band, showcasing its sleek design and color options.
Setup
1. Charging the Device
Before first use, fully charge the fitness tracker. The device features a built-in USB charging connector. Simply remove the strap from one end to reveal the USB plug and insert it into any standard USB port (e.g., computer, USB wall adapter).
- Charging time: Approximately 1-2 hours.
- Standby time: Up to 5-7 days on a full charge.
Image: A four-panel illustration demonstrating how to charge the fitness tracker via USB. It shows detaching the strap, revealing the USB connector, and plugging it into a power source.
2. App Download and Pairing
To utilize all features, download the companion application on your smartphone. Search for the app name (usually mentioned in the quick start guide or on the product packaging) in your device's app store (Google Play Store for Android, Apple App Store for iOS). Once installed, open the app and follow the on-screen instructions to pair your fitness tracker via Bluetooth.
- Ensure Bluetooth is enabled on your smartphone.
- Keep the tracker close to your phone during the pairing process.
Operating Instructions
1. Display Navigation
The fitness tracker features a 0.96-inch OLED display with swipe navigation. You can interact with the device by swiping across the screen, tapping to select, and using a return gesture to go back.
Image: An illustration showing the 0.96-inch OLED display of the fitness tracker and how to navigate through its menus using swipe, tap, and return gestures.
2. Activity Tracking
The tracker accurately records your daily activity, including steps taken, distance covered, calories burned, and active minutes. It supports 14 sports modes to track various physical activities.
- Steps, Distance, Calories: Automatically tracked throughout the day.
- Sports Modes: Select the appropriate mode in the app or on the device before starting an activity for more accurate tracking.
Image: This image highlights the message alert capabilities and various activity tracking metrics of the fitness tracker, such as calories, distance, and activity duration, along with its multi-sport modes.
3. Heart Rate Monitoring
The device features a 24-hour continuous heart rate monitor, providing insights into your heart rate activity during different periods, including peak and cardio exercises.
Image: A visual representation of the fitness tracker's 24-hour continuous heart rate monitoring feature, showing the device on a wrist and a smartphone displaying heart rate data.
4. Sleep Tracking and Silent Alarm
The fitness tracker automatically recognizes your sleep state, monitoring your sleep progress and identifying deep and light sleep hours. This data helps you understand and improve your sleep quality. You can also set a silent alarm through the companion app, which will vibrate on your wrist to wake you up.
Image: A person sleeping with the fitness tracker on their wrist, illustrating the auto sleep tracking and silent alarm functions, with a smartphone screen showing sleep duration and quality data.
5. Notifications and Alerts
Receive various alerts directly on your wrist when connected to your smartphone:
- Call Alert: Notifies you of incoming calls.
- Sedentary Alert: Reminds you to move after periods of inactivity.
- Alarm Alert: Vibrates for set alarms.
- Message/SNS Alert: Displays notifications from SMS, Mail, Facebook, Instagram, and up to 16 other SNS applications.
- Anti-lost Alert: Notifies you if your phone moves out of Bluetooth range.
Maintenance
1. Water Resistance
The DBPOWER Fitness Tracker is IP67-rated water-resistant. This means it can withstand splashes, rain, and brief immersion. It is suitable for wearing in the shower and when washing hands. However, it is not recommended for swimming or prolonged submersion.
2. Cleaning
To clean your tracker, wipe it with a soft, damp, lint-free cloth. Do not use abrasive cleaners or harsh chemicals. Ensure the charging contacts are clean and dry before charging.
3. Battery Care
To prolong battery life, avoid exposing the device to extreme temperatures. Charge the device regularly, even if not in constant use, to prevent deep discharge.
Troubleshooting
- Device not turning on: Ensure the device is fully charged. Connect it to a USB power source for at least 10 minutes.
- Not pairing with phone:
- Ensure Bluetooth is enabled on your phone.
- Make sure the tracker is within Bluetooth range (typically 10 meters).
- Restart both the tracker and your phone.
- Forget the device in your phone's Bluetooth settings and try pairing again through the app.
- Inaccurate activity data:
- Ensure the tracker is worn snugly on your wrist, about one finger's width above your wrist bone.
- Calibrate the tracker through the app if an option is available.
- Notifications not appearing:
- Check app notification settings to ensure they are enabled for the desired applications.
- Ensure the app is running in the background on your phone.
- Verify that your phone's operating system allows the app to send notifications.
Specifications
| Feature | Detail |
|---|---|
| Brand | DBPOWER |
| Model | B07F8RPKJP |
| Display Type | OLED |
| Display Size | 0.96 Inches |
| Water Resistance | IP67 |
| Battery Life (Standby) | 5-7 days |
| Charging Time | 1-2 hours |
| Compatible OS | Android, iOS |
| Weight | 113 g |
| Heart Rate Monitor | 24-hour continuous |
| Activity Tracking | Steps, Distance, Calories, Active Minutes |
| Sports Modes | 14 modes |
| Sleep Monitoring | Automatic (Deep/Light Sleep) |
| Connectivity | USB (for charging) |
Warranty and Support
Warranty Information
This DBPOWER Fitness Tracker comes with a standard manufacturer's warranty. Please refer to the product packaging or the official DBPOWER website for specific warranty terms and conditions, including coverage duration and claim procedures.
Customer Support
For technical assistance, troubleshooting, or warranty claims, please contact DBPOWER customer support. Contact information can typically be found on the product packaging, the official DBPOWER website, or through your point of purchase.
