1. Product Overview
The Nexgrill Evolution 5-Burner Propane Gas Grill (Model 720-0882AE) is designed for outdoor cooking, offering versatile heat control with both direct and infrared heat options. This grill features five stainless steel main burners, a side burner, and a spacious cooking area, making it suitable for various grilling needs. Its durable stainless steel construction ensures longevity and consistent performance.
Figure 1: Nexgrill Evolution 5-Burner Propane Gas Grill with lid open.
2. Key Features
- Ultimate Grilling Control: Provides a powerful total output of 57,000 BTUs, ensuring strong heat for efficient cooking and allowing for precise grilling results.
- Generous Cooking Space: Offers a spacious 676 sq. in. cooking area, allowing for grilling multiple dishes simultaneously and accommodating larger meals.
- Stainless Steel Cooking Grids: Durable and easy to clean, these grids offer even heat distribution, enhance flavor, and are non-reactive.
- Convenient Side Burner: A 12,000 BTU side burner provides a solution for cooking side dishes, warming, simmering, or sautéing while grilling.
- Versatile Cooking Options: Allows users to cook using direct heat, infrared heat, or a combination of both, providing flexibility for various cooking styles.
- Built-In Temperature Control: Features a built-in temperature gauge for precise monitoring of cooking temperatures, ensuring optimal results.
- Electronic Ignition: Battery-operated electronic ignition for instant burner startup.
3. Setup Instructions
This grill requires assembly. Please refer to the detailed assembly guide included in the product packaging for step-by-step instructions. Ensure all components are securely fastened before proceeding to operation.
- Unpacking: Carefully remove all parts from the packaging and verify against the parts list in your assembly manual.
- Assembly: Follow the provided diagrams and instructions to assemble the grill cart, main body, side tables, and burners.
- Propane Tank Connection: Connect a standard 20 lb propane tank (not included) to the grill's regulator. Ensure all connections are tight and check for leaks using a soapy water solution before first use.
- Battery Installation: Install the required battery for the electronic ignition system as indicated in the manual.
Figure 2: Grill Dimensions.
4. Operating Instructions
Before operating, ensure the grill is on a level, stable surface and away from combustible materials.
- Pre-heating: Open the grill lid. Turn on the gas supply at the propane tank. Push and turn a main burner control knob to the HIGH position. Press the electronic ignition button until the burner ignites. Once lit, turn on other desired main burners. Close the lid and allow the grill to preheat for 10-15 minutes.
- Temperature Control: Monitor the built-in temperature gauge on the lid. Adjust burner control knobs to achieve the desired cooking temperature.
- Using the Side Burner: Open the side burner lid. Push and turn the side burner control knob to the HIGH position. Press the electronic ignition button until the burner ignites. Adjust flame as needed.
- Warming Rack: Utilize the upper warming rack to keep cooked food warm or to gently cook delicate items.
- Shutting Down: Turn all burner control knobs to the OFF position. Turn off the gas supply at the propane tank. Close the grill lid.
Figure 3: Control Knobs and Ignition.
Figure 4: Side Burner in Operation.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your grill.
- Cleaning Cooking Grids: After each use, once the grill has cooled, clean the stainless steel cooking grids with a grill brush. For deeper cleaning, remove and wash with warm soapy water.
- Cleaning Heat Plates and Burners: Periodically remove cooking grids and heat plates to clean any debris or grease buildup from the burner tubes and inside the firebox. Use a degreaser if necessary.
- Exterior Cleaning: Wipe down stainless steel surfaces with a soft cloth and a stainless steel cleaner. Avoid abrasive cleaners.
- Battery Replacement: Replace the electronic ignition battery annually or as needed to ensure reliable startup.
- Storage: When not in use for extended periods, cover the grill with a weather-resistant cover and store in a dry location.

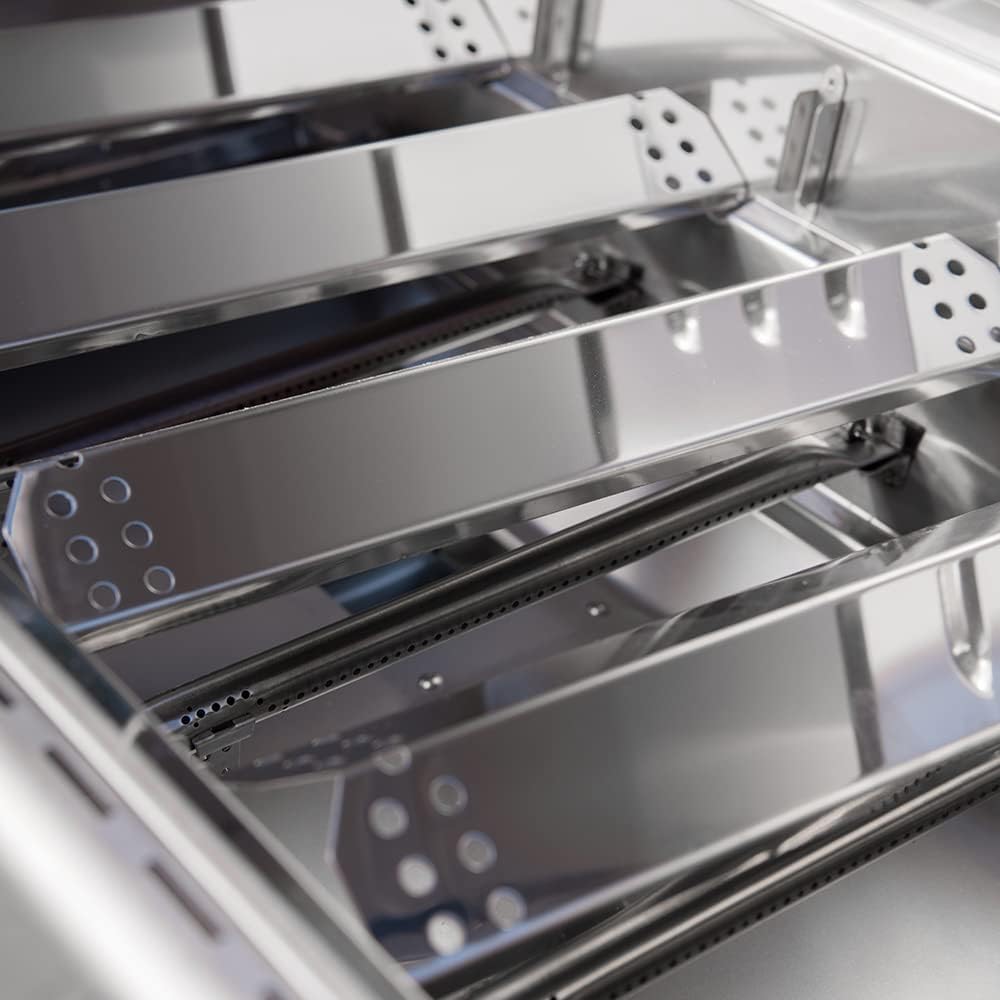

Figure 5: Interior Grill Components.
6. Troubleshooting
If you encounter issues with your grill, consult the full user manual for a comprehensive troubleshooting guide. Below are common issues and general solutions:
- Burner Not Igniting: Check the propane tank for sufficient gas and ensure it is fully open. Verify the electronic ignition battery is correctly installed and has charge. Clean burner ports if clogged.
- Uneven Heating: Ensure heat plates and cooking grids are clean and free of debris. Check burner tubes for blockages.
- Low Flame: Confirm the propane tank is not low and the regulator is properly connected.
For persistent problems, contact Nexgrill customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Nexgrill |
| Model Number | 720-0882AE |
| Product Dimensions (D x W x H) | 22.25" x 54.25" x 46" |
| Item Weight | 120 Pounds |
| Fuel Type | Propane Gas |
| Total BTU Output | 57,000 BTUs |
| Number of Main Burners | 5 |
| Side Burner BTU | 12,000 BTUs |
| Total Cooking Area | 676 sq. in. |
| Material Type | Stainless Steel |
| Special Feature | Warming Rack, Infrared Technology |
| Required Assembly | Yes |
8. Warranty and Support
The Nexgrill Premium Evolution 5-Burner Propane Gas Grill comes with a 1-year manufacturer's warranty. For warranty claims, technical assistance, or to purchase replacement parts, please refer to the contact information provided in your original product documentation or visit the official Nexgrill website.
For additional support, you may visit the Nexgrill Store on Amazon.
