ECONTROLLY BN59-00888A Replacement Remote Control User Manual for Samsung TV

Introduction

This manual provides instructions for the ECONTROLLY BN59-00888A Replacement Remote Control. This remote is designed to function as a direct replacement for original Samsung TV remote models, specifically compatible with LA32B460, LA32B450C4D, LA26B450, and LA32B450 series televisions. No programming is required for operation; simply install batteries.

Product Overview

The ECONTROLLY BN59-00888A remote control is constructed from durable ABS environmental protection material, offering a comfortable grip. It features an infrared (IR) connectivity technology and provides a control range of approximately 10 meters (33 feet).

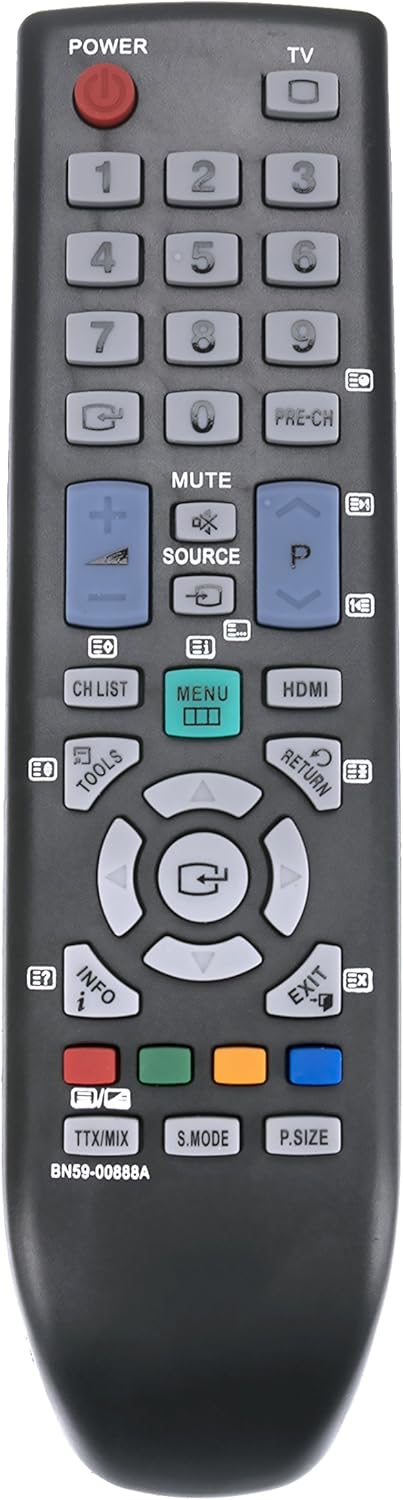

Image 1: Front view of the BN59-00888A remote control, displaying the layout of its 20 buttons including power, number keys, channel, volume, menu, and navigation controls.

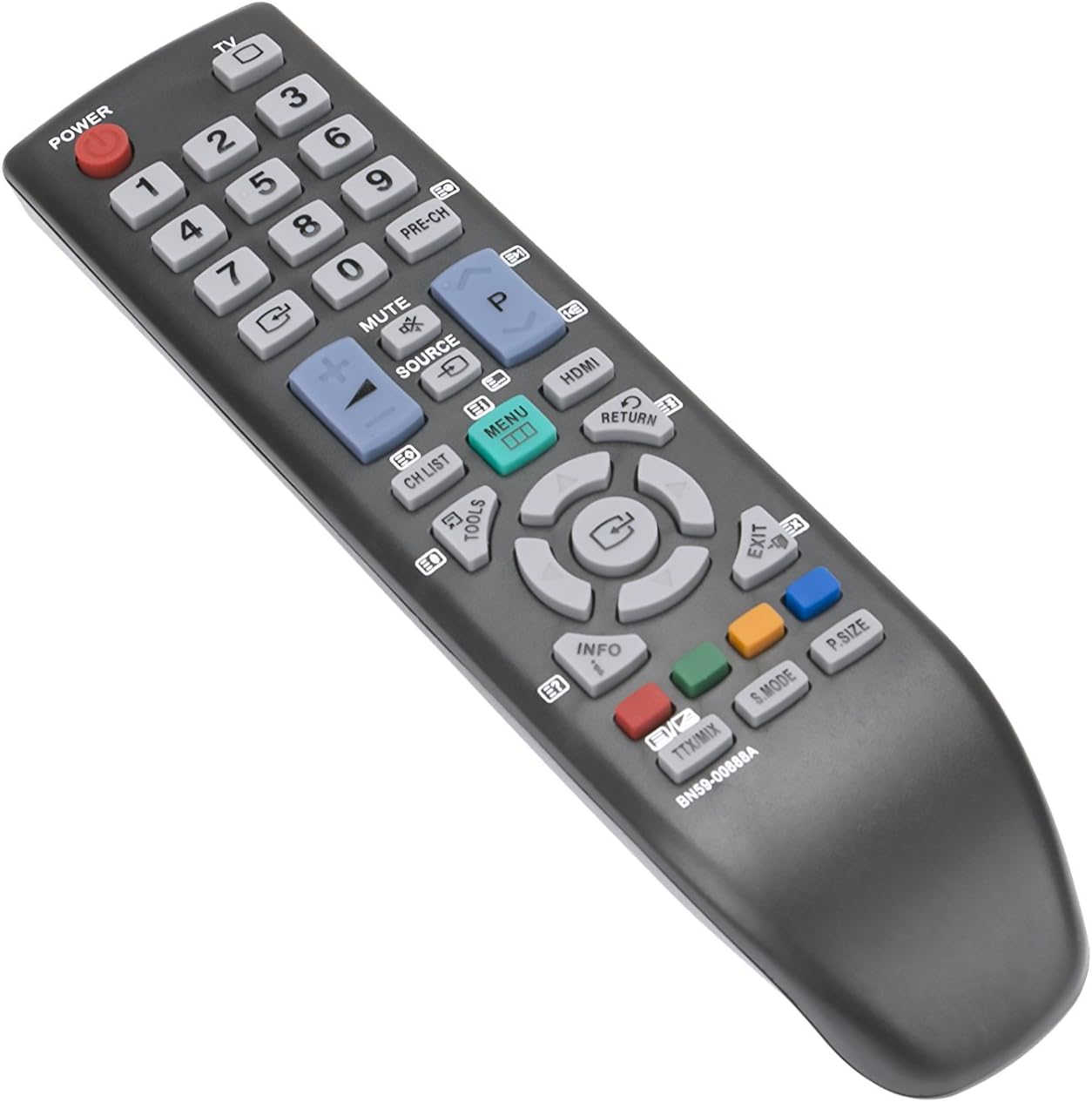

Image 2: Angled view of the BN59-00888A remote control, showcasing its ergonomic shape and button arrangement from a side perspective.

Setup

To begin using your ECONTROLLY BN59-00888A replacement remote control, follow these simple steps:

1. Open the Battery Compartment: Locate the battery compartment cover on the back of the remote control. Slide or press the latch to open it.
2. Insert Batteries: Insert two (2) AAA alkaline batteries into the compartment. Ensure the positive (+) and negative (-) terminals of the batteries align correctly with the indicators inside the compartment. Incorrect insertion can prevent the remote from functioning.
3. Close the Battery Compartment: Replace the battery compartment cover, ensuring it clicks securely into place.
4. Test the Remote: Point the remote control towards your Samsung TV and press the 'POWER' button. The TV should respond. If it does not, recheck battery insertion and ensure there are no obstructions between the remote and the TV's infrared receiver.

Image 3: Side profile of the BN59-00888A remote control, illustrating its slim design.

Image 4: Rear view of the BN59-00888A remote control with the battery cover detached, revealing the two AAA battery slots.

Operating Instructions

This remote control operates identically to the original Samsung TV remote. Point the remote directly at your television's infrared receiver for optimal performance. Below are common functions:

• POWER: Turns the TV on or off.
• Number Buttons (0-9): Directly select TV channels.
• CH LIST: Displays the channel list.
• VOL (+/-): Adjusts the volume level.
• CH (up/down): Changes channels sequentially.
• MUTE: Mutes or unmutes the TV sound.
• SOURCE: Selects input sources (e.g., HDMI, AV).
• MENU: Accesses the TV's main menu.
• Navigation Buttons (Up, Down, Left, Right, Enter): Navigate through menus and confirm selections.
• RETURN: Returns to the previous menu or screen.
• EXIT: Exits the current menu or function.
• INFO: Displays information about the current program or input.
• TOOLS: Accesses quick settings or tools menu.
• HDMI: Directly selects an HDMI input.
• PRE-CH: Returns to the previously viewed channel.
• Color Buttons (Red, Green, Yellow, Blue): Used for specific functions within certain TV menus or applications.
• TTX/MIX: Teletext functions.
• S.MODE: Sound mode selection.
• P.SIZE: Picture size adjustment.

Maintenance

To ensure the longevity and proper functioning of your remote control, observe the following maintenance guidelines:

• Battery Replacement: Replace batteries when the remote's response becomes sluggish or stops working. Always replace both batteries simultaneously with new AAA alkaline batteries. Do not mix old and new batteries, or different types of batteries.
• Cleaning: Wipe the remote control with a soft, dry cloth. For stubborn dirt, lightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive materials, as these can damage the remote's surface or internal components.
• Storage: Store the remote control in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
• Avoid Drops and Impacts: Protect the remote from physical shocks, as internal components can be damaged.
• Liquid Exposure: Do not expose the remote control to liquids. If liquid spills on the remote, remove the batteries immediately and allow it to dry completely before reinserting them.

Troubleshooting

If you experience issues with your remote control, refer to the following common solutions:

• Remote Not Responding:
  • Ensure batteries are inserted correctly with the correct polarity (+/-).
  • Replace old batteries with new AAA alkaline batteries.
  • Check for any obstructions between the remote control and the TV's infrared receiver.
  • Confirm that the remote is pointed directly at the TV.
• Limited Range:
  • Ensure batteries are fresh. Low batteries can reduce the effective range.
  • Remove any objects that might be blocking the signal path between the remote and the TV.
• Specific Buttons Not Working:
  • This remote is a direct replacement and does not require programming. If a specific button is not working, ensure it is a function supported by your Samsung TV model.
  • Clean the remote control, especially around the non-functioning button, to remove any debris that might be preventing proper contact.

Specifications

Warranty and Support

For warranty information or technical support regarding your ECONTROLLY BN59-00888A Replacement Remote Control, please refer to the documentation provided at the time of purchase or contact your retailer. As this is a replacement product, specific warranty terms may vary.
