LINKChef HB-2140T Immersion Blender User Manual

1. Introduction

Thank you for choosing the LINKChef HB-2140T Immersion Blender. This versatile 3-in-1 appliance is designed to simplify your kitchen tasks, offering powerful blending, chopping, and whisking capabilities. With a robust 500W motor and 20 adjustable speeds, it is suitable for a wide range of food preparation needs. Please read this manual carefully before first use to ensure safe and optimal performance of your appliance.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the appliance.
• To protect against risk of electrical shock, do not immerse the motor unit, cord, or electrical plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Keep hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage to the unit. A scraper may be used but must be used only when the appliance is not running.
• Blades are sharp. Handle carefully.
• Always operate the blender with the cover in place.
• Do not use the appliance for other than intended use.

3. Package Contents

Your LINKChef HB-2140T Immersion Blender package includes the following components:

• Motor Unit (Main Body)
• Blending Shaft (Immersion Blender Attachment)
• Whisk Attachment
• Chopper Bowl (Food Processor Bowl)
• Chopper Blade
• Ice Crushing Blade
• Measuring Cup (Beaker)
• Instruction Manual

Figure 3.1: All components of the LINKChef HB-2140T Immersion Blender system, including the motor unit, blending shaft, whisk, chopper bowl with blade, and measuring cup.

4. Product Overview

Familiarize yourself with the various parts of your immersion blender for proper assembly and operation.

Figure 4.1: Overview of the LINKChef HB-2140T Immersion Blender components with approximate dimensions. Shown are the chopper bowl, whisk attachment, chopper blade, immersion blending shaft, motor unit, and measuring cup.

The main motor unit features a power button and a speed adjustment dial at the top. The blending shaft is made of robust stainless steel with a titanium-coated 4-blade system for efficient processing. The chopper bowl is designed for processing larger quantities, while the whisk attachment is ideal for aerating ingredients.

5. Setup and Assembly

Before first use, wash all parts that will come into contact with food. Ensure the appliance is unplugged before assembly or disassembly.

5.1 Assembling the Chopper Attachment

1. Add Ingredients: Place the desired blade (chopper blade or ice crushing blade) onto the shaft inside the chopper bowl. Cut ingredients into small, manageable pieces and add them to the bowl.
2. Install Chopper Lid: Securely fasten the chopper lid onto the chopper bowl. Ensure it clicks into place.
3. Install Main Body: Attach the motor unit onto the chopper lid. Twist until it locks securely.
4. Start Work: Plug the power cord into an electrical outlet. Press and hold the power button to operate. Adjust speed as needed.

Figure 5.1: Visual guide for assembling the chopper attachment. Steps include adding ingredients, installing the lid, attaching the motor unit, and starting operation.

5.2 Assembling the Blending Shaft

• Align the motor unit with the blending shaft.
• Twist the motor unit onto the blending shaft until it locks securely.
• Ensure the blending shaft is fully engaged before plugging in the appliance.

5.3 Assembling the Whisk Attachment

• Insert the whisk into the whisk gear box.
• Align the whisk gear box with the motor unit.
• Twist the motor unit onto the whisk gear box until it locks securely.

6. Operating Instructions

Always ensure the appliance is properly assembled and plugged into a suitable power outlet before operation.

6.1 Speed Control

The LINKChef HB-2140T features 20 adjustable speeds. Rotate the dial on the top of the motor unit to select your desired speed. Lower speeds are suitable for softer ingredients or gentle mixing, while higher speeds are ideal for tougher ingredients or faster processing.

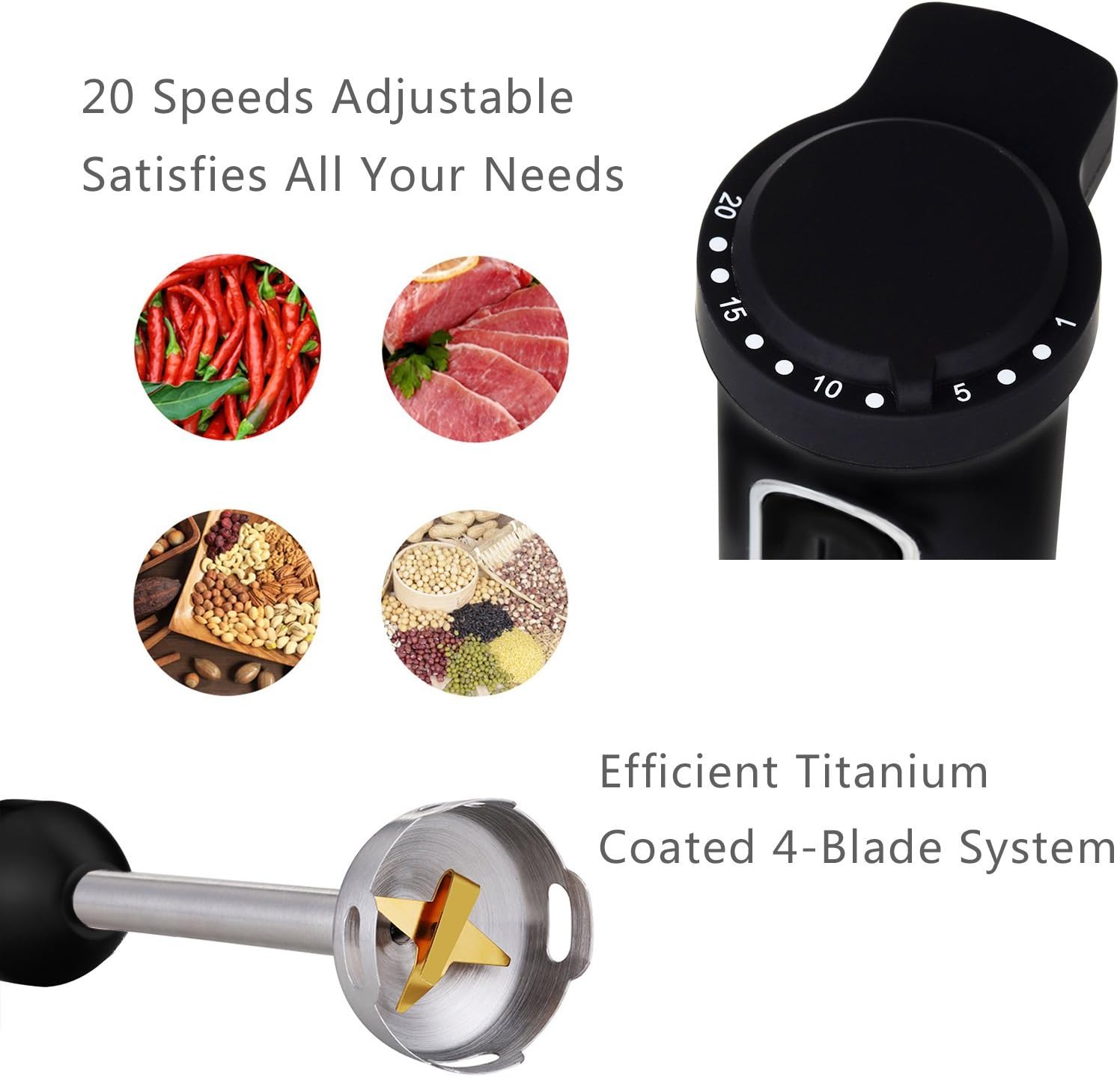

Figure 6.1: The speed adjustment dial on the motor unit, offering 20 speeds, and the efficient titanium-coated 4-blade system of the immersion blending shaft.

6.2 Using the Immersion Blending Shaft

• Attach the blending shaft to the motor unit.
• Immerse the blending shaft into the ingredients in a pot, bowl, or the provided measuring cup. Ensure the blade guard is fully submerged to prevent splashing.
• Press and hold the power button to start blending. Move the blender up and down gently to ensure even processing.
• Release the power button to stop. Unplug the appliance before removing the blending shaft.

6.3 Using the Chopper Attachment

• Follow the assembly steps in Section 5.1.
• For general chopping, use the standard chopper blade. For crushing ice, use the dedicated ice crushing blade.
• Do not overfill the chopper bowl. Process ingredients in batches if necessary.
• Press and hold the power button in short pulses for coarse chopping, or continuously for finer results.
• Always ensure the lid is securely in place during operation.

Figure 6.2: The chopper attachment demonstrating its ice crushing capability with the specialized blade.

6.4 Using the Whisk Attachment

• Attach the whisk to the whisk gear box, then attach the gear box to the motor unit.
• Use the whisk for whipping cream, beating eggs, or mixing light batters.
• Insert the whisk into the ingredients. Press and hold the power button to operate.
• Start with a lower speed and gradually increase if needed.

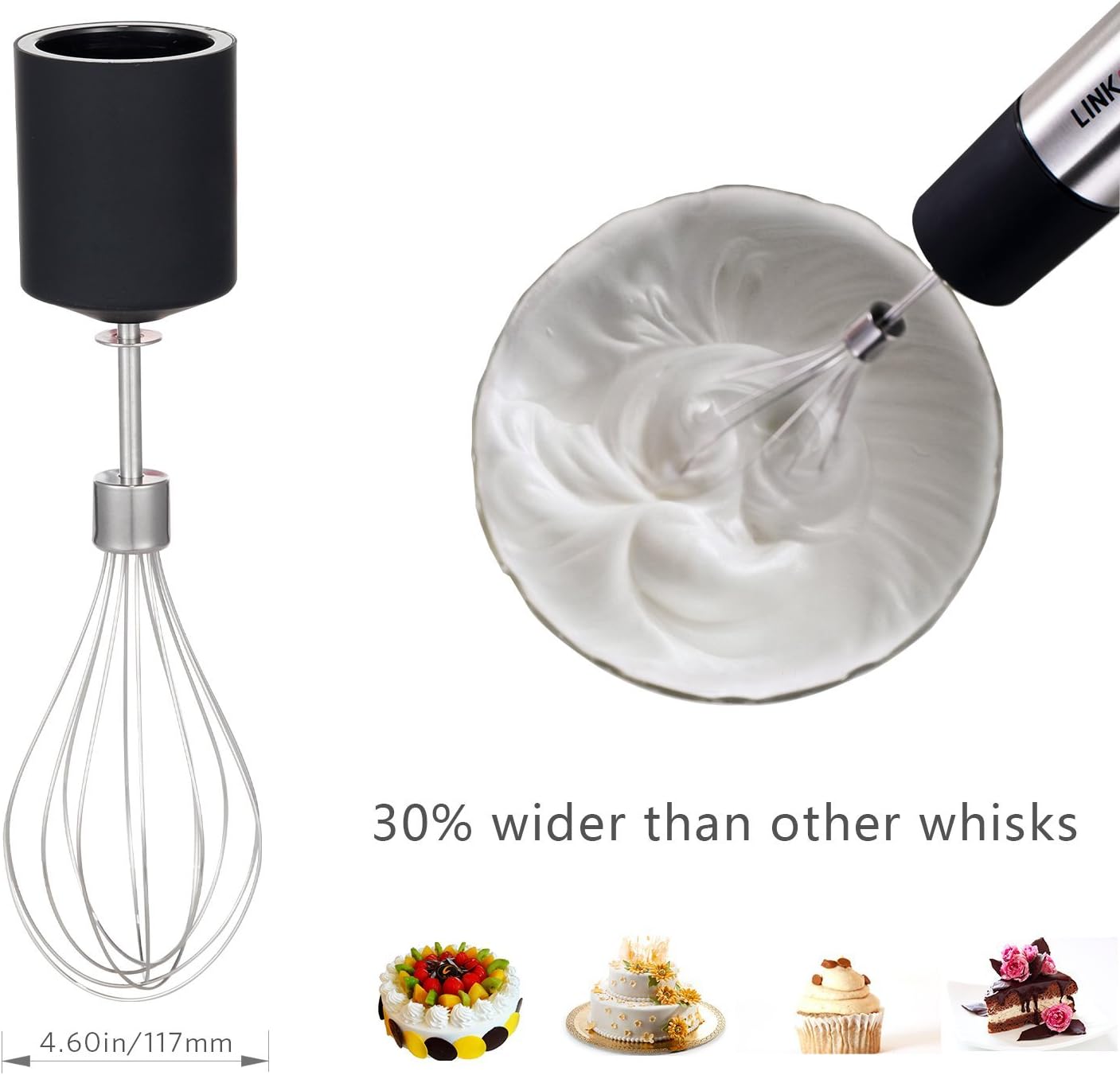

Figure 6.3: The whisk attachment in action, demonstrating its effectiveness for whipping ingredients like meringue or cream.

7. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your appliance.

• Always unplug the appliance before cleaning.
• Motor Unit: Wipe the motor unit with a damp cloth. Never immerse it in water or any other liquid.
• Blending Shaft, Whisk, Chopper Bowl, Blades, Measuring Cup: These parts are generally dishwasher safe (top rack recommended) or can be hand-washed in warm, soapy water. Rinse thoroughly and dry immediately.
• Blades: Handle blades with extreme care as they are very sharp. Use a brush for cleaning hard-to-reach areas around the blades.
• Storage: Store the appliance and its attachments in a dry place, away from direct sunlight and heat.

8. Troubleshooting

If you encounter issues with your LINKChef HB-2140T, refer to the following common problems and solutions:

9. Specifications

Technical details for the LINKChef HB-2140T Immersion Blender:

• Brand: LINKChef
• Model Number: HB-2140T
• Power: 500W
• Number of Speeds: 20
• Material: Stainless Steel, Titanium (blades)
• Capacity (Measuring Cup): 800 Milliliters
• Special Feature: Multiple Attachments (Immersion Blender, Chopper, Whisk)
• Power Source: Corded Electric
• Material Type Free: BPA Free
• Item Weight: 3.96 pounds
• Package Dimensions: 11.26 x 10.2 x 6.06 inches

10. Warranty and Support

The LINKChef HB-2140T Immersion Blender comes with a 3-year warranty from the date of purchase. This warranty covers manufacturing defects under normal household use.

For warranty claims, technical support, or any questions regarding your product, please contact LINKChef customer service. Please have your purchase receipt and model number (HB-2140T) ready when contacting support.

Contact information can typically be found on the LINKChef official website or through your retailer's customer service portal.
