1. Introduction
This manual provides essential information for the proper use and maintenance of your LogiLink CH0061 HDMI High Speed with Ethernet cable. This cable is designed for transmitting high-quality audio, video, and data signals between compatible devices.
Key Features:
- HDMI 2.0 compatible with 3D support.
- High Speed with Ethernet standard.
- Supports resolutions up to 4096 x 2160 @ 60 Hz (Ultra HD, 4K x 2K).
- Transmits audio, video, and Ethernet data.
- Features gold-plated contacts for optimal signal transmission.
2. Setup
Follow these steps to connect your LogiLink CH0061 HDMI cable:
- Identify Ports: Locate the HDMI output port on your source device (e.g., Blu-ray player, game console, computer) and the HDMI input port on your display device (e.g., TV, monitor, projector).
- Connect Cable: Carefully insert one end of the LogiLink CH0061 HDMI cable into the HDMI output port of your source device.
- Connect to Display: Insert the other end of the HDMI cable into an available HDMI input port on your display device.
- Secure Connection: Ensure both ends of the cable are firmly seated in their respective ports to prevent signal loss.
- Power On Devices: Turn on both your source device and your display device.
- Select Input: On your display device, select the correct HDMI input source using your remote control or display menu.
Image 1: Illustration of connecting the HDMI cable from a source (projector) to a display (TV) for high-resolution output.

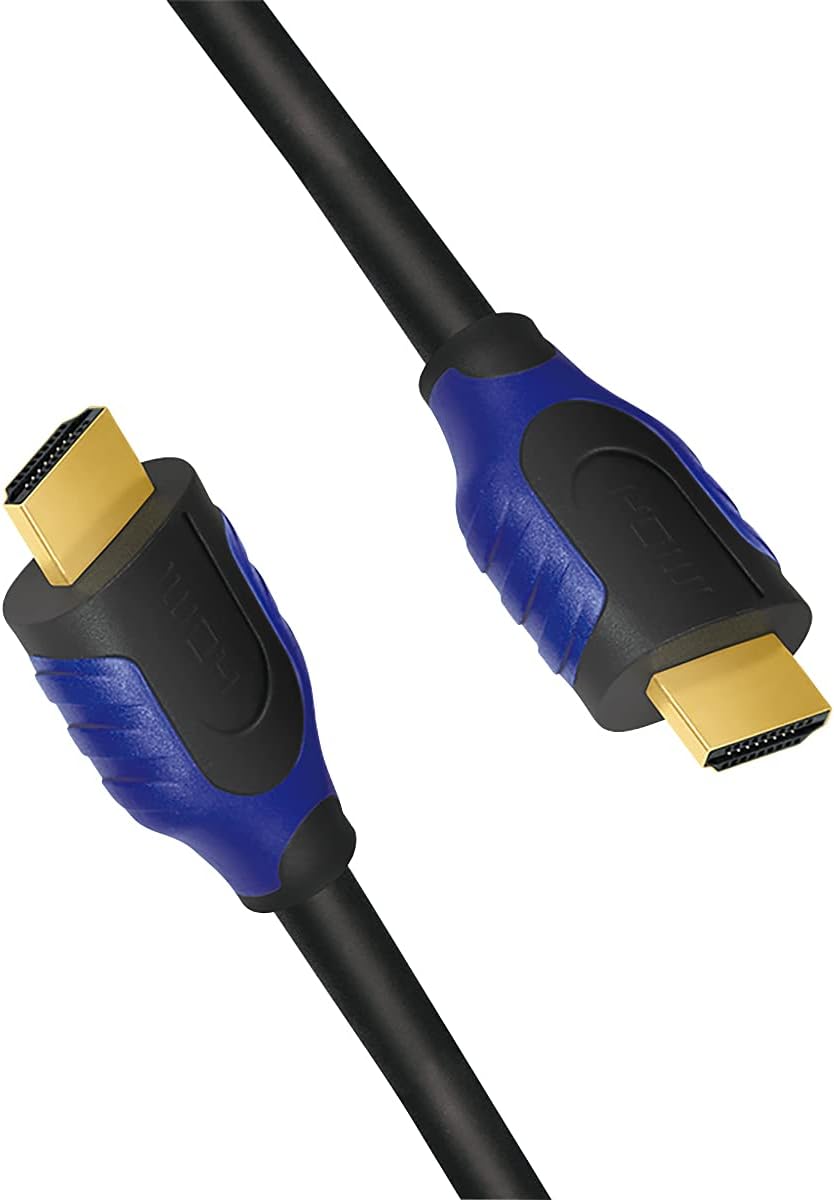

Image 2: Detailed view of the gold-plated HDMI Type A male connectors.
3. Operating
The LogiLink CH0061 HDMI cable operates passively to transmit digital audio, video, and Ethernet signals. No special software or drivers are required for its operation.
- Audio Transmission: The cable supports multi-channel audio formats, ensuring high-fidelity sound.
- Video Transmission: Enjoy resolutions up to 4K (4096 x 2160) at 60 Hz, including Ultra HD and 3D content, provided your source and display devices support these formats.
- Ethernet Channel: The integrated Ethernet channel allows for network data transmission between connected devices, eliminating the need for a separate Ethernet cable for compatible devices.
Once connected, the cable automatically facilitates the signal transfer between your devices. Ensure your source device is configured to output the desired resolution and audio format.
4. Maintenance
Proper care will extend the lifespan and ensure optimal performance of your HDMI cable.
- Handling: Always grasp the connector housing when plugging or unplugging the cable. Avoid pulling directly on the cable itself.
- Storage: When not in use, coil the cable loosely. Avoid tight bends or kinks, which can damage the internal wires. Store in a clean, dry place away from extreme temperatures.
- Cleaning: If the connectors become dusty, gently wipe them with a dry, lint-free cloth. Do not use liquid cleaners on the connectors.
- Protection: Avoid placing heavy objects on the cable or exposing it to sharp edges.
Image 3: The LogiLink CH0061 HDMI cable coiled for storage.
5. Troubleshooting
If you encounter issues with your LogiLink CH0061 HDMI cable, consider the following troubleshooting steps:
- No Signal / Black Screen:
- Ensure both ends of the HDMI cable are securely connected to the source and display devices.
- Verify that the display device is set to the correct HDMI input source.
- Try connecting the cable to a different HDMI port on both the source and display devices.
- Test the cable with another known working HDMI device or try a different HDMI cable to isolate the problem.
- Restart both the source and display devices.
- Poor Picture Quality / Flickering:
- Check for any physical damage to the cable or connectors.
- Ensure the cable is not bent sharply or kinked.
- Reduce the resolution output from your source device to see if the issue persists.
- Verify that your source and display devices are capable of supporting the desired resolution and refresh rate.
- No Audio:
- Confirm that the audio settings on your source device are correctly configured to output audio via HDMI.
- Check the volume levels on both your source and display devices.
- Ensure your display device's audio output is not muted or set to an external speaker system if you intend to use the display's internal speakers.
6. Specifications
| Feature | Detail |
|---|---|
| Model Name | CH0061 |
| Brand | Logilink |
| Cable Type | HDMI High Speed with Ethernet |
| Connector Type | HDMI Type A Male to HDMI Type A Male |
| Special Feature | Gold Plated Contacts |
| Supported Resolutions | Up to 4096 x 2160 @ 60 Hz (Ultra HD, 4K x 2K) |
| 3D Support | Yes |
| Ethernet Channel | Yes |
| Data Transfer Rate | 12 Gigabits Per Second |
| Color | Black |
| Length | 1 meter (CH0061) |
| Compatible Devices | HDMI-compatible devices such as TVs, monitors, projectors, game consoles |
| Item Weight | 2.46 ounces |
| Product Dimensions | 3.39 x 0.79 x 6.69 inches |
| Manufacturer | 2direct GmbH |
7. Warranty and Support
Warranty Information: Specific warranty details for the LogiLink CH0061 HDMI cable are not provided in this document. Please refer to the product packaging or the manufacturer's official website for the most current warranty policy.
Customer Support: For technical assistance, troubleshooting beyond this guide, or warranty claims, please contact LogiLink customer support directly. Contact information can typically be found on the manufacturer's website or product packaging.
Manufacturer: 2direct GmbH
