Aigital N300 WiFi Range Extender User Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Aigital N300 WiFi Range Extender. Please read this manual carefully before use to ensure proper functionality and optimal performance. This device is designed to expand your wireless network coverage and provide internet access in areas with weak or no signal.

2. Product Overview

The Aigital N300 WiFi Range Extender is a compact and versatile device. It supports 2.4 GHz frequency band with a data transfer rate of up to 300 Megabits Per Second. It can function as a WiFi Repeater to extend your existing network or as an Access Point to create a new wireless network from a wired connection.

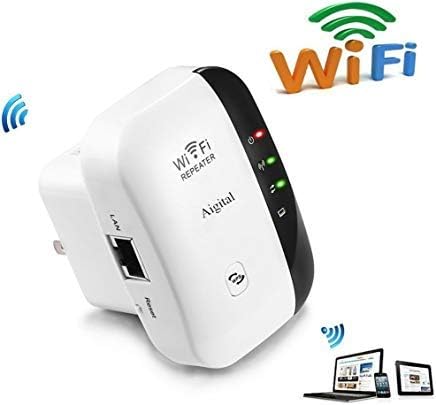

The Aigital N300 WiFi Range Extender is a compact device designed to expand your wireless network coverage. It features indicator lights for power, WLAN, and WPS status, along with an Ethernet (LAN) port and a reset button. The device is white with a black accent on one side.

Key Components:

• Power Indicator: Shows the power status of the device.
• WLAN Indicator: Indicates wireless network activity.
• WPS Button: For quick and secure connection to compatible routers.
• LAN Port: For wired connection to devices or for AP mode setup.
• Reset Button: Used to restore the device to factory default settings.

3. Setup Instructions

Before beginning the setup, ensure your Aigital N300 is plugged into a power outlet near your main router or modem.

Initial Connection:

1. Plug the WiFi Repeater into an electrical outlet.
2. Wait for the power indicator light to become stable.
3. On your phone, computer, or laptop, connect to the Wi-Fi network named "wifi repeater". This is the default network broadcast by the extender.

Configuration via Web Browser:

1. Open a web browser (e.g., Chrome, Firefox, Edge).
2. In the address bar, type 192.168.10.1 and press Enter.
3. You will be prompted to log in. The default username and password are typically admin (or as specified in the included mini-manual).
4. Follow the on-screen wizard to select your desired operating mode (Repeater or AP).

Resetting the Device:

If you need to reconfigure the device or encounter issues, you can perform a factory reset:

• With the device powered on, locate the reset button (usually a small pinhole).
• Use a paperclip or a similar pointed object to press and hold the reset button for over 10 seconds.
• Release the button when the power light and WPS light turn on, and the WLAN light blinks. The device will restart with factory default settings.

4. Operating Modes

4.1. Repeater Mode (Range Extender)

This mode is used to extend the coverage of your existing Wi-Fi network. It is ideal when your primary Wi-Fi signal is weak or non-existent in certain areas of your home or office, such as a yard, other rooms, a second floor, a basement, or a garage.

Setup Steps for Repeater Mode:

1. After logging into the web interface (192.168.10.1), select "Repeater Mode".
2. The extender will scan for available Wi-Fi networks. Select your home Wi-Fi network from the list.
3. Enter the exact password for your home Wi-Fi network. Important: The password must be identical to your main Wi-Fi password for internet access.
4. You can choose to keep the same SSID (network name) or create a new one for the extended network.
5. Save the settings and wait for the extender to restart. Once restarted, the WLAN indicator should be stable, indicating a successful connection.

4.2. AP Mode (Access Point)

This mode transforms a wired internet connection into a wireless Wi-Fi hotspot. It is useful if you have a modem but no router, or if you want to add Wi-Fi capability to a wired-only network, allowing wireless devices like phones and tablets to connect.

Setup Steps for AP Mode:

1. Connect the RJ-45 Ethernet Cable from your modem or wired network to the LAN port of the Aigital N300 extender.
2. After logging into the web interface (192.168.10.1), select "AP Mode".
3. Configure the new Wi-Fi network name (SSID) and password.
4. Save the settings and wait for the extender to restart. Once restarted, your new Wi-Fi network will be available for connection.

5. Troubleshooting

• No Internet Access in Repeater Mode: Ensure the password entered for your home Wi-Fi network during setup is exactly the same. Any mismatch will prevent internet access. Try resetting the device and reconfiguring.
• Cannot Access Configuration Page (192.168.10.1): Ensure your device is connected to the "wifi repeater" network. If still unable, try resetting the extender to factory defaults and attempt connection again.
• Weak Signal After Setup: Relocate the extender to a position that is halfway between your main router and the area where you need improved Wi-Fi coverage. Avoid placing it near large metal objects or other electronic devices that may cause interference.
• Device Not Powering On: Check the power outlet and ensure the extender is securely plugged in.
• Setup Video: For visual guidance, a setup video is available at https://youtu.be/3uoGpCGlTWk.

6. Specifications

7. Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the device. Do not use liquid cleaners or aerosols.
• Placement: For optimal performance, place the extender in an open area, away from obstructions like walls, large furniture, or metal objects. Avoid placing it near other electronic devices that may cause signal interference.
• Firmware Updates: Periodically check the manufacturer's website for any available firmware updates to ensure the best performance and security.

8. Warranty and Support

For any inquiries regarding setup, troubleshooting, or product information, please contact Aigital customer support. While specific warranty details are not provided in this manual, please refer to your purchase documentation or contact the seller for warranty terms and conditions.

You can reach our support team via email at: aigital@hotmail.com
