1. Product Overview
The ZEBRONICS Zeb-Dash is a 4-button USB wireless optical mouse designed for comfortable and efficient use. It features a high-precision optical sensor and 2.4GHz wireless technology for stable connectivity. This mouse is engineered for ease of use with a plug-and-play mechanism and smart energy-saving capabilities.
Image 1.1: Top-down view of the ZEBRONICS Zeb-Dash Wireless Optical Mouse, showcasing its ergonomic design and the Zebronics logo.
2. Setup Instructions
Follow these steps to set up your Zeb-Dash wireless mouse:
- Insert Battery: Open the battery compartment located on the underside of the mouse. Insert one AAA battery, ensuring correct polarity.
- Locate USB Receiver: The nano USB receiver is typically stored inside the battery compartment or alongside the mouse in the packaging. Carefully remove it.
- Connect Receiver: Plug the nano USB receiver into an available USB port on your laptop or desktop computer.
- System Sync: Allow approximately 6 to 7 seconds for the mouse to automatically sync with your system. No additional drivers are usually required for basic functionality.
Image 2.1: The underside of the Zeb-Dash mouse, showing the battery compartment and the nano USB receiver being inserted or removed. This illustrates the battery and receiver placement for setup.
3. Operating Instructions
The Zeb-Dash mouse features four buttons for various functions:
- Left Click Button: Standard selection and activation.
- Right Click Button: Accesses contextual menus.
- Scroll Wheel: Navigates vertically through documents and web pages. Also functions as a middle click button.

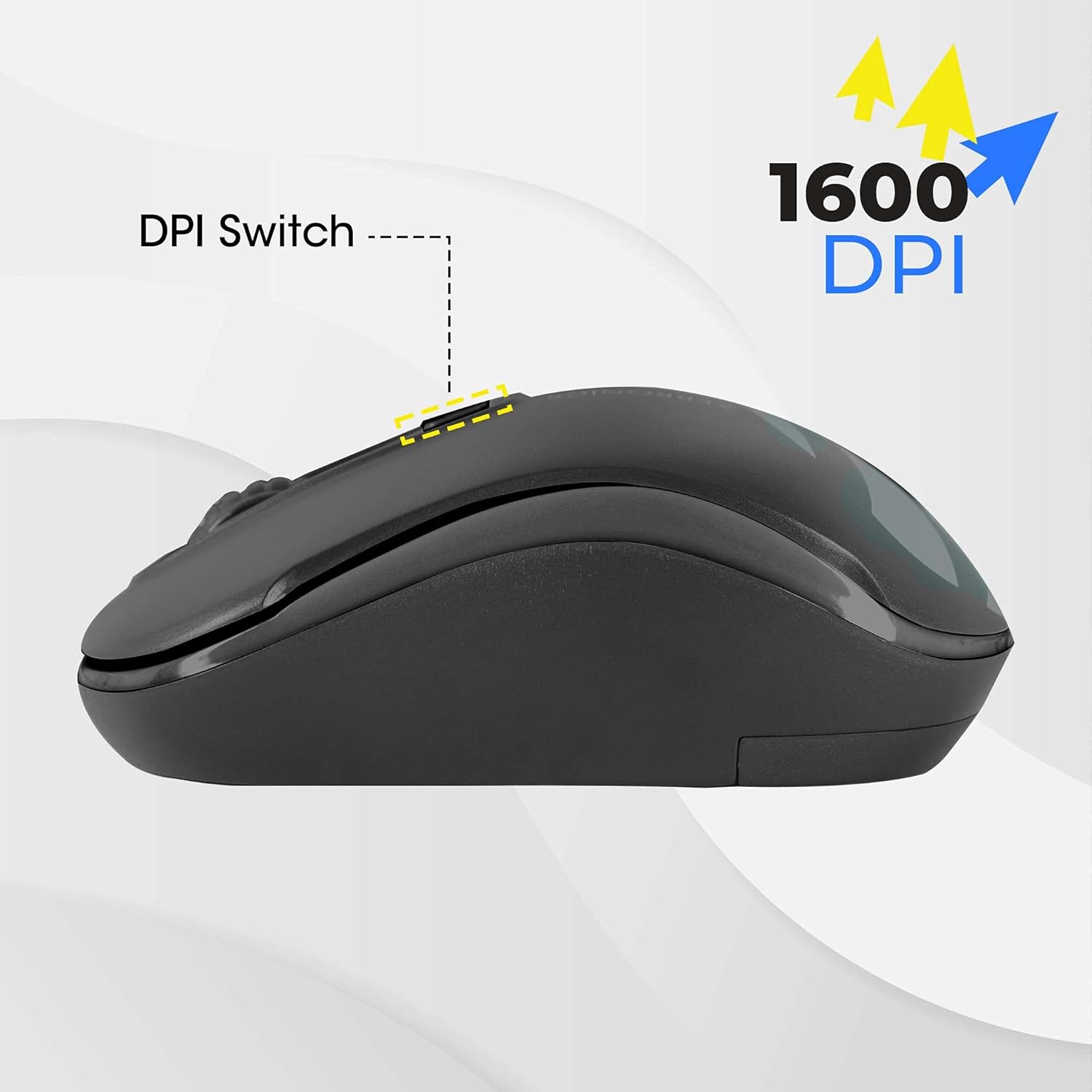

- DPI Switch Button: Adjusts the mouse sensitivity (DPI) between 800, 1200, and 1600 DPI. Press to cycle through settings.
Image 3.1: A diagram highlighting the four buttons on the Zeb-Dash mouse: Left Click (1), Scroll Wheel (2), Right Click (3), and DPI Switch (4).
Energy Saving Feature
The Zeb-Dash mouse incorporates a smart energy-saving feature. It automatically enters a sleep mode when not in use, conserving battery power. There is no manual on/off switch; the mouse manages power consumption automatically.
Image 3.2: A side view of the Zeb-Dash mouse, emphasizing its ergonomic shape and the smart energy-saving capability.
4. Product Specifications
| Feature | Detail |
|---|---|
| Brand | ZEBRONICS |
| Model | ZEB-DASH |
| Connectivity Technology | USB Wireless (2.4GHz) |
| Movement Detection Technology | Optical |
| DPI Resolution | 800 / 1200 / 1600 DPI |
| Number of Buttons | 4 |
| Button Strokes Life | 3 million cycles |
| Effective Range | 20 meters |
| Power Source | Battery Powered (AAA battery, not included) |
| Dimensions (LxWxH) | 10 x 4 x 6 cm |
| Item Weight | 110 g |
| System Requirements | IBM PC compatible system, Windows XP/Vista/7/8/10, Mac OS, or Android OS |
| Included Components | 1 mouse, 1 nano receiver (inside the mouse) |
5. Troubleshooting
- Mouse Not Responding:
- Ensure the AAA battery is correctly inserted and has sufficient charge. Replace if necessary.
- Verify that the nano USB receiver is securely plugged into a functional USB port on your computer. Try a different USB port.
- Restart your computer to re-establish the connection.
- Intermittent Connection/Lag:
- Move the mouse closer to the USB receiver to minimize interference.
- Ensure no other 2.4GHz wireless devices are causing interference in close proximity.
- Check the surface you are using the mouse on. Optical mice perform best on non-reflective, uniform surfaces.
- DPI Adjustment Not Working:
- Press the DPI switch button firmly. Each press should cycle through the available DPI settings (800/1200/1600).
6. Warranty and Support
The ZEBRONICS Zeb-Dash USB Wireless Optical Mouse comes with a 1-year warranty from the date of purchase. For warranty claims or technical support, please contact ZEBRONICS customer service. Keep your purchase receipt as proof of purchase.
For further assistance, you may visit the official ZEBRONICS website or refer to the contact information provided in your product packaging.
