Carepeutic Touch Screen Oxy-Energized Water Jet Foot & Leg Spa Massager Instruction Manual

1. Introduction

The Carepeutic Touch Screen Oxy-Energized Water Jet Foot & Leg Spa Massager is designed to provide a luxurious and therapeutic aquatic experience for your feet and lower legs. Utilizing the benefits of warm water, massage, and oxygenation, this device aims to ease foot pain, refresh meridians, and promote relaxation.

Key features include an advanced waterproof touch screen panel with LED backlight, motorized massage rollers, oxy-energized rotating nodes, a water jet surfing system, air bubble and red light therapy, and a smart thermal control system for automatic water temperature balancing.

2. Safety Information

• Always unplug the massager when not in use.
• Do not submerge the electrical components in water.
• Avoid using the massager if you have any open wounds or infections.
• Consult a physician before use if you have any medical conditions.
• Keep the massager away from children and pets.
• Do not use the massager while sleeping or in a bathtub.
• Always follow the instructions provided with the massager.

3. Setup

1. Place the foot spa on a flat, stable surface.
2. Ensure the drain hose is securely closed.
3. Fill the massager with water up to the indicated maximum fill line. Warm water is recommended for faster heating.

Figure 3.1: A hand pouring water into the foot spa, demonstrating the initial setup step.

4. Plug the power cord into a standard electrical outlet.

4. Operating Instructions

The foot spa is operated via an advanced touch screen panel located on the top of the unit. This panel features LED backlighting for clear visibility.

Figure 4.1: A detailed view of the waterproof LED-backlit touch screen panel, displaying controls for power, temperature, massage modes, timer, and red light/bubble functions.

• Power On/Off: Press the power button (usually indicated by a universal power symbol) to turn the unit on or off.
• Temperature Control: Use the 'Temp+' and 'Temp-' buttons to adjust the desired water temperature. The smart thermal control system will automatically maintain the set temperature.
• Massage Modes: Select from three different motorized rolling massage modes. These modes activate the rollers and oxy-energized nodes to relieve muscle stress and stimulate blood flow.
• Red Light & Air Bubble Therapy: Activate the red light and air bubble functions for enhanced relaxation and circulation benefits.
• Timer: Set a desired operating time for your session using the timer function.

Once settings are adjusted, place your feet and lower legs into the calf-deep water container to begin your spa experience.

Figure 4.3: A user's feet and lower legs are comfortably submerged in the foot spa, demonstrating the calf-deep water container.

5. Maintenance

5.1 Draining Water

After each use, ensure the unit is unplugged. To drain the water, locate the drain hose on the side of the unit. Open the cap and allow the water to flow out. The integrated pull handle and mobile casters facilitate easy movement to a drainage area.

Figure 5.1: The side view illustrates the portable design, including a sturdy pull handle and smooth-rolling casters for effortless transport and storage.

5.2 Cleaning

Clean the foot spa regularly with a soft, damp cloth and mild detergent. Do not use abrasive cleaners or harsh chemicals. The motorized massage rollers and oxy-energized nodes can be removed for thorough cleaning if necessary. Ensure all components are dry before storage.

Figure 5.2: The interior of the foot spa reveals the motorized massage rollers and oxy-energized rotating nodes designed to provide comprehensive foot and leg massage. These components can be cleaned separately.

6. Troubleshooting

• Unit does not power on: Ensure the power cord is securely plugged into a functional electrical outlet.
• Water is not heating: Verify that the desired temperature is set correctly on the touch screen panel. Allow sufficient time for the water to reach the set temperature.
• Massage rollers not functioning: Check if the massage mode is activated on the control panel. Ensure no obstructions are present.
• No bubbles/red light: Confirm that the respective functions are activated on the touch screen.

If issues persist, please contact Carepeutic customer support for further assistance.

7. Specifications

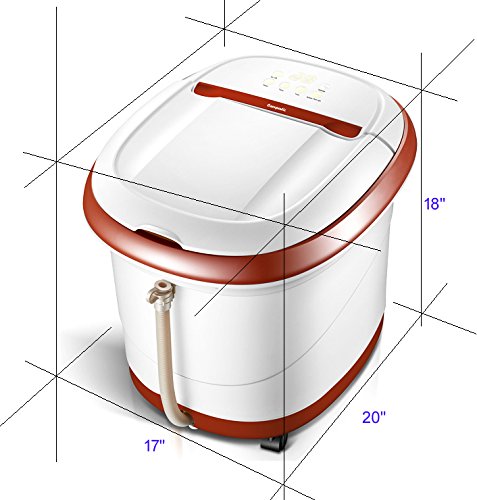

Figure 7.1: Diagram illustrating the product dimensions: 20 inches (length) x 17 inches (width) x 18 inches (height).

8. Warranty and Support

For warranty information, product support, or any inquiries not covered in this manual, please contact Carepeutic customer service directly. Refer to your product packaging or the official Carepeutic website for contact details.
