1. Product Overview
The Boobrie F-Type Coaxial Cable Connector RG6 Adapter is designed to connect two F-Pin cables, effectively extending the length of RG6 coaxial cables. These female-to-female coaxial couplers are ideal for various audio and video systems, providing reliable connections for both indoor and outdoor installations.
Key Features:
- Connects two F-Pin cables for extended reach.
- Acts as an adapter to convert coaxial male output to female output.
- Compatible with RG59 and RG6 coaxial cables.
- Suitable for Satellite (DIRECTV, Dish Network), Cable TV (Comcast, Coax, Charter), Internet, and Off-Air Antenna systems.
- Durable nickel-plated copper construction for excellent connectivity and long lifespan.
Image: Two Boobrie F-Type female to female coaxial cable connectors, showcasing their design.
2. Setup and Installation
These F-Type adapters are designed for straightforward installation, allowing you to easily extend your coaxial cable connections.
- Identify Cables: Ensure you have two coaxial cables with F-type male connectors that you wish to connect or extend.
- Connect First Cable: Screw the F-type male connector of the first coaxial cable into one end of the Boobrie F-Type adapter. Turn clockwise until snug. Do not overtighten.
- Connect Second Cable: Screw the F-type male connector of the second coaxial cable into the other end of the Boobrie F-Type adapter. Turn clockwise until snug. Do not overtighten.
- Verify Connection: Ensure both cables are securely attached to the adapter to prevent signal loss.
Image: A diagram illustrating how an F-type female to female coaxial connector extends a TV cable.
Image: An illustration emphasizing the ease of installation for the coaxial connectors, shown in a circular inset while people watch television.
Video: An official product video from Boobrie demonstrating the coaxial connector and its features.
3. Operation
Once installed, the F-Type coaxial cable connector functions as a seamless extension, allowing the signal to pass through without interruption. It maintains the integrity of your coaxial connection, ensuring consistent signal quality for your television, internet modem, or other compatible devices.
The nickel-plated copper construction ensures optimal signal transfer and minimizes interference, providing a stable and reliable connection.
4. Maintenance
These coaxial connectors require minimal maintenance. To ensure optimal performance and longevity:
- Keep Clean: Periodically check the connectors for dust or debris and gently clean with a dry, soft cloth if necessary.
- Inspect for Damage: Visually inspect the connectors for any signs of corrosion or physical damage. Replace if damage is observed.
- Ensure Tightness: Occasionally check that the connections remain snug. Loose connections can lead to signal degradation.
5. Troubleshooting
If you experience issues with your coaxial connection after installing the adapter, consider the following troubleshooting steps:
- No Signal or Poor Signal Quality:
- Ensure all F-type connectors are securely tightened. Loose connections are a common cause of signal issues.
- Check the coaxial cables themselves for any kinks, cuts, or damage.
- Test the connection without the adapter to determine if the issue lies with the adapter or other components.
- Intermittent Connection:
- Verify that the center conductor pin of the male F-type connectors is straight and not bent or broken.
- Ensure the adapter is clean and free from any foreign material that might obstruct the connection.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Boobrie |
| Model Number | 0000225 |
| Connector Type | Coaxial RG6 F-type |
| Cable Type Compatibility | Coaxial (RG6, RG59) |
| Connector Gender | Female to Female |
| Impedance | 75 Ohms |
| Connector Material | Copper (Nickel Plated) |
| Mating Life Time | >1000 Cycles |
| Operating Temperature | -55°C to +155°C |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Unit Count | 2 Count |
| Item Weight | 0.28 Ounces |
Image: Detailed features of the connector, including impedance, material, plating, temperature range, and durability.

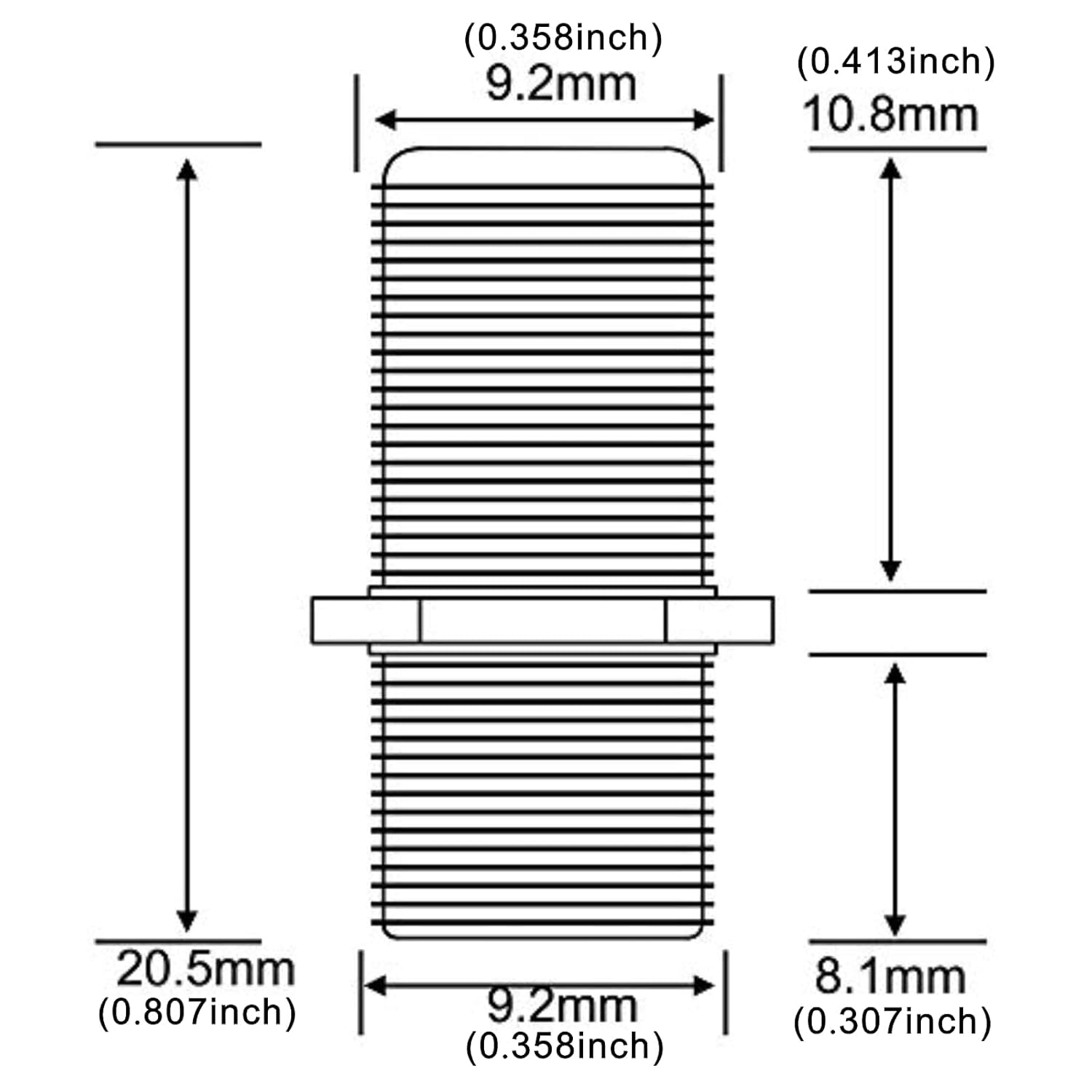

Image: Technical drawing showing precise dimensions of the F-type coaxial connector.
7. Warranty and Support
Boobrie provides a 12-month warranty and return service from the original purchase date for this product. If you encounter any manufacturing defects or have questions regarding the operation or other aspects of the product, please contact our customer service team. We are committed to providing prompt assistance.
