Dr Ho's Circulation Promoter Instruction Manual

Introduction

The Dr Ho's Circulation Promoter is an advanced TENS (Transcutaneous Electrical Nerve Stimulation) and EMS (Electrical Muscle Stimulation) device specifically engineered to provide temporary relief from pain and discomfort in the feet and lower limbs. It also helps to increase local circulation and offers symptomatic relief and management of chronic, intractable pain, as well as pain associated with arthritis. This manual provides comprehensive instructions for safe and effective use of your Circulation Promoter.

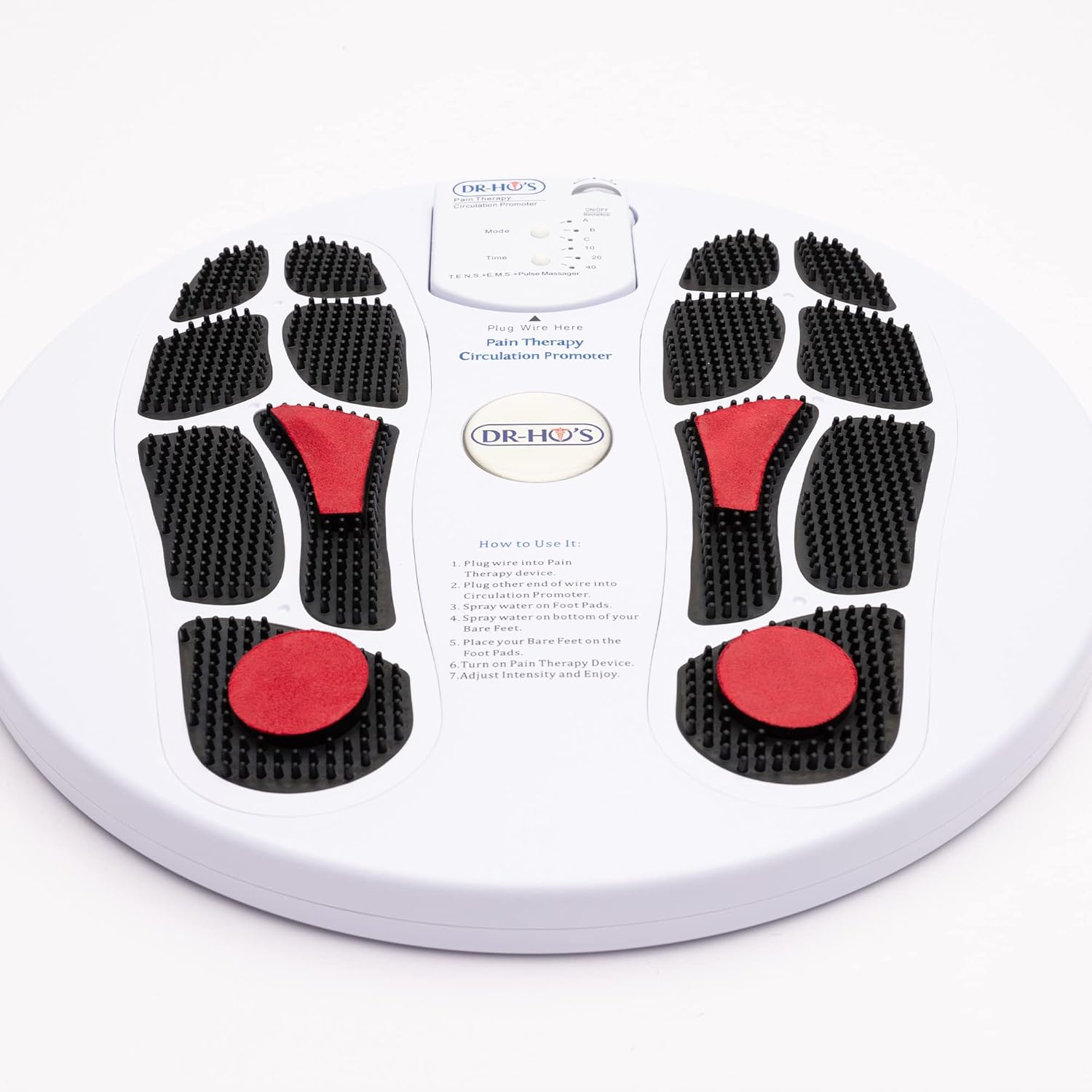

Figure 1: The Dr Ho's Circulation Promoter main unit, designed for foot and leg therapy.

Safety Information

IMPORTANT: Please read all safety warnings before use.

DR-HO’S Circulation Promoter and any other electronic stimulators should NOT be used by patients with the following conditions:

• Pacemakers, defibrillators or extreme cardiac irregularities
• Metal implants or electronic auxiliary devices
• Abnormally high blood pressure
• A tendency toward internal bleeding
• Epilepsy
• Pregnant women

Please consult your doctor before using the device.

Package Contents

Your Dr Ho's Circulation Promoter Essential Package includes:

• Circulation Promoter base unit with built-in foot electrodes
• Control unit (TENS + EMS device)
• Small body pads (FlexTone Pads Size A)
• Large body pads (FlexTone Pads Size B)
• Water spray bottle
• Instructional manual and DVD
• Carry bag

Figure 2: All components included in the Dr Ho's Circulation Promoter Essential Package.

Setup

1. Installing Batteries

The control unit requires 2 AAA alkaline batteries (not included). Open the battery compartment on the back of the control unit and insert the batteries, ensuring correct polarity. Close the compartment securely.

Figure 3: The control unit with its battery compartment.

2. Connecting the Control Unit to the Base Plate

The wire to connect the base plate to the control unit is already plugged into the base. Simply attach the small end of this wire to the designated port on the control unit.

Figure 4: The control unit connected to the Circulation Promoter base.

3. Preparing for Use (Foot Pads)

For optimal conduction, spray both the foot pads on the base unit and the soles of your bare feet with tap water using the included spray bottle. Apply 7-10 sprays to ensure the surfaces are adequately wet.

Figure 5: The foot pads on the Circulation Promoter base.

Operation

1. Using with Foot Pads

Sit comfortably in a chair with your feet flat on the floor. Place your bare feet directly onto the foot pads of the Circulation Promoter base unit. Ensure good contact with the black conductive areas and the red circular pads.

Figure 6: Proper foot placement on the Circulation Promoter base.

2. Adjusting Settings (Control Unit)

The control unit allows you to customize your therapy session:

• Power/Intensity Dial: Slowly turn the ON/OFF dial clockwise to turn on the device and gradually increase the intensity. Start at a low setting (e.g., 1 or 2) and increase gradually until you feel a comfortable, stimulating sensation.
• Mode Button: Press the 'Mode' button to cycle through three different therapy modes (A, B, C). Each mode offers a unique pattern of stimulation. Choose the mode that feels most comfortable and effective for you.
• Time Button: Press the 'Time' button to select your desired treatment duration: 10, 20, or 40 minutes. The device will automatically shut off once the selected time has elapsed.

Figure 7: The control unit's interface for adjusting therapy settings.

3. Using with Body Pads (FlexTone Pads)

The Circulation Promoter is versatile and can be used for other body parts using the included FlexTone Pads. To do this:

1. Detach the control unit from the base plate by unplugging the wire.
2. Connect the included wire for the body pads to the control unit. This wire typically connects two pads.
3. Peel the protective film from the back of the FlexTone Pads.
4. Spray the sticky side of the pads with tap water (7-10 sprays) to ensure good conduction.
5. Apply the pads to the desired area of your body. Refer to the included Pad Placement Chart for recommended placements.
6. Slowly turn on the control unit and adjust the intensity, mode, and time as described above. Always start with a low intensity.

Figure 8: The control unit ready for use with body pads.

Figure 9: Example of body pad application for back pain relief.

Maintenance

1. Cleaning and Storing Pads

After each treatment, always stick the FlexTone Pads back onto their protective film. This helps to maintain their stickiness and prolong their lifespan. If pads feel dry or you experience a slight stinging sensation, spray them with water or rub with wet fingers to re-moisten before use. Replace pads after 70-100 uses or when they no longer adhere well.

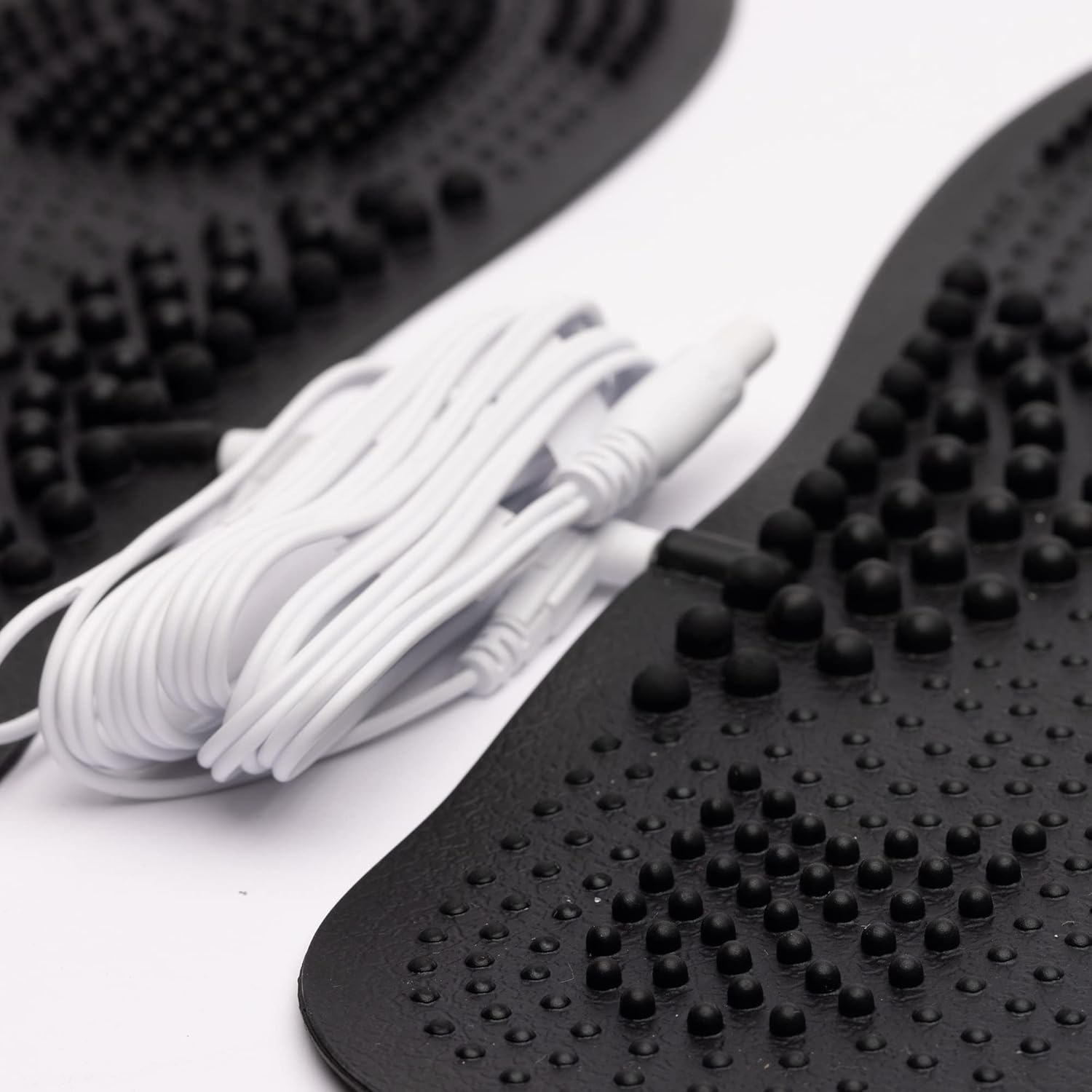

Figure 10: FlexTone Pads should be kept moist and clean for optimal performance.

2. Device Care

Wipe the Circulation Promoter base unit and control unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water. Store the device and all accessories in the provided carry bag in a cool, dry place when not in use.

Troubleshooting

• No sensation or weak stimulation: Ensure the control unit has fresh batteries. Verify that the wires are securely connected to both the control unit and the pads/base. Make sure the foot pads/feet or body pads are sufficiently sprayed with water for good conduction. Increase the intensity dial gradually.
• Stinging sensation: This usually indicates that the pads are too dry. Re-moisten the pads or your skin with water. Ensure the pads are making full contact with your skin.
• Device not turning on: Check battery installation and ensure batteries are not depleted. Turn the ON/OFF dial fully to the 'OFF' position and then slowly turn it back on.

If issues persist, please refer to the full instructional manual or contact customer support.

Specifications

Warranty and Support

Your Dr Ho's Circulation Promoter comes with a 2-year warranty when purchased directly from DR-HO’S official Amazon store. This warranty applies to the control unit and excludes all accessories. Standard Manufacturer’s Warranty is provided by DR-HO'S.

For customer support or warranty claims, please refer to the contact information provided in your product packaging or visit the official DR-HO'S website.
