Vive Mobility All-Terrain Knee Scooter User Manual

Model: B07D9SZS2S

Introduction

This manual provides instructions for the safe and effective use of the Vive Mobility All-Terrain Knee Scooter. This device is designed to provide comfortable support and mobility for individuals recovering from foot, ankle, or lower leg injuries or surgery, offering a pain-free alternative to traditional crutches.

Important Safety Information

Read all instructions thoroughly before operating the knee scooter.
Ensure all locking mechanisms, including handlebar and knee pad adjustments, are securely engaged before each use.
Do not exceed the maximum weight capacity of 350 pounds (158 kg).
Exercise extreme caution when navigating uneven surfaces, inclines, declines, or wet areas to prevent falls.
Always consult with a healthcare professional for proper usage guidance and to ensure the knee scooter is suitable for your specific recovery needs.
Keep hands and clothing clear of moving parts, especially wheels and braking mechanisms.

Product Components

The Vive Mobility All-Terrain Knee Scooter is comprised of the following key components:

Adjustable Handlebar with Brake Levers
Contoured Knee Pad (height-adjustable)
Durable Steel Frame
Four 12-inch Pneumatic All-Terrain Wheels
Dual Rear Friction Brake System
Removable Storage Bag

Vive Mobility All-Terrain Knee Scooter with storage bag attached, showing its full assembly. — Figure 1: The Vive Mobility All-Terrain Knee Scooter, fully assembled, highlighting its robust design and included storage bag.

Setup and Assembly

Follow these steps to assemble and prepare your knee scooter for use:

Unpack Components: Carefully remove all parts from the packaging and ensure all components listed in the 'Product Components' section are present.
Attach Handlebar: Insert the handlebar post into the main frame's vertical tube. Secure it firmly using the quick-release clamp or tightening knob provided. Ensure there is no wobble.
Adjust Handlebar Height: Adjust the handlebar to a comfortable height, typically aligning with your hips when standing upright. Lock the adjustment securely.
Attach Knee Pad: Place the contoured knee pad onto its support post. Adjust the height of the knee pad so that your knee rests comfortably and your injured foot is elevated off the ground. Secure the adjustment.
Install Storage Bag: Attach the removable storage bag to the handlebar post using the integrated straps or clips. Ensure it is securely fastened and does not interfere with steering or braking.
Check Brakes: Test the dual rear friction brake system by engaging both brake levers on the handlebar. Verify that both rear wheels are effectively stopped when the brakes are applied.

A person adjusting the height of the knee pad on the Vive Mobility All-Terrain Knee Scooter. — Figure 2: Adjusting the height of the knee pad for optimal user comfort and support.

Close-up of hands engaging the dual rear braking system on the Vive Mobility All-Terrain Knee Scooter. — Figure 3: Demonstrating the proper engagement of the dual rear braking system for controlled stopping.

Operating Instructions

Using the Knee Scooter

Positioning: Place the knee of your injured leg onto the center of the contoured knee pad. Ensure your injured foot is elevated and does not make contact with the ground.
Propulsion: Use your uninjured leg to push off the ground, propelling the scooter forward. Maintain a steady pace.
Steering: Use the handlebar to steer the scooter in the desired direction. The steerable front wheels allow for easy navigation around obstacles.
Braking: Squeeze the brake levers on the handlebar to slow down or stop. For prolonged stops or when stationary, engage the parking brake by pushing the small lever on the brake handle down until it locks into place. To release the parking brake, simply squeeze the brake lever again.

Navigating Different Terrains

The 12-inch pneumatic wheels are specifically designed to provide enhanced stability and maneuverability across a variety of surfaces, including:

Carpeted floors
Gravel paths
Grassy areas
Dirt trails
Paved roads and sidewalks

Always exercise caution and reduce speed when transitioning between different surfaces or encountering uneven terrain to maintain stability.

A person using the Vive Mobility All-Terrain Knee Scooter outdoors on a paved path with grass and trees in the background. — Figure 4: The knee scooter in use on an outdoor paved surface, demonstrating its all-terrain capability and ease of movement.

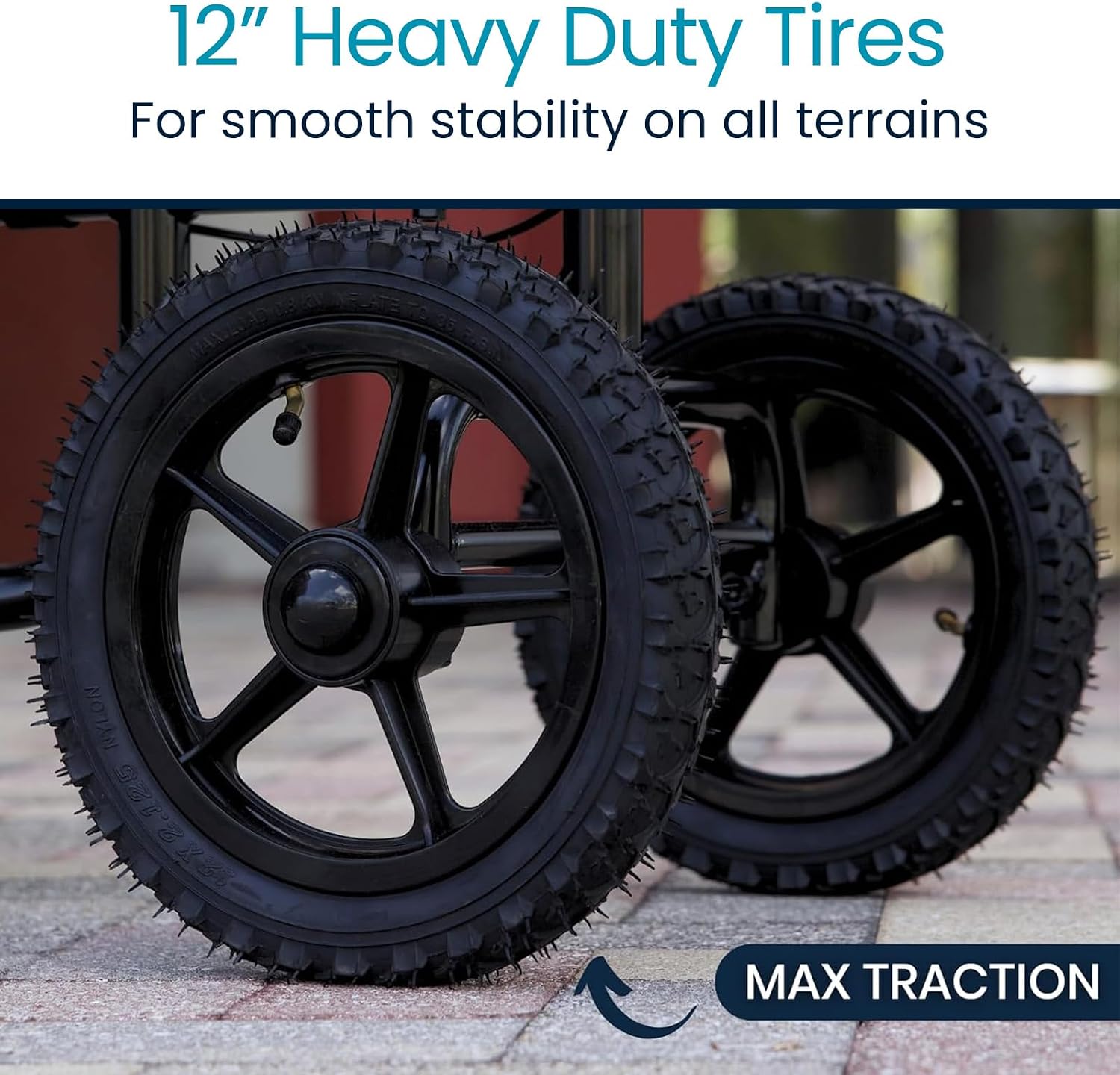

Close-up of the 12-inch heavy-duty pneumatic tires of the Vive Mobility All-Terrain Knee Scooter, highlighting their deep tread for maximum traction. — Figure 5: A detailed view of the 12-inch pneumatic tires, engineered for superior stability and traction on diverse surfaces.

Video 1: Official product video demonstrating the features and practical use of the Vive Mobility All-Terrain Knee Walker.

Maintenance and Care

Proper maintenance ensures the longevity and safe operation of your knee scooter:

Cleaning: Regularly wipe down the frame and knee pad with a damp cloth and mild, non-abrasive soap. Avoid harsh chemicals that could damage the materials.
Tire Pressure: Periodically check the air pressure in the pneumatic tires. Maintain the recommended pressure (usually indicated on the tire sidewall) for optimal performance, stability, and ride comfort.
Brake Inspection: Routinely inspect the brake cables and mechanisms for any signs of wear, fraying, or damage. Ensure the brakes engage smoothly and effectively, and adjust tension if necessary.
Fastener Check: Before each use, verify that all screws, bolts, and quick-release mechanisms are tight and secure. Loose fasteners can compromise stability and safety.
Storage: When not in use, store the knee scooter in a dry, cool place away from direct sunlight and extreme temperatures. The folding mechanism allows for compact storage, making it easy to store in a car trunk or closet.

A woman folding the Vive Mobility All-Terrain Knee Scooter and placing it into the trunk of a car for transport. — Figure 6: The knee scooter features a durable and foldable frame, allowing for convenient transport and storage in most car trunks.

Troubleshooting

Refer to the table below for common issues and their solutions:

Problem	Possible Cause	Solution
Scooter feels unstable or wobbly during use.	Low tire pressure; Loose fasteners on frame or handlebar.	Check and inflate tires to recommended pressure. Tighten all visible screws, bolts, and quick-release mechanisms.
Brakes are not engaging effectively or feel loose.	Loose brake cable; Worn brake pads; Incorrect brake lever adjustment.	Inspect brake cables for tension and adjust if necessary. Check brake pads for wear and replace if worn. Ensure brake levers are properly positioned.
Difficulty steering or turning.	Obstruction in steering mechanism; Low tire pressure in front wheels.	Check for any debris or obstructions around the steering column. Ensure front tires are properly inflated.
Knee pad feels uncomfortable or shifts.	Incorrect height adjustment; Loose knee pad attachment.	Re-adjust knee pad height for optimal comfort and support. Ensure the knee pad is securely fastened to its post.

If you encounter issues not listed here or if problems persist after attempting these solutions, please contact Vive Mobility customer support for assistance.

Specifications

Model: B07D9SZS2S
Brand: Vive Mobility
Material: Steel
Weight Capacity: Up to 350 pounds (158 kg)
Product Dimensions (Assembled): 36"D x 18"W x 45.5"H (91.4cm D x 45.7cm W x 115.6cm H)
Item Weight: Approximately 30.51 Pounds (13.84 Kilograms)
Adjustable Knee Pad Height Range: 20" to 26" (50.8cm to 66cm)
Adjustable Handlebar Height Range: 38" to 46" (96.5cm to 116.8cm)
Wheel Size: 12-inch pneumatic (air-filled)
Ideal User Height Range: 5'3" to 6'6" (160cm to 198cm)

Warranty and Support

The Vive Mobility All-Terrain Knee Scooter is backed by a LIFETIME GUARANTEE, reflecting our commitment to quality and customer satisfaction. This warranty covers manufacturing defects and ensures long-term reliability of your product.

For warranty claims, product support, technical assistance, or any other inquiries, please contact Vive Mobility customer service directly. Our dedicated support team is available to assist you with any questions or concerns you may have.

This product is also eligible for purchase with Health Savings Account (HSA) or Flexible Spending Account (FSA) funds, providing a convenient option for healthcare-related expenses.

For additional detailed information and resources, you may refer to the official user manual available in PDF format: Vive Mobility All-Terrain Knee Scooter User Manual (PDF)
