Introduction
Thank you for choosing the BESTEK Power Strip Tower. This device is designed to provide a versatile and safe power solution for your home or office, featuring multiple AC outlets, USB charging ports, and a convenient wireless charging pad. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your product.
Safety Instructions
- Do not exceed the maximum power rating of 125V/15A/1875W.
- This product is designed for indoor use only. Avoid exposure to moisture or wet environments.
- Do not disassemble, modify, or attempt to repair the unit. Refer all servicing to qualified personnel.
- Keep away from children and pets.
- Ensure the power cord is fully inserted into a grounded wall outlet.
- Avoid placing the unit near heat sources or in direct sunlight.
- If the surge protector indicator light is off, the surge protection feature may no longer be active. Replace the unit to ensure continued protection.
Product Features
The BESTEK Power Strip Tower offers a comprehensive charging and power solution with the following features:
- 12-in-1 Power Solution: Equipped with 8 AC outlets, 2 USB-A ports, 1 USB-C PD 20W port, and 1 wireless charger, allowing simultaneous charging of multiple devices.
- Integrated Wireless Charger: A built-in wireless charging pad (5V/2A) on the top surface supports Qi-standard compatible devices.
- USB-C Fast Charging: The USB-C port supports PD3.0 with a maximum output of 20W (5V/3A, 9V/2.22A, or 12V/1.67A) for rapid charging of compatible Type-C devices. Each USB-A port provides up to 2.4A output. Smart technology automatically detects connected devices and delivers optimal charging speed.

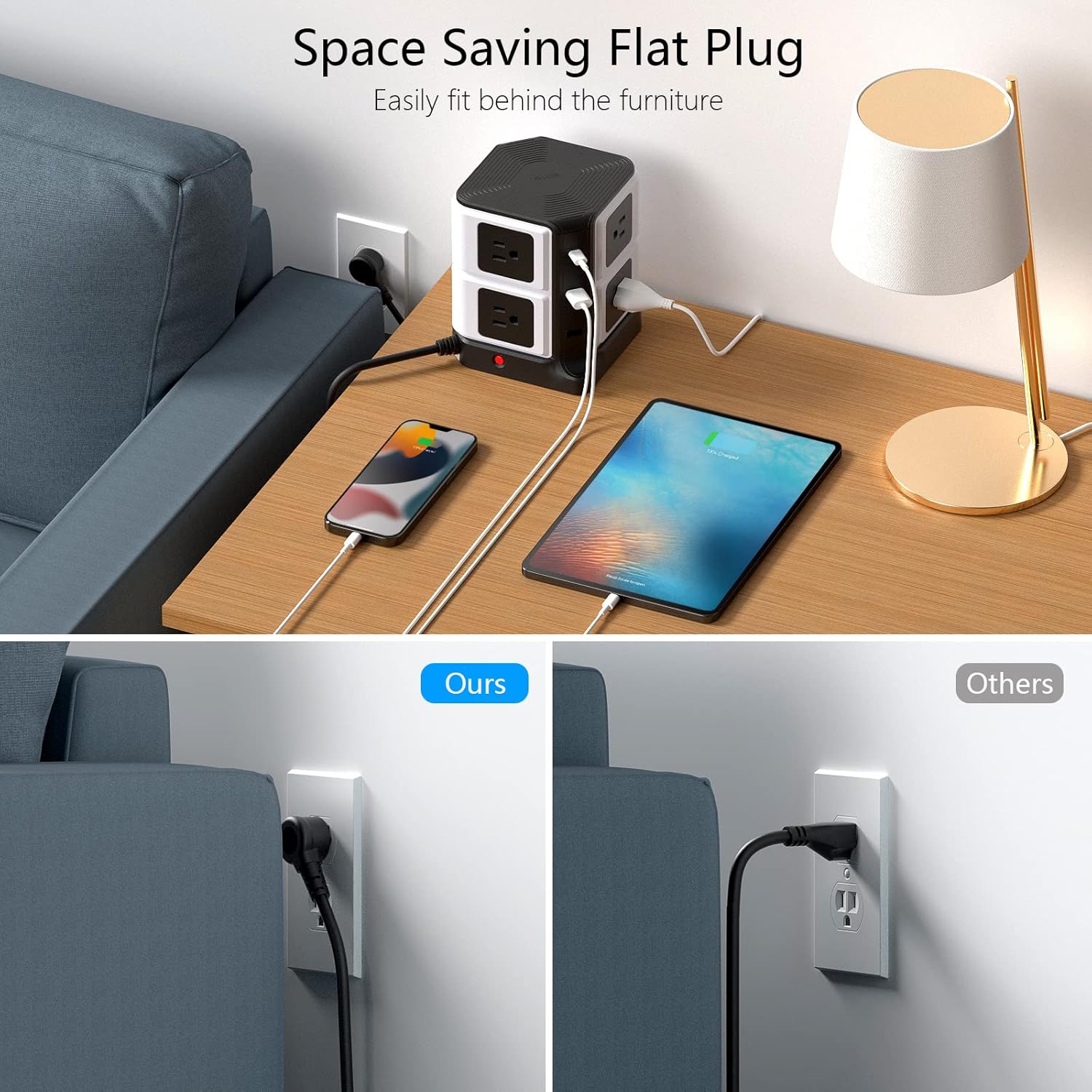

- Space-Saving Vertical Design: The desktop tower design (only 5.7 inches tall) is ideal for minimizing clutter. Widely spaced outlets on different directions and a 45-degree flat plug prevent blocking adjacent outlets and fit easily behind furniture.

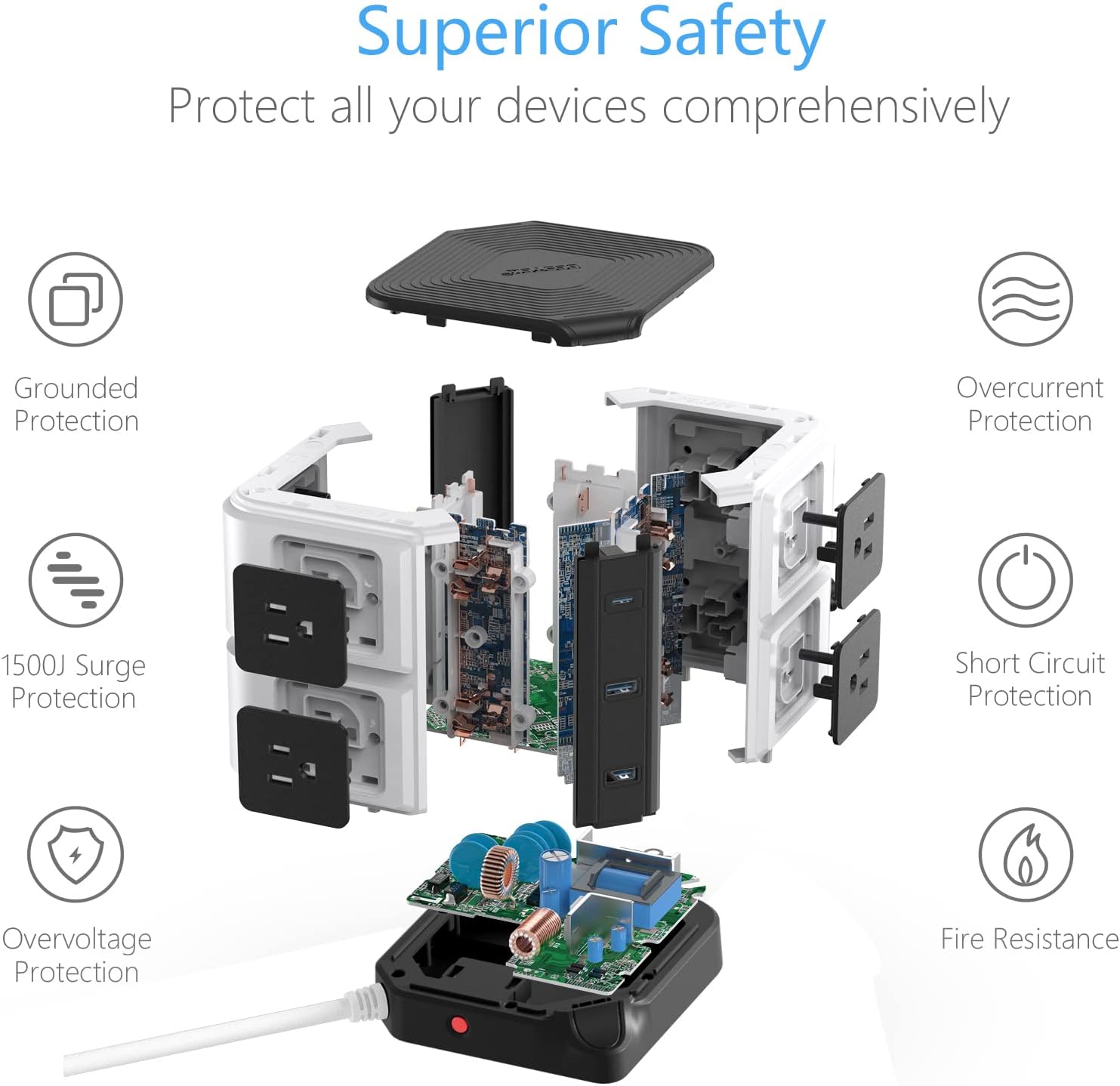

- Superior Safety: Built-in 2100 Joules surge protection, overload protection with a reset button, short circuit protection, overvoltage protection, and fire-resistant casing ensure comprehensive safety for all connected devices. ETL listed for safety assurance.
Product Overview Video
Detailed Features Video
Package Contents
- 1 x BESTEK Power Strip Tower (Model CA-usb10100)
- 1 x User Manual
Setup
- Unpack the Power Strip Tower and ensure all components are present.
- Place the unit on a stable, flat surface, away from water or heat sources.
- Plug the power cord into a standard 125V AC grounded wall outlet. The power indicator light on the base should illuminate.
Operating Instructions
Using AC Outlets
- The Power Strip Tower features 8 AC outlets distributed across its sides.
- Each tier of AC outlets (top and bottom) has an independent power button. Press the button next to the desired outlets to turn them on or off. An indicator light will show the status.
- Plug your devices directly into the AC outlets. The wide spacing accommodates larger power adapters without blocking other ports.
Using USB Charging Ports
- Connect your USB-powered devices to the 2 USB-A ports or the 1 USB-C PD 20W port.
- The smart charging technology will automatically detect your device and deliver the optimal charging current.
- The USB ports operate independently of the AC outlet power buttons.
Using Wireless Charging
- Place your Qi-compatible smartphone or other device directly on the wireless charging pad located on the top of the tower.
- Ensure the device is centered on the pad for optimal charging. A charging indicator (if present on your device) will confirm charging has begun.
- Remove any metal objects or thick cases from your device that may interfere with wireless charging.
Maintenance
- Disconnect the power strip from the wall outlet before cleaning.
- Wipe the unit with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Keep the outlets free from dust and debris to ensure proper contact and prevent overheating.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to outlets/USB ports. | Unit not plugged in; power button off; circuit breaker tripped; surge protection expired. | Ensure unit is plugged in. Press the power button for the specific tier of outlets. Check your home's circuit breaker. If the surge protection indicator is off, replace the unit. |
| Wireless charging not working. | Device not Qi-compatible; device not properly aligned; foreign objects on pad; thick phone case. | Verify device compatibility. Realign device on the pad. Remove metal objects or thick cases. |
| Slow charging via USB. | Cable issue; device drawing more power than port can supply; multiple devices connected. | Try a different USB cable. Ensure the device is compatible with the port's output. Disconnect other devices to test. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | CA-usb10100 |
| Product Dimensions | 4.8 x 4.8 x 5.71 inches |
| Item Weight | 2.1 pounds |
| Total Power Outlets | 8 AC Outlets |
| USB Ports | 2 USB-A (2.4A Max each), 1 USB-C (PD3.0, 20W Max) |
| Wireless Charger | 5V/2A (Qi Standard) |
| Voltage | 125 Volts |
| Surge Protection | 2100 Joules |
| Special Features | Fireproof, Overvoltage Protection, Short Circuit Protection, Space Saving, Surge Protection, USB Slot |
| Certifications | ETL Listed |
Warranty and Support
For warranty information or technical support, please contact BESTEK customer service through their official website or the retailer where the product was purchased. Keep your purchase receipt for warranty claims.
