Powermatic Wood Extension Table with Router Cutout

1. Introduction

The Powermatic 30-1/2" x 33" Wood Extension Table with Router Cutout is designed to expand the working capacity of your table saw, particularly for handling larger workpieces such as panels. This extension table is engineered to bolt securely to the fence rails of compatible table saws, providing a stable and extended work surface. Its Duramine surface ensures smooth material movement and long-term durability. A pre-cut opening is included for the integration of an accessory router lift, such as the Powermatic Rout-R-Lift (sold separately), allowing for flush mounting of a router.

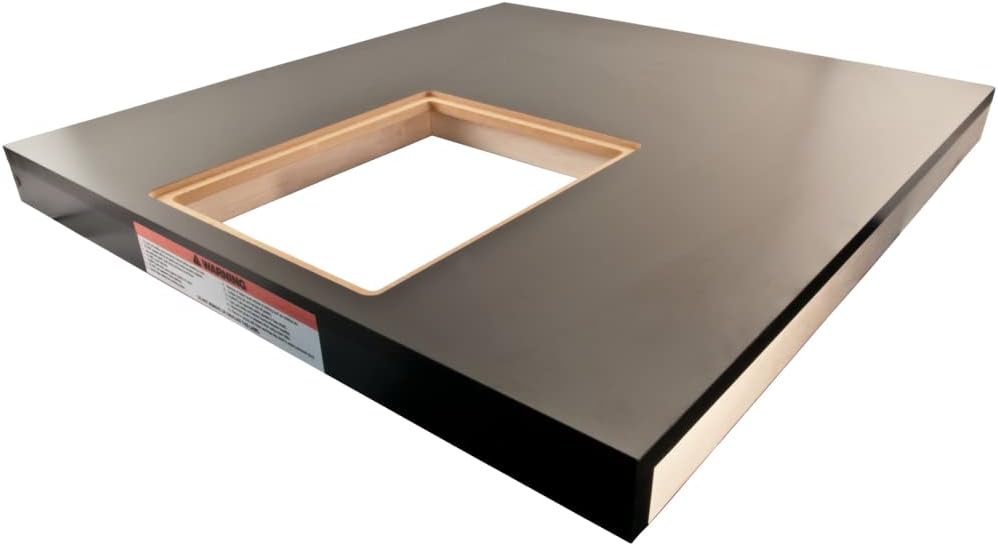

Image 1.1: The Powermatic Wood Extension Table with Router Cutout, showing its smooth surface and central opening for a router lift.

2. Safety Information

Always prioritize safety when working with power tools and accessories. Read and understand the safety guidelines provided with your table saw and any other tools used in conjunction with this extension table. Failure to follow safety instructions can result in serious injury.

• Ensure the extension table is securely bolted to the table saw's fence rails before operation.
• Verify that all fasteners are tightened appropriately to prevent movement during use.
• Keep the work area clear of obstructions and maintain good lighting.
• Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and dust masks, as required by your table saw's operation.
• Disconnect power to your table saw before performing any adjustments, maintenance, or installation procedures on the extension table or router lift.

3. Package Contents

Carefully unpack the carton and ensure all items are present and undamaged. If any parts are missing or damaged, contact Powermatic customer support immediately.

• Powermatic 30-1/2" x 33" Wood Extension Table with Router Cutout (1)

4. Setup

This extension table is designed to integrate with the fence rails of compatible Powermatic table saws, such as the PM2000B. The installation process typically involves bolting the extension table to the existing fence rail system.

1. Preparation: Ensure your table saw is unplugged and the work area is clean and clear.
2. Positioning: Carefully align the extension table with the existing table saw surface and the fence rails.
3. Securing: Use appropriate hardware (not included, typically supplied with your table saw's fence system or purchased separately) to bolt the extension table to the fence rails. Ensure all bolts are tightened securely to prevent any movement or vibration during operation.
4. Leveling: Verify that the extension table surface is level with your table saw's main surface. Adjust as necessary to ensure a seamless transition for workpieces.
5. Router Lift Installation (Optional): If installing a router lift (e.g., Powermatic Rout-R-Lift 682004, sold separately), follow the specific instructions provided with the router lift for proper mounting into the pre-cut opening. Ensure the router lift plate sits flush with the extension table surface.

Image 4.1: The extension table with a router lift installed in the cutout, demonstrating how the accessory fits flush with the table surface.

5. Operating

Once properly installed, the Powermatic Wood Extension Table enhances your table saw's capabilities.

• Expanded Support: Utilize the extended surface for cutting larger panels or sheet goods, providing greater stability and control during the cut.
• Smooth Workpiece Travel: The Duramine surface is designed to allow workpieces to slide smoothly across the table, reducing friction and improving cutting accuracy.
• Integrated Routing: If a router lift is installed, the extension table becomes a dedicated router table, allowing for various routing operations such as edge profiling, dadoes, and rabbets. Ensure the router is properly secured and adjusted according to its own manual.

6. Maintenance

Proper maintenance will ensure the longevity and performance of your extension table.

• Cleaning: Regularly wipe down the Duramine surface with a clean, damp cloth to remove sawdust and debris. Avoid abrasive cleaners that could damage the surface.
• Inspection: Periodically inspect all mounting hardware to ensure it remains tight. Re-tighten any loose bolts to maintain stability.
• Storage: If the table is to be stored for an extended period, ensure it is clean and stored in a dry environment to prevent warping or damage.

7. Troubleshooting

If you encounter issues with your extension table, consider the following common solutions:

• Table Not Level: Check the mounting points and ensure the table is properly aligned and secured to the table saw's rails. Adjust as needed.
• Excessive Vibration: Ensure all bolts securing the extension table to the fence rails are tightened. Check for any loose components on the table saw itself.
• Workpiece Sticking: Clean the Duramine surface thoroughly. Ensure there is no buildup of pitch or debris.

For persistent issues or problems not listed here, contact Powermatic customer support.

8. Specifications

9. Warranty and Support

The Powermatic 30-1/2" x 33" Wood Extension Table with Router Cutout is backed by Powermatic's industry-leading 1-year warranty against manufacturing defects. This warranty covers defects in materials and workmanship under normal use.

Image 9.1: Official Powermatic 1-Year Warranty emblem.

For warranty claims, technical support, or inquiries regarding replacement parts, please contact Powermatic customer service. Refer to your product's serial number and model number when contacting support to expedite assistance.

Manufacturer: Powermatic
Website: Visit the official Powermatic website for contact information and support resources.
