MSD 4650 Standalone Air/Fuel Wideband O2 Gauge Kit Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your MSD 4650 Standalone Air/Fuel Wideband O2 Gauge Kit. This kit is designed to provide accurate air/fuel ratio readings for optimal engine performance and tuning. Please read this manual thoroughly before proceeding with installation or operation.

The MSD 4650 features a 2-1/16 inch standalone wideband gauge, a Bosch LSU 4.9 wideband O2 sensor, and necessary wiring. It is compatible with various fuel types including Unleaded, Leaded, E85, Diesel, and Methanol.

Package Contents

Upon opening the package, verify that all components are present and undamaged:

• MSD 4650 2-1/16" Standalone Wideband O2 Gauge
• Bosch LSU 4.9 Wideband O2 Sensor
• Wiring Harnesses and Connectors
• Mounting Hardware (Spin lock ring)

Figure 1: Complete MSD 4650 Wideband O2 Gauge Kit showing the gauge, O2 sensor, and wiring harnesses.

Setup and Installation

Proper installation is crucial for accurate readings and reliable operation. If you are unsure about any step, consult a qualified automotive technician.

1. Gauge Mounting

The MSD 4650 gauge features a slim-style mounting design, requiring minimal dash space. It uses a spin lock ring for secure installation.

• Identify a suitable location on your dashboard or gauge pod for the 2-1/16" (52mm) gauge.
• Drill a mounting hole with a diameter of 2.062" (52mm). Refer to the dimension diagram for precise measurements.
• Insert the gauge into the drilled hole from the front.
• Thread the spin lock ring onto the back of the gauge case until it is snug and secure.

Figure 2: Dimensional diagram for 2-1/16" gauges, showing mounting hole size (2.062" / 52mm) and bezel dimensions.

2. O2 Sensor Installation

Install the Bosch LSU 4.9 wideband O2 sensor into an appropriate bung in your exhaust system. Ensure the bung is located where it can accurately read exhaust gases and is not susceptible to water contamination.

• Ensure the engine and exhaust system are cool before handling the O2 sensor.
• Apply anti-seize compound to the O2 sensor threads.
• Thread the O2 sensor into the exhaust bung and tighten to the manufacturer's specifications.

3. Wiring Connections

Connect the wiring harnesses as follows. Ensure all connections are secure and protected from heat and abrasion.

• Connect the O2 sensor harness to the Bosch LSU 4.9 sensor.
• Connect the main gauge harness to the back of the MSD 4650 gauge.
• Route the power and ground wires to appropriate vehicle power sources. Typically, a switched 12V power source and a solid chassis ground are required.
• Ensure all connectors are fully seated and locked.

Figure 3: Rear view of the MSD 4650 gauge showing the multi-pin connector for the wiring harness.

Figure 4: Close-up of a male connector with pins, part of the wiring harness for the MSD 4650 kit.

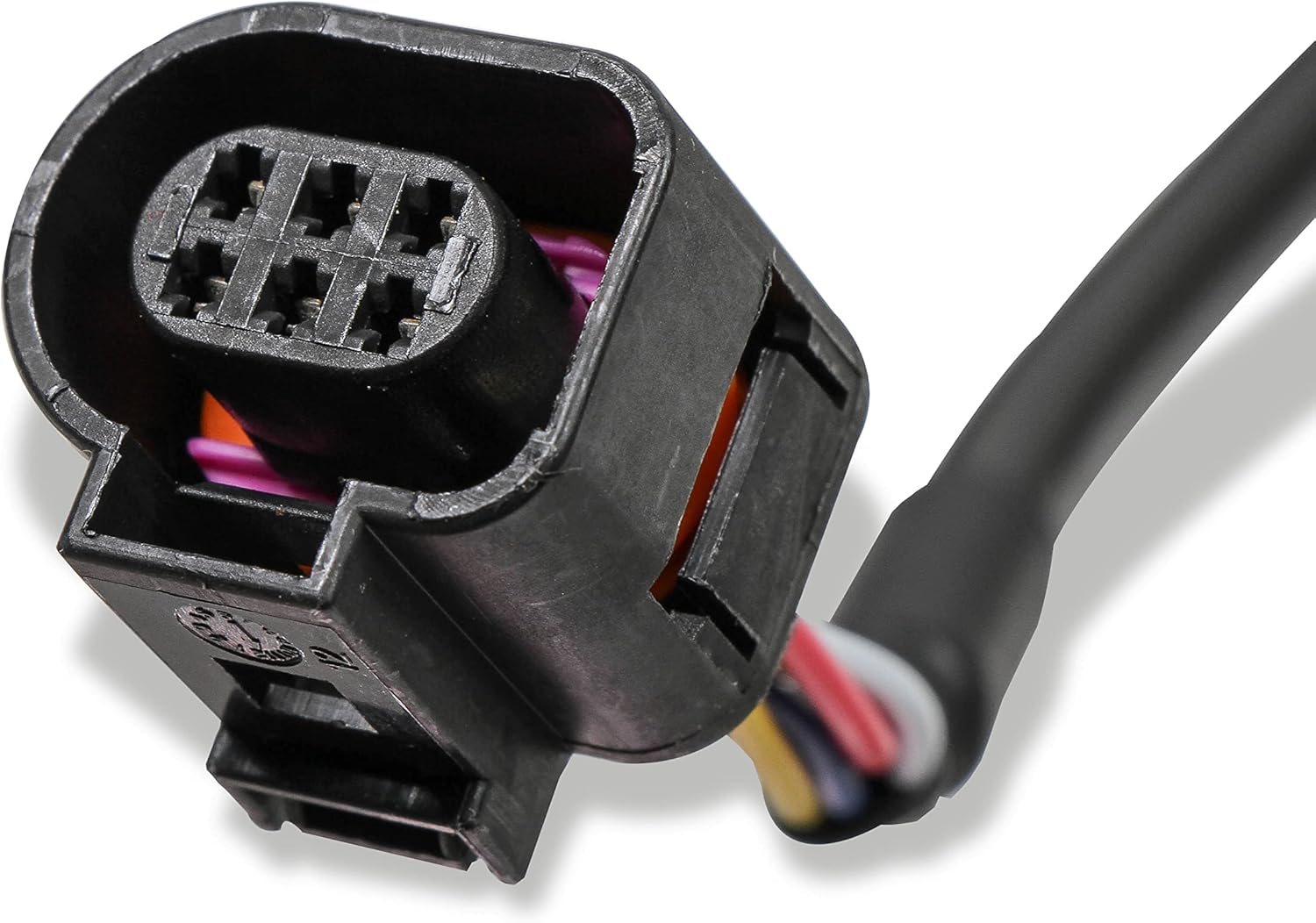

Figure 5: Close-up of a female connector receptacle, designed to mate with the male connector pins in the MSD 4650 wiring.

Operating Instructions

Once installed and powered, the MSD 4650 gauge will display the current air/fuel ratio. Allow the O2 sensor to warm up for a few moments after initial power-up before taking readings.

Reading the Gauge

The gauge features a 270° sweep pointer, making it easy to read at a glance. The scale typically ranges from rich (lower numbers) to lean (higher numbers) air/fuel ratios.

Peak Recall Function

The MSD 4650 includes a peak recall button. This feature allows you to view the minimum and maximum air/fuel ratio readings recorded during a driving session. To use:

• Press the "Peak Recall" button (location typically on the gauge face or side).
• The gauge will momentarily display the minimum recorded A/F ratio, then the maximum recorded A/F ratio.
• Press the button again to return to live readings, or it may automatically revert after a short period.

Maintenance

The MSD 4650 Wideband O2 Gauge Kit is designed for durability and minimal maintenance. However, periodic checks can ensure continued accuracy and longevity.

• Wiring Inspection: Periodically check all wiring connections for signs of wear, fraying, or heat damage. Ensure connections remain secure.
• O2 Sensor Condition: While the Bosch LSU 4.9 sensor is robust, prolonged exposure to leaded fuels or certain fuel additives can reduce its lifespan. If readings become erratic or inconsistent, consider inspecting or replacing the O2 sensor.
• Gauge Cleaning: Clean the gauge face with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the display.

Troubleshooting

If you encounter issues with your MSD 4650 Wideband O2 Gauge Kit, refer to the following common problems and solutions:

Specifications

Key specifications for the MSD 4650 Standalone Air/Fuel Wideband O2 Gauge Kit:

• Model: 4650
• Gauge Size: 2-1/16 inches (52mm)
• O2 Sensor Type: Bosch LSU 4.9 Wideband
• Fuel Compatibility: Unleaded, Leaded, E85, Diesel, Methanol
• Mounting: Spin lock ring, slim-style
• Pointer Sweep: 270° (6 to 3 o’clock)
• Features: Peak Recall
• Material: Plastic (Gauge housing)
• Item Dimensions (L x W x H): 5.25 x 5.25 x 5.25 inches
• Item Weight: 0.4 Kilograms
• UPC: 085132046508

Warranty Information

This MSD product is covered by a standard manufacturer's warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your product or visit the official MSD website. Keep your proof of purchase for warranty claims.

Support and Contact

If you require further assistance, have questions not covered in this manual, or need technical support, please contact MSD customer service. You can typically find contact information on the official MSD website or through the retailer where you purchased the product.

Online Resources: www.msdperformance.com
