Orbegozo Air 46 3-in-1 Air Cooler User Manual

1. Introduction

Thank you for choosing the Orbegozo Air 46 3-in-1 Air Cooler. This appliance is designed to provide cooling, humidification, and air purification functions, enhancing comfort in your living spaces. With its 55W motor, 6-liter water tank, and convenient remote control, the AIR46 offers efficient and quiet operation. Please read this manual thoroughly before use to ensure proper operation, maintenance, and safety.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Ensure the power supply voltage matches the rating label on the appliance.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Unplug from the outlet when not in use, before cleaning, or before moving.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Keep the appliance out of reach of children.
• Place the appliance on a stable, flat surface.
• Do not block air inlets or outlets.
• Only use clean water in the water tank.
• Do not use the appliance outdoors.

3. Package Contents

Verify that all items are present in the package:

• Orbegozo Air 46 3-in-1 Air Cooler Unit
• Remote Control
• Ice Packs (2 units)
• User Manual

Image: The Orbegozo Air 46 3-in-1 Air Cooler main unit, shown with its remote control.

Image: Close-up of the remote control for the Orbegozo Air 46.

Image: Two ice packs included with the air cooler, used to enhance cooling.

4. Setup

4.1 Unpacking and Placement

• Carefully remove the air cooler from its packaging.
• Place the unit on a firm, level surface. Ensure there is adequate space around the unit for proper airflow (at least 20 cm from walls or furniture).
• The unit comes with pre-installed wheels for easy mobility.

Image: Detail of the smooth-rolling wheels at the base of the air cooler, facilitating easy movement.

4.2 Filling the Water Tank and Using Ice Packs

• Pull out the water tank from the bottom rear of the unit.
• Fill the tank with clean tap water. Do not exceed the "MAX" fill line. The tank capacity is 6 liters.
• For enhanced cooling, place the included ice packs in a freezer for several hours until completely frozen.
• Once frozen, place the ice packs into the water tank.
• Carefully slide the water tank back into the unit until it clicks into place.

Image: The removable 6-liter water tank with visible water level indicators.

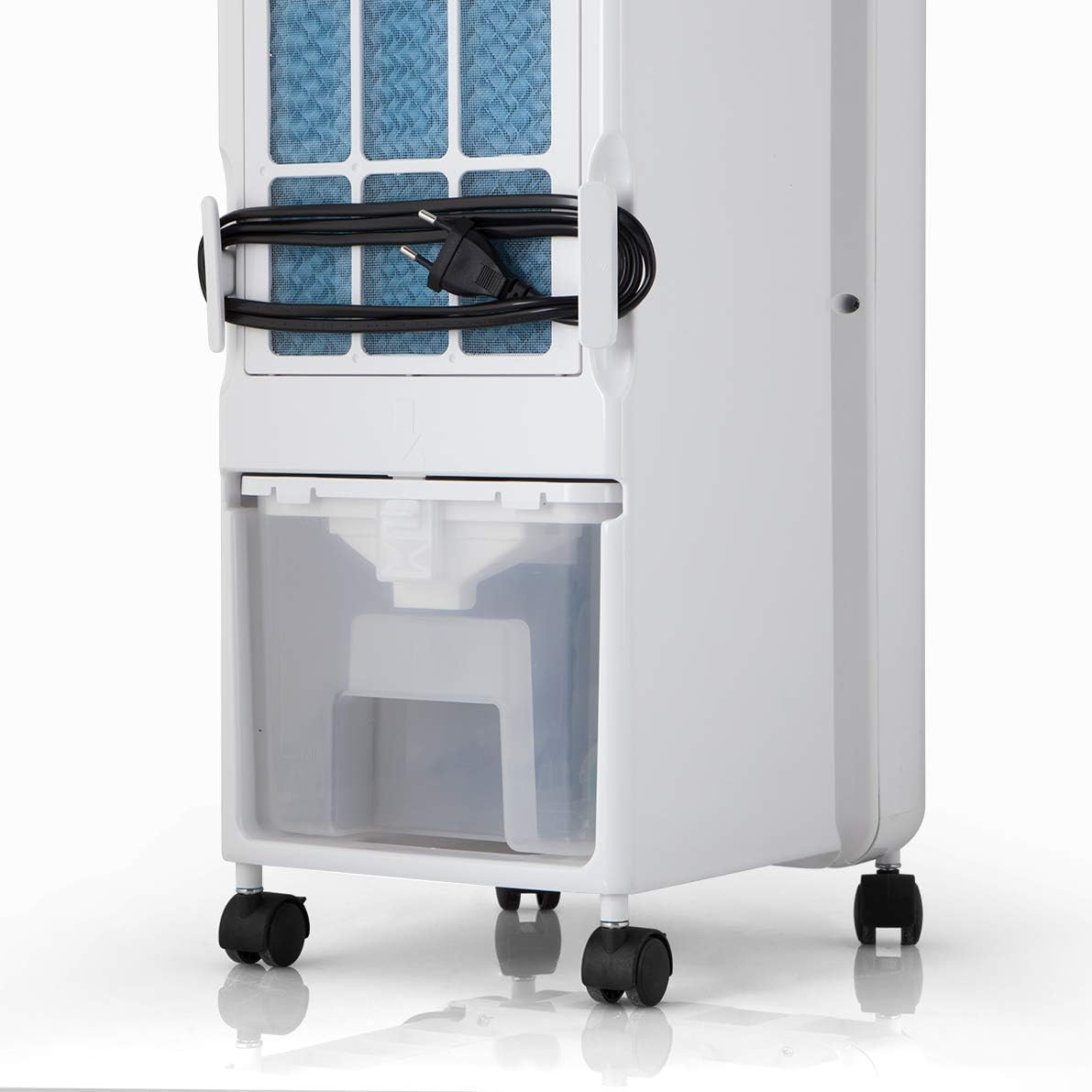

Image: Rear view of the air cooler, showing the removable water tank at the bottom and the air filter compartment above it.

5. Operating Instructions

5.1 Control Panel and Remote Control

The Orbegozo Air 46 can be operated using the control panel on top of the unit or the included remote control.

Image: Close-up of the intuitive control panel located on the top of the Orbegozo Air 46 unit.

5.2 Functions

• Power On/Off: Press the Power button (symbol: circle with vertical line) to turn the unit on or off.
• Speed Settings: Press the Speed button (symbol: fan blades or bars) to cycle through 3 fan speeds: Low, Medium, High.
• Oscillation: Press the Oscillation button (symbol: curved arrows) to activate or deactivate the automatic horizontal oscillation of the louvers, ensuring wide air distribution.
• Timer: Press the Timer button (symbol: clock) to set the operating time. The timer can be set up to 7 hours.
• Cooling/Humidification: Press the Cooling button (symbol: water drops or snowflake) to activate the evaporative cooling function. Ensure the water tank is filled.
• Breeze Function: This mode simulates natural breeze by varying fan speed.
• Night Function: Activates a quieter operation mode, ideal for sleeping.

6. Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your air cooler.

6.1 Cleaning the Air Filter

• Unplug the appliance from the power outlet.
• Remove the air filter from the back of the unit (refer to Section 4.2 image).
• Clean the filter with a soft brush and mild detergent, then rinse thoroughly under running water.
• Allow the filter to air dry completely before reinserting it into the unit.
• Clean the filter regularly, especially in dusty environments.

6.2 Cleaning the Water Tank

• Unplug the appliance.
• Remove the water tank and empty any remaining water.
• Clean the tank with a soft cloth and mild detergent. Rinse thoroughly to remove any residue.
• Allow the tank to dry completely before reinserting or storing.
• Clean the water tank at least once a week to prevent mold and mildew growth.

6.3 External Cleaning

• Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ensure no water enters the internal electrical components.

7. Troubleshooting

8. Specifications

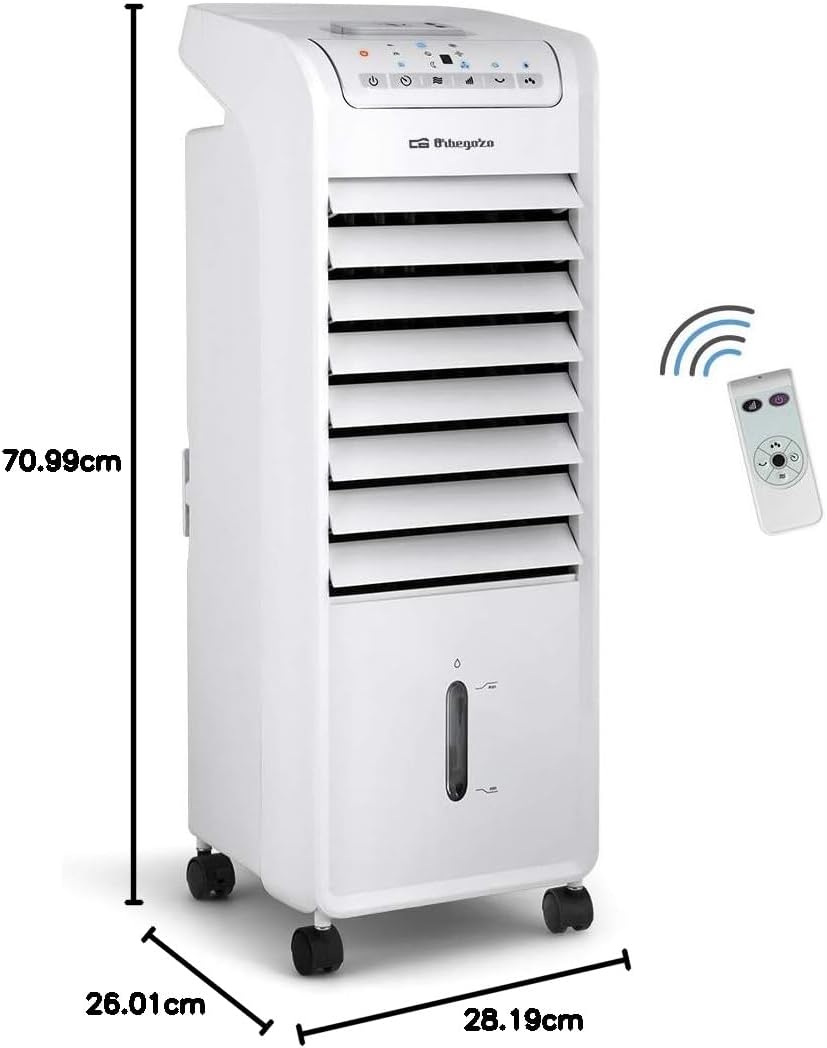

Image: The Orbegozo Air 46 air cooler with its key dimensions (height, width, depth) indicated.

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or contact Orbegozo customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, visit the official Orbegozo website or contact their support channels.

Website: www.orbegozo.com
