1. Product Overview
The LiftMaster 827LM MyQ Remote LED Garage Light is designed to provide bright, efficient lighting for your garage. It integrates seamlessly with your MyQ-enabled garage door opener system, allowing for convenient control via remote, control panel, or smartphone app. This LED light offers 1500 lumens of illumination, enhancing visibility and safety in your garage environment.
Figure 1: LiftMaster 827LM MyQ Remote LED Garage Light
2. Key Features
- Smart Light Control: Control the light using the MyQ app, Security+ 2.0 garage door remote control, or control panel.
- Adjustable Schedules: Pre-set times for lights to turn on/off via the MyQ app for enhanced security and energy efficiency.
- High Brightness: Provides 1500 lumens of bright LED illumination, offering approximately 50% more brightness than many standard LED lights.
- Easy Installation: Designed for simple installation, plugging directly into a standard 120V outlet.
- Flexible Mounting: Can be mounted on the ceiling or wall within 6 feet of an electrical outlet.
- Low Maintenance: The integrated LED bulb requires no maintenance.
Figure 2: Smart Light Control via MyQ App
Figure 3: High Brightness Illumination
3. Setup
3.1 Mounting the Light
The 827LM LED light can be mounted on either the ceiling or a wall. Choose a location within 6 feet of a standard 120V electrical outlet. Ensure the mounting surface is secure and can support the light's weight.
- Identify a suitable mounting location on your garage ceiling or wall.
- Securely attach the light fixture using appropriate hardware (not included, typically).
- Plug the light's power cord into a standard 120V electrical outlet.

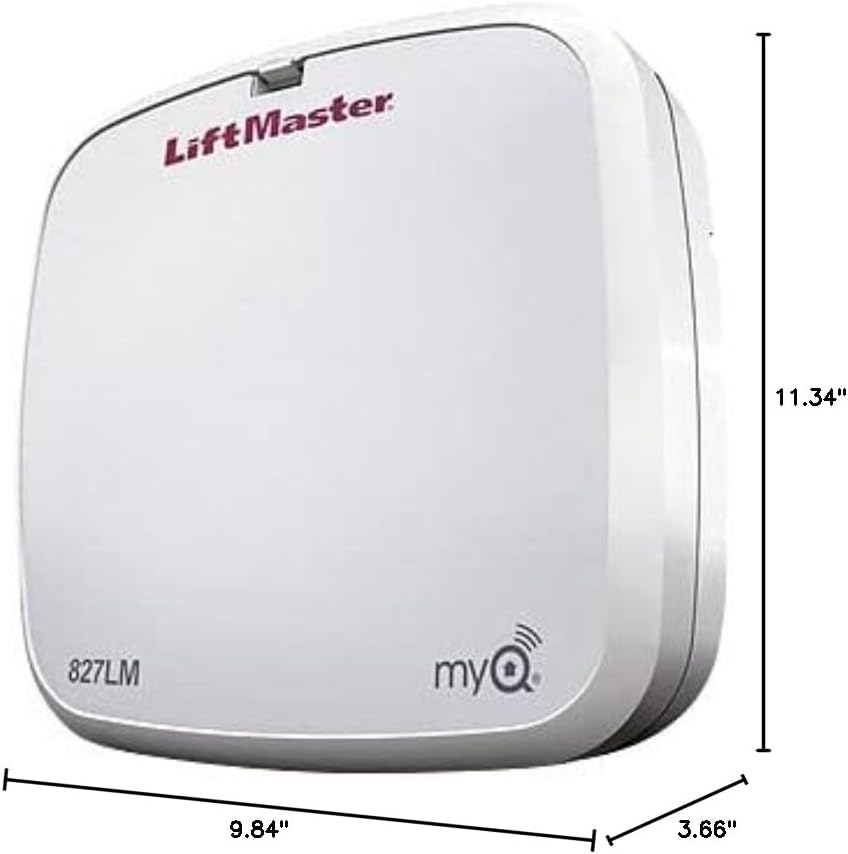

Figure 4: Product Dimensions for Mounting Reference
3.2 Pairing with MyQ System
The 827LM light is designed to work with any MyQ-enabled garage door opener, Security+ 2.0 remote control, control panel, or smartphone with the MyQ app. Refer to your specific garage door opener or MyQ device's manual for detailed pairing instructions. Generally, the process involves activating a learn mode on your opener/device and then pressing a button on the 827LM light to establish the connection.
4. Operating Instructions
Once installed and paired, the LiftMaster 827LM light can be operated in several ways:
- Automatic Activation: The light is programmed to turn on automatically when a paired MyQ garage door opener is activated (door opens or closes). It will remain on for a set duration, typically 4.5 minutes, to provide ample illumination.
- Remote/Control Panel Control: Use your Security+ 2.0 garage door remote control or control panel to manually turn the light on or off.
- MyQ App Control: For advanced control, use the MyQ smartphone application. This allows you to:
- Turn the light on or off remotely from anywhere with an internet connection.
- Set custom schedules for the light to turn on or off at specific times, enhancing security and energy efficiency.
Figure 5: Control Options for the 827LM Light
5. Maintenance
The LiftMaster 827LM MyQ Remote LED Garage Light is designed for minimal maintenance. The integrated LED bulb is long-lasting and does not require replacement. Periodically, you may wipe the exterior of the light with a soft, dry cloth to remove dust or debris. Do not use abrasive cleaners or solvents.
6. Troubleshooting
- Light Not Turning On:
- Ensure the light is securely plugged into a working 120V outlet.
- Verify that the light is properly paired with your MyQ-enabled device or garage door opener. Refer to Section 3.2 for pairing instructions.
- Check if the MyQ app or remote control is functioning correctly.
- Light Not Responding to MyQ App/Remote:
- Confirm the light is within range of your MyQ hub or garage door opener.
- Re-attempt the pairing process (Section 3.2).
- Check your internet connection if controlling via the MyQ app.
- Light Flickers or Dims:
- Ensure the power supply is stable and consistent (120 Volts).
- Contact LiftMaster support if the issue persists.
7. Specifications
| Specification | Value |
|---|---|
| Brand | LiftMaster |
| Model Number | 827LM |
| Light Source Type | LED |
| Brightness | 1500 Lumens |
| Voltage | 120 Volts |
| Product Dimensions | 11.34"L x 9.84"W x 3.66"H |
| Item Weight | 1.34 pounds |
| Installation Type | Ceiling Mount / Wall Mount |
| Control Method | Remote Control, MyQ App |
| Indoor/Outdoor Usage | Indoor |
8. Warranty and Support
The LiftMaster 827LM MyQ Remote LED Garage Light comes with a 1 Year Warranty from the date of purchase. LiftMaster is committed to providing high-quality, safe, and reliable products. For technical assistance, troubleshooting, or warranty claims, please contact LiftMaster customer support directly. Refer to the official LiftMaster website or your product packaging for the most current contact information.
Figure 6: 1 Year Warranty Information
