Introduction
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Rockpals R2000i Super Quiet Inverter Generator. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.
The Rockpals R2000i is a powerful and portable inverter generator designed for various applications, from emergency home backup to recreational use. It delivers up to 2,000 peak watts and 1,800 running watts, making it suitable for powering sensitive electronics due to its clean and stable power output. Its compact design and low noise operation (as quiet as 58 decibels) make it an ideal choice for camping, tailgating, and RV use.
Figure 1: Rockpals R2000i Inverter Generator. This image shows the overall design of the red and black Rockpals R2000i inverter generator from a slightly elevated front-side view, highlighting its compact and portable nature.
Figure 2: Key Features of Rockpals R2000i Generator. This image illustrates the generator's performance metrics, including 9 hours runtime at 25% load, 58 dBA noise level, 79.7cc engine, 47 lb weight, 1,800 running watts, and 2,000 starting watts, set against a backdrop of a house with Christmas lights.
Figure 3: Rockpals R2000i Inverter Generator with Smart Technology. This image provides an internal view of the generator, highlighting features such as the high-performance engine, built-in shock absorber system, fuel gauge, and smart economy mode, emphasizing its advanced technology for quiet and efficient operation.

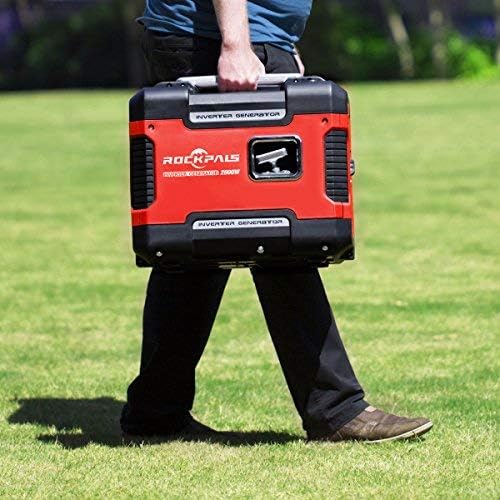

Figure 4: Portability of Rockpals R2000i Generator. A person is shown easily carrying the generator by its handle, demonstrating its lightweight and portable design.
Figure 5: Rockpals R2000i Generator powering an RV. The generator is shown outdoors, connected to a recreational vehicle, demonstrating its utility for camping and outdoor power needs.
Safety Information
Always prioritize safety when operating the generator. Failure to follow these instructions can result in serious injury or death.
- Carbon Monoxide Hazard: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors in a well-ventilated area, far away from windows, doors, and vents. Never operate indoors, in a garage, or in any enclosed space.
- Fire Hazard: Gasoline is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the generator. Store fuel in approved containers away from ignition sources.
- Electrical Shock Hazard: Do not operate the generator in wet conditions. Ensure all electrical connections are secure and dry. Use only grounded extension cords. Never connect the generator directly to your home's electrical system without a transfer switch installed by a qualified electrician.
- Hot Surfaces: The generator's engine and muffler become very hot during operation and remain hot for some time after shutdown. Avoid touching hot surfaces to prevent burns.
- Children and Pets: Keep children and pets away from the generator, especially during operation.
Setup
Before first use, perform the following setup steps:
- Unpacking and Inspection: Carefully remove the generator from its packaging. Inspect for any shipping damage. Ensure all components listed in the packing list are present.
- Add Engine Oil:
- Place the generator on a level surface.
- Locate the oil fill cap/dipstick.
- Remove the cap and carefully add the recommended engine oil (e.g., 10W-30) up to the upper level mark on the dipstick. Do not overfill. Refer to specifications for oil capacity.
- Securely replace the oil fill cap.
- Add Fuel:
- Ensure the generator is off and cool.
- Use fresh, unleaded gasoline with an octane rating of 87 or higher.
- Open the fuel tank cap and slowly add fuel, leaving a small air gap at the top to allow for expansion. Do not overfill.
- Securely replace the fuel tank cap. Wipe up any spilled fuel immediately.
- Grounding: For safety, it is recommended to ground the generator. Connect a ground wire from the generator's ground terminal to a suitable earth ground rod.
Operating Instructions
Follow these steps to safely operate your Rockpals R2000i generator.
Figure 6: Rockpals R2000i Control Panel. This image displays the generator's control panel, showing the various outlets, switches, and indicator lights for operation and monitoring.
- Starting the Generator:
- Ensure the generator is on a level surface and all electrical loads are disconnected.
- Turn the fuel valve to the "ON" position.
- Set the engine switch to the "ON" position.
- If the engine is cold, pull the choke lever to the "CHOKE" position.
- Pull the recoil starter handle firmly and smoothly until the engine starts.
- Once the engine starts, slowly move the choke lever to the "RUN" position.
- Eco-Mode Operation:
The R2000i features an "ECO-Mode" switch. When activated, the generator automatically adjusts engine speed to match the load, improving fuel efficiency and reducing noise. For maximum fuel economy and quieter operation, engage the ECO-Mode when running light loads.
- Connecting Electrical Devices:
- Allow the generator to warm up for a few minutes after starting.
- Plug in your electrical devices to the appropriate AC outlets (120V) or DC outlets (12V, USB).
- Do not exceed the generator's rated running wattage (1800W) or peak wattage (2000W). Overloading will trip the overload protector.
- Parallel Operation:
The Rockpals R2000i is parallel-ready, allowing you to connect two R2000i units together to double the available wattage and amperage. This requires a Rockpals parallel cable (sold separately). Refer to the parallel kit instructions for detailed connection procedures.
- Shutting Down the Generator:
- Disconnect all electrical loads from the generator.
- Allow the generator to run for a few minutes without load to cool down.
- Turn the engine switch to the "OFF" position.
- Turn the fuel valve to the "OFF" position.
Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your generator. Always ensure the generator is off and cool before performing any maintenance.
Figure 7: Rockpals R2000i Easy Maintenance Access. This image highlights the accessible maintenance points on the generator, including the spark plug, air filter, oil reservoir cap, and fuel drain access, indicating ease of service.
- Engine Oil Change:
Change the engine oil after the first 20 hours of operation, and then every 50-100 hours or annually, whichever comes first. Drain old oil when the engine is warm, then refill with new, recommended oil.
- Air Filter Cleaning/Replacement:
Inspect the air filter every 50 hours or more frequently in dusty conditions. Clean with warm, soapy water, rinse, dry thoroughly, and re-oil lightly if specified. Replace if damaged.
- Spark Plug Inspection/Replacement:
Inspect the spark plug every 100 hours. Clean carbon deposits and adjust the gap if necessary. Replace if worn or fouled.
- Fuel System Maintenance (Storage):
For long-term storage (over 30 days), drain the fuel tank and carburetor to prevent fuel degradation, which can cause starting issues. Alternatively, use a fuel stabilizer.
- General Cleaning:
Keep the generator clean and free of dirt and debris. Use a damp cloth to wipe down exterior surfaces. Do not use a pressure washer.
Troubleshooting
This section provides solutions to common operational issues. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel Low oil level Engine switch OFF Fuel valve OFF Choke not set correctly Spark plug issue | Add fresh fuel Add engine oil Turn engine switch ON Turn fuel valve ON Adjust choke (full for cold, half for warm) Inspect/clean/replace spark plug |
| No power output | Overload protector tripped Eco-mode engaged with high load Faulty connection | Reduce load, reset breaker Disengage Eco-mode for heavy loads Check all connections |
| Engine stops during operation | Out of fuel Low oil shutdown Overload Clogged air filter | Refuel Check oil level, add oil Reduce load Clean/replace air filter |
Specifications
| Feature | Detail |
|---|---|
| Model Number | R2000i |
| Rated Wattage | 1800 watts |
| Peak Wattage | 2000 watts |
| Engine Type | 79.7 cc 4-stroke OHV |
| Fuel Type | Gasoline |
| Noise Level | 58 dBA (at full load) |
| Weight | 47 lb (20.87 kg) |
| Dimensions (L x W x H) | 48.01 x 28.45 x 38.86 cm |
| AC Output | Dual 120V AC Outlets |
| DC Output | 2 USB Ports, 12V DC Output |
| CARB Compliant | Yes |
Warranty and Support
The Rockpals R2000i Inverter Generator is backed by a 2-year limited warranty. This warranty covers defects in material and workmanship under normal use.
For warranty claims, technical assistance, or to locate a service center, please contact Rockpals customer support. Keep your proof of purchase for warranty validation.
Customer Support: Please refer to the official Rockpals website or your purchase documentation for the most current contact information and support resources.
