MAYFLASH Arcade Fighting Stick F101 Instruction Manual

1. Product Overview

The MAYFLASH Arcade Fighting Stick F101 is a versatile arcade-style controller designed for an authentic gaming experience across multiple platforms. It features a robust build and customizable components to enhance your gameplay.

Image: Top view of the MAYFLASH F101 Arcade Fighting Stick, showcasing the joystick, eight action buttons, and control panel.

Key Features:

• Multi-Platform Compatibility: Compatible with Nintendo Switch/Switch 2, PC (Windows XP, Vista, 7, 8, 10, 11), PlayStation 3, Android devices, NeoGeo mini, SEGA MEGA Drive mini, and SEGA GENESIS mini.
• Customization Ready: Designed to be compatible with Sanwa Denshi buttons for personalized modifications (Sanwa Denshi buttons are sold separately).
• Input Modes: Supports both XINPUT and DINPUT when connected to a PC.
• Turbo Function: Includes a Turbo function with adjustable speed settings for enhanced gameplay.
• Durable Design: Features anti-skid pads on the bottom for stable use on various surfaces.

2. Setup and Connection

The F101 Arcade Fighting Stick offers plug-and-play functionality for most compatible systems. Follow these steps to connect your device:

2.1 Input Mode Selection

Before connecting, select the appropriate input mode using the switch on the control panel:

• XINPUT: For PC (Windows) and other XINPUT compatible devices.
• NS: For Nintendo Switch/Switch 2.
• DINPUT/PS3: For PlayStation 3, Android, NeoGeo mini, SEGA MEGA Drive mini, and SEGA GENESIS mini.

Image: Close-up view of the input mode selection switches (XINPUT, NS, DINPUT/PS3) on the F101 control panel.

2.2 Connecting to Your System

1. Select the correct input mode on the F101.
2. Connect the USB cable from the F101 to an available USB port on your console, PC, or mini console.
3. The device should be recognized automatically. For Nintendo Switch, ensure the 'Pro Controller Wired Communication' option is enabled in the system settings.

3. Operating Instructions

3.1 Joystick and Buttons

The F101 features a standard arcade layout with a joystick for directional input and eight action buttons. The buttons are labeled with common console button mappings (e.g., Y/Δ, X/☐, B/O, A/X, RB/R1, LB/L1, RT/R2, LT/L2).

3.2 LS/DP/RS Switch

This switch allows you to assign the joystick's function:

• LS (Left Stick): Joystick acts as the left analog stick.
• DP (D-Pad): Joystick acts as the directional pad.
• RS (Right Stick): Joystick acts as the right analog stick.

3.3 Turbo Function

To activate the Turbo function for a button:

1. Press and hold the TURBO button.
2. While holding TURBO, press the desired action button (e.g., A/X) to enable Turbo for that button.
3. To adjust Turbo speed, press and hold TURBO, then move the joystick UP for faster speed or DOWN for slower speed.
4. To disable Turbo for a button, press and hold TURBO, then press the action button again.

3.4 Special Buttons

• SELECT/-: Functions as the Select button (PS3) or Minus button (Switch).
• START/+: Functions as the Start button (PS3) or Plus button (Switch).
• PS/HOME: Functions as the PlayStation Home button or Nintendo Switch Home button.
• CAPTURE: For taking screenshots on Nintendo Switch.

4. Customization and Modding

The MAYFLASH F101 is designed for easy customization, allowing users to replace the joystick and buttons with Sanwa Denshi components (sold separately).

4.1 Replacing Buttons

The F101 supports Sanwa Denshi buttons (e.g., OBSF-30 model). To replace buttons:

1. Unscrew the six screws on the bottom of the unit and carefully open the casing.
2. Disconnect the wires from the existing buttons.
3. Gently press the tabs on the sides of the buttons to remove them from the top panel.
4. Insert the new Sanwa buttons into the openings.
5. Reconnect the wires to the new buttons.

Image: Internal view showing the wiring connected to the buttons, illustrating the ease of disconnection for replacement.

4.2 Replacing the Joystick Gate

The F101 typically comes with a square gate installed and may include an octagonal gate for customization. To change the gate:

1. Open the casing as described for button replacement.
2. Locate the gate mechanism under the joystick.
3. Carefully remove the existing gate and install the desired replacement gate.
4. Close the casing and secure with screws.

5. Maintenance

To ensure the longevity and optimal performance of your MAYFLASH F101 Arcade Fighting Stick, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe down the surface of the fighting stick. Avoid abrasive cleaners or solvents that could damage the finish.
• Storage: Store the fighting stick in a cool, dry place away from direct sunlight and extreme temperatures. Use the built-in Velcro strap to neatly manage the USB cable.
• Handling: Avoid dropping the device or subjecting it to strong impacts.

6. Troubleshooting

• Device Not Recognized:
  • Ensure the correct input mode (XINPUT, NS, DINPUT/PS3) is selected on the fighting stick.
  • Try connecting to a different USB port.
  • For Nintendo Switch, verify that 'Pro Controller Wired Communication' is enabled in the system settings.
  • Check the official MAYFLASH website for the latest firmware updates and installation instructions.
• Buttons or Joystick Unresponsive:
  • Ensure all internal wiring connections are secure if you have performed any modifications.
  • Test the device on another compatible system to rule out system-specific issues.
• Menu Access Issues (e.g., with Arcade Stick Pro):
  • Some specific console setups or game configurations may assign the F101 as a secondary controller, preventing menu access. Ensure the F101 is recognized as the primary controller if such issues arise.

7. Specifications

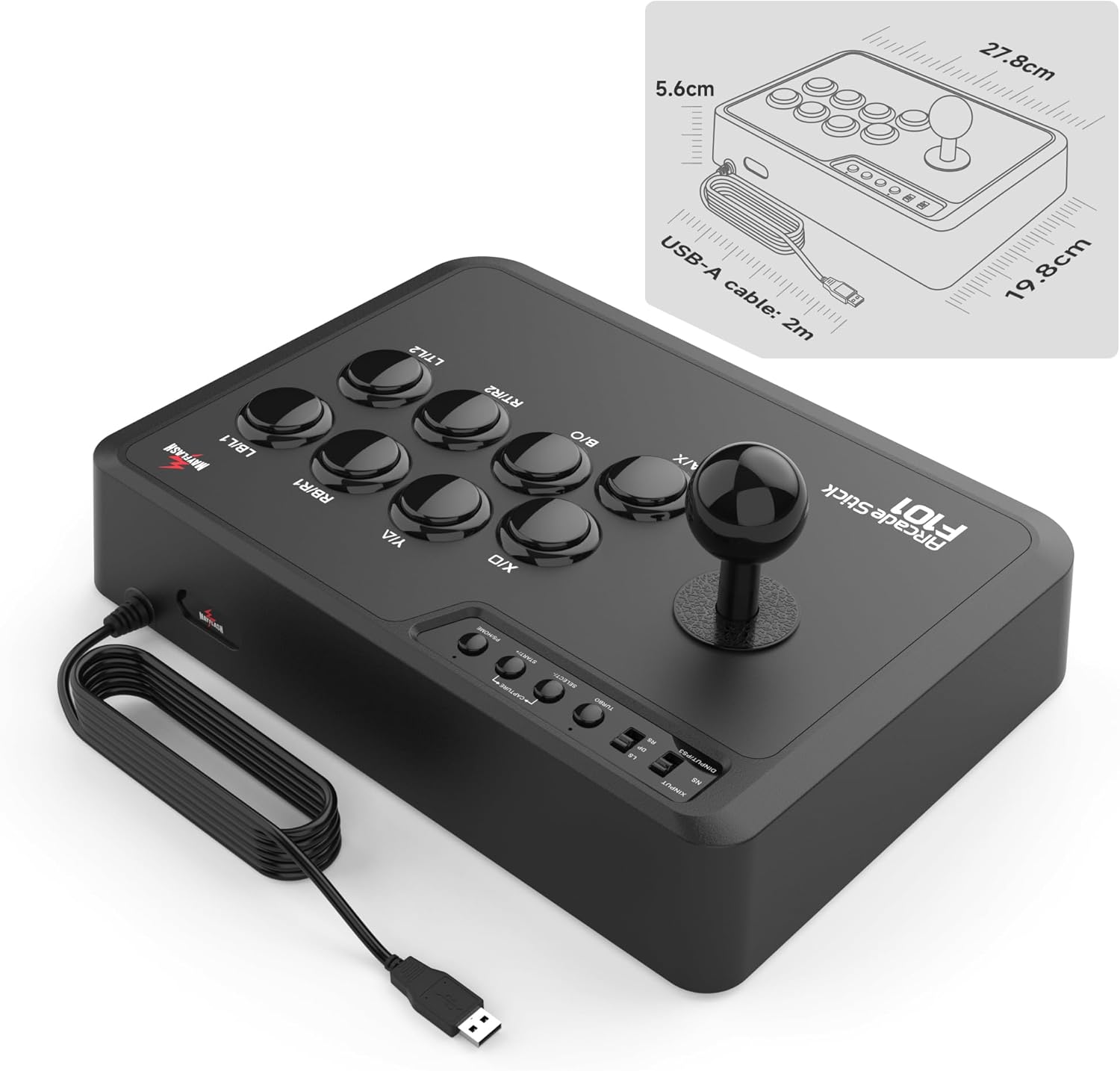

Image: The MAYFLASH F101 Arcade Fighting Stick with key dimensions labeled, showing its compact size.

8. Warranty and Support

For warranty information, technical support, and the latest firmware updates, please visit the official MAYFLASH website. Keeping your device's firmware updated ensures optimal performance and compatibility with new systems and games.
