FACOM BA.18B Impact Socket Ring Instruction Manual

Introduction

This manual provides essential information for the proper use and maintenance of your FACOM BA.18B Impact Socket Ring. Please read these instructions carefully before installation and operation to ensure safe and effective use.

FACOM BA.18B Impact Socket Ring

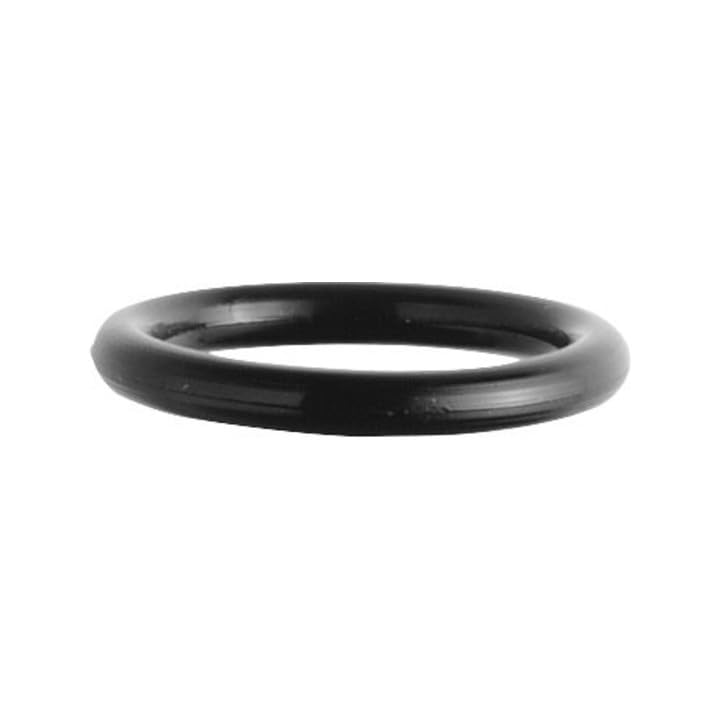

A black, circular FACOM BA.18B Impact Socket Ring, designed for securing impact sockets.

Product Features

  • Designed as an impact bushing for secure socket retention.
  • Specific dimensions: 3.5 x 18 mm.
  • Functions as a replacement part for compatible impact sockets.

Setup and Installation

The FACOM BA.18B Impact Socket Ring is designed for use with compatible impact sockets and impact wrenches. Proper installation ensures secure operation and prevents accidental detachment of the socket.

  1. Identify Compatibility: Ensure the socket ring is compatible with your specific impact socket and impact wrench pin retention system. The ring's dimensions are 3.5 x 18 mm.
  2. Prepare Socket: Locate the groove on your impact socket designed to accommodate the retaining ring.
  3. Install Ring: Carefully stretch the impact socket ring and fit it into the designated groove on the impact socket. Ensure it sits flush and securely within the groove.
  4. Verify Retention: Once installed, gently pull on the ring to confirm it is firmly seated and will not easily dislodge.
  5. Attach to Wrench: Insert the prepared impact socket onto the drive anvil of your impact wrench. The ring, in conjunction with a retaining pin (if applicable to your wrench/socket system), helps secure the socket.

Operating Instructions

Once the FACOM BA.18B Impact Socket Ring is correctly installed on your impact socket and the socket is attached to an impact wrench, operate the tool according to the impact wrench manufacturer's instructions. The ring's primary function is to provide secure retention of the socket during high-torque applications.

Safety Precaution: Always ensure the socket is fully seated and secured before operating the impact wrench to prevent injury or damage.

Maintenance

To ensure the longevity and reliable performance of your FACOM BA.18B Impact Socket Ring:

  • Regular Inspection: Periodically inspect the ring for signs of wear, cracks, or deformation. A worn or damaged ring should be replaced immediately.
  • Cleaning: Keep the ring free from dirt, grease, and debris. Clean with a mild detergent and water if necessary, then dry thoroughly.
  • Storage: Store the ring in a clean, dry environment away from direct sunlight or extreme temperatures.

Troubleshooting

If you encounter issues with your FACOM BA.18B Impact Socket Ring, refer to the following:

  • Issue: Socket ring does not fit or is loose.
    Solution: Verify the dimensions of your impact socket's groove against the ring's 3.5 x 18 mm size. Ensure you have the correct size ring for your socket.
  • Issue: Socket detaches during use.
    Solution: Inspect the ring for damage or wear. Replace if necessary. Ensure the ring is properly seated in the socket's groove and that any corresponding retaining pin on the impact wrench is functioning correctly.

Specifications

BrandFacom
Model NumberBA.18B
Part NumberBA.18B
Size3.5 x 18 mm
Product Dimensions0.02 x 0.02 x 0.02 inches
Item Package Quantity1
Number Of Pieces1
Measurement SystemMetric
Included Components1 x Impact Socket Ring
Batteries Required?No
Date First AvailableApril 27, 2024

Warranty and Support

For warranty information or technical support regarding your FACOM BA.18B Impact Socket Ring, please contact Facom customer service directly. Retain your proof of purchase for any warranty claims.
