Introduction
Thank you for purchasing the Craftmade X66 Series LED Flush Mount Ceiling Lighting. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.
Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these safety precautions:
- Always turn off the power at the main circuit breaker or fuse box before beginning installation or performing any maintenance.
- Consult a qualified electrician if you are unsure about the installation process.
- This fixture is designed for INDOOR use only. Do not install in damp or wet locations unless specifically rated for such use.
- Ensure all electrical connections are made in accordance with local codes and ordinances, and the National Electric Code (NEC).
- Do not attempt to alter or modify the fixture. Any alterations may void the warranty and create a safety hazard.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Package Contents
Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, contact Craftmade customer support before proceeding with installation.
- Flushmount Fixture
- Shade(s) (White Frosted Glass)
- Integrated LED (18 Watt, 3000K, 90CRI, 900 Lumens)
- Hardware Pack (for mounting to junction box)
- Installation Guide (this document)

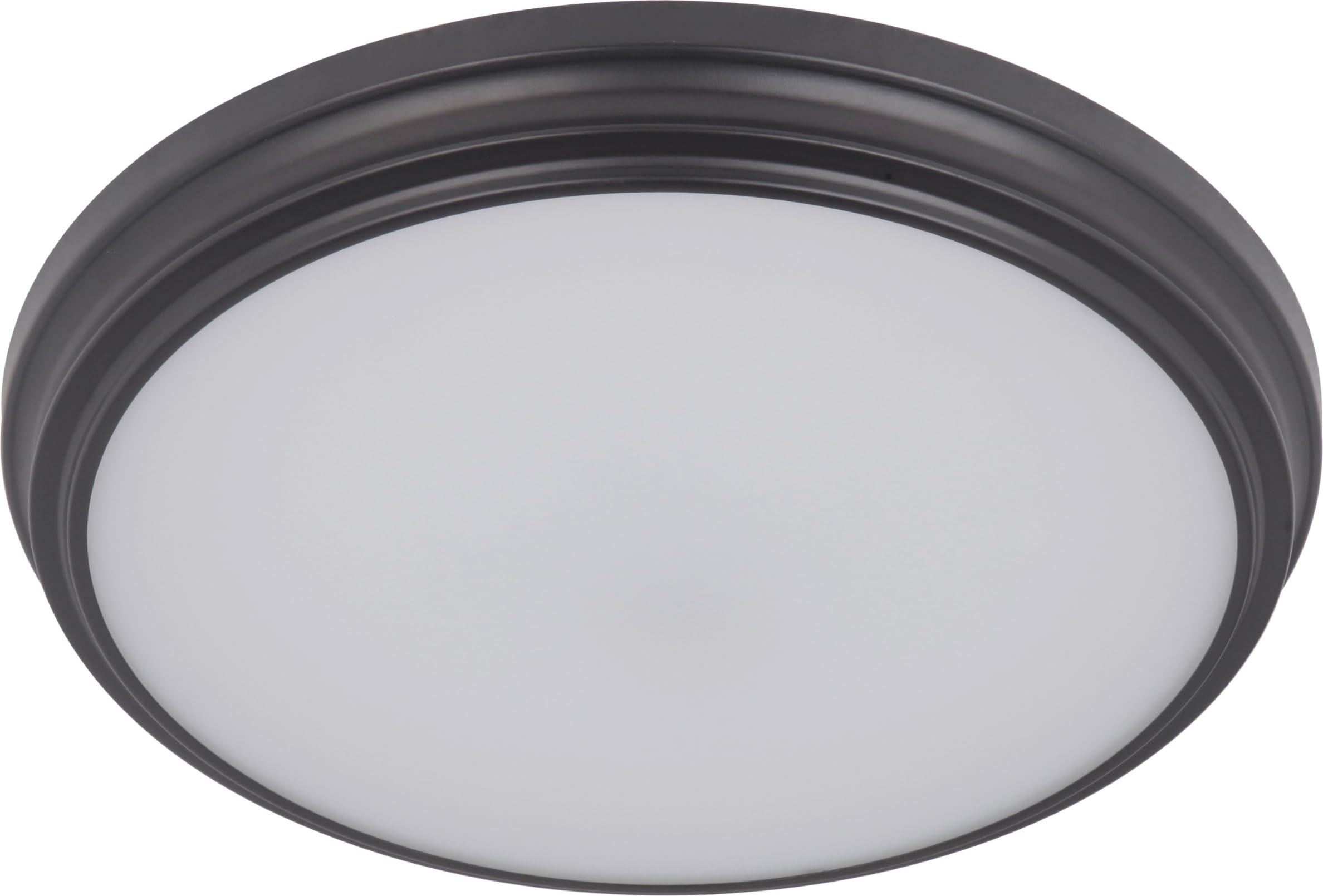

Image of the Craftmade X6611-OB-LED Flush Mount Ceiling Light, showing its compact design and oiled bronze finish with a frosted glass shade.
Specifications
| Model Number | X6611-OB-LED |
| Dimensions (H x W) | 1.13" H x 11" W |
| Weight | 2.73 LBS |
| Light Source | Integrated LED |
| Wattage | 18 Watts |
| Color Temperature | 3000K |
| Color Rendering Index (CRI) | 90 |
| Lumen Output | 900 Lumens |
| Dimmable | Yes |
| Finish | Oiled Bronze |
| Shade Material | White Frosted Glass |
| Voltage | 120 Volts |
| Indoor/Outdoor Usage | Indoor |
| Certifications | ETL Approved |
Setup and Installation
Important: Before starting, ensure the power is turned off at the circuit breaker.
- Prepare the Mounting Surface: Ensure you have an existing junction box securely installed in the ceiling at the desired location. The fixture's hardware pack is designed to mount to standard junction boxes.
- Connect Wiring: Carefully connect the fixture's wires to the corresponding wires from the junction box. Typically, this involves connecting black to black (live), white to white (neutral), and bare copper or green to bare copper or green (ground). Use wire nuts provided in the hardware pack and ensure connections are secure.
- Mount the Fixture Base: Attach the fixture's mounting bracket to the junction box using the screws provided. Then, secure the fixture base to the mounting bracket.
- Attach the Shade: Carefully align the shade with the fixture base. The shade typically attaches using pegs or a twist-lock mechanism. Ensure the shade is securely fastened to prevent it from falling. Note: Some users have reported difficulty aligning the shade pegs with the keyholes. If experiencing this, ensure all pegs are fully seated and aligned before attempting to lock the shade in place. Gentle adjustment may be required.
- Restore Power: Once the fixture is securely installed and the shade is in place, restore power at the circuit breaker.
Operating Instructions
The Craftmade X6611-OB-LED flush mount ceiling light is designed for simple operation.
- Power On/Off: Control the light using a standard wall switch connected to the fixture's circuit.
- Dimming Function: This fixture features an integrated dimmable LED. To utilize the dimming function, ensure you have a compatible LED dimmer switch installed on your wall. The light can also be controlled via a remote, if a compatible remote system is installed (remote not included with this specific model unless specified).
Maintenance
To maintain the appearance and performance of your Craftmade lighting fixture, follow these simple guidelines:
- Cleaning: Turn off power before cleaning. Use a soft, dry or slightly damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or the LED components.
- LED Care: The LED in this fixture is integrated and not user-replaceable. Do not attempt to remove or replace the LED module.
- Shade Care: The white frosted glass shade can be gently cleaned with a soft, damp cloth. Ensure it is completely dry before reattaching.
Troubleshooting
If you encounter issues with your fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture; loose wiring connection; faulty switch. | Check circuit breaker. Ensure all wire connections are secure. Test the wall switch. |
| Light flickers or dims unexpectedly | Incompatible dimmer switch; loose wiring; power fluctuations. | Ensure an LED-compatible dimmer switch is used. Check wiring connections. Consult an electrician if power fluctuations are suspected. |
| Shade does not attach securely | Misaligned pegs/keyholes; damaged shade or fixture base. | Carefully re-align the shade's pegs with the keyholes on the fixture base. Ensure all pegs are fully inserted before attempting to lock. If damage is present, contact customer support. |
| Light remains faintly lit when off | Residual current from an incompatible switch or wiring issue. | Ensure the wall switch is fully turning off power. Consider replacing the switch with one specifically designed for LED fixtures if the issue persists. Consult an electrician. |
Warranty and Support
Warranty: This Craftmade fixture comes with a 1-year warranty on the fixture components and a 3-year warranty on the integrated LED components from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
Customer Support: For technical assistance, missing parts, or warranty claims, please contact Craftmade customer support at (800) 486-4892. You can also visit the official Craftmade store for more information: Craftmade Store.
