1. Introduction
This user manual provides essential information for the safe and efficient installation, operation, and maintenance of your MEAN WELL SP-240-24 Switching Power Supply. Please read this manual thoroughly before using the product and retain it for future reference.
The MEAN WELL SP-240-24 is a 240W, 24V, 10A AC-DC single output enclosed switching power supply featuring Power Factor Correction (PFC) function. It is designed for various industrial and commercial applications requiring a stable and reliable power source.
2. Safety Instructions
Failure to follow these safety instructions may result in electric shock, fire, or damage to the product. Always observe local and national electrical codes.
- Qualified Personnel Only: Installation and servicing must be performed by qualified personnel only.
- Disconnect Power: Always disconnect the AC input power before performing any installation, wiring, or maintenance.
- Proper Grounding: Ensure the power supply is properly grounded to prevent electric shock.
- Ventilation: Ensure adequate ventilation around the power supply to prevent overheating. Do not block ventilation openings.
- Environmental Conditions: Do not expose the unit to moisture, rain, or excessive dust. Operate within specified temperature and humidity ranges.
- Correct Wiring: Verify all wiring connections are correct and secure before applying power. Incorrect wiring can cause damage or fire.
- Load Capacity: Do not exceed the maximum output current or wattage specified for the power supply.
- Internal Components: Do not open the power supply enclosure. There are no user-serviceable parts inside.
3. Product Overview
The MEAN WELL SP-240-24 is an enclosed switching power supply designed for high efficiency and reliability. It features a built-in active PFC function and protections against short circuit, overload, over voltage, and over temperature.
Figure 3.1: Angled view of the MEAN WELL SP-240 series power supply, showing the metal enclosure, ventilation slots, and terminal block. Note: This image shows an SP-240-15 model, but the general form factor is identical to the SP-240-24.
Key Features:
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- Built-in remote ON-OFF control (optional)
- LED indicator for power on
- 3 years warranty

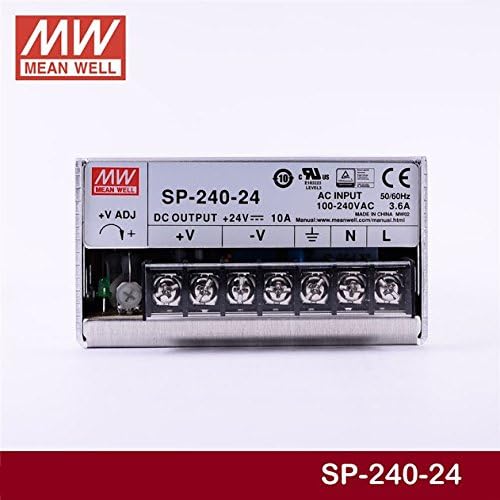

Figure 3.2: Front view of the MEAN WELL SP-240-24 power supply, highlighting the terminal block for AC input (N, L, Ground) and DC output (+V, -V), along with the voltage adjustment potentiometer.
4. Setup and Installation
Before installation, ensure the power supply is suitable for your application's voltage and current requirements. Refer to the specifications section for detailed electrical parameters.
4.1 Mounting
- Mount the power supply in a well-ventilated area to ensure proper heat dissipation.
- Maintain adequate clearance around the unit for airflow.
- Use appropriate screws and mounting hardware to secure the unit firmly to a stable surface.
- Avoid mounting near heat sources or in enclosed spaces without forced ventilation.
4.2 Wiring Connections
Refer to the terminal block diagram on the unit for correct wiring. Ensure all connections are tight and secure.
- AC Input: Connect the AC input wires to the terminals labeled L (Live), N (Neutral), and ⊗ (Ground). Use appropriate gauge wiring for the input current.
- DC Output: Connect your load to the terminals labeled +V (Positive) and -V (Negative). Observe correct polarity.
- Voltage Adjustment: The output voltage can be finely adjusted using the V ADJ potentiometer. Use a small screwdriver for adjustment.
- Remote ON-OFF Control (Optional): If your model includes this feature, refer to the specific wiring diagram provided with your unit for remote control connections.
Caution: Double-check all wiring before applying power. Incorrect wiring can damage the power supply and connected devices.
5. Operating Instructions
5.1 Power On
- Ensure all connections are secure and correct.
- Apply AC input power to the unit.
- The LED indicator on the unit should illuminate, indicating that the power supply is operational.
- Verify the output voltage using a multimeter if precise voltage is critical for your application. Adjust with the V ADJ potentiometer if necessary.
5.2 Load Management
- Do not exceed the rated output power (240W) or current (10A at 24V) of the power supply.
- Overloading the unit will trigger its protection mechanisms, potentially causing it to shut down.
- The built-in DC fan will operate to cool the unit, especially under higher loads. Ensure its operation is not obstructed.
6. Maintenance
The MEAN WELL SP-240-24 power supply is designed for long-term reliable operation with minimal maintenance. However, periodic checks can help ensure optimal performance.
- Cleaning: Periodically clean the exterior of the unit and ventilation openings to prevent dust accumulation, which can impede airflow and lead to overheating. Use a soft, dry cloth. Do not use liquid cleaners.
- Connection Checks: Occasionally inspect all wiring connections for tightness and signs of corrosion. Loose connections can cause intermittent operation or overheating.
- Environmental Inspection: Ensure the operating environment remains within the specified temperature and humidity ranges.
- Fan Operation: Listen for unusual noises from the cooling fan. If the fan is not operating or makes excessive noise, investigate the cause.
Warning: Do not attempt to open the power supply enclosure for internal cleaning or repairs. This voids the warranty and exposes you to dangerous voltages.
7. Troubleshooting
If the power supply is not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No output voltage / LED off | No AC input power Blown fuse (internal) Internal fault | Check AC input connection and power source. Contact qualified service personnel. Contact MEAN WELL support. |
| Output voltage fluctuates or is low | Overload condition Loose connections Faulty load | Reduce load to within specifications. Check and tighten all wiring connections. Test the load independently. |
| Unit shuts down intermittently | Overload protection triggered Over-temperature protection triggered Over-voltage protection triggered | Reduce load. Ensure proper ventilation. Check for blocked fan/vents. Ensure ambient temperature is within limits. Verify output voltage setting and load characteristics. |
| Excessive fan noise | Dust accumulation Fan bearing wear | Clean fan and vents (externally). Contact qualified service personnel. |
If the problem persists after attempting these solutions, contact MEAN WELL technical support or a qualified service technician.
8. Specifications
The following table outlines the key technical specifications for the MEAN WELL SP-240-24 Switching Power Supply:
| Parameter | Value |
|---|---|
| Model Number | SP-240-24 |
| Output Voltage | 24V DC |
| Output Current | 10A |
| Output Wattage | 240W |
| AC Input Voltage Range | 100-240VAC (Full Range) |
| PFC Function | Built-in Active PFC |
| Cooling Method | Forced Air (Built-in DC fan) |
| Protections | Short Circuit, Overload, Over Voltage, Over Temperature |
| Product Dimensions (L x W x H) | 7.48 x 3.66 x 1.97 inches (190 x 93 x 50 mm) |
| Item Weight | 1.76 pounds (0.8 kg) |
| Manufacturer | Meanwell Guangzhou / Suzhou / Taiwan |
| UPC | 608754594310 |
9. Warranty and Support
9.1 Warranty Information
The MEAN WELL SP-240-24 Switching Power Supply is covered by a 3-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service conditions. It does not cover damage resulting from improper installation, misuse, unauthorized modifications, or operation outside of specified parameters.
Please retain your proof of purchase for warranty claims.
9.2 Technical Support
For technical assistance, troubleshooting beyond the scope of this manual, or warranty inquiries, please contact your authorized MEAN WELL distributor or visit the official MEAN WELL website for support resources.
When contacting support, please have your product model number (SP-240-24) and purchase information readily available.
