TKO Commercial Plate Loaded Linear Leg Press Machine

1. Introduction and Overview

This manual provides essential instructions for the safe and effective use, assembly, maintenance, and troubleshooting of your TKO Commercial Plate Loaded Linear Leg Press Machine. Please read this manual thoroughly before operating the equipment. Retain this manual for future reference.

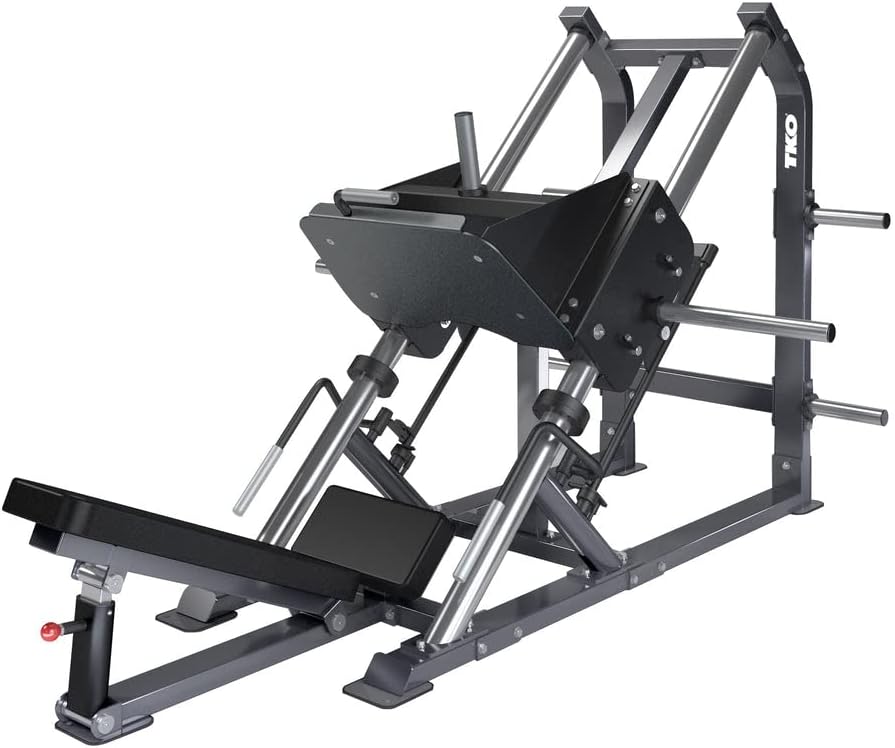

An angled view of the TKO Commercial Plate Loaded Linear Leg Press Machine, showcasing its heavy-duty steel frame, adjustable seat, and plate loading posts.

2. Safety Information

Before beginning any exercise program, consult with a physician. It is imperative to understand and follow all safety warnings and instructions to prevent injury.

• Always inspect the machine for loose parts, damage, or wear before each use. Do not use if damaged.
• Ensure all bolts and nuts are securely tightened.
• Keep children and pets away from the equipment during operation.
• Use the machine on a stable, level surface.
• Do not exceed the maximum weight capacity of 1000 lbs.
• Wear appropriate athletic footwear and clothing.
• Perform exercises with controlled movements. Avoid sudden or jerky motions.
• If you experience pain, dizziness, or discomfort, stop exercising immediately.

3. Setup and Assembly

The TKO Commercial Plate Loaded Linear Leg Press Machine requires assembly. It is recommended that two or more people assemble this equipment due to its size and weight. Ensure you have adequate space for assembly and operation.

3.1 Package Contents

Verify that all components are present before beginning assembly. Refer to the included parts list (not provided in this document) to confirm all pieces are accounted for.

3.2 Tools Required (Not Included)

• Adjustable Wrench
• Socket Wrench Set
• Hex Key Set

3.3 Assembly Steps (General Guidelines)

1. Unpack all components and lay them out in an organized manner.
2. Attach the main frame components, ensuring all bolts are finger-tight initially.
3. Install the linear bearing system and leg press carriage.
4. Mount the seat and backrest, adjusting for proper alignment.
5. Attach the plate storage holders and footplate.
6. Once all components are in place, securely tighten all bolts and nuts using the appropriate tools. Do not overtighten.
7. Perform a final inspection to ensure stability and proper function of all moving parts.

4. Operating Instructions

The TKO Linear Leg Press is designed for lower body strength training. Proper form and controlled movements are crucial for safety and effectiveness.

4.1 Adjusting the Seat

• The seat support features a color-coded, spring-assisted adjustment mechanism.
• Locate the adjustment lever or pin.
• Pull the lever/pin and slide the seat to your desired position. Ensure the pin fully engages in the adjustment hole before use.

4.2 Loading Weight Plates

• Load standard Olympic weight plates onto the stainless steel plate storage holders located on the carriage.
• Ensure weight is distributed evenly on both sides of the carriage.
• Always secure plates with collars (not included) to prevent them from sliding off during exercise.

4.3 Performing a Leg Press

1. Sit comfortably on the seat with your back firmly against the backrest.
2. Place your feet shoulder-width apart on the footplate, ensuring your heels are flat and your knees are aligned with your toes.
3. Release the safety stoppers.
4. Slowly extend your legs, pushing the footplate away from you. Do not lock your knees at the top of the movement.
5. Control the return movement, allowing your knees to bend until your thighs are close to your chest, or to a comfortable depth.
6. Repeat for the desired number of repetitions.
7. Upon completion, engage the safety stoppers before exiting the machine.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your leg press machine.

• Cleaning: Wipe down the frame and upholstery with a damp cloth after each use to remove sweat and dirt. Use a mild, non-abrasive cleaner if necessary.
• Inspection: Periodically check all nuts, bolts, and moving parts for tightness and wear. Tighten any loose fasteners. Inspect cables and pulleys (if applicable) for fraying or damage.
• Lubrication: Apply a silicone-based lubricant to the linear guide rods and other moving parts as needed to ensure smooth operation. Avoid petroleum-based lubricants on plastic or rubber components.
• Upholstery: Inspect the vinyl upholstery for tears or excessive wear. Repair or replace as needed to maintain hygiene and comfort.

6. Troubleshooting

This section addresses common issues you might encounter with your leg press machine.

• Squeaking or Grinding Noise:
  Check for loose bolts and tighten them. Lubricate linear guide rods and other pivot points with a silicone-based lubricant. Ensure no foreign objects are obstructing moving parts.
• Unstable Machine:
  Verify that the machine is placed on a level surface. Check and tighten all assembly bolts. Ensure all feet are making firm contact with the floor.
• Difficulty Adjusting Seat:
  Ensure the adjustment pin/lever is fully disengaged. Clean any debris from the adjustment mechanism. Lubricate the sliding mechanism if it feels stiff.
• Footplate Movement is Not Smooth:
  Inspect the linear guide rods for dirt or damage. Clean and lubricate the guide rods. Check the linear bearings for wear.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

This TKO Commercial Plate Loaded Linear Leg Press Machine comes with a 10-year limited warranty. This warranty covers manufacturing defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. Specific terms and conditions apply and are available upon request.

8.2 Customer Support

For technical assistance, parts inquiries, or warranty claims, please contact TKO customer support. Refer to the official TKO website or your purchase documentation for the most current contact information.
