Everdure Furnace 3-Burner Gas Grill User Manual

1. Introduction

The Everdure Furnace 3-Burner Gas Grill is designed for high-quality outdoor cooking, combining functionality with a stylish design. Its die-cast aluminum body ensures durability and rust resistance, while the advanced features provide an efficient grilling experience. This manual provides essential information for the safe and effective use of your grill.

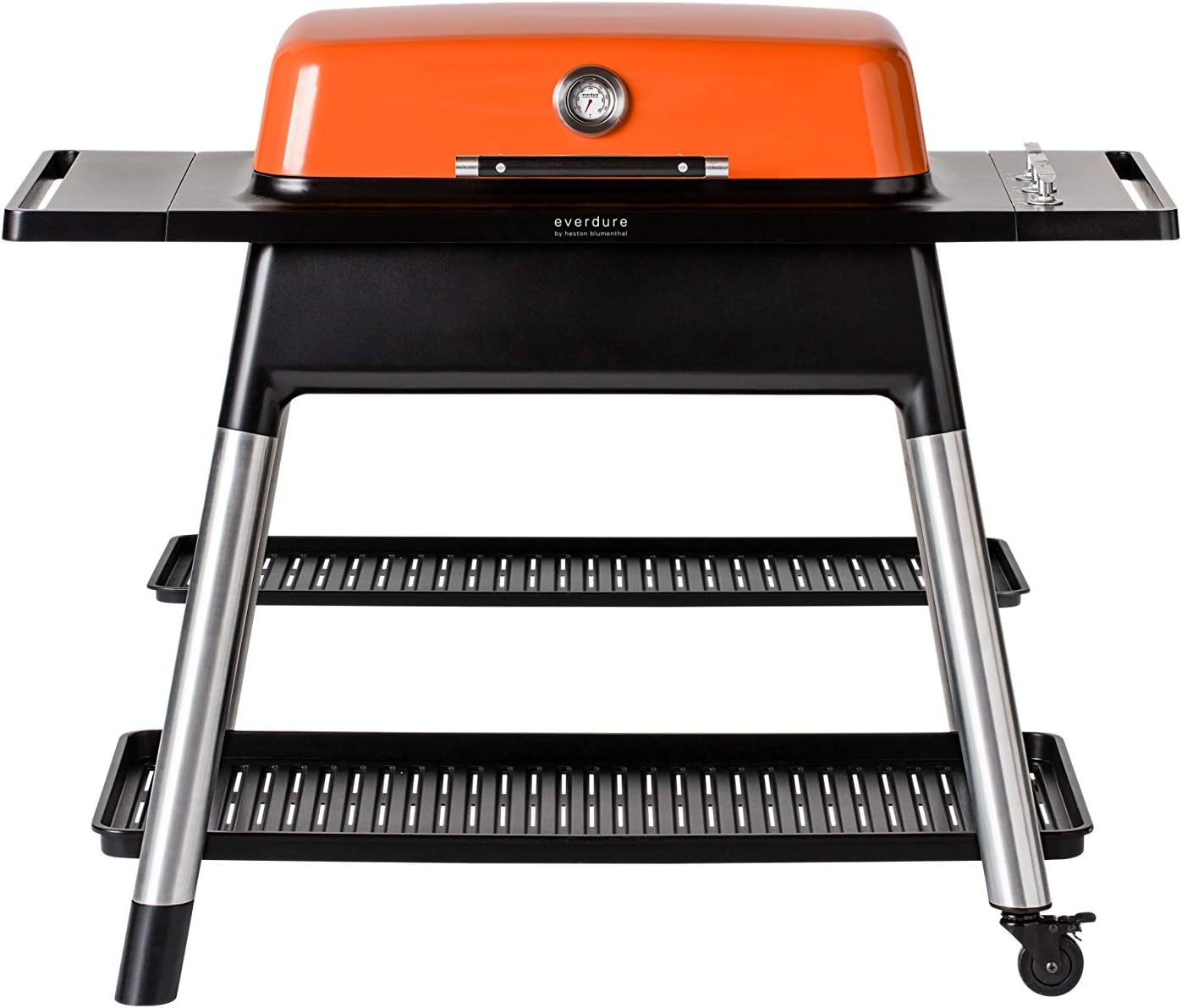

Figure 1: Everdure Furnace 3-Burner Gas Grill

This image displays the complete Everdure Furnace 3-Burner Gas Grill, showcasing its sleek orange hood, black body, and sturdy stand with two lower storage shelves. The grill features a built-in temperature gauge on the hood and control knobs on the side panel.

2. Safety Information

Always prioritize safety when operating any gas appliance. Failure to follow these instructions could result in fire, explosion, or serious injury.

• Outdoor Use Only: This grill is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
• Ventilation: Ensure adequate ventilation around the grill. Do not block any ventilation openings.
• Propane Tank: Use only approved liquid propane (LP) gas cylinders. Ensure the tank is securely connected and free of leaks before operation.
• Clearance: Maintain a safe distance from combustible materials (e.g., walls, fences, trees). Refer to local regulations for specific clearance requirements.
• Supervision: Never leave a lit grill unattended. Keep children and pets away from the grill during operation.
• Hot Surfaces: The grill surfaces become extremely hot during use. Use heat-resistant gloves and tools.
• Leak Test: Perform a leak test on all gas connections before initial use and after each tank change.

3. Components

The Everdure Furnace Gas Grill includes the following main components:

• Furnace Grill Unit (with hood and body)
• 3 Cast Iron Grill Plates
• Hose and Regulator
• 1 Gas Bottle Cover
• 1 Bottom Shelf

Figure 2: Key Features Diagram

This diagram illustrates the various components and features of the Everdure Furnace grill, including the built-in temperature gauge, interchangeable cast iron grill/flat plates, rust-proof die-cast aluminum body, 466 sq. in. cooking area, 3 chrome-plated taps with variable flame control, double storage trays, and lockable wheel castors.

4. Setup

While the Everdure Furnace grill requires no complex assembly, proper setup is crucial for safe operation.

1. Placement: Choose a level, stable surface outdoors, away from any combustible materials.
2. Propane Tank Connection: Ensure the propane tank valve is closed. Connect the regulator hose to the tank valve, tightening by hand. Do not overtighten.
3. Leak Test: Apply a soapy water solution to all gas connections. Open the propane tank valve slowly. If bubbles appear, there is a leak. Close the valve immediately and re-tighten connections. Repeat until no bubbles appear.
4. Grill Plates: Place the cast iron grill plates securely on the burner grates.
5. Adjustable Height: The grill features a detachable stand allowing for multiple height configurations. Ensure the stand is securely set for your desired cooking height.

Figure 3: Adjustable Height Configuration

This image demonstrates the Everdure Furnace grill configured on its lower, portable stand, ideal for various environments including tailgating or camping. The grill's design allows for versatile placement and use.

5. Operating Instructions

5.1. Fast Ignition Technology

The Everdure Furnace grill is designed for rapid heating, ready to cook in just 5 minutes.

1. Ensure the propane tank valve is open.
2. Turn one of the burner control knobs to the HIGH position and push it in to activate the igniter.
3. Once the burner is lit, you can ignite the other burners as needed.
4. Close the hood to allow the grill to preheat quickly. The built-in temperature gauge will indicate when the desired temperature is reached.

Figure 4: Temperature Gauge and Handle

This close-up image highlights the integrated temperature gauge on the grill's hood, which allows for precise temperature monitoring, and the sturdy handle for opening and closing the lid.

5.2. Variable Flame Control

The three independent burners offer precise control over cooking temperatures.

• Each burner has its own control knob, allowing you to create different heat zones across the grilling surface.
• Adjust the knobs from LOW to HIGH to achieve the desired heat intensity for various foods.
• For searing, preheat the grill on HIGH. For slower cooking or convection, adjust to lower settings.

Figure 5: Burner Control Knobs

This image provides a detailed view of the three independently controlled burner knobs, which allow users to precisely manage the heat across the grilling surface for versatile cooking.

5.3. Convection Cooking

The extra-high hood design facilitates convection cooking when closed, ensuring even heat distribution and enhanced flavor.

• Close the hood to trap heat and create an oven-like environment.
• Monitor the internal temperature using the built-in gauge.
• This method is ideal for roasting larger cuts of meat, poultry, or baking.

6. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your Everdure Furnace grill.

• Grill Plates: The cast-iron plates are enamel coated for easy cleaning. After each use, allow the plates to cool, then scrape off any food residue with a grill brush. Wash with warm, soapy water and dry thoroughly.
• Body and Hood: The die-cast aluminum body and hood are rust-proof and easy to clean. Wipe down exterior surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners.
• Flame Tamers: Integrated flame tamers prevent flare-ups and burner port clogging. Periodically inspect and clean them to ensure optimal performance.
• Storage: When not in use, store the grill in a dry, protected area. Consider using a grill cover to protect it from the elements.

7. Troubleshooting

Here are some common issues and their potential solutions:

If issues persist, consult a qualified technician or contact Everdure customer support.

8. Specifications

Detailed technical specifications for the Everdure Furnace 3-Burner Gas Grill:

• Brand: Everdure
• Model Name: Orange Furnace Gas Grill
• Item Model Number: HBG3OUS
• Product Dimensions: 29.25"D x 51.65"W x 56.96"H (with hood up)
• Item Weight: 84.7 Pounds
• Fuel Type: Gas (Liquid Propane)
• Main Burner Count: 3
• Heating Power: 27,000 BTUs (total)
• Cooking Surface Area: 466 Square Inches (approx. 2990 cm²)
• Material: Die-Cast Aluminum Body, Enamel Coated Cast-Iron Plates
• Color: Orange
• Special Feature: Adjustable height, Fast Ignition Technology, Variable Flame Control
• Assembly Required: No

Figure 6: Product Dimensions

This image provides a visual representation of the Everdure Furnace grill's dimensions, indicating its depth, width, and height with the hood in the open position.

9. Warranty and Support

Specific warranty details for the Everdure Furnace 3-Burner Gas Grill are not provided in this manual. For warranty information, product registration, or technical support, please visit the official Everdure website or contact their customer service department. You may also refer to the original purchase documentation for details.

For additional resources, you can refer to the official PDF user manual available at: Everdure Furnace User Manual (PDF)
