Instruction Manual

Introduction

This manual provides instructions for the VINABTY N2QAYB001013 replacement remote control. This remote is designed to function as a direct replacement for the original Panasonic N2QAYB001013 remote, offering immediate usability without complex programming.

It is compatible with various Panasonic Smart TV models, ensuring seamless control over your television's functions.

Setup: Battery Installation

To begin using your VINABTY N2QAYB001013 replacement remote control, you will need to install two new batteries (not included). No programming or pairing is required; the remote is ready for use once batteries are inserted.

1. Locate the battery compartment on the back of the remote control.
2. Slide the battery compartment cover downwards or outwards to open it.
3. Insert two new batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Slide the battery compartment cover back into place until it clicks securely.

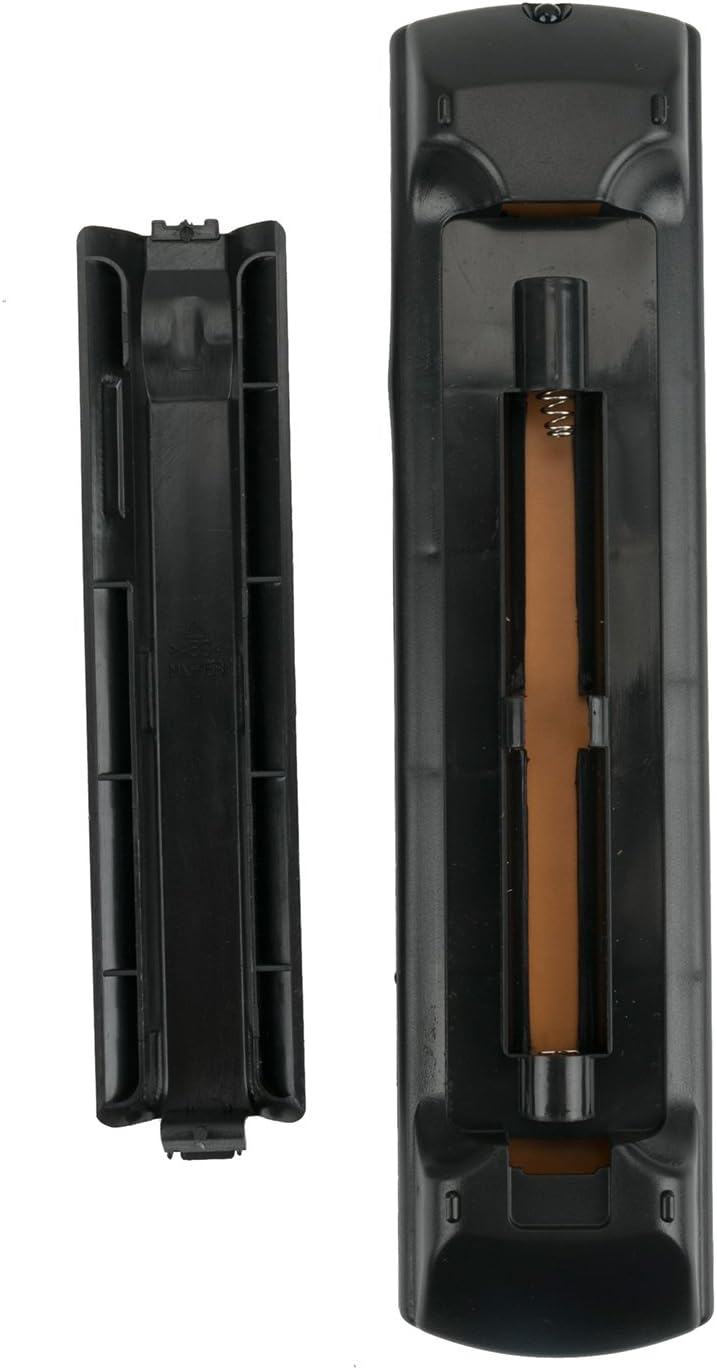

Image: Rear view of the remote control with the battery cover detached, illustrating the battery insertion area.

Operating Instructions

This replacement remote control operates identically to the original Panasonic N2QAYB001013 remote. Point the remote directly at your television's infrared receiver for optimal performance.

Key Functions:

• Power Button (●): Turns the television on or off.
• Volume Up/Down (VOL +/-): Adjusts the audio volume.
• Channel Up/Down (CH ^/v): Changes television channels.
• Mute: Silences the television audio.
• Navigation Pad (OK, Arrows): Used to navigate menus and select options.
• Netflix Button: Direct access to the Netflix application.
• Apps Button: Accesses the television's application menu.
• Home Button: Returns to the television's home screen.
• Input Button: Selects different input sources (HDMI, AV, etc.).
• Number Buttons (0-9): Direct channel selection.

Image: Front view of the remote control, highlighting the layout of all functional buttons.

Compatible TV Models:

This remote control is compatible with the following Panasonic Smart TV models:

• TC-50CX600, TC-50CX600U
• TC-55CX650, TC-55CX650U
• TC-55CX800, TC-55CX800U
• TC-55CX850, TC-55CX850U
• TC-60CX650, TC-60CX650U
• TC-60CX800, TC-60CX800U
• TC-65CX650, TC-65CX650U
• TC-65CX800, TC-65CX800U
• TC-65CX850, TC-65CX850U

Image: A user operating a television with the remote control, demonstrating typical usage.

Maintenance

Proper care will extend the life of your remote control.

• Cleaning: Use a soft, dry cloth to clean the remote's surface. Avoid using liquid cleaners or abrasive materials.
• Battery Care: Replace batteries when the remote's response becomes sluggish or inconsistent. If the remote will not be used for an extended period (e.g., one month or more), remove the batteries to prevent leakage and potential damage.
• Storage: Store the remote in a cool, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

If you experience issues with your remote control, refer to the following common solutions:

• Remote Not Responding:
  • Ensure new batteries are correctly installed with proper polarity (+/-).
  • Replace old batteries with fresh ones.
  • Check for any obstructions between the remote and the TV's infrared sensor.
  • Confirm you are within the effective operating range (up to 33 feet).
• Specific Functions Not Working:
  • Verify that your TV model is listed as compatible in this manual. Some advanced smart TV features may require the original remote or specific TV settings.
  • Ensure the TV is powered on and not in a standby mode that restricts remote input.

Specifications

Warranty Information

Specific warranty details for this VINABTY replacement remote control are typically provided by the seller at the time of purchase. Please refer to your purchase documentation or contact the retailer for information regarding warranty coverage and terms.

Customer Support

For technical assistance or inquiries regarding your VINABTY N2QAYB001013 remote control, please contact the seller or manufacturer directly. Contact information can usually be found on the product packaging or your purchase receipt.
