1. Product Overview
The REOLINK RLC-410-5MP is a 5-megapixel Power over Ethernet (PoE) IP camera designed for outdoor and indoor home surveillance. It captures videos at 30 frames per second, providing clear and smooth footage. Equipped with 18 infrared (IR) lights and 3D-DNR technology, it offers impressive night vision up to 100 feet. The camera features smart motion detection capable of distinguishing between persons and vehicles, reducing false alarms. It is built with IP66 waterproofing, ensuring durability in various weather conditions.
Video: RLC-410 - Unboxing & Easy Setup. This video provides a visual guide to unboxing the RLC-410 camera and demonstrates its straightforward setup process.
2. What's in the Box
The RLC-410-5MP camera package includes all necessary components for installation and initial setup:
- REOLINK RLC-410-5MP IP Camera
- 1-meter Network Cable
- Surveillance Sticker
- Waterproof Lid for cable connections
- Quick Start Guide
- Mounting Template
- Pack of Screws and Wall Anchors
- Wrench for adjustments
Image: What's in the Box. This image displays the RLC-410 camera along with its included accessories: a network cable, surveillance sticker, waterproof lid, quick start guide, mounting template, screws, and a wrench.
3. Setup and Installation
3.1 Power over Ethernet (PoE) Installation
The RLC-410-5MP camera utilizes Power over Ethernet (PoE) technology, simplifying installation by transmitting both data and power through a single Ethernet cable. This eliminates the need for a separate power adapter near the camera. A CAT6 or CAT7 Ethernet cable can be used for distances up to 330 feet.

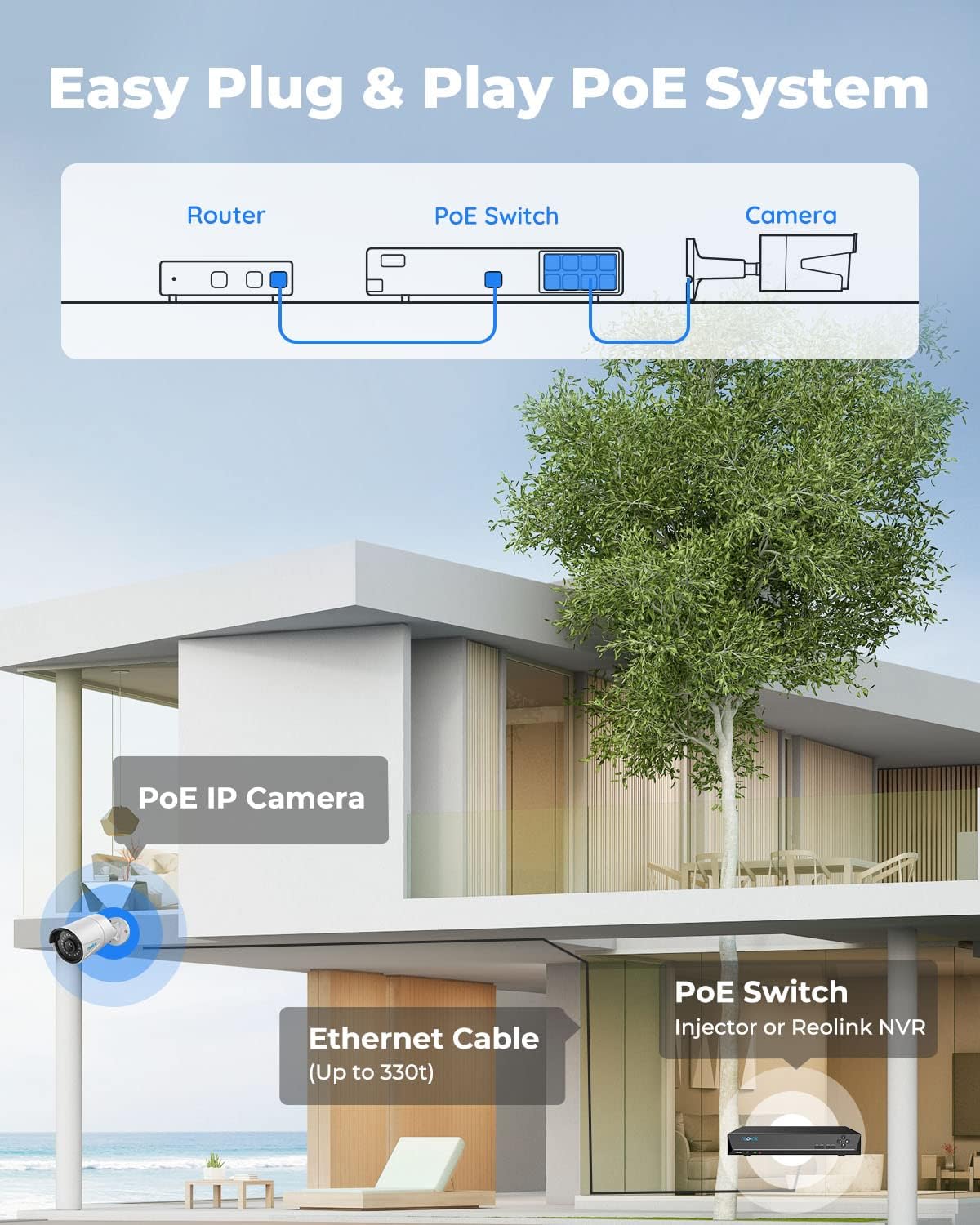

Image: Easy Plug & Play PoE System. This diagram illustrates how the RLC-410 PoE IP camera connects to a router via an Ethernet cable and a PoE switch (injector or Reolink NVR), simplifying the wiring process.
3.2 Physical Mounting
The camera is designed for flexible mounting options on walls or ceilings. It features an adjustable mount that can be positioned by loosening and tightening a lock nut. The camera's IP66 waterproof rating ensures it can withstand harsh outdoor conditions.
Image: Mount Everywhere. This image shows the RLC-410 camera mounted in different environments, including outdoor under an eave, exposed to rain, and indoors, highlighting its versatility and weather resistance across a temperature range of -10°C/14°F to 55°C/131°F.
4. Operating Instructions
4.1 5MP Super HD Video and Night Vision
The RLC-410-5MP captures exceptional 5-megapixel Super HD videos at 30 frames per second, ensuring clear and detailed footage. Its advanced 3D-DNR (Digital Noise Reduction) technology and 18 IR lights provide astounding night vision up to 100 feet, capturing stable and sharp images even in low-light conditions.
Image: Enjoy Smooth & Sharp Videos. This image compares the smoothness and sharpness of Reolink 5MP@30FPS video against other 5MP@20FPS, demonstrating the superior fluidity of the RLC-410-5MP.
Image: Superior 5MP Night Vision. This image highlights the camera's night vision capabilities, featuring 3D Digital Noise Reduction and 18 IR Lights for clear visibility up to 100ft in darkness.
4.2 Smart Motion Detection and Alerts
The camera features advanced algorithm and technology for smart person and vehicle detection, differentiating them from other objects to minimize false alarms. Users receive instant alerts via the free Reolink App (available for iOS, Android, Windows PC, and Mac) with no subscription fees. The app allows for local/remote access to live view and playback.
Video: RLC-410 5MP PoE Cam with Motion Detection & Alert. This video demonstrates the RLC-410's motion detection capabilities, showing how it triggers alerts and records events.
Image: Motion Detection Instant Alerts. This image illustrates the camera's ability to send instant alerts via email, push notifications, or FTP when motion is detected.
4.3 Recording Options
The camera supports multiple recording options, including 24/7 continuous recording or motion-detected recording. Footage can be saved to a 128GB micro SD card (not included), an FTP server, a Network Attached Storage (NAS) device, or a Reolink PoE NVR, all without extra charges or subscription fees.
Image: Control Your Cameras, Hands-Free. This image shows the camera's compatibility with Google Assistant, allowing users to control and view camera feeds using voice commands on smart home devices.
Image: Intuitive Reolink Software. This image displays the user-friendly interface of the Reolink app and desktop client, available for free on various platforms, enabling easy local and remote access to camera features.
5. Maintenance
The RLC-410-5MP camera is rated IP66 waterproof, providing robust protection against dust and water ingress, making it suitable for outdoor use in various weather conditions. Regular maintenance includes ensuring the waterproof lid for cable connections is securely fastened. Periodically clean the camera lens, especially after rain, to maintain optimal image clarity and prevent fuzzy spots in night vision footage.
6. Troubleshooting
If you encounter issues with your RLC-410-5MP camera, consider the following:
- Connectivity Issues: Ensure the Ethernet cable is securely connected to both the camera and the PoE switch/router. Verify network settings if using a custom setup.
- Fuzzy Night Vision: Clean the camera lens, especially after rain or exposure to dust, as debris can affect infrared performance.
- False Motion Alarms: Utilize the smart person/vehicle detection feature in the Reolink app to filter out unwanted motion triggers from animals or environmental factors. Adjust motion detection sensitivity settings.
- No Recording: Check if a micro SD card is properly inserted (if using local storage) and formatted. Verify recording schedules and settings in the Reolink app. Ensure sufficient storage space is available on the SD card, FTP server, NAS, or NVR.
- Resetting the Camera: If experiencing persistent issues, locate the reset button on the camera's pigtail cable to restore factory default settings.
7. Specifications
| Feature | Specification |
|---|---|
| Model Name | RLC-410 |
| Video Capture Resolution | 5MP (2560x1920) |
| Frame Rate | 30 fps |
| Night Vision Range | Up to 100 Feet (with 18 IR LEDs) |
| Water Resistance Level | IP66 (Waterproof) |
| Power Source | Power over Ethernet (PoE) |
| Connectivity Technology | Wired (Ethernet) |
| Flash Memory Installed Size | Supports up to 128GB Micro SD Card (not included) |
| Alert Type | Human, Vehicle |
| Material | Aluminum |
| Item Dimensions L x W x H | 7.72 x 4.8 x 4.13 inches |
8. Warranty and Support
The REOLINK RLC-410-5MP camera comes with a 30-day money-back guarantee and a 2-year limited warranty. For any product-related issues, users can contact REOLINK to receive lifetime technical support and firmware maintenance. REOLINK is committed to providing continuous assistance and ensuring customer satisfaction.
