Asalvo 15303 Nordic Complete Travel Cot Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and proper use, setup, and maintenance of your Asalvo 15303 Nordic Complete Travel Cot. Please read all instructions carefully before assembly and use, and retain this manual for future reference.

2. Safety Warnings

• WARNING: This product is not suitable for children under 1 month of age.
• Always ensure all locking mechanisms are securely engaged before placing a child in the cot.
• Never leave a child unattended in the travel cot.
• Do not use the travel cot if any parts are broken, torn, or missing. Contact customer support for replacement parts.
• Only use the mattress provided by the manufacturer. Do not add a second mattress, as this can cause suffocation.
• Keep the travel cot away from open flames, heaters, and other sources of strong heat.
• Ensure the area around the travel cot is clear of cords, blinds, or other items that could pose a strangulation hazard.
• Regularly check the travel cot for signs of wear or damage.

3. Product Features

• Solid and durable construction.
• Double safety lock mechanism for enhanced security.
• Equipped with 2 wheels, each featuring a brake for easy mobility and secure positioning.
• Compact folding design for convenient storage and transport.
• Includes a removable changing table and a mobile with hanging toys.
• Mesh sides for visibility and ventilation.

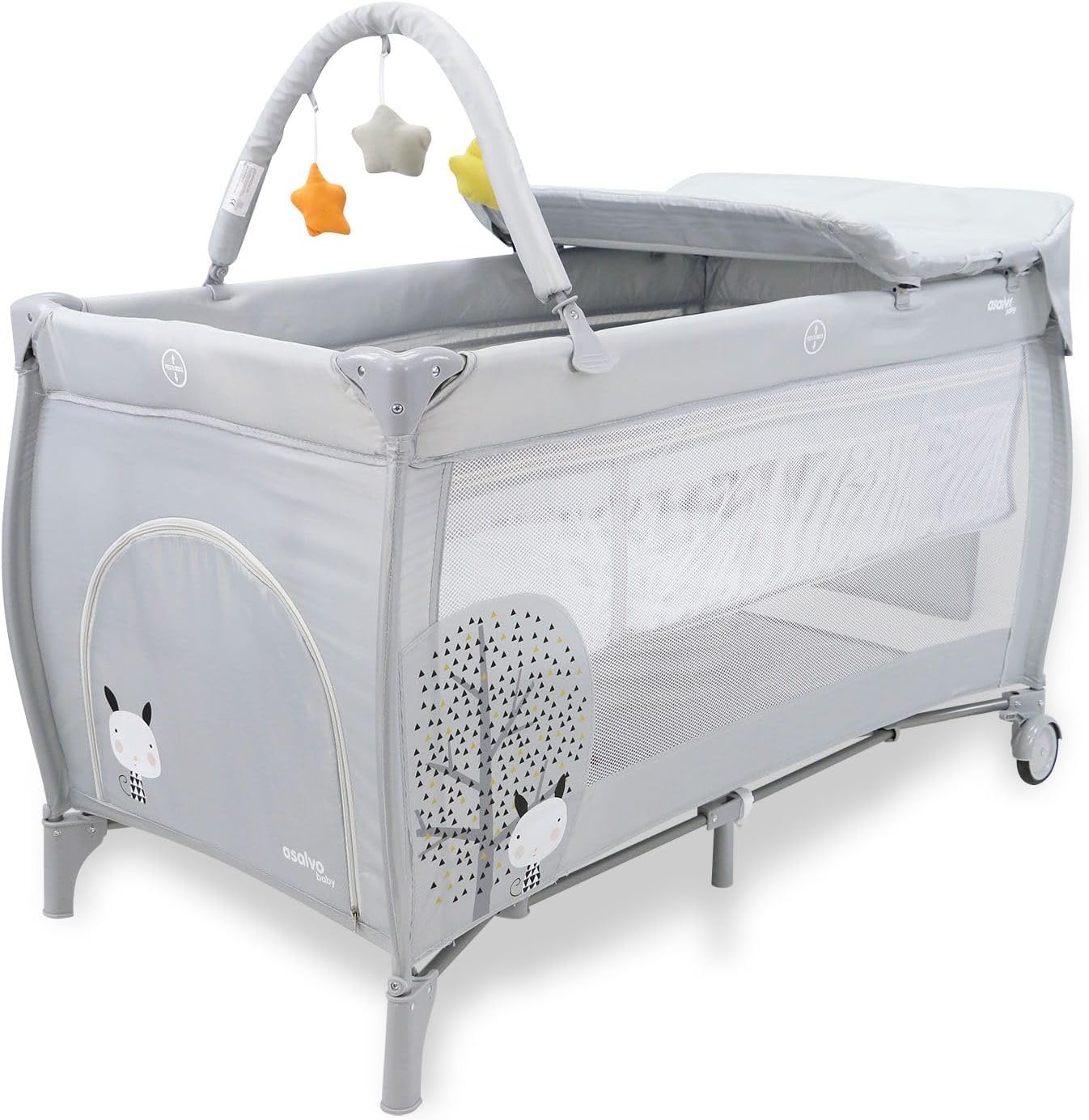

Image 3.1: The Asalvo 15303 Nordic Complete Travel Cot in its assembled state, featuring a mobile with hanging stars and a changing table attachment. The cot has mesh sides for visibility and ventilation, and a decorative animal motif on one end.

4. Setup Instructions

Follow these steps to safely set up your Asalvo 15303 Nordic Complete Travel Cot:

1. Unpack the Cot: Remove the travel cot from its carry bag. Place the cot upright on a flat, stable surface.
2. Extend the Legs: Separate the legs of the cot. The cot will initially be in a folded, compact state.
3. Lock the Side Rails: Pull the middle of each top rail upwards until it clicks into place, indicating it is locked. Ensure all four top rails are rigid and fully locked. Do not push the center of the cot floor down until all rails are locked.
4. Lower the Cot Floor: Once all top rails are locked, push the center of the cot floor downwards until it lies flat and is stable.
5. Insert the Mattress: Place the provided mattress pad firmly into the bottom of the cot.
6. Attach Accessories (Optional):
   • Changing Table: Securely attach the changing table to the top rails of the cot according to its specific attachment points. Ensure it is stable and level.
   • Mobile: Attach the mobile arm to the designated slot on the cot rail. Hang the toys securely.
7. Final Check: Before use, always double-check that all locking mechanisms are engaged and the cot is stable.

Image 4.1: The Asalvo 15303 Nordic Complete Travel Cot in its compact, folded state, ready for transport or storage. The mobile is still attached, indicating it can be folded with some accessories.

Image 4.2: The carry bag for the Asalvo 15303 Nordic Complete Travel Cot, designed for easy portability and storage of the folded cot.

5. Operating Instructions

5.1 Using the Travel Cot

Once the travel cot is fully set up and all safety locks are engaged, it is ready for use. Place your child gently into the cot. Ensure no loose bedding or toys are present that could pose a suffocation hazard.

5.2 Engaging/Disengaging Wheel Brakes

The Asalvo 15303 Travel Cot is equipped with two wheels, each with a brake mechanism.

• To Engage Brakes: Push down firmly on the lever located on each wheel until it clicks into the locked position. This will prevent the cot from moving.
• To Disengage Brakes: Lift the lever on each wheel upwards until it clicks into the unlocked position. The cot can now be moved.

Always engage the brakes when the cot is stationary and a child is inside.

5.3 Folding the Travel Cot for Storage/Transport

To fold the travel cot, reverse the setup process:

1. Remove Mattress and Accessories: Take out the mattress pad and any attached accessories like the changing table or mobile.
2. Lift Cot Floor: Pull the strap or handle in the center of the cot floor upwards until the floor begins to collapse.
3. Release Side Rails: Locate the release buttons or mechanisms on the underside or sides of the top rails. Press these mechanisms while gently pushing the middle of the rails downwards to unlock them. Repeat for all four rails.
4. Collapse the Cot: Once all rails are unlocked, bring the sides of the cot together to fully collapse it into its compact form.
5. Secure for Transport: Place the folded cot and mattress into the provided carry bag.

Image 5.1: A side view of the Asalvo 15303 Nordic Complete Travel Cot, highlighting the mesh side panel for child visibility and air circulation. The cot is equipped with wheels at one end.

6. Maintenance

6.1 Cleaning

• Fabric Parts: Clean fabric surfaces with a damp cloth and mild soap. Do not use harsh detergents or abrasive cleaners. Allow to air dry completely before folding or storing.
• Frame: Wipe the metal and plastic parts of the frame with a damp cloth.
• Mattress: The mattress pad can be wiped clean with a damp cloth and mild soap. Ensure it is thoroughly dry before reinserting into the cot.

6.2 Storage

When not in use, store the travel cot in its carry bag in a clean, dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

8. Specifications

Image 8.1: Technical drawing illustrating the assembled dimensions of the Asalvo 15303 Nordic Complete Travel Cot: 126 cm in length, 71 cm in width, and 80 cm in height.

9. Warranty and Support

For warranty information, please refer to the terms and conditions provided at the point of purchase or contact your retailer. For product support, spare parts, or any inquiries not covered in this manual, please contact Asalvo customer service through their official website or the contact information provided with your purchase.

Manufacturer: ESTAR ASALVO S.L
