1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Emtek 86162 Trail Pull. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure the longevity and optimal performance of your product.
2. Product Overview
The Emtek 86162 Trail Pull is a high-quality cabinet pull designed for durability and aesthetic appeal. Crafted from metal with a satin brass finish, this pull features an arch and bow shape, providing a comfortable grip and a classic look for various cabinetry styles. Its 3.5-inch center-to-center spacing makes it suitable for standard installations.

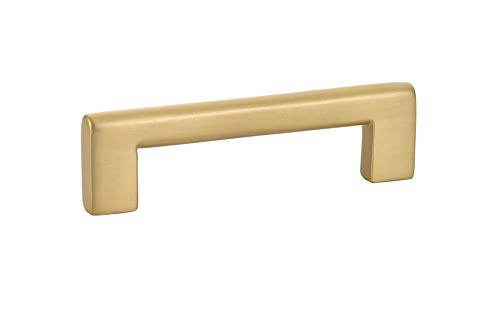

Figure 2.1: The Emtek 86162 Trail Pull, showcasing its satin brass finish and arch design.
3. Package Contents
Verify that all components are present before beginning installation. If any parts are missing or damaged, please contact Emtek customer support.
- 1 x Emtek 86162 Trail Pull (Satin Brass)
- 2 x Mounting Screws (appropriate length for standard cabinet doors/drawers)
4. Safety Information
Please observe the following safety precautions during installation and use:
- Always wear appropriate safety gear, such as safety glasses, when drilling or handling tools.
- Keep small parts, such as screws, out of reach of children to prevent choking hazards.
- Ensure the mounting surface is stable and capable of supporting the hardware.
- Do not overtighten screws, as this can damage the pull or the cabinet material.
- If using power tools, follow the manufacturer's safety guidelines for those tools.
5. Setup & Installation
5.1 Tools Required
- Measuring Tape or Ruler
- Pencil
- Drill with appropriate drill bit (typically 3/16" or 5mm, verify with screw size)
- Screwdriver (Phillips head recommended)
- Optional: Cabinet hardware jig or template for precise hole placement
5.2 Installation Steps
- Mark Hole Locations: Using a measuring tape and pencil, carefully mark the two points on your cabinet door or drawer front where the pull will be installed. Ensure the 3.5-inch center-to-center spacing is accurate. A hardware jig can assist in precise marking.
- Drill Pilot Holes: Using the appropriate drill bit, carefully drill pilot holes through the marked points. Drill slowly and steadily to prevent splintering, especially on the front surface of the cabinet.
- Position the Pull: Align the Emtek 86162 Trail Pull with the drilled holes on the front of the cabinet.
- Secure with Screws: From the inside of the cabinet door or drawer, insert the provided mounting screws through the pilot holes and into the threaded posts of the pull.
- Tighten Screws: Using a Phillips head screwdriver, gently tighten the screws until the pull is secure. Do not overtighten, as this can strip the threads or damage the cabinet material.
- Test Installation: Gently pull on the installed hardware to ensure it is firmly attached and does not wobble.
Figure 5.1: Illustrative diagram for measuring and marking 3.5-inch center-to-center holes for pull installation. (Note: Image is a placeholder for a specific diagram, using product image for demonstration).
6. Operation
The Emtek 86162 Trail Pull is designed for straightforward operation. Simply grasp the pull handle and apply gentle force to open or close your cabinet doors or drawers. Ensure that the cabinet mechanism operates smoothly without obstruction.
7. Maintenance
To maintain the appearance and functionality of your Emtek 86162 Trail Pull:
- Cleaning: Wipe the pull regularly with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or polishes, as these can damage the satin brass finish.
- Tightening: Periodically check the mounting screws for tightness. If the pull feels loose, gently tighten the screws with a screwdriver. Do not overtighten.
- Avoid Impact: Protect the pull from sharp impacts or heavy objects that could scratch or dent the finish.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pull feels loose or wobbly. | Mounting screws are loose. | Gently tighten the mounting screws from the inside of the cabinet door/drawer. |
| Pull is difficult to install. | Holes are not aligned or are too small. | Verify hole measurements and alignment. Ensure the drill bit size matches the screw diameter. Do not force the screws. |
| Finish appears dull or scratched. | Improper cleaning agents used or physical damage. | Clean only with a soft, damp cloth. Avoid abrasive materials. Minor scratches may be permanent. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Emtek |
| Model Number | 86162 |
| Material | Metal (Brass) |
| Color/Finish | Satin Brass |
| Handle Type | Pull Handle |
| Shape | Arch & Bow |
| Center-to-Center Spacing | 3.5 Inches |
| Item Weight | 4.8 ounces |
| UPC | 600139354946 |
| ASIN | B07BZVZCRL |
10. Warranty Information
Emtek products are manufactured to high standards and are backed by a limited warranty. Specific warranty terms and conditions may vary by product and region. Please refer to the official Emtek website or contact customer support for detailed warranty information regarding your Emtek 86162 Trail Pull.
11. Customer Support
If you have any questions, require assistance with installation, or need to report a missing or damaged part, please contact Emtek customer support:
- Website: Visit the official Emtek website for FAQs, product information, and contact forms.
- Phone: Refer to the Emtek website for regional customer service phone numbers.
- When contacting support, please have your product model number (86162) and purchase information readily available.
