iJDMTOY OEM-Fit 3W Full LED License Plate Light Kit Instruction Manual

1. Introduction and Overview

Thank you for choosing the iJDMTOY OEM-Fit 3W Full LED License Plate Light Kit. This product is designed to provide a significant upgrade to your vehicle's rear lighting, offering enhanced brightness and a modern aesthetic. These direct-fit replacement assemblies are engineered for seamless integration, ensuring a hassle-free installation process and reliable performance.

The kit features high-quality xenon white LED diodes that deliver superior illumination compared to traditional bulbs. With a built-in CAN-bus error-free decoder, you can be confident that your vehicle's onboard computer system will not generate any bulb-out warning messages after the upgrade. Experience improved visibility and a sleek, contemporary look for your vehicle.

2. Product Features

• Direct fit replacement for OEM license plate light assemblies.
• Equipped with super bright xenon white LED diodes.
• Integrated CAN-bus error-free decoder to prevent bulb-out warnings.
• Provides even illumination.
• Delivers triple the brightness compared to dull yellowish incandescent bulbs, OEM warm white LEDs, and most miniature replacement bulbs.
• Enhances vehicle style and improves backup visibility.
• Increases safety during nighttime driving.

3. Compatibility

This iJDMTOY LED License Plate Light Kit is compatible with the following vehicle model:

• Audi TT (8N): 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 (1st Generation TT)

Replaces OEM Part Numbers: 8N0943022A, 8N0943021A, 8N0 943 022 A, 8N0 943 021 A.

4. Package Contents

The iJDMTOY OEM-Fit 3W Full LED License Plate Light Kit typically includes:

• 2 x iJDMTOY Full LED License Plate Light Assemblies

Note: Contents may vary slightly. Please check your product packaging for exact items included.

Figure 4.1: iJDMTOY LED License Plate Light Kit showing the product and its packaging.

5. Setup and Installation

Installation of the iJDMTOY LED License Plate Light Kit is a direct replacement process. No modifications are typically required. Please follow these steps carefully:

1. Access the OEM Housing: Open your vehicle's trunk. Locate the OEM license plate light housing on the trunk liner or rear bumper. These are typically held in place by fastener clips or screws.
2. Remove OEM Housing: Carefully use a plastic pry tool (or a small flathead screwdriver wrapped in tape to prevent scratches) to gently pry out the existing OEM license plate light housing.
3. Disconnect Wiring: Once the housing is loose, disconnect the electrical connector from the incandescent bulb or the entire OEM assembly.
4. Install New LED Assembly: Connect the vehicle's electrical connector to the new iJDMTOY LED license plate light assembly. Ensure the connection is secure.
5. Test Functionality: Before fully securing the new light, turn on your vehicle's lights to verify that the new LED assembly illuminates correctly and that there are no error messages on your dashboard.
6. Secure New Assembly: Carefully clip or screw the new iJDMTOY LED license plate light assembly back into its original position in the trunk liner or rear bumper. Ensure it is flush and secure.
7. Repeat for Second Light: If your vehicle has two license plate lights, repeat the process for the other side.

For a visual guide, please refer to the installation video below:

Figure 5.2: Rear view of an Audi TT showcasing the bright illumination provided by the iJDMTOY LED license plate lights during daylight.

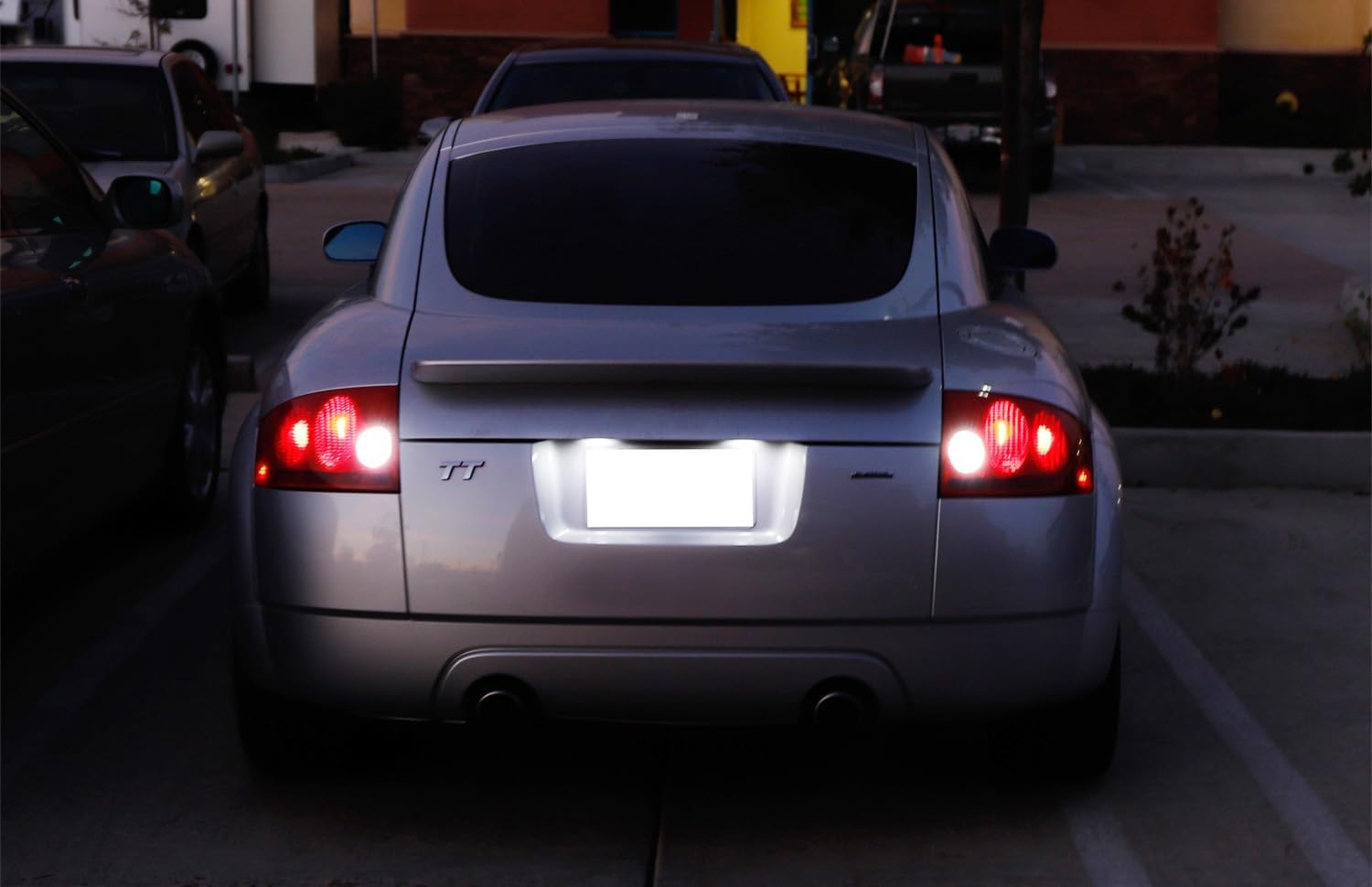

Figure 5.3: Rear view of an Audi TT demonstrating the enhanced visibility and modern look of the iJDMTOY LED license plate lights at night.

6. Operating Instructions

The iJDMTOY LED License Plate Light Kit operates automatically with your vehicle's existing lighting system. Once installed, the lights will illuminate whenever your vehicle's license plate lights are activated (e.g., when headlights or parking lights are on).

7. Maintenance

LED lights are known for their long lifespan and minimal maintenance requirements. Unlike traditional incandescent bulbs, LEDs do not have filaments that can burn out, eliminating the need for frequent bulb replacements.

• Cleaning: Periodically clean the lens of the license plate lights with a soft, damp cloth to remove dirt and debris. Avoid abrasive cleaners that could scratch the lens.
• Inspection: Occasionally inspect the lights for any physical damage or loose connections.

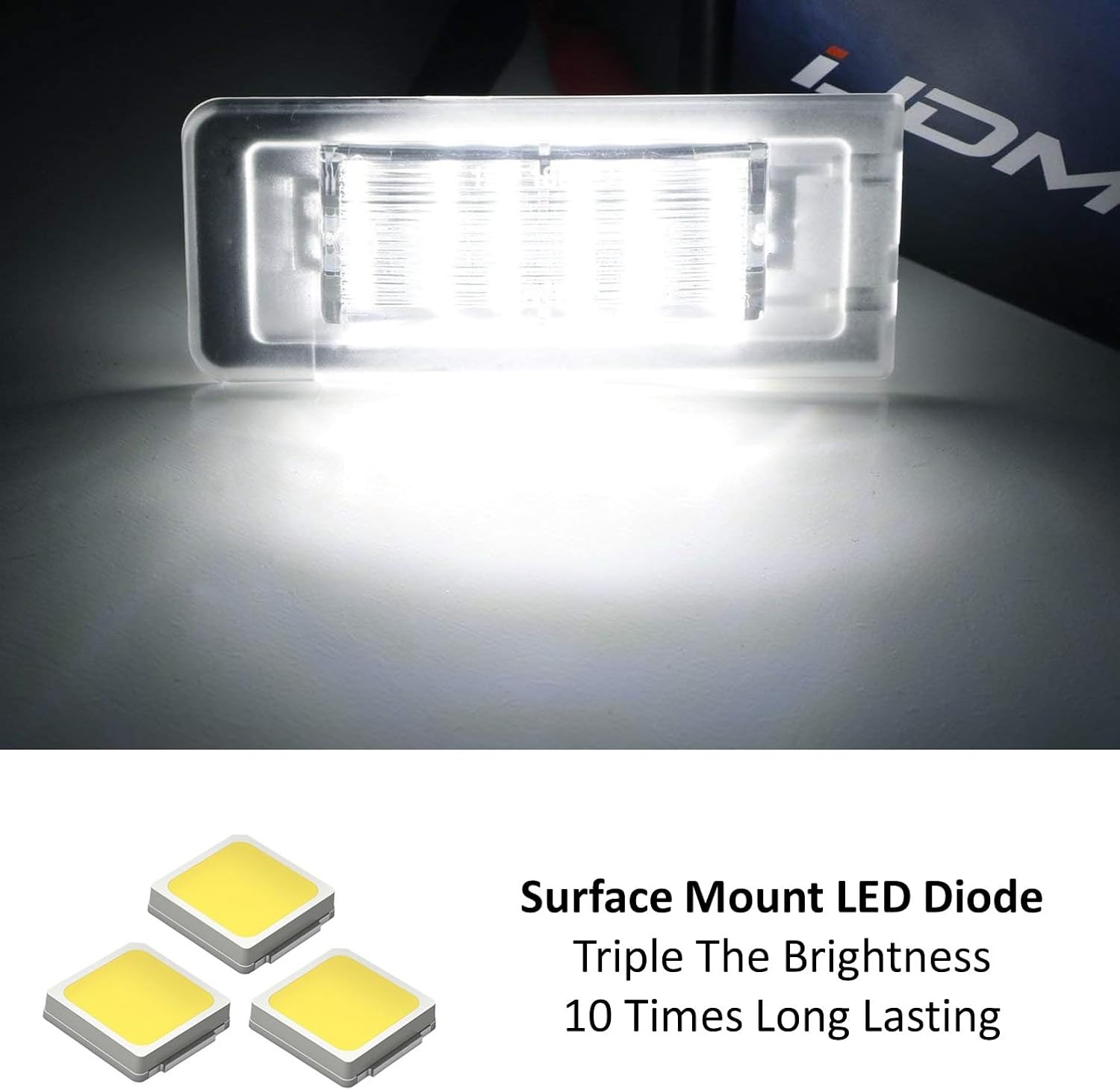

Figure 7.1: Close-up view of the iJDMTOY LED light assembly, highlighting the surface mount LED diodes that provide superior brightness and longevity.

8. Troubleshooting

While the iJDMTOY LED License Plate Light Kit is designed for reliable performance, here are some common troubleshooting tips:

• Lights Not Illuminating:
  • Ensure the electrical connector is securely plugged into the LED assembly.
  • Check your vehicle's fuse box for any blown fuses related to the license plate lights. Refer to your vehicle's owner's manual for fuse locations.
  • Verify that your vehicle's headlights or parking lights are turned on, as license plate lights typically operate in conjunction with these.
• Bulb-Out Warning on Dashboard:
  • This kit includes a built-in CAN-bus error-free decoder to prevent such warnings. If a warning appears, double-check the connection to ensure it is firm.
  • In rare cases, some vehicle systems may require a brief period to recognize the new LED load. Try turning the vehicle off and on, or disconnecting the battery for a few minutes (consult your vehicle's manual before disconnecting the battery).
• Flickering Lights:
  • Ensure all connections are tight and free from corrosion.
  • Flickering can sometimes be caused by voltage fluctuations. If persistent, consult a professional automotive electrician.

If you continue to experience issues, please contact iJDMTOY customer support for assistance.
